Monitor Controls - Back Panel - Lorex 12” B&W 4 CHANNEL OBSERVATION SYSTEM Instruction Manual

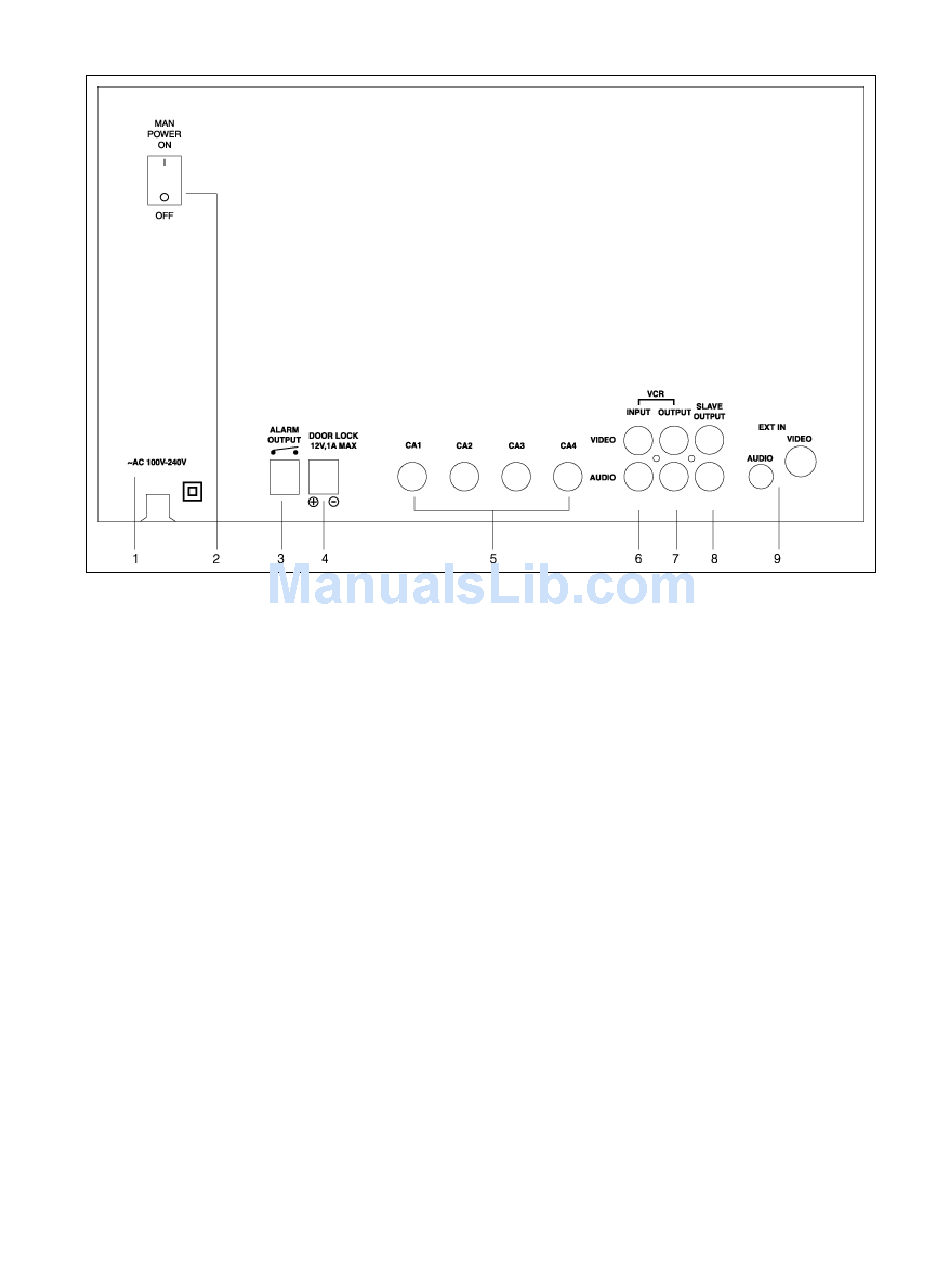

MONITOR CONTROLS - BACK PANEL

1. AC Input - This Cord is used to connect the supplied power cord from the monitor to an
electrical outlet. AC 100V ~ 240V, 50/60Hz.
2. Power Switch(main power switch) - This button controls power to the entire unit.
Depress the side with the 'I', to turn power ON. Depress the 'O' side to turn the unit OFF.
3. Alarm Output - To use the VCR, connect Alarm Output with Trigger-In & Ground of VCR.
When sensor is detected, the picture will be automatically recorded on the VCR.
4. Door Lock - Connect Door Lock to this terminal with normal wires (not supplied).
5. 6 Pin Din Camera Inputs - Channel 1-4 camera inputs (for camera switch 6 pin din camera
Inputs)
6. VCR Audio/Video In - Use with A/V cables (not supplied) to receive audio & Video from
an V.C.R
7. Audio/Video Out - Use with A/V cables (not supplied) to transmit audio & Video from
the monitor.
8. Slave Audio/Video Output – Use with A/V cables (not supplied) for use with a slave
monitor
9. Extra Audio/Video In – Connect Extra camera video signal to BNC plug and audio signal
to RCA plug.
