User Manual

Please Note: This is a pre-release user manual, some images are not correct and some specifications may
change!

Advertisement

Table of Contents
loading

Related Manuals for Elation Power Spot 700

Summary of Contents for Elation Power Spot 700

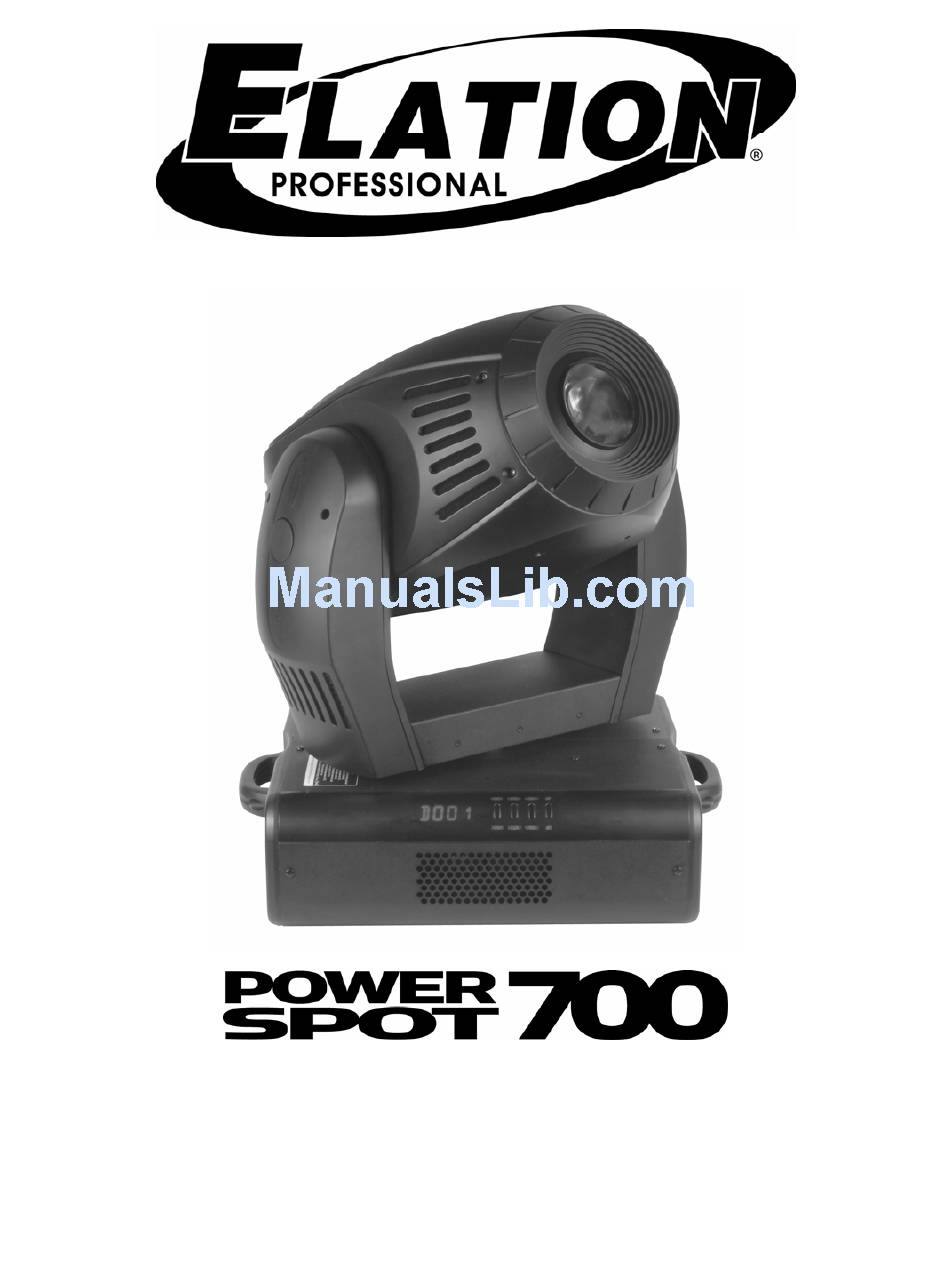

  • Page 1: User Manual

    User Manual Please Note: This is a pre-release user manual, some images are not correct and some specifications may change!
  • Page 2 Power Spot 700™ ©Elation Professionals® Los Angeles, Ca. wwww.ElationLighting.com Page...

  • Page 3: Table Of Contents

    Preparation and Installation................. 11 2.1 Mounting......................13 2.1.1 Clamps....................13 2.1.2 Mounting Plate ..................12 2.2 Rigging the Power Spot 700™ ............... 15 2.3 Connections....................15 2.3.1 Power Supply ..................13 2.3.2 DMX-512 Pin Configuration ..............13 2.4 DMX-512 ......................15 2.5 Data Cable Requirements ................
  • Page 4 Change a Gobo...................... 45 8.1.1 Safety Regulations ................45 8.1.2 Realize the Gobo Change..............45 Maintenance and Cleaning the Power Spot 700™ ..........47 9.1 Safety Regulations..................47 9.2 Circumference and Interval................47 9.3 Cleaning the Optical System ................48 10 Technical Specification ..................

  • Page 5: Introduction

    Power Spot 700™ INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The Power Spot 700™, has been designed to perform reliably for years when the guidelines in this booklet are followed.
  • Page 6 Power Spot 700™ WARRANTY REGISTRATION: The Power Spot 700™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 7: Discharge Lamp Precautions

    Power Spot 700™ Extreme caution should be used when operated this or any fixture fitted with a gas discharge lamp. Never open this fixture while in use! During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture.

  • Page 8: Safety Instructions

    2. Never touch the fixture during normal operation. This can cause severe personal injuries and/or damage to the fixture. 3. Be sure to unplug the POWER SPOT 700™ from the power outlet before performing any service related issues. 4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power before you open the POWER SPOT 700™.

  • Page 9: Fixture Layout

    Power Spot 700™ 1. FIXTURE LAYOUT 1. Moving Head 2. Carrying Handles 3. LED Menu Display 4. Head Tilt Lock 5. Omega Clamp 6. Software-Update Connector DM X IN DM X OUT 7. Microphone 1 .Groun d 2 .Data - 3 .Data +...
  • Page 10 Power Spot 700™ 1. Head Assembly – The head assembly consist of the main output lens, and either the standard or CMY control module. 2. Carrying Handle – The fixtures includes two built-in carrying handles. Be sure to always handle the fixture by the built-in carrying handles. Never lift or carry the fixture by the head or retaining arms as this could cause serious damage to the fixture and void your manufactures warranty.
  • Page 11 Power Spot 700™ 10. Internal Cooling Fan – This fixture is equipped with two high-velocity variable speed fans mounted in the base to aid in the cooling process. These fans are designed to vary their velocity at different operating temperatures. When the fixture reaches a predetermined internal operating temperature the fans function at high speeds.
  • Page 12 Power Spot 700™ 17. Down Select Button – This button is used to scroll backwards when navigating through the system menu. 18. Up Select Button - This button is used to scroll forward when navigating through the system menu. ©Elation Professionals® Los Angeles, Ca.

  • Page 13: Preparation And Installation

    2.1.1 Clamps The POWER SPOT 700™ has been designed to hold multiple clamps to the bottom of the unit in several different orientations. Always use an appropriately rated clamp to mount this unit to truss. Refer to the printed instructions on the ©Elation Professionals®...
  • Page 14 Power Spot 700™ bottom of the fixture for proper clamp installation. a) Cam lock System: This system allows a quick and efficient means to secure a clamp to the unit. To attach a clamp to the unit, attach a clamp that is rated to handle the weight of the unit to your cam lock.

  • Page 15: Connections

    Power Spot 700™ 2.2 Secure the POWER SPOT 700™ Regardless of the rigging option you choose for your POWER SPOT 700™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the underside of the fixture, be sure to use this point and never secure a safety cable to a carrying handle.

  • Page 16: Data Cable Requirements

    DMX chain. 2.4 Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The POWER SPOT 700™ can be controlled via DMX-512 protocol. The POWER SPOT 700™ is a 21 channel DMX fixture. The DMX address is set electronically using the controls on the side panel of the fixture.

  • Page 17: Fuse Requirements

    The chart below details a proper cable conversion. Fuse Requirements The POWER SPOT 700’s electronic and lamp systems are protected by two GMA (5x20mm) external fuses: Lamp: 250v/10A (120v Operation) or 250v/5A (220v Operation) Electronics: 250v/2A (120v Operation) or 250v/1A (220v Operation) The fuse requirements are clearly printed on the side of the fixture.
  • Page 18 Master for the audio program MSTR Basic position for the audio program SVPT Size for the audio program (NORM-BIG-MIDL- SIZE SMAL) Switch on/of the lamp direct at the Power Spot 700 LAMP Reset RESE Running time of the fixture (no destructible) TIME POWR...
  • Page 19 Call on the default function values DFSE Pan/Tilt feedback (error correction) On/Off FEED Correction of faults EFLG 3.1 Setting/Changing the DMX Address After applying power to the POWER SPOT 700™ the LED will display the fixture’s ©Elation Professionals® Los Angeles, Ca. wwww.ElationLighting.com Page...
  • Page 20 To set or adjust a DMX address, please follow the procedure below: 1. Switch on the POWER SPOT 700™ and wait for the fixture reset process to finished ('RESE' will flash in the LED while fixture is in reset mode).

  • Page 21: Lamp On/Off (Lamp)

    Power Spot 700™ several fixtures together at once to achieve a synchronized light show running to sound in a Master/Slave configuration. To run in a Master/Slave. Additionally you can choose a basic position for this audio chaser. Use either the internal manual mode or an external DMX controller to set the desired Pan/Tilt position.

  • Page 22: Invert Pan Movement (Rpan)

    Power Spot 700™ Fixture running time (non destructible). Total running time logged by the POWR unit. Lamp running time (erasable). Press and hold down the Up and Down LA 1 buttons together for three seconds to reset this function. Lamp running time (non destructible). Total lamp hours logged by the...

  • Page 23: Lamp On (Automatic) (Laau)

    Power Spot 700™ MANU This feature allows you to drive all the unit’s functions manually for use in an environment that requires a static position (no movements), determining focus points, or testing. Use the Up and Down buttons to select the function you wish to adjust, then use the Enter button to accept your selection.

  • Page 24: Lamp Off Via Dmx

    Power Spot 700™ This function automatically strikes lamp when main power is turned on. If you would prefer to strike the lamp through a DMX controller you must turn this function off. To toggle between “OFF” and “ON” use the Up and Down buttons.

  • Page 25: Fixture Temperature (Temp)

    Power Spot 700™ Dimmer DIMR 000 - 255 Focus FOCU 000 - 255 Zoom ZOOM 000 - 255 Frost FRST 000 - 255 Prism wheel (000 - 127) / Stop / Prism- Rotation PRIS 000 - 255 Iris IRIS 000 - 255 Lamp Off, Reset, ...

  • Page 26: Fan Control (Fans)

    Power Spot 700™ until internal temperature drops below 95˚C. Outside surface temperature should not exceed 45˚C. 3.9.7 Fan Control FANS By using this function you can choose between 4 types of fan speed operations. Use the Up and Down buttons to select the desired fan setting, then press Enter to accept your setting or press the Mode button to cancel and return to the menu.
  • Page 27 Power Spot 700™ Use the Up and Down buttons to select the function that requires calibration and press the Enter button to confirm the adjustment or the Mode button to cancel and return to the menu. Use the Up and Down buttons to set the adjustment values and confirm once more with the Enter button or use the Mode button to cancel the operation.

  • Page 28: Feedback (Feed)

    FEED 3.9.10 Feedback ”APC” FEED The POWER SPOT 700™ is equipped with ”APC,” automatic position correction. This function automatically corrects the Pan and Tilt movement should the unit lose step or is obstructed and forced to lose step. Press the Enter button to access the sub-menu.

  • Page 29: Operating Modes

    PCB, cables, etc.). Repair the defect and start the fixture again. Operation Operating Modes: The Power Spot 700™ can operate in three different modes. This next section will detail the differences in the operating modes. • Stand alone mode - The fixture will react to sound, chasing through the built-in programs.

  • Page 30: Master-Slave

    A DMX controller allows you to create unique programs tailored to your individual needs. The Power Spot 700™ uses 16 DMX channels. See page 27 for detailed description of the DMX traits.To control your fixture in DMX mode, follow the set-up procedures on pages 13-15 as well as the set-up specifications that are included with your DMX controller.
  • Page 31 Power Spot 700™ fixtures together and operate without a controller. The fixtures will be sound activated. In Master-Slave operation one fixture will act as the controlling fixture and the others will react to the controlling fixtures programs. Any fixture can act as a Master or as a Slave.

  • Page 32: Dmx Channel Selection (Dmx Protocol)

    Power Spot 700™ DMX CHANNEL SELECTION (DMX PROTOCOL) Power Spot 700 DMX Channel Selection Channel Function Time and Value 0.. 530° Min. 2.65 s 0..255 00..FF 0..100 1) PAN- Coarse 2) PAN- High- Pos ... High- Pos + 2,1° 0..255 00..FF 0..100...
  • Page 33 Power Spot 700™ Color 2, magenta (slow) 72..73 48..49 28,4 Color 2 / color 3 (slow) 74..75 4A..4 29,2 Color 3, purple (slow) 76..77 4C..4 30,0 Color 3 / color 4 (slow) 78..79 4E..4 30,8 Color 4, blue (slow) 80..81 50..51...
  • Page 34 Power Spot 700™ Color 5, yellow (fast) 20..21 14..15 Color 5 / color 6 (fast) 22..23 16..17 Color 6, minus green (fast) 24..25 18..19 Color 6 / color 7 (fast) 26..27 1A..1 10,4 Color 7, CTO (fast) 28..29 1C..1 11,2 Color 7 / color 8 (fast) 30..31...
  • Page 35 Power Spot 700™ color Audio color chaser fast Each sound impulse new color 7) Gobo 1 Gobo 1 (open, fast) Chaser from gobo 0..7 0..7 0..2,9 to gobo max. 100 (indexing) Gobo 2 (fast) 8..15 8..F 3..5,9 Gobo 3 (fast) 16..23 10..17 6..8,9...
  • Page 36 Power Spot 700™ Gobo rotation, fast-slow, CCW Max. 3.8 turns/sec. 192..25 C0..F 76..10 Audio gobo rotation, slow Each 4 sound impulse position Gobo position 0 ... 540° 9) Gobo 2 Gobo 1 (open, fast) Chaser from gobo 0..7 0..7 0..2,9 to gobo max.
  • Page 37 Power Spot 700™ Gobo position 0 ... 540° 0..127 00..7F 0..49 10) Gobo Posi./Rot Gobo rotation STOP 128..12 80..81 Gobo rotation, slow-fast, CW Min. 2,0 turns/h 130..19 82..B 51..75 Gobo rotation, fast-slow, CCW Max. 3.8 turns/sec. 192..25 C0..F 76..10 Audio gobo rotation, slow...
  • Page 38 Power Spot 700™ Gobo rotation, slow-fast, CW Min. 1.4 turns/h 192..25 C0..F 76..98 Gobo rotation, fast-slow, CCW Max. 1.0 turns/sec. Audio gobo chase, slow Each 4 sound impulse gobo Shutter closed 0..15 00..0F 0..6 Shutter Random Strobe (different 16..31 10..1F 7..11,9...
  • Page 39 Power Spot 700™ Descend with Shutter, audio 176..19 B0..B 69..74 Ascend with Shutter slow - fast 192..20 C0..C 75..81 Descend with Shutter slow - fast 208..22 D0..D 82..87 Pulse - effect slow - fast 224..23 E0..E 88..93 Ascend - descend effect slow - fast 240..25...
  • Page 40 Power Spot 700™ 0° 08..09 90° 10..11 01..01 180° 12..13 02..03 270° 14..15 04..05 0° 16..17 06..07 90° 18..19 08..09 180° 20..21 0A..0 270° 22..23 0C..0 0° 24..25 0E..0 90° 26..27 11..11 180° 28..29 12..13 270° 30..31 14..15 TILT size / 32..63...
  • Page 41 Power Spot 700™ Pan/Tilt slow – fast Pan min. 530° = 200s 16..255 10..FF 7..100 Pan max. 530° = 2.65s Tilt min. 285° = 110s Tilt max. 285° = 1.8s Lamp ON Shutter open Channel 12 240..25 F0..F 94..10 Lamp OFF (min. 3 sec.) if Channel 19 and 230..24...

  • Page 42: Lamp Change

    • Wait min. 20 minutes after the last operation to cool down the fixture. • Don’t touch the bulb of the lamp with bare fingers (this can cause damages. • Before you put the POWER SPOT 700™ into operation close the casing, otherwise your retina can be hurt! 6.2 Lamp Change...
  • Page 43 Power Spot 700™ 6.2.4 Gently remove the old lamp from it’s socket. If the old lamp has exploded be sure to remove all of the old lamp fragments to prevent damage to the internal components. 6.2.5 Replace the lamp with an approved replacement type. Be sure to follow all the lamp handleing procedures included with your new lamp.

  • Page 44: Fuse Replacement

    Power Spot 700™ Fuse Replacement Caution: Always replace with the exact same type fuse, unless otherwise specified by an authorized Elation® service technician. Replacing with anything other than the specified part can damage your unit and will void your manufactures warranty.

  • Page 45: Safety Regulations

    Power Spot 700™ Changing/Replacing Gobos The POWER SPOT 700™ is fitted with a standard size gobo wheel that accepts gobos with an outside diameter of 27mm and a viewable image size of 23mm. Glass or steel gobos may be used. Please follow the safety procedures and installation below for proper and pain gobo exchange.
  • Page 46 Power Spot 700™ Special Notice: If you use glass gobos, the non-vaporized side must be fitted towards the lamp direction. Gobo wheel 1 with rotating Gobos Gobo wheel 2 with rotating Gobos Fixed Gobo wheel ©Elation Professionals® Los Angeles, Ca.

  • Page 47: Maintenance And Cleaning The Power Spot 700

    Power Spot 700™ Maintenance and Cleaning the POWER SPOT 700™ It is absolutely essential that the fixture is kept clean and dust, dirt and smoke-fluid residues do not built-up on the surface or within the fixture. Otherwise the fixture's light output could be significantly reduced.

  • Page 48: Cleaning The Optical System

    Power Spot 700™ The above chart is a recommended cleaning schedule only. Cleaning frequency depends on the environment in which the fixture operates (I.E. smoke, fog residue, dust, dew). In clubs that observe heavier use, we recommend cleaning on a more frequent basis.

  • Page 49: Warranty

    Power Spot 700™ 2 YEAR (730 DAYS) LIMITED WARRANTY A. Elation Professionals® hereby warrants, to the original purchaser, Elation Professionals® products to be free of manufacturing defects in material and workmanship for a period of two years (730 days) from the date of purchase. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.
  • Page 50 Power Spot 700™ F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by Elation Professionals® in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above.

  • Page 51: Photometric Data

    Power Spot 700™ PHOTOMETRIC DATA ©Elation Professionals® Los Angeles, Ca. wwww.ElationLighting.com Page...

  • Page 52: Dimensions

    Power Spot 700™ 12. DIMENSIONS ©Elation Professionals® Los Angeles, Ca. wwww.ElationLighting.com Page...
  • Page 53 Power Spot 700™ Technical Specification Power supply 90 v~260v / 50 Hz ~ 60 Hz Power consumption Watt, 3.8A, electronic ballast, (blind current compensated) Lamp: 5A/250V (220v operation) or 10A/120v (120v Fuse protection operation), GMA, 5x20 mm (fine-wire fuse) Electronic: 1A/250v (220v operation) or 2A/250v (120v...
  • Page 54 Power Spot 700™ Zoom range 14° - 32° Drive Standard DMX-512, 3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1. The DMX- addressing starts at the DMX- address [001]. Pan / Tilt Pan- movement 530°...

  • Page 55: Index

    Power Spot 700™ Index Adjustments.......... 23 Injury of the retina ........7 aspheric lens .......... 40 Maintenance........... 39 Measures ..........41 BGV C1 ..........11 Blind current compensation ....13 Mounting ..........11 Calibrations........... 23 Pan- movement ........41 Power supply.......... 13 Change a Gobo ........
  • Page 56 Power Spot 700™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax www.ElationLighting.com / info@ElationLighitng.com ©Elation Professionals® Los Angeles, Ca. wwww.ElationLighting.com Page...
