Directed Electronics Valet 561T Installation Manual page 14

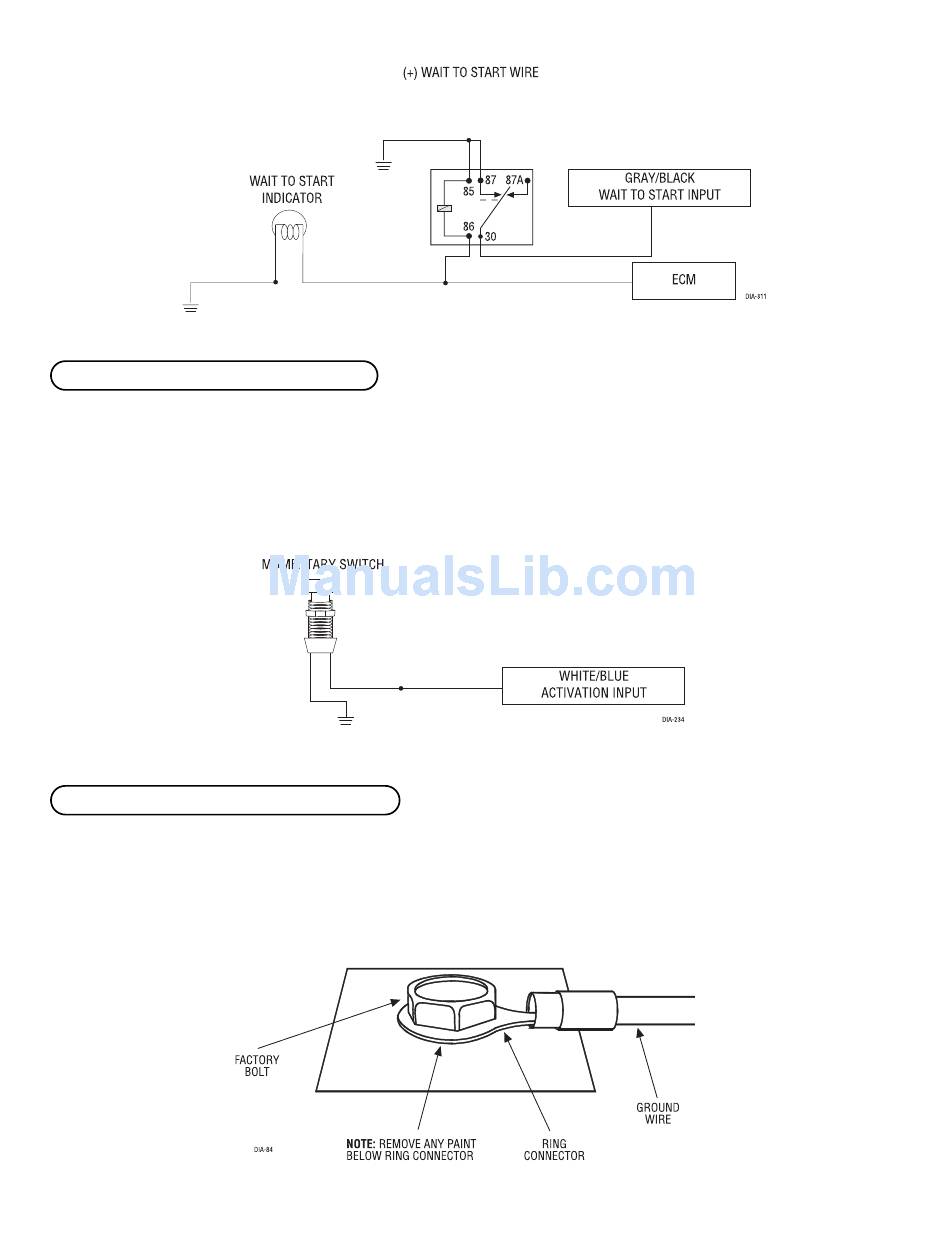

H H 1 1 / / 6 6 W W H H I I T T E E / / R R E E D D ( ( + + ) ) a a c c t t i i v v a a t t i i o o n n i i n n p p u u t t
This input comes from the factory set 2 activation pulses. This means that it is necessary to have 2 consecutive
12V pulses on the white/blue wire for the remote start to activate or to deactivate.
N N O O T T E E : : When the activation pulse count can be programmed to 1, 2, or 3 pulses.
H H 1 1 / / 8 8 B B L L A A C C K K ( ( - - ) ) c c h h a a s s s s i i s s g g r r o o u u n n d d c c o o n n n n e e c c t t i i o o n n
Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than your own screw.
(Screws tend to either strip or loosen with time.) We recommend grounding all your components to the same
point in the vehicle.
