Carrier 58CMR Product Data

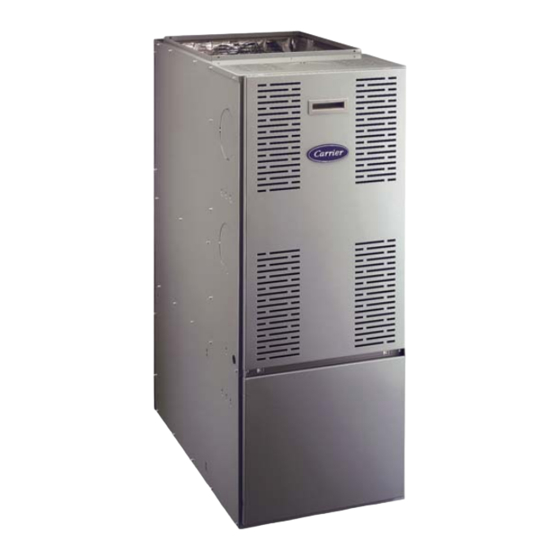

58CMR
Multipoise Oil Furnace
Input Capacities: 70,000 thru 154,000 Btuh
Series 120
THE LATEST IN OIL FURNACE
TECHNOLOGY
The model 58CMR combines high efficiency and quiet operation
with oil heating technology. The 58CMR is available in 2 sizes.
Each size can be fired at 3 different rates by a simple nozzle
change. Unit 58CMR105 covers input ranges from 70,000 to
105,000 Btuh. Unit 58CMR120 covers input ranges from
119,000 to 154,000 Btuh. The furnace design is a multipoise
style for upflow, downflow, and horizontal applications.
The components of the 58CMR are the finest in the industry. The
unit uses a Riello oil burner with a UTEC fan timer control.
The 58CMR is a standard part of a quality- -built home. This
energy- -efficient furnace will provide years of quality service to
home builders and homeowners alike.
As with other Carrier furnaces, this model is designed to work as
part of a total home comfort system which includes elements for
cooling, air cleaning, humidification, ventilation, and zoning.
Product Data

58CMR FEATURES/BENEFITS

Riello Oil Burner and UTEC Controls
S
S
Casing
S
S
Insulation and Soundproofing
S
Combustion Products Venting
S
S
S
Adjustable Blower Speed
A06625
S
Constant Low- -Speed Blower Switch
S
S
S
Combustion Chamber/Heat Exchanger
S
S
S
Certifications
S
S
1
High quality Riello oil burner allows safe and efficient
combustion of oil.
UTEC fan timer board provides reliable operation and
easy connection of thermostat and accessory wiring.
Made of 20- -gauge, powder- -painted steel for years of
durability and attractiveness.
Cabinet features a reversible door, ensuring ease of
service access even in downflow applications.
Unique silencer baffle, insulated walls and rubber
blower mounts capture most combustion noise and
vibration and make this unit one of the quietest on the
market.
Top or side flue outlet.
Unit may be vented using Type L vent material and a
factory- -built metal or masonry chimney.
Unit may also be sidewall vented with an approved
power venter.
4- -speed blower for precise airflow selection of heating
or cooling operation.
Allows continual low- -speed air circulation through the
home to maximize comfort while maintaining
efficiency.
Air is constantly filtered and stagnant air is avoided.
This option can be controlled by the homeowner.
Composed mainly of stainless and aluminized steel, the
unique combination combustion
exchanger resists corrosion,
deterioration.
Heat transfer properties make it energy efficient.
All seams are tightly welded for leak- -free operation.
58CMR unit is CSA certified.
The efficiency is GAMA efficiency- -rating certified.
chamber/heat
overheating, and
