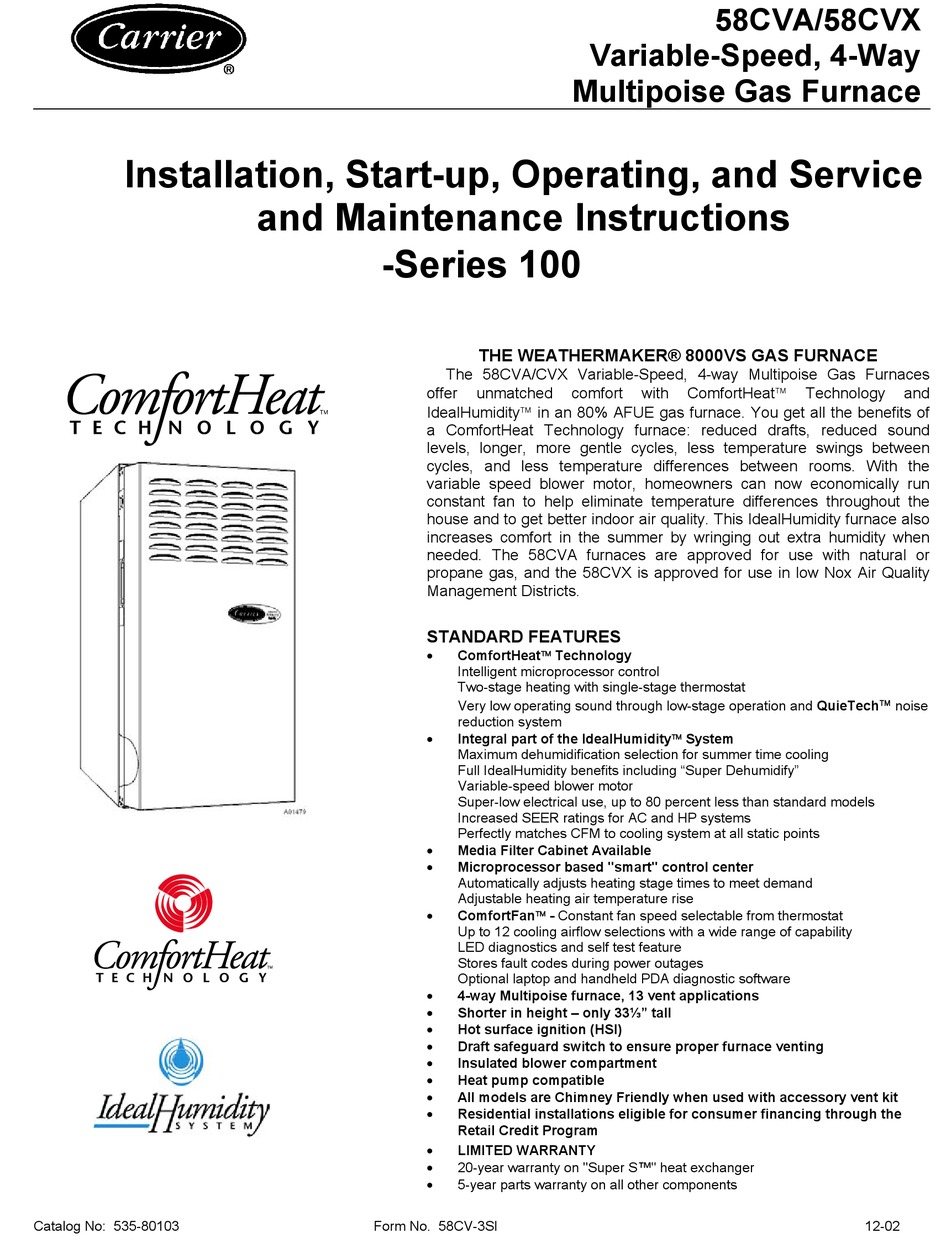

Installation, Start-up, Operating, and Service
Catalog No: 535-80103
and Maintenance Instructions
-Series 100
offer
IdealHumidity in an 80% AFUE gas furnace. You get all the benefits of
a ComfortHeat Technology furnace: reduced drafts, reduced sound
levels, longer, more gentle cycles, less temperature swings between
cycles, and less temperature differences between rooms. With the
variable speed blower motor, homeowners can now economically run
constant fan to help eliminate temperature differences throughout the
house and to get better indoor air quality. This IdealHumidity furnace also
increases comfort in the summer by wringing out extra humidity when
needed. The 58CVA furnaces are approved for use with natural or
propane gas, and the 58CVX is approved for use in low Nox Air Quality
Management Districts.
STANDARD FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Form No. 58CV-3SI
Variable-Speed, 4-Way
Multipoise Gas Furnace
THE WEATHERMAKER® 8000VS GAS FURNACE
The 58CVA/CVX Variable-Speed, 4-way Multipoise Gas Furnaces
unmatched
comfort
ComfortHeat Technology
Intelligent microprocessor control
Two-stage heating with single-stage thermostat
Very low operating sound through low-stage operation and QuieTech
reduction system
Integral part of the IdealHumidity System
Maximum dehumidification selection for summer time cooling
Full IdealHumidity benefits including "Super Dehumidify"
Variable-speed blower motor
Super-low electrical use, up to 80 percent less than standard models
Increased SEER ratings for AC and HP systems
Perfectly matches CFM to cooling system at all static points
Media Filter Cabinet Available
Microprocessor based "smart" control center
Automatically adjusts heating stage times to meet demand
Adjustable heating air temperature rise
ComfortFan - Constant fan speed selectable from thermostat
Up to 12 cooling airflow selections with a wide range of capability
LED diagnostics and self test feature
Stores fault codes during power outages
Optional laptop and handheld PDA diagnostic software
4-way Multipoise furnace, 13 vent applications
Shorter in height – only 33⅓" tall
Hot surface ignition (HSI)
Draft safeguard switch to ensure proper furnace venting
Insulated blower compartment
Heat pump compatible
All models are Chimney Friendly when used with accessory vent kit
Residential installations eligible for consumer financing through the
Retail Credit Program
LIMITED WARRANTY
20-year warranty on "Super S™" heat exchanger
5-year parts warranty on all other components
58CVA/58CVX
with
ComfortHeat
Technology
and
noise
12-02
Advertisement
Table of Contents
Related Manuals for Carrier 58CVA
Summary of Contents for Carrier 58CVA
- Page 1 This IdealHumidity furnace also increases comfort in the summer by wringing out extra humidity when needed. The 58CVA furnaces are approved for use with natural or propane gas, and the 58CVX is approved for use in low Nox Air Quality Management Districts.
-
Page 2: Table Of Contents
Variable Speed Induced-Combustion Deluxe 4-Way Multipoise Furnace Cancels: II 315A-70-1 II 315A-70-2 12-02 Installation, Start-up, Operating, and Service and Maintenance Instructions Series 100/A NOTE: Read the entire instruction manual before starting the EFFICIENCY installation. RATING CERTIFIED This symbol → indicates a change since the last issue. TABLE OF CONTENTS SAFETY CONSIDERATIONS .............2 CERTIFIED... -
Page 3: Safety Considerations
28-7/8" 25-1/4" 1-9/16" 22-9/16" AIRFLOW 2-9/16" 19" 13/16" JUNCTION BOX 13/16" LOCATION OUTLET 4-13/16" 7/8" DIA 11/16" 8-7/16" ACCESSORY 1-1/2" DIA. RIGHT HAND 1/2" DIA THERMOSTAT GAS ENTRY WIRE ENTRY 1/2" DIA. THERMOSTAT 3-15/16" WIRE ENTRY 1-7/16" LEFT HAND GAS ENTRY ALTERNATE 33-5/16"... -
Page 4: Introduction
Table 1—Dimensions (IN.) UNIT SIZE VENT CONN.* SHIP WT. (LB) 070-12/036070 14-3/16 12-9/16 12-11/16 090-16/048090 17-1/2 15-7/8 110-22/066110 19-3/8 19-1/2 135-22/066135 24-1/2 22-7/8 155-22/066155 24-1/2 22-7/8 * 5” or 6” vent connector may be required in some cases. 6. Always install furnace to operate within the furnace’s intended This special base is not required when this furnace is installed on temperature-rise range with a duct system which has an the manufacturer’s coil assembly, or when the manufacturer’s coil... - Page 5 INSTALLATION MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION DISTANCE MINIMALE EN POUCES AUX CONSTRUCTIONS COMBUSTIBLES This forced air furnace is equipped for use with This furnace is approved for UPFLOW, DOWNFLOW, and HORIZONTAL installations. natural gas at altitudes 0-10,000 ft (0-3,050m). accessory kit, supplied...
-
Page 6: Acoustical Lining And Fibrous Glass Duct
3. After touching the chassis, you may proceed to service the control or connecting wires as long as you do nothing to recharge your body with static electricity (for example; DO NOT move or shuffle your feet, do not touch ungrounded objects, etc.). -
Page 7: Location Relative To Cooling Equipment
THE BLOWER IS LOCATED BELOW THE BURNER SECTION, AND CONDITIONED AIR IS DISCHARGED UPWARD. THE BLOWER IS LOCATED TO THE RIGHT OF THE BURNER SECTION, AND AIR CONDITIONED AIR IS DISCHARGED TO THE LEFT. THE BLOWER IS THE BLOWER IS LOCATED ABOVE THE LOCATED TO THE LEFT OF THE BURNER SECTION,... -
Page 8: Unconfined Space
For example: FURNACE MINIMUM WITH INPUT (BTUH) 7–1/2 FT CEILING (SQ. FT.) 66,000 88,000 110,000 132,000 154,000 1028 If the unconfined space is constructed unusually tight, air for combustion and ventilation must come from either the outdoors or spaces freely communicating with the outdoors. Combustion and 18-IN. -
Page 9: Installation
1 SQ IN. PER 4000 DUCTS VENT THROUGH ROOF BTUH * DUCTS OUTDOORS 12 ″ MAX 12″ 12″ MAX 1 SQ IN. VENT PER 2000 THROUGH BTUH * ROOF 1 SQ IN. 1 SQ IN. DUCTS PER 1000 BTUH * IN DOOR 4000 OR WALL BTUH*... -
Page 10: Downflow Installation
Table 2–Minimum Free Area of Combustion Air Opening* AIR FROM INDOOR OUTDOOR AIR THROUGH OUTDOOR AIR THROUGH OUTDOOR AIR THROUGH UNCONFINED SPACE VERTICAL DUCTS HORIZONTAL DUCTS SINGLE DUCT FURNACE INPUT Free Area Free Area of Free Area of Free Area of Round Pipe Round Pipe Round Pipe... -
Page 11: Roll-Out Protection
FURNACE (OR COIL CASING WHEN USED) PLENUM COMBUSTIBLE OPENING FLOORING DOWNFLOW FLOOR SUBBASE OPENING SHEET METAL PLENUM FLOOR OPENING A96283 Fig. 11—Floor and Plenum Opening Dimensions A96285 Fig. 12—Furnace, Plenum, and Subbase Installed on a Combustible Floor FURNACE CD5 OR CK5 COIL ASSEMBLY OR KCAKC COIL BOX... -
Page 12: Side Return Air Inlet
Table 3—Opening Dimensions (In.) FURNACE PLENUM OPENING FLOOR OPENING CASING APPLICATION WIDTH Upflow Applications on Combustible or Noncombustible 12-11/16 21-5/8 13-5/16 22-1/4 Flooring (KGASB subbase not required) Downflow Applications on Noncombustible Flooring 12-9/16 13-3/16 19-5/8 (KGASB subbase not required) 14–3/16 Downflow applications on combustible flooring (KGASB 11-13/16 13-7/16... -
Page 13: Ductwork Acoustical Treatment
UPFLOW OWNFLOW HORIZONTAL 90˚ 90˚ PREFERRED PREFERRED PREFERRED PREFERRED PREFERRED PREFERRED 120˚ 120˚ 120˚ PERMITTED PERMITTED PERMITTED A02329 → Fig. 14—Duct Flanges " THREADED ROD 4 REQ. OUTER DOOR ASSEMBLY SECURE ANGLE IRON TO BOTTOM OF FURNACE WITH 3 #8 x "... -
Page 14: Supply Air Connections
A02014 Fig. 16—Horizontal Suspension with Straps LINE CONTACT ONLY PERMISSIBLE BETWEEN LINES FORMED BY INTERSECTIONS OF THE TOP AND TWO SIDES OF THE FURNACE JACKET AND BUILDING JOISTS, STUDS, OR FRAMING. ″ OVER ALL ″ UNDER DOOR 1″ UNDER FURNACE TYPE-B EXTEND OUT 12″... - Page 15 A02075 Fig. 18—Upflow Return Air Configurations and Restrictions A02163 Fig. 19—Downflow Return Air Configurations and Restrictions A02162 Fig. 20—Horizontal Return Air Configurations and Restrictions...
-
Page 16: Return Air Connections
supply/outlet or air conditioning coil casing (when used). When → Table 4—Maximum Capacity of Pipe* installed on combustible material, supply-air duct attachment must NOMINAL ONLY be connected to the accessory subbase, KGASB, or factory LENGTH OF PIPE (FT) IRON INTERNAL approved air conditioning coil casing. -
Page 17: Electrical Connections
SUPPLY Furnace control must be grounded for proper operation or MANUAL control will lock out. Control is grounded through SHUTOFF green/yellow wire routed to gas valve and manifold bracket VALVE (REQUIRED screw. SEDIMENT TRAP 115-V WIRING UNION Verify that the voltage, frequency, and phase correspond to that specified on unit rating plate. -
Page 18: For Bx Cable Installation
FIELD 24-VOLT WIRING FIELD 115-, 208/230-, 460-VOLT WIRING FACTORY 24-VOLT WIRING FACTORY 115-VOLT WIRING NOTE 2 1-STAGE THERMOSTAT FIVE FIELD-SUPPLIED TERMINALS WIRE FUSED DISCONNECT THREE-WIRE 208/230- OR HEATING- 460-VOLT ONLY THREE PHASE 208/230- W/W1 VOLT NOTE 1 SINGLE Y/Y2 115-VOLT FIELD- JUNCTION PHASE SUPPLIED... -
Page 19: Accessories
Step 8—Venting → The furnace shall be connected to a factory built chimney or vent complying with a recognized standard, or a masonry or concrete chimney lined with a lining material acceptable to the authority having jurisdiction. Venting into an unlined masonry chimney or concrete chimney is prohibited. - Page 20 A00276 A00277 Fig. 26—Two-Stage Furnace with Single-Speed Fig. 25—Two-Stage Furnace with Two-Speed Heat Pump (Dual Fuel) Air Conditioner A00278 Fig. 27—Two-Stage Furnace with Two-Speed Heat Pump (Dual Fuel)
- Page 21 A00281 Fig. 30—Two-Stage Thermostat with Two-Stage Furnace and Two-Speed Air Conditioner A00279 Fig. 28—Dual Fuel Thermostat with Two-Stage Furnace and Single-Speed Heat Pump A00282 Fig. 31—Single-Stage Thermostat with Two-Stage Furnace and Two-Speed Air Conditioner A00280 Fig. 29—Dual Fuel Thermostat with Two-Stage Furnace and Two-Speed Heat Pump...
- Page 22 NOTES FOR FIGURE 24-31 1. Heat pump MUST have a high pressure switch for dual fuel applications. 2. Refer to outdoor equipment Installation Instructions for additional information and setup procedure. 3. Select the “ZONE” position on the two-speed heat pump control. 4.
- Page 23 CHIMNEY INSPECTION CHART For additional requirements refer to the National Fuel Gas Code NFPA 54/ANSI Z223.1 and ANSI/NFPA 211 Chimneys, Fireplaces, Vents, and Solid Fuel Burning Appliances in the U.S.A. or to the Canadian installation Codes CSA-B149.1 in Canada. Crown Rebuild condition: crown.
-
Page 24: Masonry Chimney Requirements
than 17 percent to minimize the potential for condensation in the MASONRY CHIMNEY REQUIREMENTS venting system. These furnaces are approved for common venting and multi-story venting with other fan assisted or draft hood equipped appliances in accordance with the NFCG or the NSC- These furnaces are CSA design-certified for use in exterior NGPIC. -
Page 25: Appliance Application Requirements
Exterior Masonry Chimney having jurisdiction. The chimney should be relined with a listed metal liner, Type-B vent, or a listed chimney adapter FAN + NAT Installations with kit shall be used to reduce condensation. If a condensate Type-B Double-Wall Vent Connectors drain is required by local code, refer to the NFGC, Section 7.9 for additional information on condensate drains. - Page 26 SEE NOTES: 1,2,4,5,7,8,9 SEE NOTES: 1,2,4,7,8,9 A02058 A02061 Fig. 34—Upflow Application-Vent Elbow Up Fig. 37—Downflow Application-Vent Elbow Up SEE NOTES: 1,2,3,4,7,8,9 SEE NOTES: 1,2,4,5,6,7,8,9 A02059 A02062 Fig. 35—Upflow Application-Vent Elbow Right Fig. 38—Downflow Application-Vent Elbow Left then Up SEE NOTES: 1,2,3,4,5,7,8,9 SEE NOTES:1,2,3,4,5,7,8,9 A02060 A02297...
-
Page 27: Additional Venting Requirements
SEE NOTES: 1,2,4,7,8,9 SEE NOTES: 1,2,4,5,7,8,9 A02064 A02066 Fig. 42—Horizontal Left Application-Vent Elbow Up Fig. 40—Horizontal Left Application-Vent Elbow Left SEE NOTES: 1,2,4,5,7,8,9 SEE NOTES: 1,2,4,5,7,8,9 A02065 A02067 Fig. 41—Horizontal Left Application-Vent Elbow Right Fig. 43—Horizontal Left Application-Vent Elbow Right then Up Venting Notes for Figure 34-46 1. -
Page 28: Sidewall Venting
Caution!! For the following applications, use the minimum vertical vent sections as specified below. For all other applications, follow exclusively the National Fuel Gas Code. VENT MINIMUM FURNACE ORIENTATION VENT ORIENTATION FURNACE INPUT(BTU/HR) MINIMUM VERTICAL VENT HEIGHT (FT)** DIAMETER (IN.)* 154,000 Vent elbow left, then up Downflow... -
Page 29: Start-Up, Adjustment, And Safety Check
Table 6—Furnace Setup Switch Description SETUP SWITCH NORMAL DESCRIPTION SWITCH NO. NAME POSITION OF USE Turn ON to retrieve up to 7 stored status codes for troubleshooting SW1-1 Status Code Recovery assistance when R thermostat lead is disconnected. Allows 2-stage operation with a single stage thermostat. Turn ON when using 2 stage thermostat to allow Low Heat opera- SW1-2 Adaptive Heat Mode... -
Page 30: Adjustments
EXAMPLE: Table 7–Altitude Derate Multipler for U.S.A. 88,000 BTUH INPUT FURNACE INSTALLED AT 4300 FT. ALTITUDE PERCENT DERATE MULTIPLIER Derate Furnace Input Rate (FT) OF DERATE FACTOR* Furnace Input Rate Multiplier at Installation 0–2000 1.00 at Sea Level Factor Altitude 2001–3000 8–12 0.90... - Page 31 Table 8—Blower Off Delay Setup Switch DESIRED HEATING MODE SETUP SWITCH (SW-7 AND -8) POSITION BLOWER OFF DELAY (SEC.) SW1-7 SW1-8 d. Refer to Table 9 for cubic ft of gas per hr. LOW-FIRE ON/OFF ADJUSTMENT SWITCH e. Multiply gas rate cu ft/hr by heating value (Btu/cu ft) to ALLEN SCREW (UNDER CAP) obtain input.
- Page 32 b. Jumper R, W/W1 and W2 thermostat connections on Table 9–GAS RATE (CU FT/HR) control to run furnace in high heat. (See Fig. 32 and 51.) SIZE OF TEST DIAL SIZE OF TEST DIAL SECONDS SECONDS c. Turn high-heat adjusting screw (5/64 hex Allen wrench) FOR 1 FOR 1 counterclockwise (out) to decrease input rate or clockwise...
- Page 33 TABLE 10–Orifice Size and Manifold Pressure for Gas Input Rate(Tabulated Data Based On 22,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS ALTITUDE AVG GAS 0.58 0.60 0.62 0.64...
- Page 34 TABLE 10–(Tabulated Data Based On 22,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS AVG GAS ALTITUDE HEAT VALUE 0.58 0.60 0.62 0.64 RANGE AT ALTITUDE Orifice Manifold Orifice...
-
Page 35: Check Safety Controls
TABLE 10–(Tabulated Data Based On 22,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS AVG GAS ALTITUDE HEAT VALUE 0.58 0.60 0.62 0.64 RANGE AT ALTITUDE Orifice Manifold Orifice... - Page 36 TABLE 11–Orifice Size and Manifold Pressure for Gas Input Rate(Tabulated Data Based On 21,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS ALTITUDE AVG GAS 0.58 0.60 0.62 0.64...
- Page 37 TABLE 11–(Tabulated Data Based On 21,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS AVG GAS ALTITUDE HEAT VALUE 0.58 0.60 0.62 0.64 RANGE AT ALTITUDE Orifice Manifold Orifice...
-
Page 38: Checklist
TABLE 11–(Tabulated Data Based On 21,000 Btuh High-Heat/14,500 Btuh for Low-Heat Per Burner, Derated 4 Percent For Each 1000 Ft Above Sea Level) SPECIFIC GRAVITY OF NATURAL GAS AVG GAS ALTITUDE HEAT VALUE 0.58 0.60 0.62 0.64 RANGE AT ALTITUDE Orifice Manifold Orifice... - Page 39 SERVICE LED CODE STATUS If status code recall is needed disconnect the "R" thermostat lead, reset power, and put setup switch "SW1-1" in the ON CONTINUOUS OFF - Check for 115VAC at L1 and L2, and 24VAC at SEC-1 and SEC-2. position.
-
Page 40: Care And Maintenance
e. After component test is completed, one or more status 6. Inspect any accessories attached to the furnace such as a codes (11, 25, or 41) will flash. See component test section humidifier or electronic air cleaner. Perform any service or of service label for explanation of status codes. -
Page 41: Cleaning Heat Exchanger
The inducer and blower motors are pre-lubricated and require no a. Turn on electrical supply. additional lubrication. These motors can be identified by the absence of oil ports on each end of the motor. Clean blower motor and wheel as follows: Blower access door switch opens 115-v power to furnace 1. - Page 42 ACRDJ PRINTED CIRCIUT BOARD TRAN PL12 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 7 8 7 8 7 8 7 8 OFF OFF OFF OFF PRINTED CIRCIUT BOARD...
- Page 43 g. Flame-sensing electrode h. Flame rollout switches. 6. Remove screws that fasten the collector box assembly to the cell panel. Be careful not to damage the collector box. Inducer assembly and elbow need not be removed from collector box. 7. Disconnect gas line from gas manifold. 8.
-
Page 44: Sequence Of Operation
14. Reinstall internal vent pipe, if applicable. a. Inducer Prepurge Period -If the furnace control CPU selects low-heat operation the inducer motor IDM comes 15. Reinstall vent connector on furnace vent elbow. Securely up to speed, the low-heat pressure switch LPS closes, and fasten vent connector to vent elbow with 2 field-supplied, the furnace control CPU begins a 15-second prepurge corrosion-resistant, sheet metal screws located 180°... - Page 45 speed from low to high. The high-heat pressure switch relay Y circuit starts the outdoor unit, and the R to G-and-Y/Y2 HPSR is de-energized to close the NC contact. When circuits start the furnace blower motor BLWM on cooling sufficient pressure is available the high-heat pressure airflow.
- Page 46 Cooling Tonnage vs. Airflow (CFM) AIR CONDITIONING AIRFLOW 070 MODEL 090 MODEL 110, 135, TONS (12,000 BTU/HR) (CFM) & 155 MODELS 1-1/2 2-1/2 1050 3-1/2 1225 1400 1750 2100 X-INDICATES AN ALLOWABLE SELECTION. A/C OR CF AIRFLOW SELECTION CHART BASED ON 350 CFM/TON MODEL SIZE 1050...
-
Page 47: Wiring Diagrams
b. When the R to Y/Y2 circuit is closed, R to G circuit is off times during demand defrost cycles. Whenever W/W1 is open, and there is a demand for dehumidification, the energized along with Y1 or Y/Y2, the furnace control CPU furnace blower motor BLWM will drop the blower airflow will transition to or bring on the blower motor BLWM at to 65 percent of high-cooling airflow for a maximum of 10... - Page 53 Copyright 2002 Carrier Corporation 58cv3si Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Book 1 4 PC 101 Catalog No. See Cover Printed in U.S.A. Form 58CV-3SI Pg 52...
