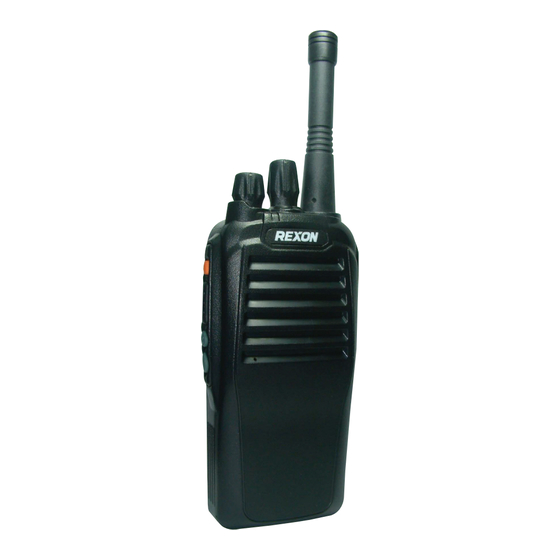

REXON RL-308 User Manual

Vhf/uhf transceiver professional portable radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

RL-308
VHF/UHF TRANSCEIVER
Professional Portable Radio
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL-308 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REXON RL-308

Summary of Contents for REXON RL-308

  • Page 1 RL-308 VHF/UHF TRANSCEIVER Professional Portable Radio User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Parts Name & Functions ��������������������������������������������������������������������������1 Fitting & Removing the Battery Pack �����������������������������������������������������2 • To Install the battery pack ������������������������������������������������������������������������������� 2 • To remove the battery pack ��������������������������������������������������������������������������� 2 Charging the Battery Pack ����������������������������������������������������������������������3 Basic Operation ���������������������������������������������������������������������������������������4 • Turn the radio On/Off & Adjust Volume ������������������������������������������������������ 4 •...

  • Page 3: Parts Name & Functions

    Parts Name & Functions Power/Volume Knob: Rotate it to turn on the transceiver and to adjust the volume. Antenna Connector: Fit the antenna to this MX type connector. Channel Selection Knob: Rotate it to select a channel or a group. LED Indicator: FRONT Speaker...

  • Page 4: Fitting & Removing The Battery Pack

    SIDE External Speaker/Mic Connector Release Buckle Battery Pack Side button A: programmable (Priority Call/ Emergency siren/ Turbo PTT) Side button B / PTT (Push To Talk) Side button C: programmable Side button D: programmable Fitting & Removing the Battery Pack ‡...

  • Page 5: Charging The Battery Pack

    Charging the Battery Pack Connect the jack of switching adaptor into the socket of the charging cradle. Plug the switching adaptor into the power outlet. Insert the radio into the cradle Charge the radio with standard charger for 4 hours; with rapid charger for 2 hours.  Make sure the radio is turned off while charging it.

  • Page 6: Basic Operation

    ‡ Channel Selection RL-308 is allowed to be programmed with 16 channels * 16 groups = 256 channels totally. To select a channel: Rotate the channel selection knob to choose the channel you want. Voice announcement for channel number indicator (programmable) will be heard.

  • Page 7: Programmable Functions

    Programmable functions Ask your dealer for programming RL-308 with the following functions. The programmable but- tons A/B/C/D can be tailored according to your need. In general, the radio will beep a “DU” sound when the programmed function is enabled (by either long press or short press). Duplicate the same procedure to disable this function, and the radio will beep a “DuDu”...
  • Page 8 19] Encryption (optional): An advance scrambler/encryption board can be plugged into RL- 308 to have a much more secure communication. 20] Bluetooth (optional): Once Bluetooth module is plugged in, RL-308 can be paired with any off-the-shelter BT headset. Page 6...

  • Page 9: Ctcss Table

    ‡ CTCSS table 67.0 97.4 135.5 192.8 165.5 71.9 141.3 203.5 171.3 74.4 103.5 146.2 210.7 177.3 77.0 107.2 151.4 218.1 183.5 79.7 110.9 156.7 225.7 189.9 82.5 114.8 162.2 233.6 196.6 85.4 118.8 167.9 241.8 199.5 88.5 123.0 173.8 250.3 206.5 91.5...
