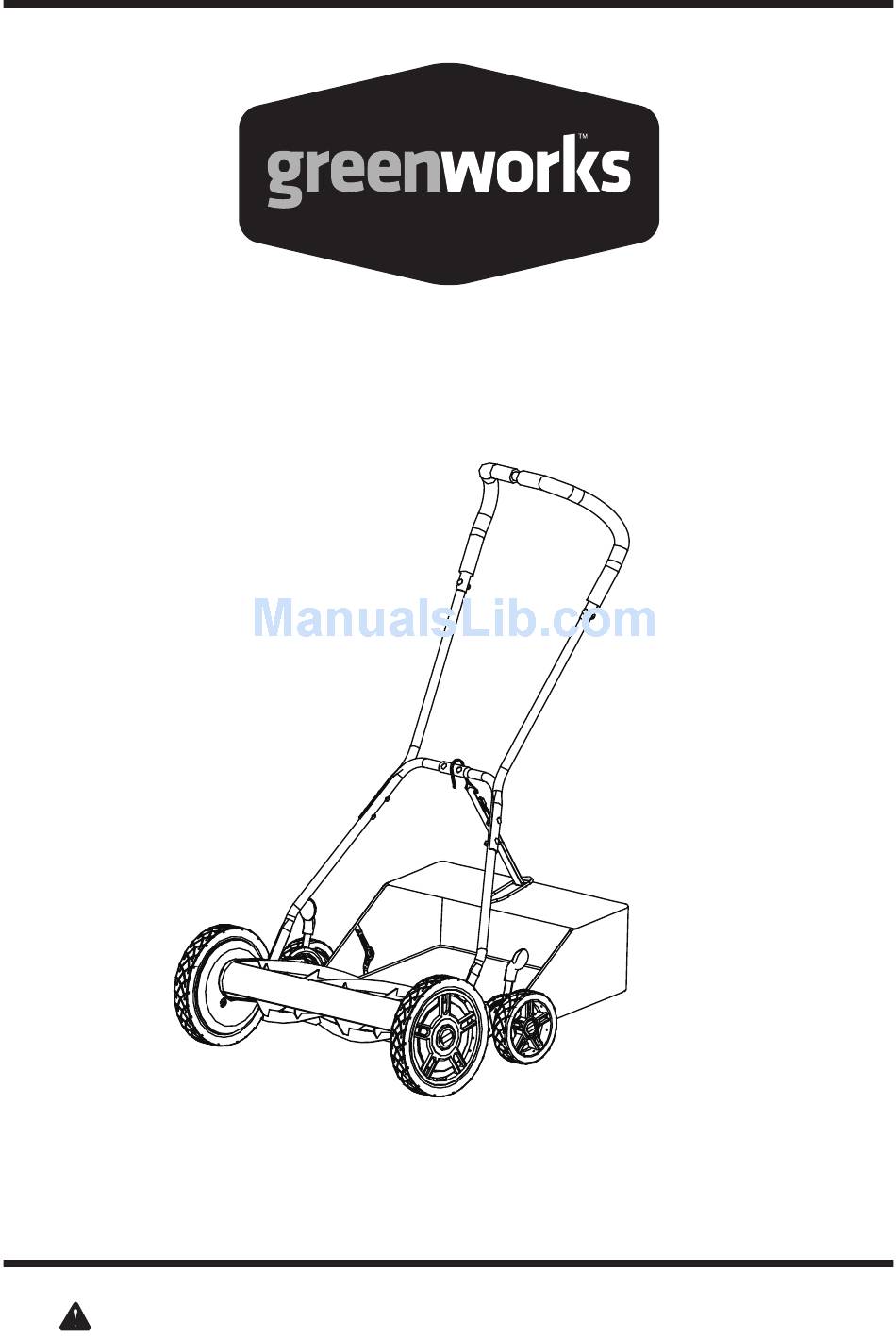

- Page 1 18" REEL MOWER 25062 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
Exploded View ........................17 Parts List........................18-19 Notes ..........................20-21 PRODUCT SPECIFICATIONS 18" REEL MOWER Model#........................25062 Cutting path ....................18” (45.7 cm) Height adjustments ..............1-3/4 - 2-3/4” (4.4-6.8 cm) Number of blades..................5 Helical blades Weight ...................... 30 lb. (13.6 kg) -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS I M P O R T A N T READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. -
Page 4: General Operation
SAFETY INFORMATION SPECIFIC SAFETY RULES FOR REEL MOWER W A R N I N G This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. - Page 5 SAFETY INFORMATION • Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass. • Mow only in daylight or in good artificial light. Do not rush a mowing job. • Stop machine if anyone enters the area. •...
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Read The Operator’s Manual To reduce the risk of injury user must read and understand operator’s manual before using this product. -
Page 7: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 8: Know Your Reel Mower
KNOW YOUR REEL MOWER Read this operator's manual and safety rules before operating your reel mower. Compare the illustration in Figure 1 to your reel mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Upper handle Middle handle Lower handle... -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTIONS UNPACKING Before attempting to assemble, empty carton and compare parts with parts list below. • Carefully remove the product and any accessories from the box. • Inspect the parts to make sure no breakage or damage occurred during shipping. •... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 11 ASSEMBLY INSTRUCTIONS ATTACHING THE HANDLE TO THE MOWER BASE (See Figure 6) Align holes (1) at the lower end of each handle arm with posts (2) extending from the mower base side plates. Slide lower ends of handle arms onto posts. Fig.
- Page 12 ASSEMBLY INSTRUCTIONS ATTACH THE REAR BAG (See Figure 7-10) • Take out all components in the packing (Fig. 7). • Push the left and right washer on rear bag bracket to inside direction to make the rear bag open. (Fig. 8). •...
-
Page 13: Operation Your Reel Mower
OPERATING YOUR REEL MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 11) • The cutting height of the mower adjusts from 1-3/4 - 2-3/4” (4.4 - 6.8 cm) with 9 positions for adjustment height by moving the height adjustment levers to the required position. •... - Page 14 OPERATING YOUR REEL MOWER MOWER BLADE ADJUSTMENT (See Figure 13) W A R N I N G BLADES ARE EXTREMELY SHARP. TO AVOID INJURY, DO NOT TOUCH BLADES WHEN MAKING ADJUSTMENTS. Blades are factory adjusted. NOTE: • Misalignment can occur, often caused by blades being too loose or too tight. This can cause an uneven cut or difficulty pushing the mower.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE • Minimum care is required to ensure smooth operation of your mower. • To avoid damage to mower or cutting blades, keep area to be mowed free from debris. • For best results, regularly apply lubricant to mower’s cutting surfaces, cutting reel axle shaft and wheels. -
Page 16: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 17: Exploded View
EXPLODED VIEW... -
Page 18: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION Support (L) Support (R) Wheel support board Cylinder-blade assy. Top push handle Middle handle Lower handle Housing assy. Cutting bar assy. N-10 Cutting bar pivot rod N-11 Roller shaft N-12 Cutting height adjustment plate N-13 Rear wheel bracket assy. - Page 19 PARTS LIST ITEM NO. PART NO. DESCRIPTION N-42 Rear wheel cover N-43 Washer N-44 Washer Ø16 N-45 C-clip N-46 Hex screw N-47 Bag assembly...
-
Page 20: Notes
NOTES... - Page 21 NOTES...
- Page 22 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (12-26-09) Printed in China on 100% Recycled Paper...
