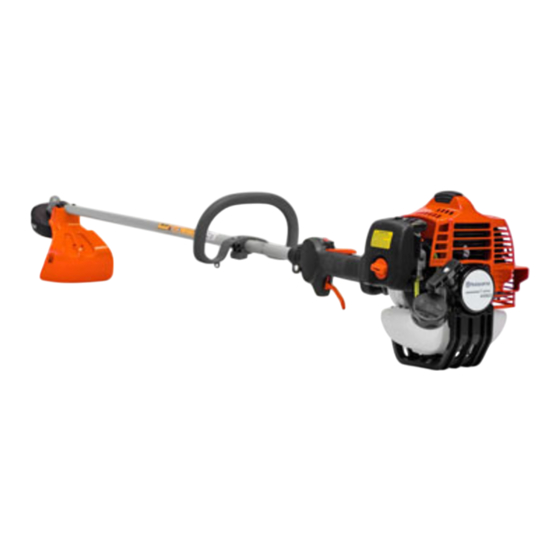

Husqvarna 426LST Operator's Manual

Husqvarna trimmer operator's manual
Hide thumbs Also See for 426LST:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Operator's manual
426LST 430LS
Please read the operator's manual carefully and make sure you understand the instructions
before using the machine.
E E E E n n n n g g g g l l l l i i i i s s s s h h h h

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 426LST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Husqvarna 426LST

Summary of Contents for Husqvarna 426LST

  • Page 1 Operator’s manual 426LST 430LS Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. E E E E n n n n g g g g l l l l i i i i s s s s h h h h...

  • Page 2: Key To Symbols

    Symbols WARNING! Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of the operator’s manual. Please read the operator’s manual carefully and make sure you understand the instructions before...

  • Page 3: Table Of Contents

    Machine′s safety equipment ... 7 Cutting equipment ... 9 ASSEMBLY Fitting the loop handle ... 10 Assembling the cutting equipment ... 10 Fitting the trimmer guard and trimmer head ... 10 FUEL HANDLING Fuel safety ... 11 Fuel ... 11 Fueling ... 12 STARTING AND STOPPING Check before starting ...

  • Page 4: Introduction

    Dear customer! Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets.

  • Page 5: What Is What

    What is what? Trimmer head Grease filler cap, bevel gear Bevel gear Cutting attachment guard Shaft Loop handle Stop switch Throttle lockout Throttle control 10 Spark plug cap and spark plug WHAT IS WHAT? 11 Cylinder cover 12 Starter handle...

  • Page 6: General Safety Precautions

    6 – English Personal protective equipment IMPORTANT! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual.

  • Page 7: Machine's Safety Equipment

    GENERAL SAFETY PRECAUTIONS CLOTHING Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.

  • Page 8: Cutting Attachment Guard

    GENERAL SAFETY PRECAUTIONS Cutting attachment guard This guard is intended to prevent loose objects from being thrown towards the operator. The guard also protects the operator from accidental contact with the cutting attachment. Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.

  • Page 9: Cutting Equipment

    • Make sure that the cutter on the trimmer guard is intact. This is used to cut the cord to the correct length. • To increase the life of the cord it can be soaked in water for a couple of days.

  • Page 10: Assembly

    10 – English ASSEMBLY Fitting the trimmer guard and trimmer head • Fit the correct trimmer guard (A) for use with the trimmer head. • Tighten the two screws. • Fit the drive disc (B) on the output shaft.

  • Page 11: Gasoline/Two-Stroke Oil

    When working at continuous high revs a higher octane rating is recommended. Two-stroke oil • For best results and performance use HUSQVARNA two-stroke engine oil, which is specially formulated for our air-cooled two stroke-engines. • Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated TCW).

  • Page 12: Fueling

    Mixing • Always mix the gasoline and oil in a clean container intended for fuel. • Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline.

  • Page 13: Starting And Stopping

    • Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked. • Never use the machine without a guard nor with a defective guard.
  • Page 14 STARTING AND STOPPING CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine. Stopping Stop the engine by switching off the ignition. 14 –...

  • Page 15: General Working Instructions

    General working instructions IMPORTANT! This section takes up the basic safety precautions for working with a trimmer. If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop.

  • Page 16: Grass Trimming With Trimmer Head

    Cutting • The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool.

  • Page 17: Maintenance

    first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,6-0,7 mm (426LST) / 0,9-1,0 mm (430LS). The spark plug should be English –...

  • Page 18: Fuel Filter

    There is a grease nipple on the gearbox. Use a grease gun to top up with grease. This should be carried out after approximately every 25 working hours. Use Husqvarna special grease. Remove the drive disc or the side bolt in the gear cae before installing new grease to arrange for old grease to exit.

  • Page 19: Maintenance Schedule

    Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked. Check that the trimmer head is undamaged and not cracked. Replace the trimmer head if necessary. Check that nuts and screws are tight.

  • Page 20: Technical Data

    Fuel and lubrication system Fuel tank capacity, US pint/litre Weight Weight without fuel, cutting attachment and guard, Lbs/kg Approved accessories Arbor shaft thread M10 Trimmer head 20 – English TECHNICAL DATA 426LST 1,55/25,4 1,34/34 1,10/28 3000 11500 5500 0,87/7500 NGK CMR7H...

  • Page 21: Federal And California Emissions Control Warranty Statement

    first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under warranty is warranted for the remainder of the period prior to the first scheduled replacement point for...
  • Page 22 EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
  • Page 23 15 cm 6" 6,0 m 10 cm 4" 3,05 m "Clic"...
  • Page 24 8,5 m 10 cm 4" 4,2 m "Clic" 15 cm 6"...
  • Page 25 4,25 m 4,25 m 15 cm 6" 15 cm 6"...
  • Page 26 T35, T35x 15 cm 6" 8,5 m 10 cm 4" 4,3 m "Clic"...
  • Page 28 1153174-95 ´®z+U1Q¶59¨ ´®z+U1Q¶59¨ 2009-11-30...
