  • Page 1 Operator’s manual 326RJ X-SERIES Please read the operator’s manual carefully and make sure you E E E E n n n n g g g g l l l l i i i i s s s s h h h h understand the instructions before using the machine.
  • Page 2: Key To Symbols

    Symbols WARNING! Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. Always wear: •...
  • Page 3: Table Of Contents

    YOUR WARRANTY RIGHTS AND OBLIGATIONS ... CONTENTS Note the following before starting: Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. Long-term exposure to noise can result in permanent hearing impairment.
  • Page 4: Introduction

    Dear customer! Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant.
  • Page 5: What Is What

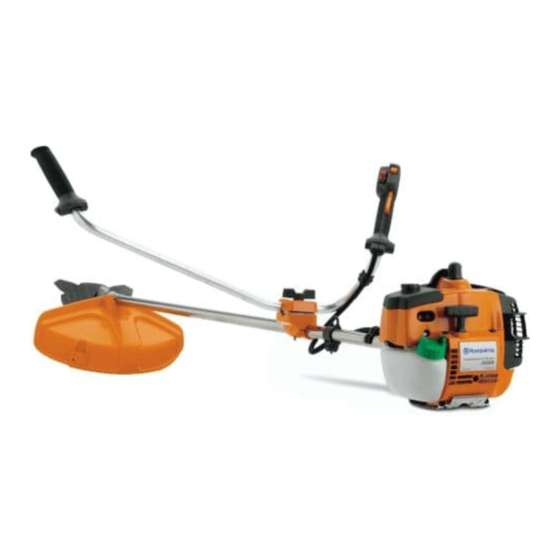

    What is what on the trimmer? 1 Trimmer head 2 Grease filler cap, bevel gear 3 Bevel gear 4 Cutting attachment guard 5 Shaft 6 Loop handle 7 Throttle control 8 Stop switch 9 Throttle lock 10 Cylinder cover 11 Starter handle 12 Fuel tank 13 Choke control 14 Air purge...
  • Page 6: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS Important IMPORTANT! The machine is only designed for trimming grass, grass clearing and/or forestry clearing. The only accessories you can operate with this engine unit are the cutting attachments we recommend in the chapter on Technical data. Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.
  • Page 7 GENERAL SAFETY PRECAUTIONS The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.
  • Page 8 GENERAL SAFETY PRECAUTIONS Vibration damping system Your machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier. Use of incorrectly wound cord or an incorrect cutting attachment increases the level of vibration. See instructions under the heading Cutting equipment.
  • Page 9: Cutting Equipment

    GENERAL SAFETY PRECAUTIONS Locking nut A locking nut is used to secure some types of cutting attachment. When fitting, tighten the nut in the opposite direction to the direction of rotation of the cutting attachment. To remove it, undo the nut in the same direction as the cutting attachment rotates.
  • Page 10: Trimmer Head

    GENERAL SAFETY PRECAUTIONS Sharpening grass cutters and grass blades • See the cutting attachment packaging for correct sharpening instructions. Sharpen blades and cutters using a single-cut flat file. • Sharpen all edges equally to maintain the balance of the blade. WARNING! Always discard a blade that is bent, twisted, cracked, broken or damaged in any other way.
  • Page 11: Assembly

    Fitting the J-handle • Clip the loop handle onto the shaft. Note that the loop handle must be fitted between the arrows on the shaft. • Slide the spacer into the slot in the loop handle. • Fit the nut, knob and screw. Do not overtighten. •...
  • Page 12: Fitting The Blade Guard/Combination Guard, Grass Blade And Grass Cutter

    Fitting the blade guard/combination guard, grass blade and grass cutter • Hook the blade guard/combination guard (A) onto the fitting on the shaft and secure with the bolt. CAUTION! Use the recommended blade guard. See the Technical data section. • Fit the drive disc (B) on the output shaft.
  • Page 13: Fuel Handling

    When working at continuous high revs a higher octane rating is recommended. Two-stroke oil • For best results and performance use HUSQVARNA two- stroke oil, which is specially formulated for our two-stroke engines. Mixture 1:50 (2%). • Never use two-stroke oil intended for water-cooled outboard engines, sometimes referred to as outboard oil.
  • Page 14: Fueling

    Mixing • Always mix the gasoline and oil in a clean container intended for fuel. • Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline. •...
  • Page 15: Starting And Stopping

    STARTING AND STOPPING Check before starting For safety reasons follow these recommendations! • Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening or that the blade has been used with dull teeth.
  • Page 16 STARTING AND STOPPING Repeat pulling the cord until the engine starts. When the engine starts. return choke control to run position and apply full throttle; the throttle will automatically disengage from the start setting. CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended.
  • Page 17: Working Techniques

    General working instructions IMPORTANT! This section describes the basic safety precautions for working with clearing saws and trimmers. If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.
  • Page 18 Working methods WARNING! Avoid cutting with the area of the blade between the 12 o’clock and 3 o’clock positions. Because of the speed of rotation of the blade kickback can occur if you attempt to cut thick stems with this area of the blade.
  • Page 19 Clearing • The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like. CAUTION! This technique increases the wear on the cord.
  • Page 20: Maintenance

    Carburetor Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions. After the engine has used 8-10 tanks of fuel the engine will be run-in. To ensure that it continues to run at peak performance and to minimise harmful exhaust emissions...
  • Page 21: Muffler

    will run smoothly in every position. The idle speed should also be well below the speed at which the cutting attachment starts to rotate. IMPORTANT! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop.
  • Page 22: Cooling System

    See instructions under the heading Oiling the air filter. Oiling the air filter Always use HUSQVARNA filter oil, art. no. 531 00 92-48. The filter oil contains a solvent to make it spread evenly through the filter. You should therefore avoid skin contact.
  • Page 23: Bevel Gear

    The grease in the bevel gear does not normally need to be changed except if repairs are carried out. CAUTION! Use only HUSQVARNA replacement parts. Use of other brands of replacement parts can cause damage to your unit or injury to the operator or others. Your warranty does not cover damage or liability caused by the use of accessories and/or attachments not specifically...
  • Page 24: Maintenance Schedule

    Maintenance schedule The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. The user must only carry out the maintenance and service work described in this manual. More extensive work must be carried out by an authorised service workshop.
  • Page 25: Technical Data

    Technical data Engine Cylinder displacement, cu.in/cm Cylinder bore, inch/mm Stroke, inch/mm Idle speed, rpm Recommended max. fast idle speed, rpm Speed of output shaft, rpm Max. engine output, acc. to ISO 8893 Catalytic converter muffler Speed-regulated ignition system Ignition system Manufacturer/type of ignition system Spark plug Electrode gap, inch/mm...
  • Page 26: Federal Emission Control Warranty Statement

    The warranty period begins on the date small nonroad engine is delivered. LENGTH OF COVERAGE Husqvarna Forest & Garden warrants to the initial owner and each subsequent purchaser that the engine is free from defects in materials and workmanship which cause the failure of a warranted part for a period of two years.
  • Page 27 Super Auto II Super Auto II 1 " 4,0 m 15 cm ~2,0 m 6 " 6,5 ' 15 cm 6 "...
  • Page 29 Trimmy H II 15 cm 6" 7,5 m ~ 3,7 m 15 cm 6"...
  • Page 30 Trimmy Hit “Click” ~ 15 cm " 15 cm 6 " 7,0 m ~ 3,5 m 12 cm 5" “Click”...
  • Page 31 Trimmy Hit Pro 15 cm 6" “Click” 7,5 m ~ 3,7 m 15 cm 6" 15 cm 6"...
  • Page 32 8,5 m 10 cm 4" 4,2 m "Clic" 15 cm 6"...
  • Page 33 4,25 m 4,25 m 15 cm 6" 15 cm 6"...
  • Page 34 15 cm 6" ´®z+HA3¶5o¨ ´®z+HA3¶5o¨ 8,5 m 10 cm 4" 4,3 m "Clic"...
  • Page 36 1140331-95 ´®z+HA3¶5o¨ ´®z+HA3¶5o¨ 2005-07-11...
