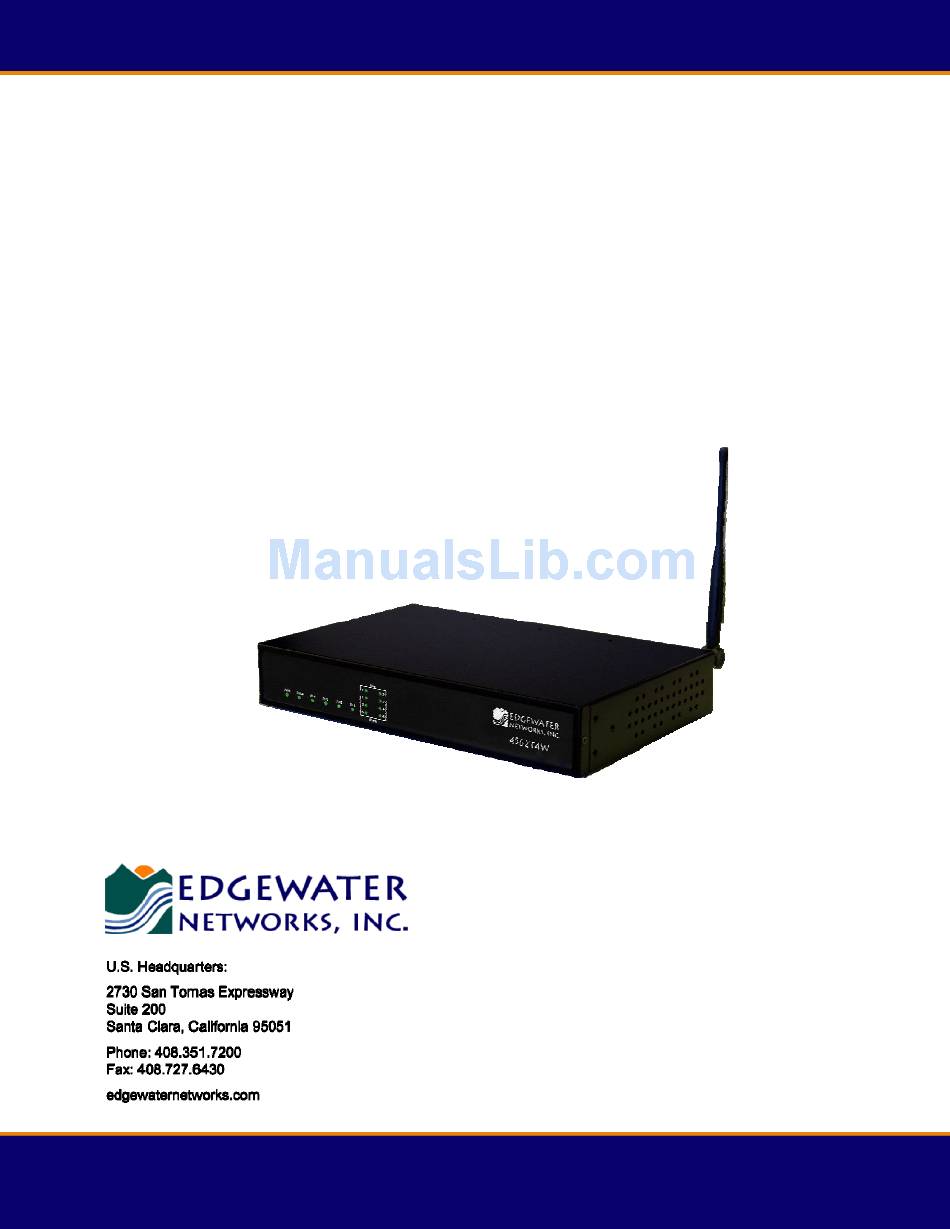

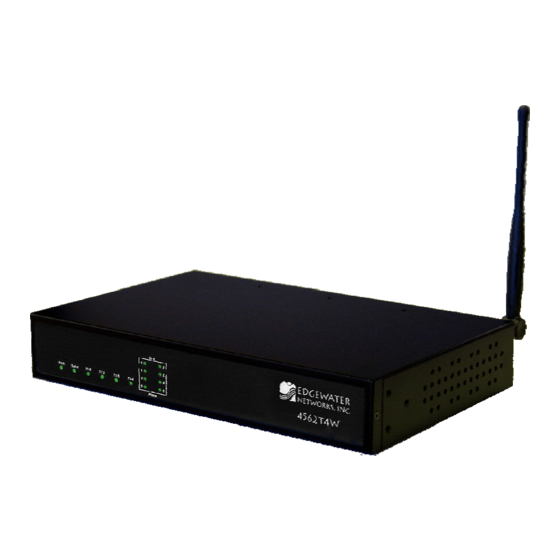

- Page 1 4562 Converged Networking Router Quick Start Guide Version 1.0 Page 1 of 7 200-4562-001...
-
Page 2: Before You Start
Additional configuration needed to deploy the device in a specific environment can be performed with the help of online help. This guide also provides an example of a typical 4562 deployment that can be used as a guideline for your installation. -
Page 3: Step 1 − Connecting The Cables
Step 1 − Connecting the Cables 1. Connect one end of an Ethernet cable to local LAN port 4 of 4562. This port can be seen in the area “B” of the above diagram. Connect the other end of the cable to your computer’s Ethernet port. - Page 4 AWG or larger wire such as 24, 22, 20, etc. 4. Skip to step 8. 5. Connect an Ethernet cable between the Ethernet WAN port of 4562, shown in the above diagram as “D,” and the Ethernet port on a router or a modem.
- Page 5 Step 2 − Configuring the EdgeMarc 1. The EdgeMarc device comes preconfigured with 192.168.1.1 local LAN address with a subnet mask of 255.255.255.0. So configure your computers Ethernet adapter’s IP address to any address other than 192.168.1.1 in the same subnet mask, for example 192.168.1.10.
-
Page 6: Step 3 − Plan Your Configuration
Step 3 − Plan Your Configuration The EdgeMarc 4562 can be deployed as a gateway router in a network. It can also be deployed in a network behind an existing firewall. Based on your deployment criteria, consult the following documents for further configuration: •... - Page 7 The web page configurations for the various 4562 deployments are shown below. The two darker- shaded rows indicate the minimum configuration required for each deployment. 4562 4562 as 4562 within existing 4562 behind an existing GUI Configuration Gateway infrastructure firewall...
