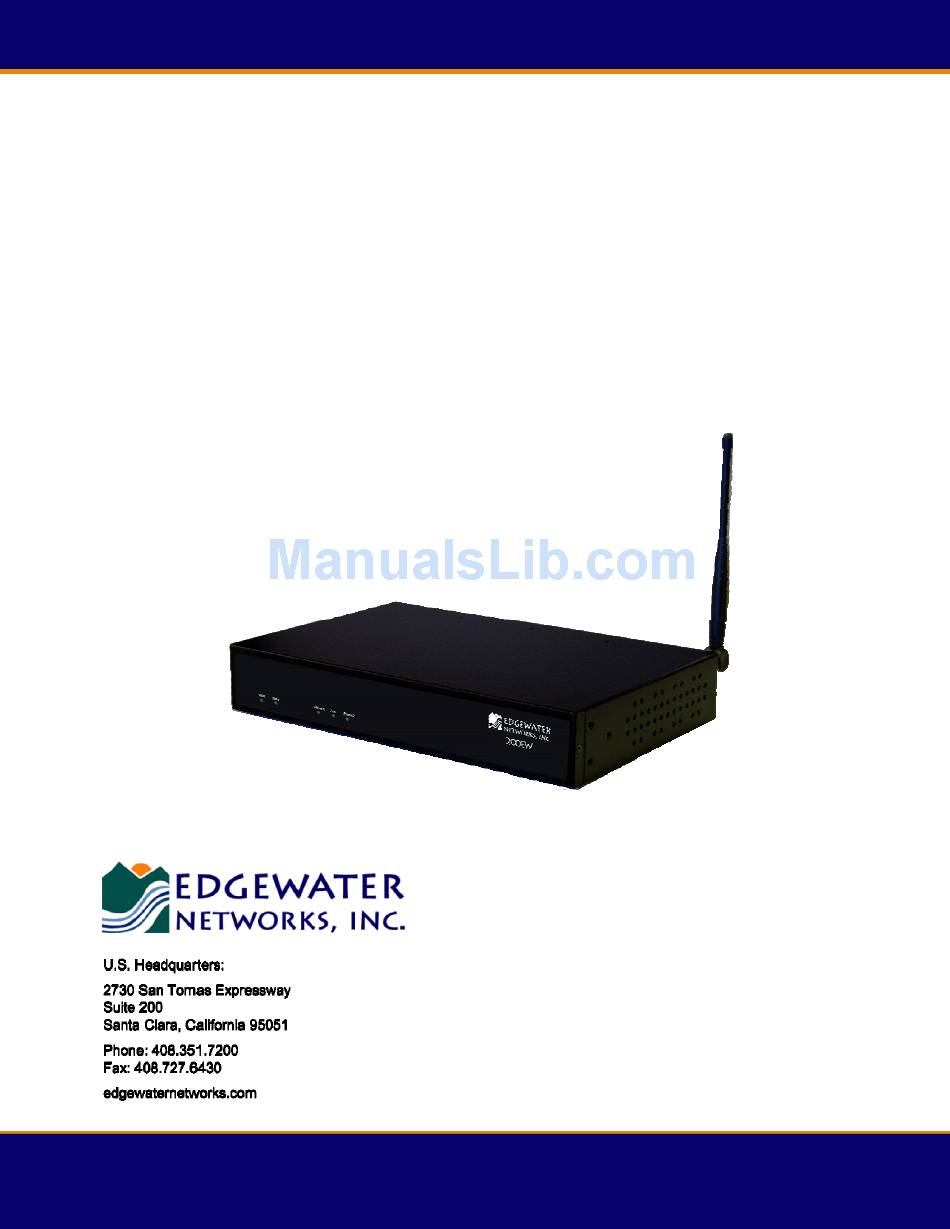

- Page 1 200EW/E Converged Networking Router Quick Start Guide Version 1.0 200-4562-001...
-
Page 2: Before You Start
Refer to online help for assistance when deploying and configuring the device in a specific environment. This guide also provides an example of a typical 200EW/E deployment that can be used as a guideline for your installation. Requirements for Installation •... - Page 3 Step 1 − Connecting the Cables 1. Connect one end of an Ethernet cable to local LAN port 4 of 200EW/E denoted by “C” in the above diagram. Connect the other end of the cable to your computer’s Ethernet port.
- Page 4 Page 3 of 7...
- Page 5 Step 2 − Configuring the EdgeMarc 1. The EdgeMarc device comes preconfigured with 192.168.1.1 local LAN address with a subnet mask of 255.255.255.0. Configure your computers Ethernet adapter’s IP address to any address other than 192.168.1.1 in the same subnet mask, for example 192.168.1.10.
-
Page 6: Helpful Hints
Step 3 − Plan Your Configuration The EdgeMarc 200EW/E can be deployed as a gateway router in a network. It can also be deployed in a network behind an existing firewall. Based on your deployment criteria, consult the following documents for further configuration: •... - Page 7 The web page configurations for the various 200EW/E deployments are shown below. The two darker- shaded rows indicate the minimum configuration required for each deployment. 200EW/E GUI 200EW/E as 200EW/E within 200EW/E behind an Configuration Gateway existing infrastructure existing firewall...
