T
ROUBLESHOOTING
Status/Diagnostic LEDs
The following front-panel LEDs aid in testing the hub and diag-
nosing network problems:
• One green Power LED
• One bi-color NMM Status LED
• One yellow Collision LED for each segment
• One yellow Segment LED for each segment
(Bi-color for Models 3312TA and 3326TA)
• One bi-color Port Status LED for each port
38

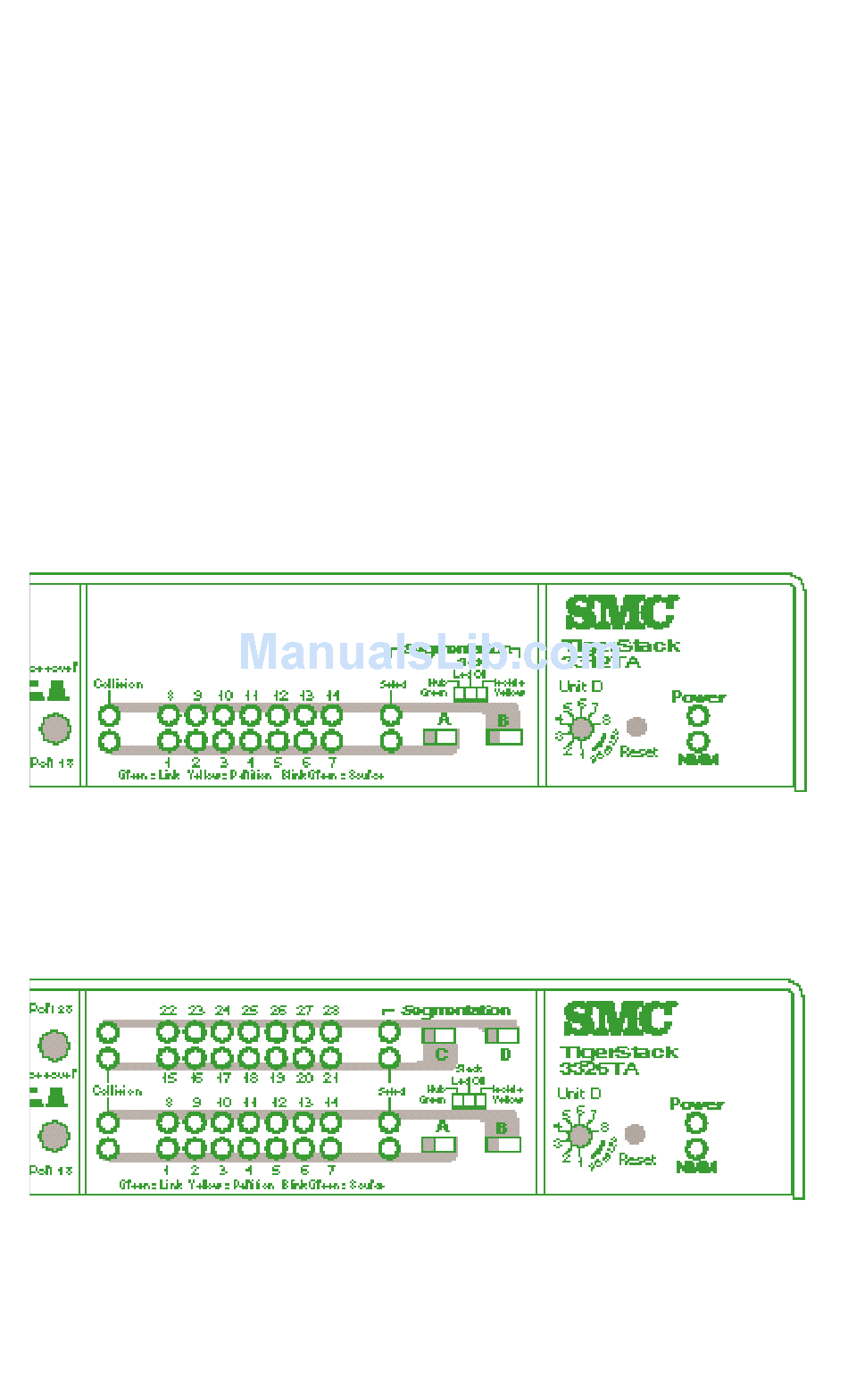

3312TA Front Panel LEDs
3326TA Front Panel LEDs
