3 Wire Ground Switched Door Locks
In this application, the Orange/Green wire provides a pulsed ground lock
output. Connect this wire to the wire that provides a low current ground
signal from the factory door lock switch to the factory door lock control
relay.
3 Wire Positive Switched Door Locks (Relay required see Diagram 1)
5 Wire Alternating 12 Volt (Relay required see Diagram 2)
ca3051 rev B. 2011 Audiovox Electronics Corporation. All rights reserved.

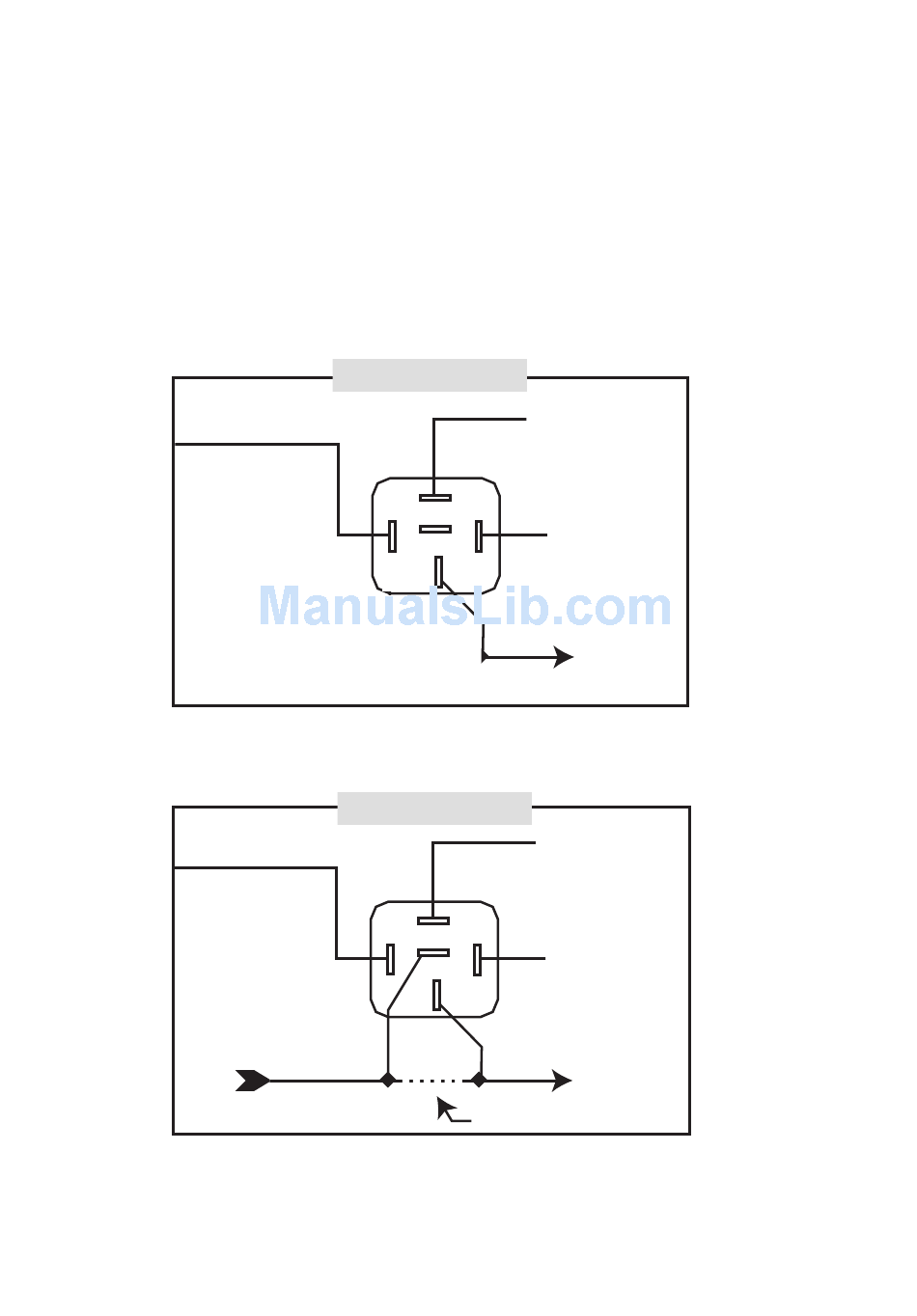

Diagram 1
Lock
Lock Relay In Vehicle
Lock
Door Lock Switch
Fused + 12v
85
86
87
87a
30
X
Diagram 2
Fused + 12v
85
86
87
87a
30
Door Lock Motor
X
CUT HERE
+ 12 Volts
+ 12
Volts
7
