RADION receiver OP
Notice!
If blinds or drapes are present, test the area by holding the hand-held tester behind the
closed blinds or drapes.
Sensor test
The sensor must be in test mode (blinking). To test the sensor, perform the following:
1.
2.
3.

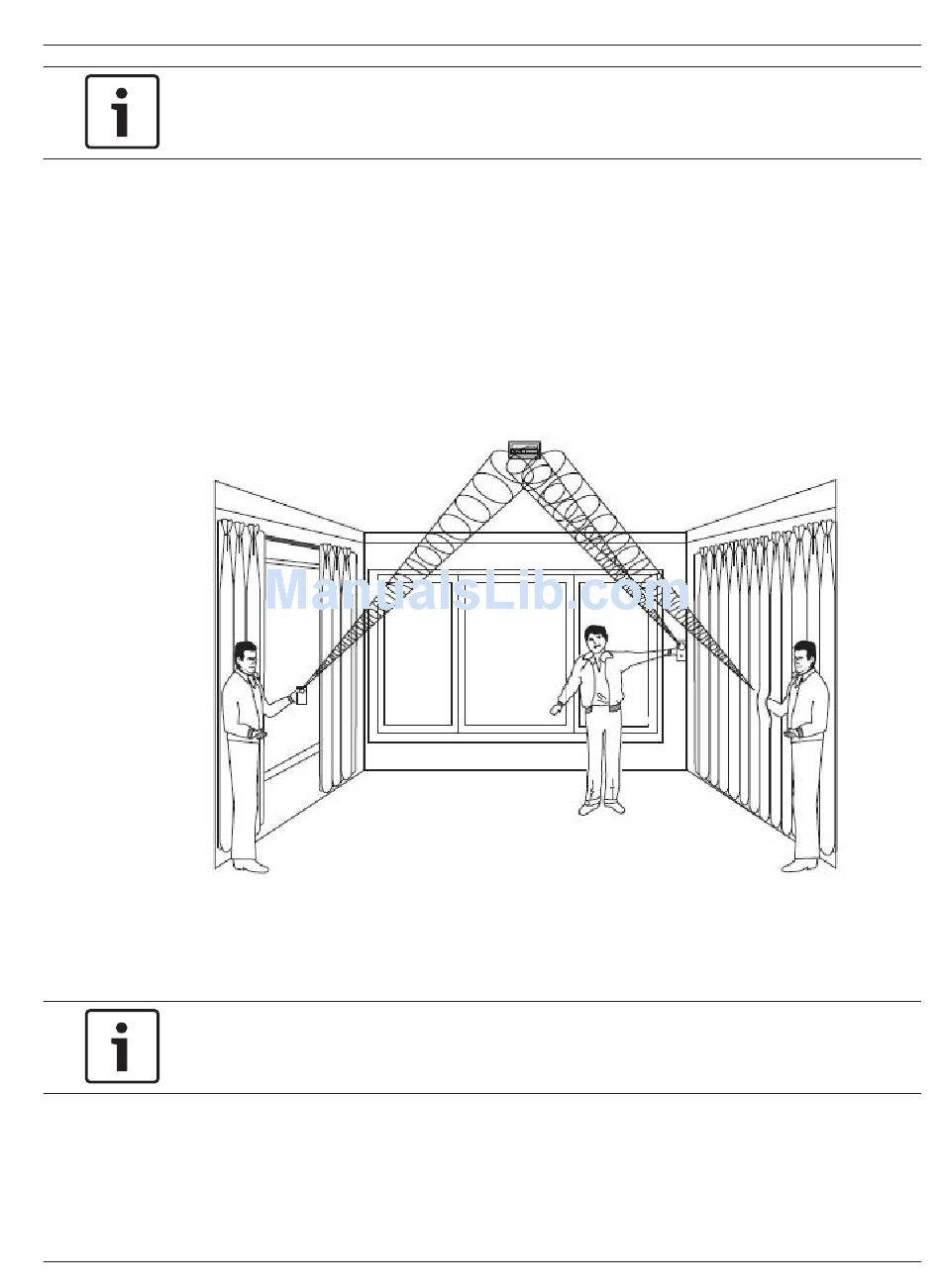

Figure 5.1: Testing behind curtains
The sensor switches from test mode to normal mode when there is at least 1 min of silence
from the hand-held tester.
Notice!
When the detector is in normal mode, the LED will not blink unless a loud sound is detected.
In normal mode, the sensor will not trip to the tester, unless the tester is held next to the
sensor. Each time the sensor alarms, it also goes into test mode for one minute. Room
acoustics can artificially extend the range of a glassbreak sensor.
Bosch Security Systems, Inc
Set the tester for tempered, or laminated, unless the protected glass is plate glass.
Hold the tester near the surface of the glass to be protected and aim the speaker at the
sensor. Be sure the tester is at the point on the glass farthest from the detector.
Press the test button on the tester. The LED on the sensor stays on for 4 sec to indicate
the glass is within detection range of the sensor. If the LED does not stay in a solid state
momentarily, but continues to blink, adjust the positioning of the sensor so that it is
closer to the window, and re-test. Also check the battery strength of the hand-held
testing device.
Reference Guide
RADION glassbreak | en
23
02.2014 | 01 | F.01U.261.835
