GreenWorks 22612 Owner's Manual

20v lithium-ion cordless hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

20V LITHIUM-ION CORDLESS HEDGE TRIMMER
22612
Some Greenworks Lithium-Ion products are
sold with or without battery and charger.
To order: Battery (Sold Separately) (Model # 29212 or 29612)
Charger (Sold Separately) (Model # 29222)
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22612 and is the answer not in the manual?

Questions and answers

Mike Kilpatrick
April 18, 2025

Where do i find a triangular screw driver to unscrew the 2 tiny screws that hold the clear plastic guard? Do I have to make something? Model # 22612

-1

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks 22612

Summary of Contents for GreenWorks 22612

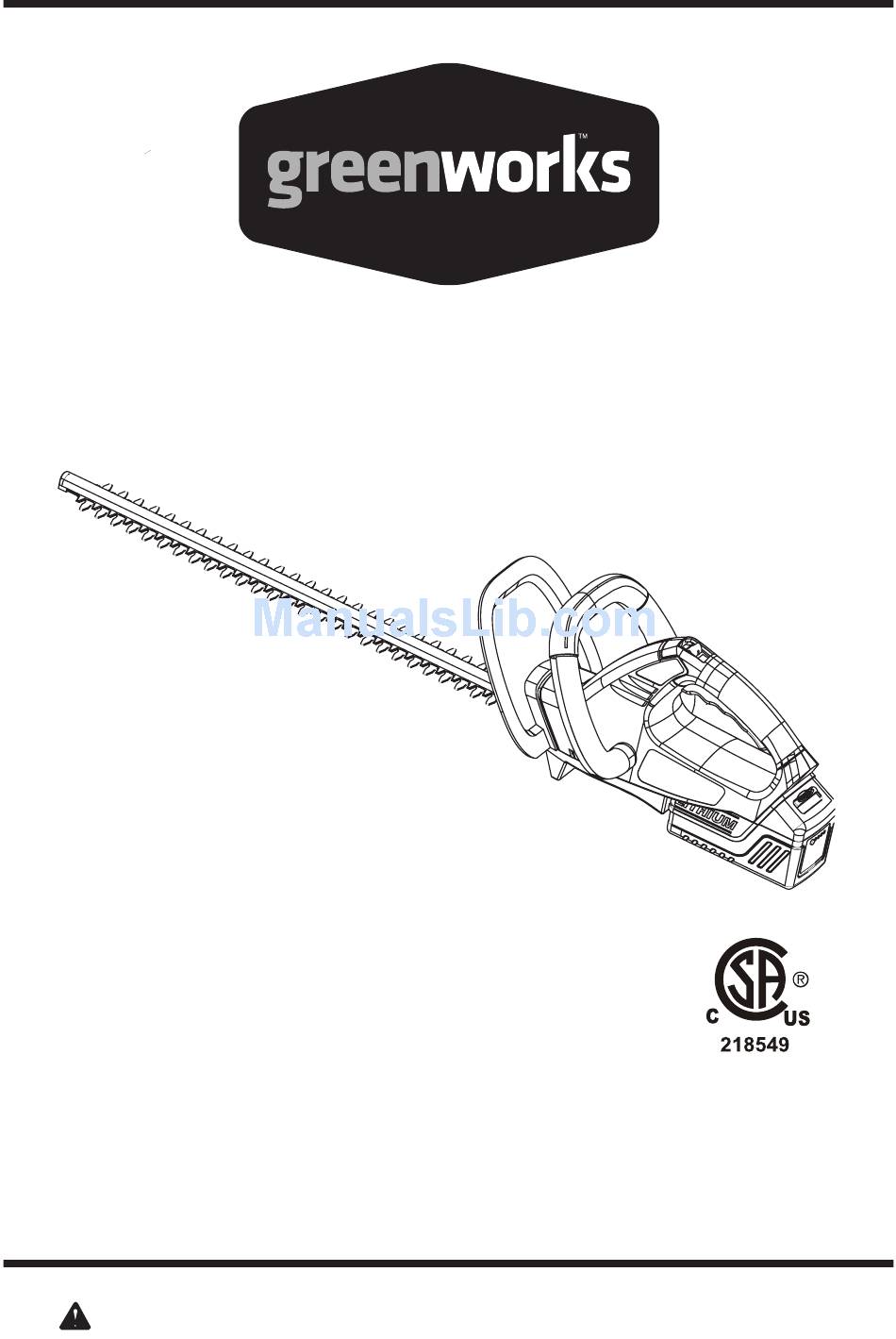

  • Page 1 20V LITHIUM-ION CORDLESS HEDGE TRIMMER 22612 Some Greenworks Lithium-Ion products are sold with or without battery and charger. To order: Battery (Sold Separately) (Model # 29212 or 29612) Charger (Sold Separately) (Model # 29222) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product specifications ......................2 General safety rules ......................3-5 Symbols ..........................6-7 Know your reel mower ......................8 Assembly instruction ....................... 9-10 Operation ..........................11 Battery charger........................12-14 Maintance..........................15 Environmentally safe battery disposal..................16 Troubleshooting........................17 Warranty ..........................18 Exploded View ........................19 Parts List..........................

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 4 GENERAL SAFETY RULES • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. • Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
  • Page 5 GENERAL SAFETY RULES • If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk. • Do not point the hedger in the direction of people or pets. •...

  • Page 6: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)

  • Page 7: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 8: Know Your Reel Mower

    KNOW YOUR HEDGE TRIMMER Guard Auxiliary handle Blade support Lock button Soft grip Upper cutting blade handle Switch Lower cutting trigger blade Battery pack Battery pack latch Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.

  • Page 9: Assembly Instruction

    ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the hedger for the first time, place the battery pack in the battery charger and charge for 24 hours. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. With regular use, it will need shorter charging time.
  • Page 10 ASSEMBLY INSTRUCTION W A R N I N G To avoid injury and to reduce the risk of electrical shock or fire: • Replace the battery pack or charger immediately if the battery case or charger cord is damaged. • Always make sure the hedge trimmer switch is OFF before inserting or removing the battery pack.

  • Page 11: Operation

    OPERATION ON/OFF SWITCHES & CIRCUIT-BREAKER (See Figure 4.) The hedge trimmer has two switch controls and a lock-OFF button used together to prevent ac- cidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the Auxiliary handle (2). 2.

  • Page 12: Battery Charger

    BATTERY CHARGER BECOME FAMILIAR WITH THE CHARGER (See Figure 5.) Before attempting to use this charger, become familiar with all of its operating features and safety requirements. 1. Charging indicator reference chart 2. Battery compartment 3. Power source LED light 4.
  • Page 13 BATTERY CHARGER BATTERY INSTRUCTIONS W A R N I N G If the battery is inserted into the charger when warm or hot the CHECK BATTERY indicator light may switch on. If this occurs allow the battery to cool outside of the charger for 30 minutes. Press the Battery Capacity Indicator (BCI) button.
  • Page 14 BATTERY CHARGER W A R N I N G To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer.

  • Page 15: Maintance

    MAINTANCE W A R N I N G In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the hedge trimmer. Cleaning Remove the battery pack. 1. Wipe the outside of the hedge trimmer with a dry, soft cloth. Do not hose down or wash with water.

  • Page 16: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model.

  • Page 18: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...

  • Page 19: Exploded View

    EXPLODED VIEW...

  • Page 20: Parts List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 34104164-1 Switch board 36101164 Motor 33310164 Motor washer 3220302 Screw ST3X15 3310187-2 Gear box 31101164B Housing assembly 3220505 Screw ST4X16-F 34106164-1 Shield 3220187 Screw ST3.5X12-C 3310287-4 Blade assembly 31102164-3 Auxiliary handle assembly 3220811 Screw M4X12 3340187 Spring...

  • Page 21: Notes

    NOTES...
  • Page 22 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (01-12-10) Printed in China on 100% Recycled Paper...
