20V LITHIUM-ION CORDLESS HEDGE TRIMMER
22622
Some Greenworks Lithium-Ion products are
sold with or without battery and charger.
To order: Battery (Model # 29212 or 29612)
Charger (Model # 29247)
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22622 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks 22622

Summary of Contents for GreenWorks 22622

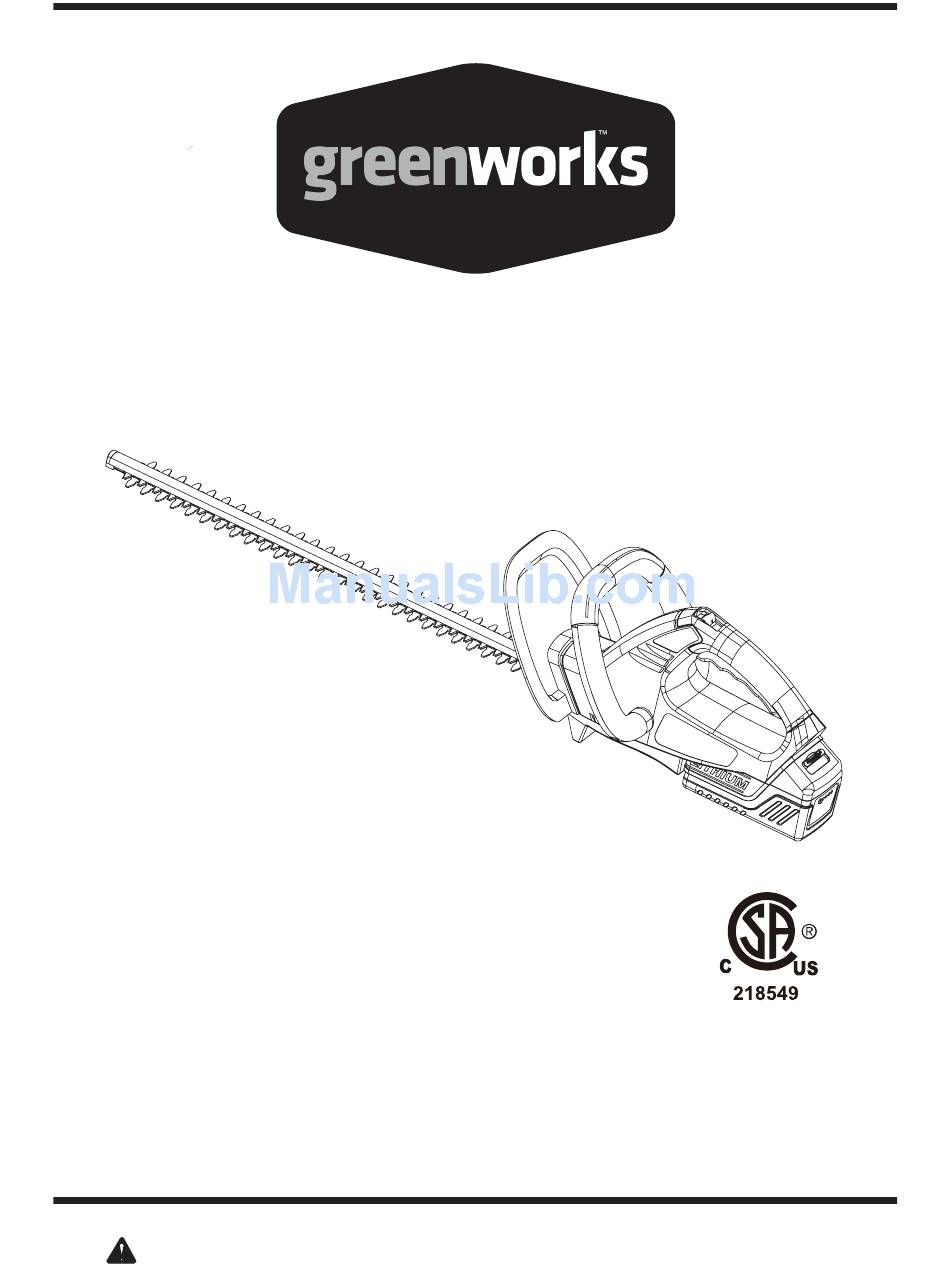

  • Page 1 20V LITHIUM-ION CORDLESS HEDGE TRIMMER 22622 Some Greenworks Lithium-Ion products are sold with or without battery and charger. To order: Battery (Model # 29212 or 29612) Charger (Model # 29247) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 ......................2 General safety rules ......................3-5 Symbols ..........................6-7 Know your reel mower ......................8 Assembly instruction ....................... 9-10 Operation ..........................11 Battery charger........................12-13 Maintance..........................14 Environmentally safe battery disposal..................15 Troubleshooting........................16 Warranty ..........................17 Exploded View ........................18 Parts List..........................

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES W A R N I N G Read and understand all instructions before using this product. Failure to follow all LQVWUXFWLRQV OLVWHG EHORZ PD\ UHVXOW LQ HOHFWULF VKRFN ¿UH DQGRU VHULRXV SHUVRQDO LQMXU\ ‡ 'R QRW RSHUDWH SRZHU WRROV LQ H[SORVLYH DWPRVSKHUHV VXFK DV LQ WKH SUHVHQFH RI ÀDPPDEOH liquids, gases, or dust.
  • Page 4 GENERAL SAFETY RULES ‡ Keep all parts of your body away from any moving parts and all hot surfaces of the unit. ‡ 'R QRW SXW DQ\ REMHFW LQWR RSHQLQJV 'R QRW XVH ZLWK DQ\ RSHQLQJ EORFNHG NHHS RSHQLQJV IUHH RI GXVW OLQW KDLU DQG DQ\WKLQJ WKDW PD\ UHGXFH DLU ÀRZ ‡...
  • Page 5 GENERAL SAFETY RULES ‡ If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk. ‡ Do not point the hedger in the direction of people or pets. ‡...

  • Page 6: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)

  • Page 7: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not DYRLGHG ZLOO UHVXOW LQ GHDWK RU VHULRXV LQMXU\ WARNING Indicates a potentially hazardous situation, which, if not avoided, FRXOG UHVXOW LQ GHDWK RU VHULRXV LQMXU\ CAUTION...

  • Page 8: Know Your Reel Mower

    KNOW YOUR HEDGE TRIMMER Guard Auxiliary handle Blade support Lock button Soft grip Upper cutting blade handle Switch Lower cutting trigger blade Battery pack Battery pack latch Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.

  • Page 9: Assembly Instruction

    ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the hedger for to read all safety precautions, and follow the instructions in the Battery Charger section. With regular use, it will need shorter charging time. If storing for a prolonged period of time, remove the battery.
  • Page 10 ASSEMBLY INSTRUCTION W A R N I N G ‡ Replace the battery pack or charger immediately if the battery case or charger cord is damaged. ‡ Always make sure the hedge trimmer switch is OFF before inserting or removing the battery pack.

  • Page 11: Operation

    OPERATION (See Figure 4.) ON/OFF SWITCHES The hedge trimmer has two switch controls and a lock-OFF button used together to prevent ac- cidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the Auxiliary handle (2). 2.

  • Page 12: Battery Charger

    BATTERY CHARGER CHARGING PROCEDURE ( See Figure 5. NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 13 BATTERY CHARGER W A R N I N G If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate ORANGE. If this occurs allow the battery to cool outside of the charger from approximately 30 minutes.

  • Page 14: Maintance

    MAINTANCE W A R N I N G before adjusting, inspecting, or cleaning the hedge trimmer. Cleaning Remove the battery pack. 1. Wipe the outside of the hedge trimmer with a dry, soft cloth. Do not hose down or wash with water.

  • Page 15: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and cadmium disposal.

  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model.

  • Page 17: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...

  • Page 18: Exploded View

    EXPLODED VIEW...

  • Page 19: Parts List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 34104164-1 Self-lock button 36101164 Motor 33310164 Motor washer 3220302 Screw ST3X15 3310187-2 Gear box 31101164B Housing assembly 3220505 Screw ST4X16-F 34106164-1 Shield 3220187 Screw ST3.5X12-C 3310287-4 Blade assembly 31102164-3 Auxiliary handle assembly 3220811 Screw M4X12 3340187 Spring...
  • Page 20 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (11-24-10) Printed in China on 100% Recycled Paper...
