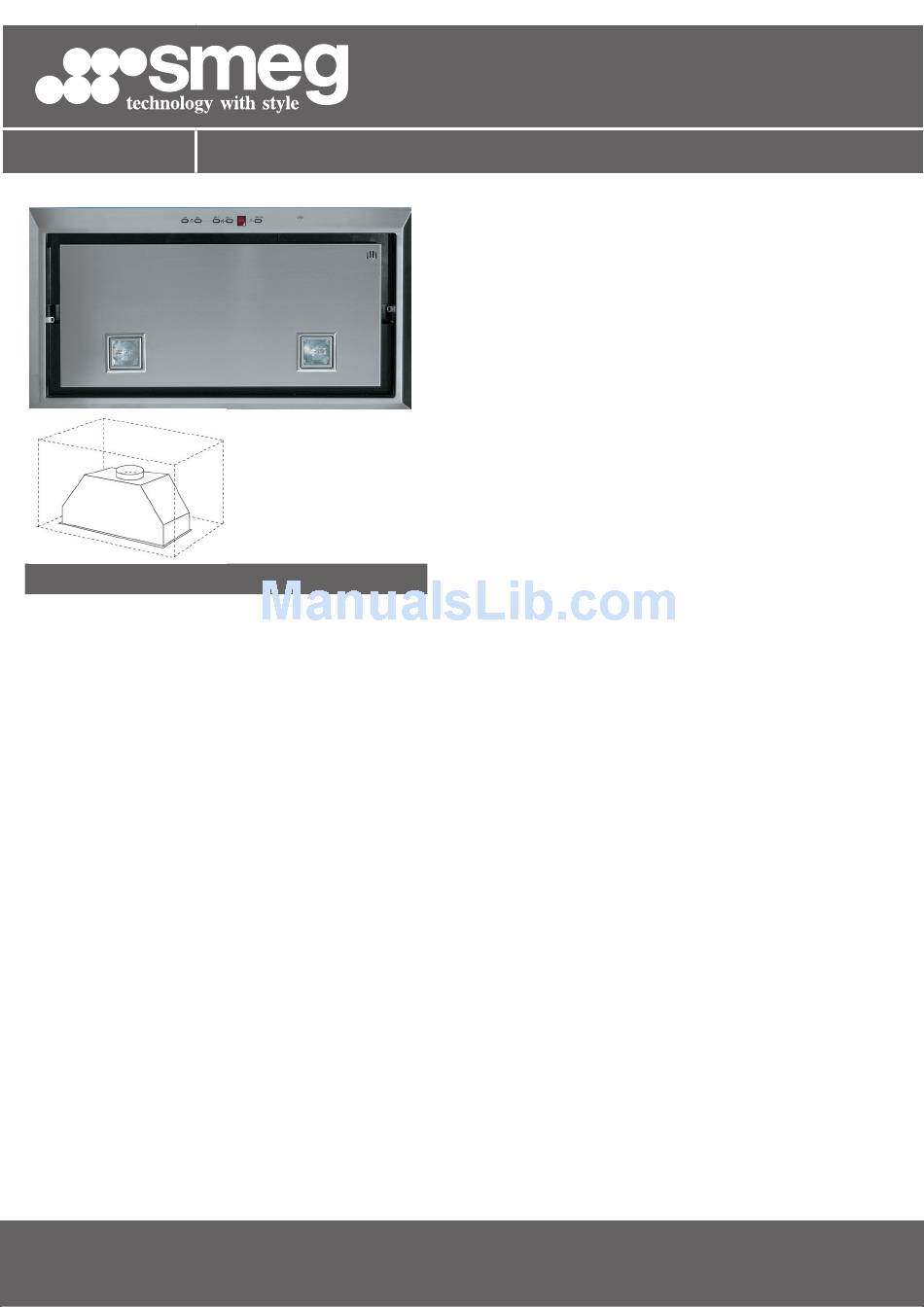

Smeg PASC5801FPX Quick Manual

smeg 54cm concealed undermount rangehood
PASC5801FPX
EAN 8026493041513
dimensions
539mmW x 284mmD x 284mmH
finish
satin stainless steel
installation concealed within cupboards or island
bulkhead
motor
250 watt centrifugal, twin impellors, double-
sided air uptake
capacity
700 m/hr net
3
air extraction
duct direct to atmosphere or recirculate to
kitchen, 150mm ducting required
noise rating
39–57 dBA
extraction
• direct duct to atmosphere, 150mm
ducting required
• recirculate to kitchen, 150mm or 125mm
diameter
ducting required
• 50/125mm ducting adaptor is supplied
illumination
two 20 watt halogen globes
speeds
four , progressive up/down buttons
delay stop
5-minute delay stop for fan & lights
cleaning prompt • 30-hour prompt to inspect grease filter
• 120-hour prompt to inspect charcoal
filters
optionally fitted for recirculation
installation
filtration
single stainless steel and aluminium 4-ply
grease filter, removable and dishwasher
safe
option
pair of activated charcoal filters to clip to
either side of motor — optional fitment only
for recirculation installation, part number for
pair 08999801
warranty two years parts and labour
The PASC5801 FPX is
a concealed canopy
to be built into
overhead cabinetry,
whether it be wall,
corner or island
design

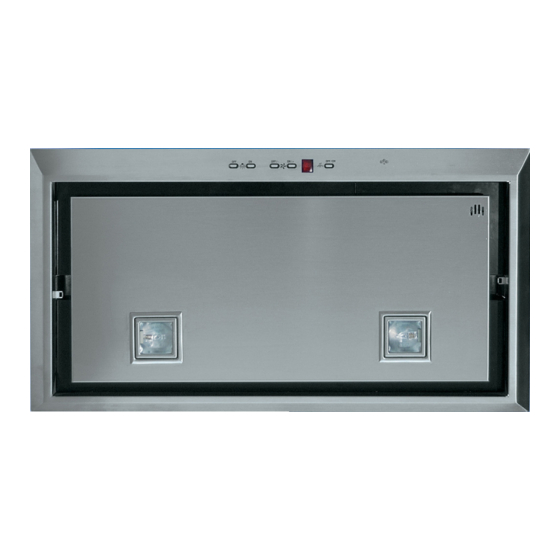

PERIPHERAL FILTER
This large continuous plate of stainless steel sits below the actual concealed grease filter and is
easily noted by the air slots at its periphery. Air is very effectively drawn at high speed across
the peripheral filter and through the slots towards the concealed grease filter. For cleaning, the
peripheral filter hinges downward for easy access to and removal of the grease filter and/or
.
charcoal filters
APPLICATION
The PASC5801 FPX extraction/filtering unit is suitable for very varied installations. An island or
wall-mounted canopy can be designed incorporating these rangehoods. Consider, as well, one
of these units for a difficult situation such as a corner or, when renovating, the overhead cabinet
widths are not the normal 60cm or 90cm, making more conventional rangehoods impractical.
The completely concealed design might alone be the sole aspect of a decor solution.
PERFORMANCE
Highly-efficient air extraction of up to 700 cubic metres an hour true (net) ensures the very swift
removal of cooking vapours, odours and heat. The higher speed selections are perfect for the
more vigorous styles of cooking such as stir frying, griddle cooking and boiling, the lower speeds
at the touch of a button are perfect for simmers.
QUIETNESS
39 to 57 dBA. The motor/impellor encasements are smooth-walled to minimise air drag and,
hence, noise. All metal joins are welded to reduce vibration
SAFETY
Thermal overload protection on motor, fire retardant hardened metal and mesh, VO self-
extinguishing plastic for motor housing and internal flue
MAINTENANCE
No tools required — easy lift-out pair of grease filters for washing. For light replacement, simply
rotate the decorative flange for access to halogen globes.
DUCTING
Direct ducting to atmosphere ensures the maximum removal of grease/oil/particle-laden vapour
plus the odours and, very importantly, the heat, resulting in a cleaner, cooler, more comfortable
.
work area
RECIRCULATION
When the cooking vapours cannot be ducted to atmosphere, the filtered air can simply be
redirected back into the kitchen via a duct pipe through the overhead cabinetry.
CHARCOAL FILTERS
These are purchasable accessories. One each is clipped to either side of the centrifugal motor
and are designed to absorb and diminish cooking odours. Periodic inspection is recommended
before replacement. They are optionally used for recirculation only. The activated charcoal filters
are not to be washed.
DUCTING MATERIAL
Smooth internal walled duct pipe lengths ensure the most efficient air movement and quieter
operation. Consider either high temperature rated PVC or galvanised sheet metal piping. The
flexible ducting cab be ideal for a very short, tight run.
The rangehood's air exit aperture is designed for 150mm (6") ducting; however, a 125mm
diameter (5") adaptor can be purchased for optional use.
DELAY STOP
I
deally, a rangehood should run for several minutes after all cooking is ceased in order to drag
through residual vapours and odours. By selecting the delay stop button at the end of the cooking,
the rangehood will turn the motor off in five minutes as well as the lights if they were left on.
CLEANING PROMPT
After 30 hours use the LED window will prompt visually to inspect the grease filters for possible
cleaning. Simply use the Reset button to clear the LED window.
.
.
ID080812
Code PASC5801FPX
