Designed for 2009 - 2014 Ford® F-150 Super-Cab vehicles
(not compatible with 2009 - 2010 trucks that have Sony® Premium Audio Systems)
Subwoofer Power Harness
©2012 Stillwater Designs
SF150S09-A4-20140930

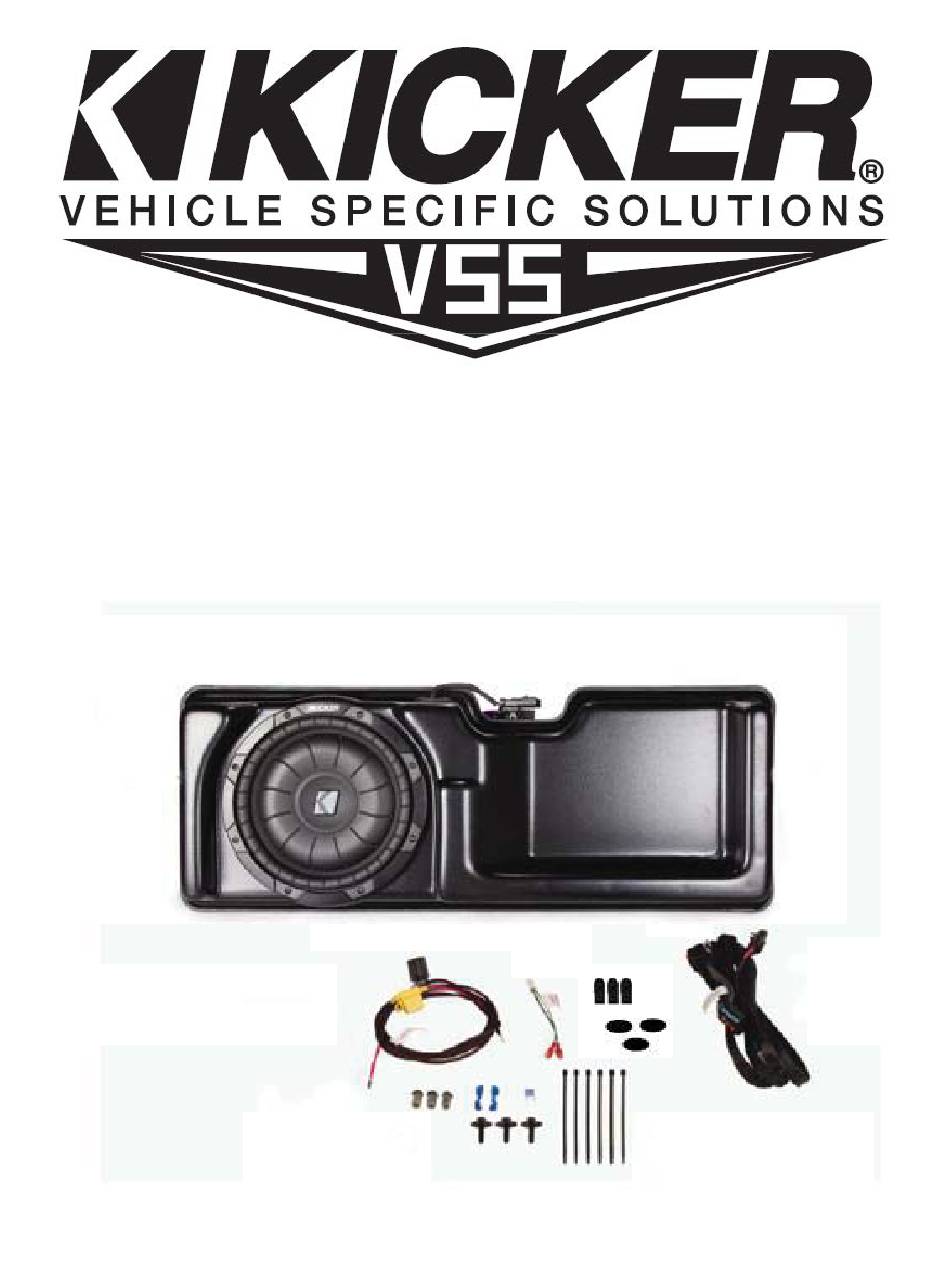

SF150S09
Subwoofer Assembly
M6 Bolts x3
M8 Bolts x3
M8 Nut Inserts x3
(Requires Nut Insert Tool)
Wire Taps x2
Adapter Harness
Subwoofer Body
Harness
25A Fuse
Wire Ties x6
Foam Strips
M6 Speed Clips x3
Adhesive Covers x3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF150S09 and is the answer not in the manual?

Questions and answers

Related Manuals for Kicker SF150S09

Summary of Contents for Kicker SF150S09

  • Page 1 SF150S09 Designed for 2009 - 2014 Ford® F-150 Super-Cab vehicles (not compatible with 2009 - 2010 trucks that have Sony® Premium Audio Systems) Subwoofer Assembly Subwoofer Body Harness Subwoofer Power Harness M6 Bolts x3 25A Fuse M8 Bolts x3 Wire Ties x6...
  • Page 2 Power Wire Routing 1. Open the hood, disconnect the negative battery cable. 2. Find the fuse box in the engine compartment and open the cover. 3. Remove the nut on the accessory lug, connect the power wire and retighten the nut. Torque to 9Nm. Fig.
  • Page 3 14. Tap the wires using the supplied wire taps. Fig. 5 15. Connect the brown wire of the adaptor harness to the solid white wire. Connect the green wire of the adaptor harness to the white/brown wire. Fig. 6 Fig. 6 Fig.
  • Page 4 Fig. 9 Fig. 10 22. Find the three pilot holes drilled earlier and drill a 17/32” hole at each location. 23. Install the supplied nut insert using an appropriate insert installation tool. 24. Secure the mounting plate with the supplied M8 bolts. Torque to 15ft/lbs. 25.
  • Page 5 Troubleshooting the Kicker Integrated Systems If you experience a problem once the Subwoofer is installed, use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
  • Page 6 Low battery voltage Recharge the battery If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. stillwater designs P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510...
