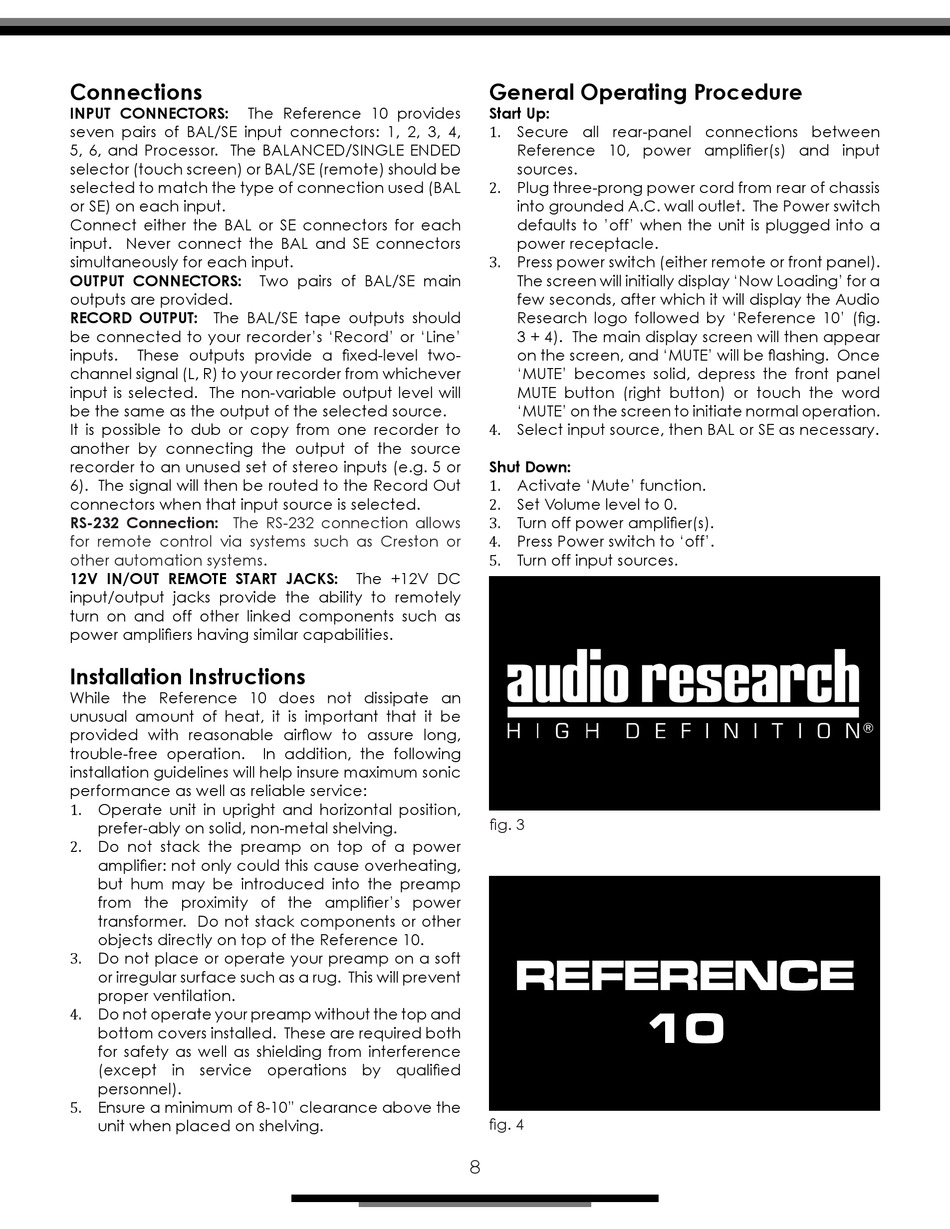

Connections

INPUT CONNECTORS: The Reference 10 provides
seven pairs of BAL/SE input connectors: 1, 2, 3, 4,
5, 6, and Processor. The BALANCED/SINGLE ENDED
selector (touch screen) or BAL/SE (remote) should be
selected to match the type of connection used (BAL
or SE) on each input.
Connect either the BAL or SE connectors for each
input. Never connect the BAL and SE connectors
simultaneously for each input.
OUTPUT CONNECTORS:
outputs are provided.
RECORD OUTPUT: The BAL/SE tape outputs should
be connected to your recorder's 'Record' or 'Line'
inputs. These outputs provide a fixed-level two-
channel signal (L, R) to your recorder from whichever
input is selected. The non-variable output level will
be the same as the output of the selected source.
It is possible to dub or copy from one recorder to
another by connecting the output of the source
recorder to an unused set of stereo inputs (e.g. 5 or
6). The signal will then be routed to the Record Out
connectors when that input source is selected.
RS-232 Connection: The RS-232 connection allows
for remote control via systems such as Creston or
other automation systems.
12V IN/OUT REMOTE START JACKS:
input/output jacks provide the ability to remotely
turn on and off other linked components such as
power amplifiers having similar capabilities.

Installation Instructions

While the Reference 10 does not dissipate an
unusual amount of heat, it is important that it be
provided with reasonable airflow to assure long,
trouble-free operation.
installation guidelines will help insure maximum sonic
1. Operate unit in upright and horizontal position,
performance as well as reliable service:
2. Do not stack the preamp on top of a power
prefer-ably on solid, non-metal shelving.
amplifier: not only could this cause overheating,
but hum may be introduced into the preamp
from the proximity of the amplifier's power
transformer. Do not stack components or other
3. Do not place or operate your preamp on a soft
objects directly on top of the Reference 10.
or irregular surface such as a rug. This will prevent
4. Do not operate your preamp without the top and
proper ventilation.
bottom covers installed. These are required both
for safety as well as shielding from interference
(except in service operations by qualified
5. Ensure a minimum of 8-10" clearance above the
personnel).
unit when placed on shelving.
Two pairs of BAL/SE main
The +12V DC
In addition, the following

General Operating Procedure

1. Secure all rear-panel connections between
Start Up:
Reference 10, power amplifier(s) and input
2. Plug three-prong power cord from rear of chassis
sources.
into grounded A.C. wall outlet. The Power switch
defaults to 'off' when the unit is plugged into a
3. Press power switch (either remote or front panel).
power receptacle.
The screen will initially display 'Now Loading' for a
few seconds, after which it will display the Audio
Research logo followed by 'Reference 10' (fig.
3 + 4). The main display screen will then appear
on the screen, and 'MUTE' will be flashing. Once
'MUTE' becomes solid, depress the front panel
MUTE button (right button) or touch the word
4. Select input source, then BAL or SE as necessary.
'MUTE' on the screen to initiate normal operation.
1. Activate 'Mute' function.
Shut Down:
2. Set Volume level to 0.
3. Turn off power amplifier(s).
4. Press Power switch to 'off'.
5. Turn off input sources.
fig. 3
fig. 4
