Summary of Contents for Audio Research Reference 210
- Page 1 Owner’ s Manual Model Reference 210 MONOBLOCK POWER AMPLIFIER 3900 ANNAPOLIS LANE NORTH / PLYMOUTH, MINNESOTA 55447-5447 / PHONE: 763-577-9700 FAX: 763-577-0323...

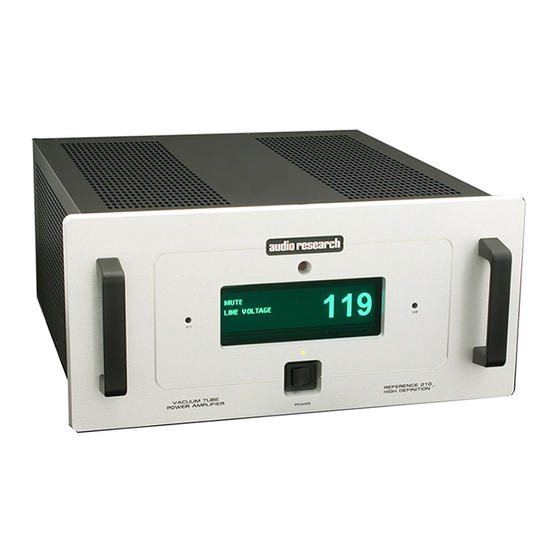

- Page 2 Model Reference 210 Infrared eye for remote control D I S P L A Y VACUUM TUBE REFERENCE 210 ® HIGH DEFINITION POWER AMPLIFI ER P O W E R Bias adjustment pot “On” Indicator Bias adjustment pot REFERENCE 210...
- Page 3 Model Reference 210 INTENSITY HOURS Adjusts level of display illumination. Displays accumulated hours Seven levels including off. of vacuum tube service life. DOWN Selects power output via moving logarhithmic bar graph: 0-10 watts, 0-50, 0-100, 0-200. POWER SCALE DOWN Displays bias level in mA of each output tube.
- Page 4 Model Reference 210...
-
Page 5: Installation
The base of the attempt to operate your Audio Research Reference 210 tube should firmly contact the surface of the socket. vacuum tube monoblock power amplifier. Becoming 3. -
Page 6: Description Of Controls
In the event of low-A. C. line conditions while in “Operate”, the amplifier automatically mutes the output and the 6. At 74 lbs. net weight per chassis, the Reference 210 screen displays “Mute” and “Low Line.” (This also occurs for amplifier is too heavy for one person to lift. - Page 7 OUTPUT CONNECTORS: Proprietary, heavy-duty output The Reference 210 should be turned on a f t e r the other terminals are provided on the rear panel for 4, 8,or 16-ohm components of your system. If the Reference 210 speaker impedance loads.
-
Page 8: Remote Turn-On Connections
Power Scale function and nected, but the remote will not turn the Reference 210 off amplifier is ready to play. if the front power rocker switch is left on. The front power... -
Page 9: Disposal And Recycling Guidelines
In the unlikely event that technical service beyond the abil- bevels, the recessed nameplate and other features of the ity of the importer is required, Audio Research will fulfill front panel. the terms and conditions of the Limited Warranty. Such... -
Page 10: Specifications
DIMENSIONS : 19" (48.3 cm) W x 8.75" (22.2 cm) H x 19.5" (49.5 cm) D. Handles extend 1.5" (3.8 cm) forward. WEIGHT: 74 lbs. (33.6 kg) Net; 89 lbs. ( 40.4 kg ) Shipping. Specifications subject to change without notice. ©2005 Audio Research Corporation.
