Directed Electronics Hornet 740T Installation Manual page 5

H H 1 1 / / 4 4 B B L L A A C C K K / / W W H H I I T T E E ( ( - - ) ) i i n n t t e e r r i i o o r r l l i i g g h h t t i i l l l l u u m m i i n n a a t t i i o o n n o o u u t t p p u u t t

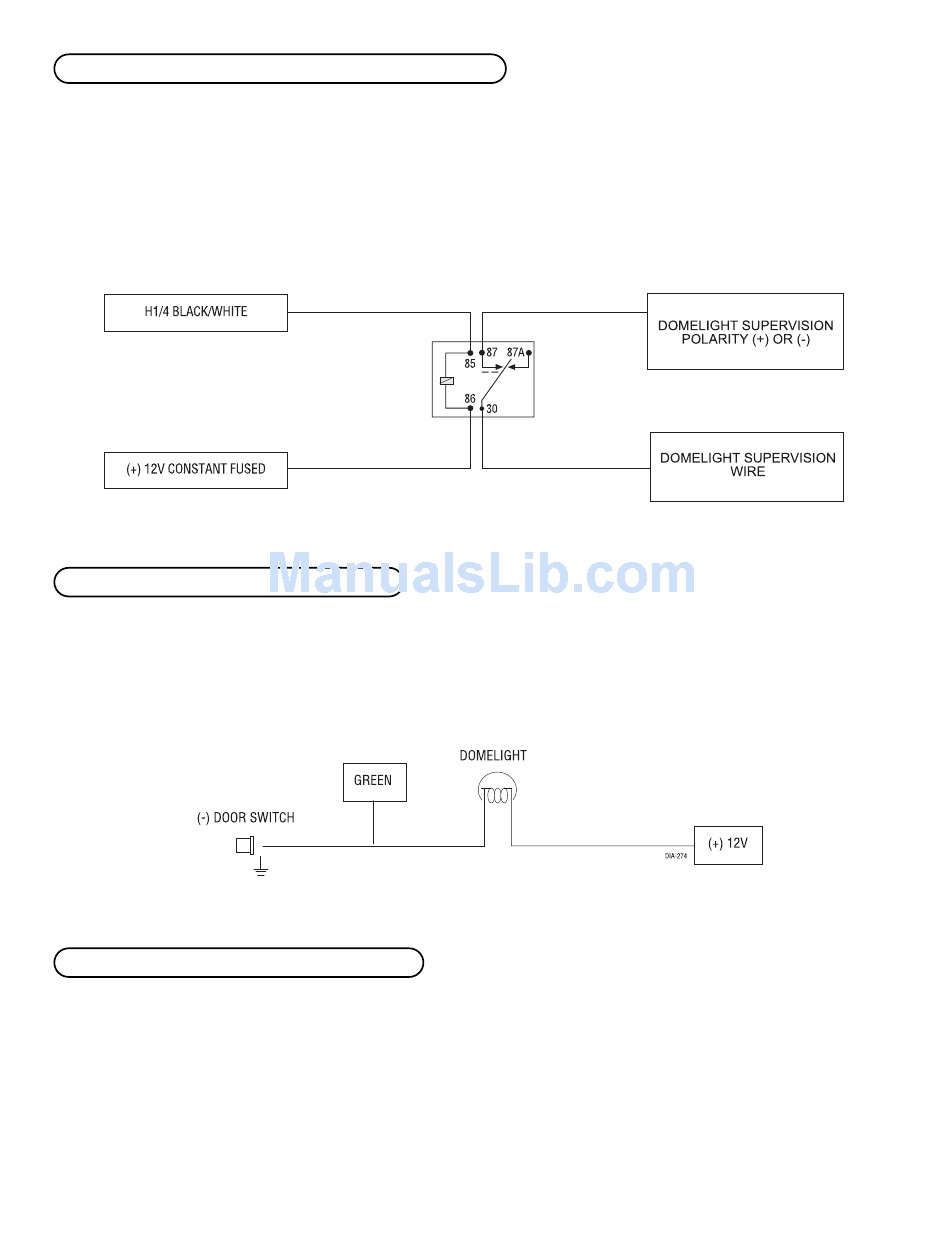

Connect the H1/4 BLACK/WHITE wire to an optional relay for interior light illumination (p p / / n n 8 8 6 6 1 1 7 7 or standard
automotive SPDT relay).
I I M M P P O O R R T T A A N N T T ! ! This output is only intended to drive a relay. It cannot be connected directly to
the domelight circuit, as the output is not able to support the current draw of one or more
light bulbs.
H H 1 1 / / 5 5 G G R R E E E E N N ( ( - - ) ) d d o o o o r r t t r r i i g g g g e e r r i i n n p p u u t t , , z z o o n n e e 3 3
Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry. This wire will report Zone 3.
H H 1 1 / / 6 6 B B L L U U E E ( ( - - ) ) m m u u l l t t i i p p l l e e x x t t r r i i g g g g e e r r i i n n p p u u t t , , z z o o n n e e 1 1
This wire will respond to a negative input with an instant trigger. Inputs shorter than 0.8 seconds will trigger
the Warn Away response, while triggers longer than 0.8 seconds will instantly trigger the full alarm cycle. This
wire is ideal for hood and trunk pins and will report on Zone 1. This wire can also be used with Directed
Electronics 506T Glass Breakage Sensor, as well as other Directed Electronics single stage sensors.
The H1/6 BLUE multiplex trigger wire can be used to shunt sensors during operation, using the auxiliary chan-
nels. When any of the auxiliary channels are transmitted, the H1/6 BLUE wire monitors for a ground. If ground
© 2004 Directed Electronics, Inc. Vista, CA
