t t y y p p e e B B : : n n e e g g a a t t i i v v e e ( ( - - ) ) p p u u l l s s e e s s f f r r o o m m t t h h e e s s w w i i t t c c h h t t o o t t h h e e f f a a c c t t o o r r y y r r e e l l a a y y s s
This system is common in many Toyota, Nissan, Honda, and Saturn models, as well as Fords with remote-con-
trolled door lock/unlock (some other Fords also use Type B).

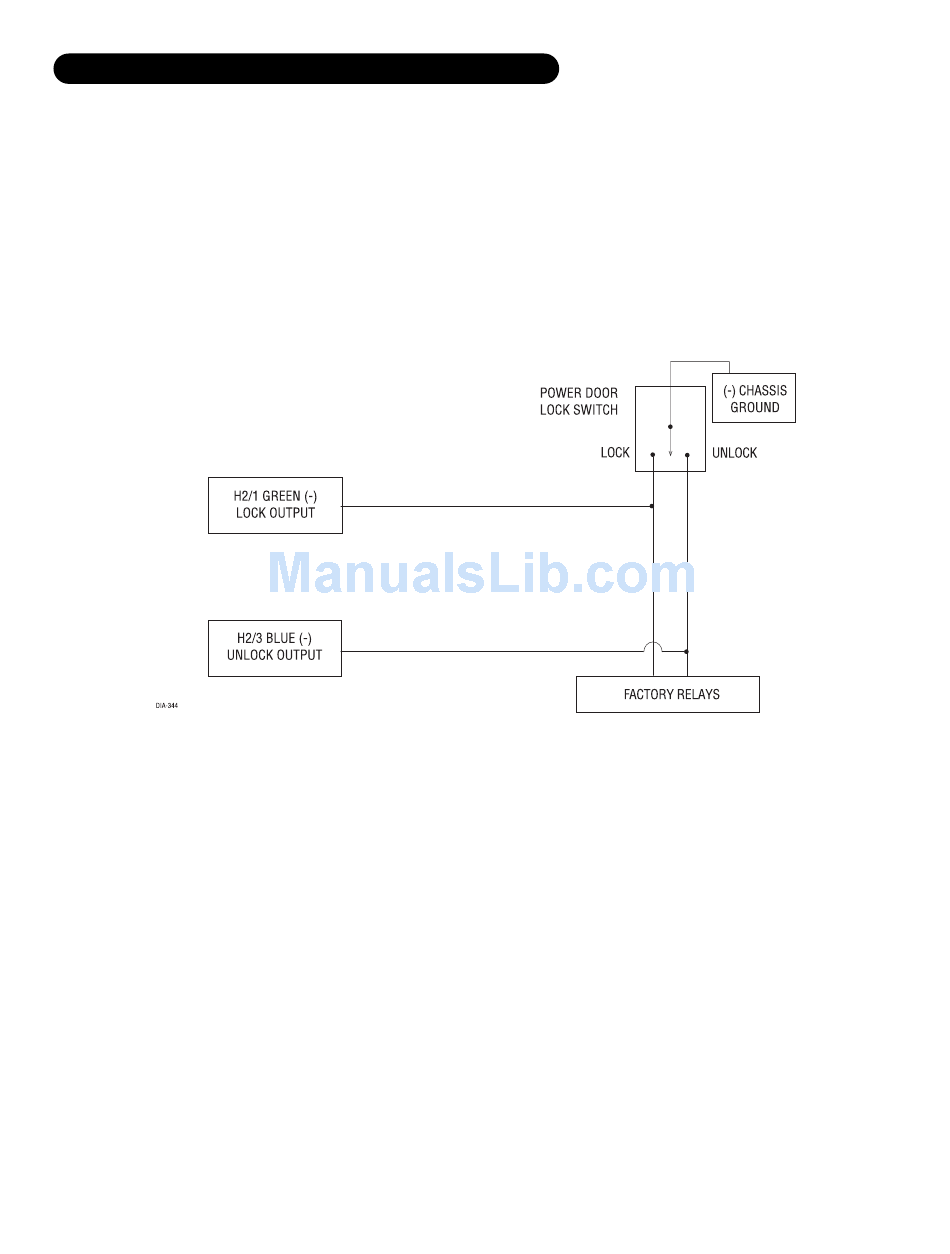

The switch will have three wires on it, and one wire will test ground all the time. One wire will pulse (-) when
the switch locks the doors, and the other wire will pulse (-) when the switch unlocks the doors. This type of
system is difficult to mistake for any other type.
I I M M P P O O R R T T A A N N T T ! ! Remember that the functions of these wires reverse between Type A and Type B!
