STEP #1
A. Proper installation of the thermostat will be accom-
plished by following these step by step instructions.
If you are unsure about any of these steps, call a
qualified technician for assistance.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 02-DFC535SI
Book 1
4
Tab
3e 2f

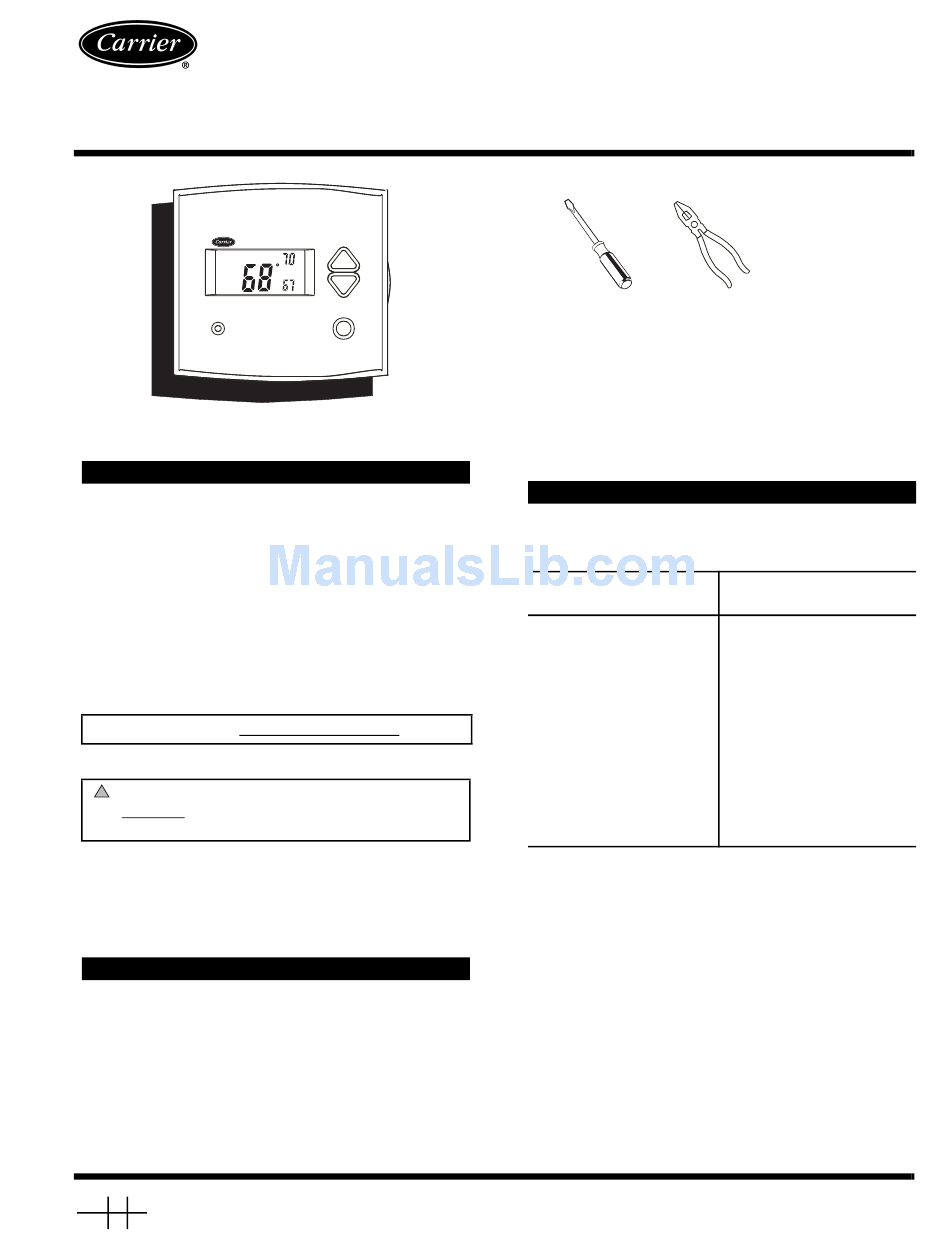

Installation Instructions
DIGITAL THERMOSTAT 53DFS250-SL
Cooling Only, Heat Cool, and Heat Pump
o
COOL
HEAT
o
1
1
2
2
2
3
5
5
PREPARATION
Printed in U.S.A.
B. Assemble tools:
Flat Blade
Wire Cutter
Screwdriver
and Stripper
C. Carefully unpack the thermostat. Save the screws,
bracket, and instructions.
D. Turn off the power to the system at the main fuse
panel. Most systems have a separate breaker for
disconnecting power to the indoor and outdoor
units.
STEP #2
Refer to the chart below, or the wiring diagrams that
follow for thermostat functions and corresponding ther-
mostat connectors.
FUNCTION
Lo Fan
Compressor
Heating
24 v Power
Common
Rev. Valve
Hi Fan
Remote Sensor +5vdc
Remote Sensor Signal
Remote Sensor Ground
Dry Contact Switch 1
Dry Contact Switch 2
Defrost
*Only used with Heat Pump systems.
Form 53-5SI
Pg 1
WIRE CONNECTIONS
INSTALL ON THE
NEW THERMOSTAT
CONNECTOR MARKED
G1
Y
H2
R
C
O*
G2
RS+5
RS
RS GND
CK1
CK2
H1
11-05
Replaces: 53-2SI
