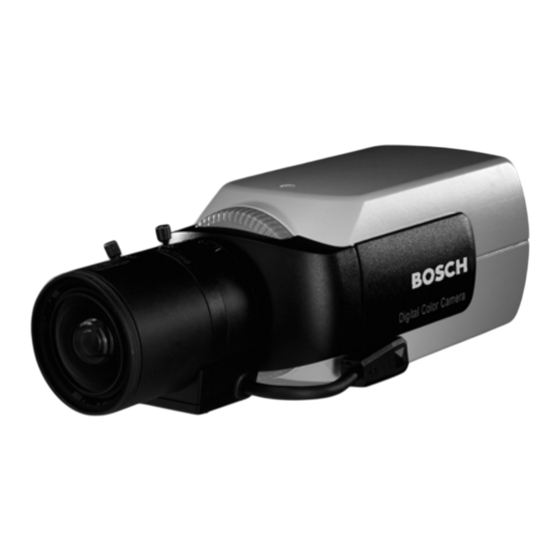

Bosch LTC 0440 Installation Manual

Digital color cameras
Hide thumbs Also See for LTC 0440:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
LTC 0440
Installation Manual
Digital Color Cameras
EN
Manuel d'installation
Caméra Numérique
FR
Couleur
Installationsanleitung
Digitale Farbkamera
DE
Manual de instalación
Cámara Digitale de Color
ES
Installatiehandleiding
Digitale Kleurencamera
NL
Manuale d'installazione
Videocamera Digitale a Colori
IT
Manual de Instruções
Câmara Digital Colorida
PT
ZH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTC 0440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch LTC 0440

Summary of Contents for Bosch LTC 0440

  • Page 1 LTC 0440 Installation Manual Installatiehandleiding Digital Color Cameras Digitale Kleurencamera Manuel d’installation Manuale d’installazione Caméra Numérique Videocamera Digitale a Colori Couleur Installationsanleitung Manual de Instruções Digitale Farbkamera Câmara Digital Colorida Manual de instalación Cámara Digitale de Color...

  • Page 2: Safety Precautions

    LTC 0440 | Installation Manual EN | 1 SAFETY PRECAUTIONS DANGER The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk to persons.
  • Page 3 LTC 0440 | Installation Manual EN | 2 7. Do not defeat the purpose of a polarized or grounded mains plug. A polarized plug has dissimilar prongs (one wider than the other) to ensure correct polarity, while a grounded plug has an additional 'ground' prong provided for your safety.

  • Page 4: Fcc Information

    LTC 0440 | Installation Manual EN | 3 FCC INFORMATION CAUTION Any changes or modifications to construction of this device that are not expressly approved by the party responsible for compliance could void the userfs authority to operate the equipment.

  • Page 5: Specifications

    Lens mount C and CS compatible Video-iris or DC-iris (auto detect) Power supply LTC 0440/10 & /20: 12 to 28 VAC or 11 to 36 VDC LTC 0440/50 & /60: 100 to 230 VAC Power consumption <4 W Dimensions (HxWxL) 58 x 66 x 122 mm (2.28 x 2.6 x 4.8 inch without lens)
  • Page 6 LTC 0440 | Installation Manual EN | 5 UNPACKING Unpack carefully and handle the equipment with care. The packaging contains: • Camera • CCD protection cap • Spare lens connector (male) • These Instructions Note: If equipment appears to have been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier.

  • Page 7: Composite Video

    LTC 0440 | Installation Manual EN | 6 Composite Video LENS MOUNTING Video iris lens DC iris lens Supply (11 V, 50 mA max.) Damp- Not used Damp+ Video signal 1 Vpp, 1 kΩ Drive+ Ground Drive- • Video-iris and DC-iris lenses are recommended for the best picture performance.

  • Page 8: Back Focus Adjustment

    LTC 0440 | Installation Manual EN | 7 CAUTION • To avoid damaging the CCD sensor when using a C- mount lens, turn the 'green' back-focus ring counter clockwise until it stops ('Back focus adjustment') before mounting the lens. •...

  • Page 9: Mounting The Camera

    LTC 0440 | Installation Manual EN | 8 2. When back focusing vari-focus lenses, it must be possible to obtain a sharp picture in both wide-angle and tele positions, and for both far and near focus. 3. When back focusing zoom lenses, ensure the object of interest remains in focus throughout the entire zoom range of the lens.

  • Page 10: Advanced Setup

    LTC 0440 | Installation Manual EN | 9 ADVANCED SET-UP The camera will normally give an optimal picture without the need for further adjustments. However for special circumstances advanced set up options are available. Hints for menu navigation How to use the 5 keys...

  • Page 11: Menu Navigation

    LTC 0440 | Installation Manual EN | 10 Menu Navigation Press the menu button MAIN MENU SHUT/AGC MENU LEVEL SHUTTER SHUT/AGC COLOR SYNC LINE LOCK VPHASE 0¡ EXIT EXIT Main Menu Shutter/AGC Menu COLOR MENU WHITE BAL RED-GAIN BLUE-GAIN EXIT...

  • Page 12: Shutter/Agc Menu

    LTC 0440 | Installation Manual EN | 11 Main menu Function Selection Description LEVEL -15 - 0 - +15 Adjusts video level. SHUT/AGC Select next menu Shutter / Automatic Gain Control menu. When 'ON', the level is optimized at the center of the screen.

  • Page 13: Color Menu

    LTC 0440 | Installation Manual EN | 12 Color Menu Function Selection Description WHITE BAL ATW: Auto tracking white balance allows the AWB HOLD camera to automatically adjust for optimal color reproduction. AWB HOLD: Puts the ATW on hold and preserves the color settings.
  • Page 14 LTC 0440 | Installation Manual EN | 13 Lens wizard menu Function Description SET BACK FOCUS NOW Back focus the lens (see 'Back focus adjustment'). The scene is focused at maximum lens opening to ensure that the object of interest remains in focus in bright and low-light conditions.
  • Page 15 LTC 0440 | Installation Manual EN | 14 Adjustment procedure Video-iris Lens: 1. Unlock the back focus locking button. 2. Access the "Lens Wizard" menu. 3. The "SET BACK FOCUS NOW" option is highlighted in the menu. 4. Turn the back focus adjustment as required.
  • Page 16 Bosch Sicherheitssysteme GmbH Bosch Security Systems B.V. Ludwig-Bölkow-Allee P.O. Box 80002 85521 Ottobrunn 5600 JB Eindhoven The Netherlands Germany www.bosch-sicherheitssysteme.de www.boschsecuritysystems.com 3122 165 22593 04-50 © 2004 Bosch Security Systems B.V. Subject to change Printed in Portugal...
