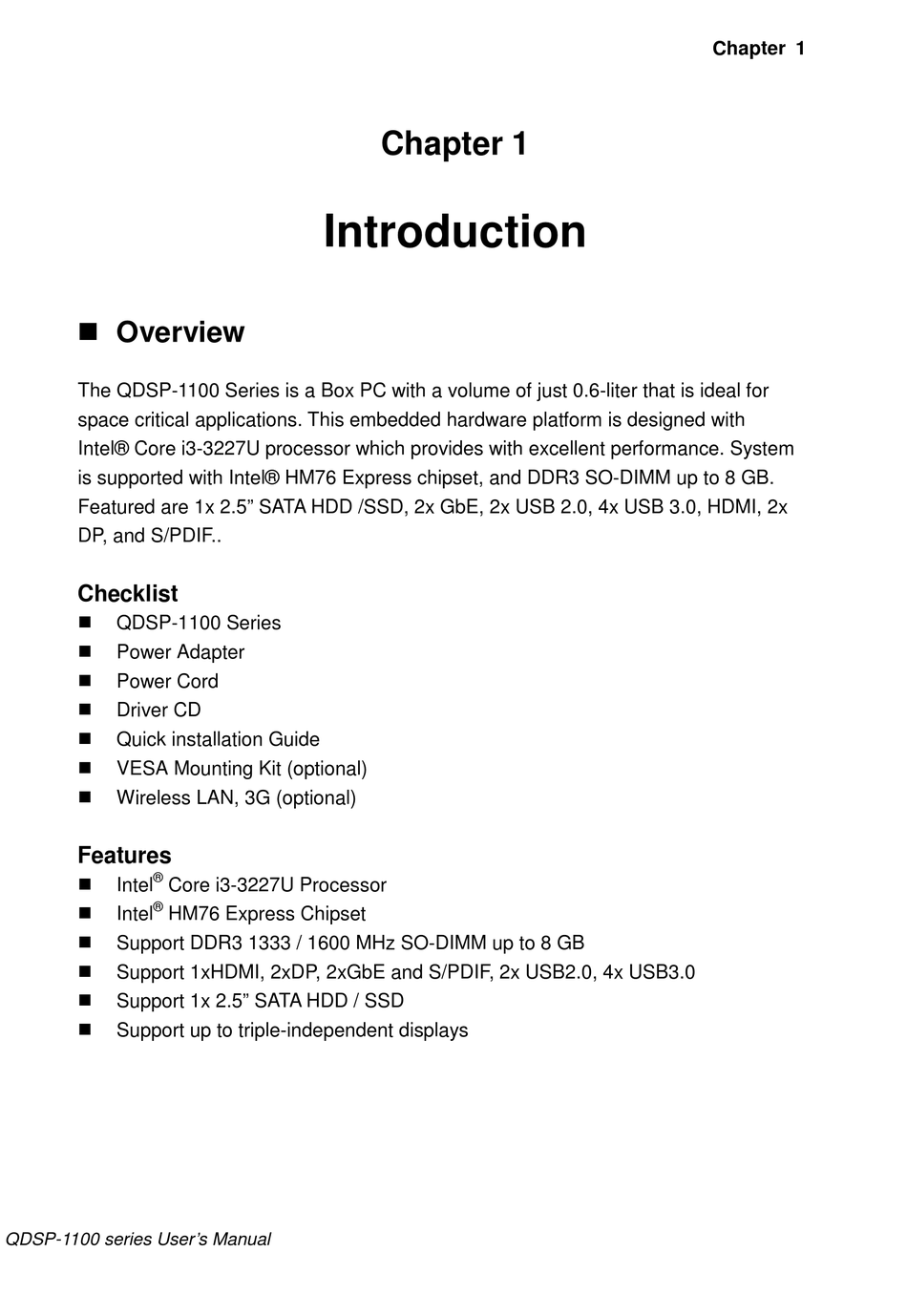

Chapter 1 Introduction; Overview - Quanmax QDSP-1100 Series User Manual

 Overview
The QDSP-1100 Series is a Box PC with a volume of just 0.6-liter that is ideal for
space critical applications. This embedded hardware platform is designed with
Intel® Core i3-3227U processor which provides with excellent performance. System
is supported with Intel® HM76 Express chipset, and DDR3 SO-DIMM up to 8 GB.
Featured are 1x 2.5" SATA HDD /SSD, 2x GbE, 2x USB 2.0, 4x USB 3.0, HDMI, 2x
DP, and S/PDIF..
Checklist

QDSP-1100 Series

Power Adapter

Power Cord

Driver CD

Quick installation Guide

VESA Mounting Kit (optional)

Wireless LAN, 3G (optional)
Features
®

Intel Core i3-3227U Processor
®

Intel HM76 Express Chipset

Support DDR3 1333 / 1600 MHz SO-DIMM up to 8 GB

Support 1xHDMI, 2xDP, 2xGbE and S/PDIF, 2x USB2.0, 4x USB3.0

Support 1x 2.5" SATA HDD / SSD

Support up to triple-independent displays
