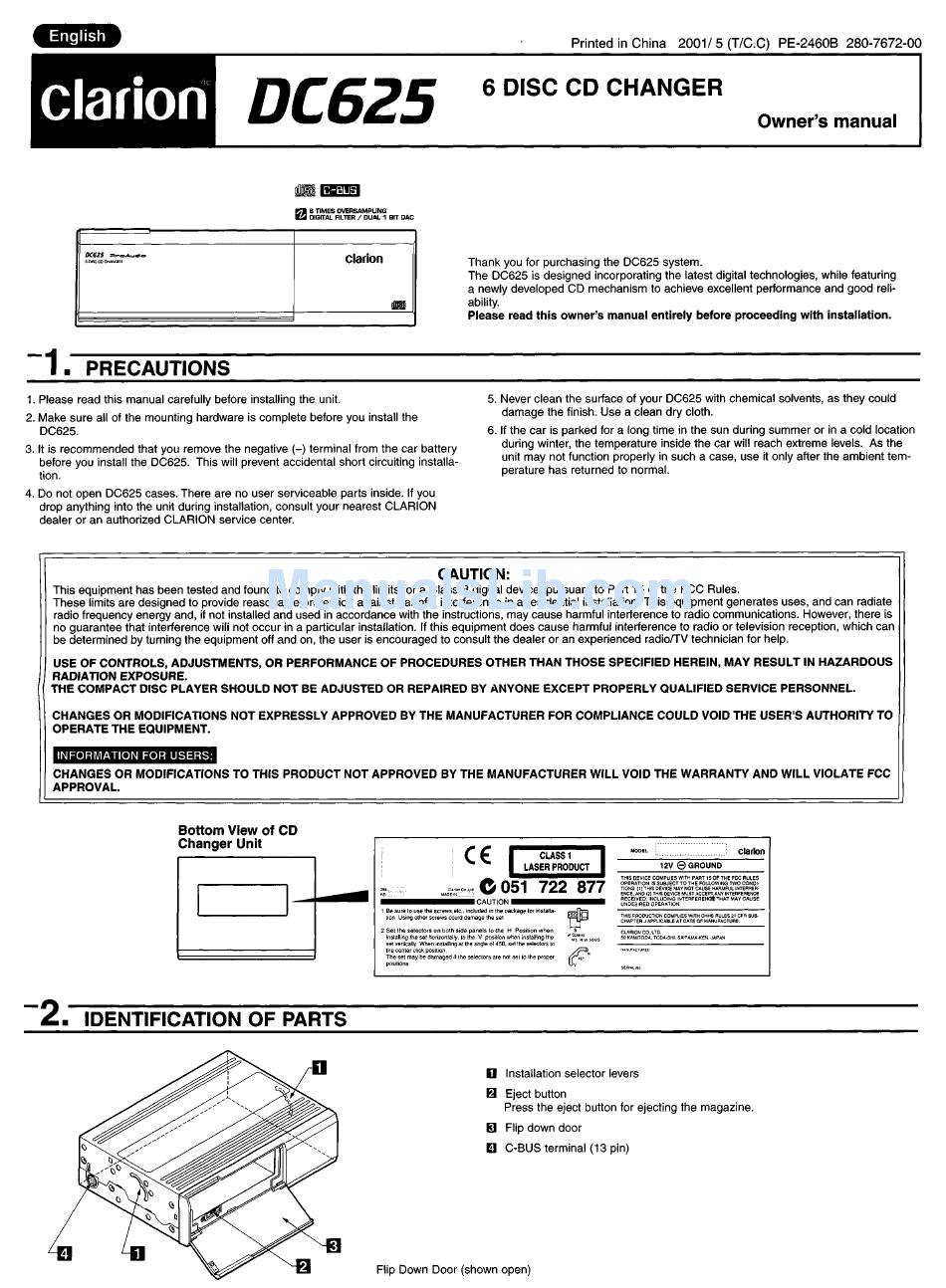

Clarion DC6Z5 Owner's Manual

clarion'
DC6Z5
Printed in China 2001/5 (T/C.C) PE-2460B 280-7672-00
6 DISC CD CHANGER
Owner's manual
-1.
PRECAUTIONS
Clarion
. 1 Thank you for purchasing the DC625 system.
The DC625 is designed incorporating the latest digital technologies, while featuring
a newly developed CD mechanism to achieve excellent performance and good reli-
ability.
Please read this owner's manual entirely before proceeding with installation.
1. Please read this manual carefully before installing the unit.
2. Make sure all of the mounting hardware is complete before you install the
DC625.
3.
It
is recommended that you remove the negative
H
terminal from the car battery
before you install the DC625. This will prevent accidental short circuiting installa-
tion.
4. Do not open DC625 cases. There are no user serviceable parts inside. If you
drop anything into the unit during installation, consult your nearest CLARION
dealer or an authorized CLARION service center.
5. Never clean the surface of your DC625 with chemical solvents, as they could
damage the finish. Use a clean dry cloth.
6.
If
the car is parked for a long time in the sun during summer or in a cold location
during winter, the temperature inside the car will reach extreme levels. As the
unit may not function properly in such a case, use it only after the ambient tem-
perature has returned to normal.
CAUTION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference wili not occur in a particular installation.
If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radiorTV technician for help.
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
INFORMATION FOR USERS;
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC
APPROVAL.
Bottom View of CD
Changer Unit
C€
I
CLASS 1
I
LASER PRODUCT
_ ., 0'.00,"
C
051 722 877
. . . . . . CAUTION
Clarion
12V
8
GROUND
TI-IIS DEVICE COMPLIES WITH PART lS0F THE FCC RULES
OPERATKlN IS SUBJECT TO THE FOLLOWING TWO CONOI·
liONS: (11 THIS DEVice MAY NOT CAUSE HARMFUL INTERFER·
ENCE,ANomnIISOEVICEMUSTACCEPTANVINTERfERENCE
~~g~~~~bl~~i~~~lg~NTERFEAEtd:'THAT
M AY CAUSE
18esurelousettlescrews,etc"includedinlhepackageforinslalla.
tiOll Using other screws could damage the sel
2 Selthe seleclors
on
both side panels 10 the H Position when
installing the set horizontally. 10 the V position when installing Ihe
set vertically When inSlaltingat the angte 0145B. sel the seleclors 10
the center click position
The set may be damaged il the seleclors are not set to the proper
posrtions
-2.
IDENTIFICATION OF PARTS
~""
e:"
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR SUB·
CHAPTER J APPLICABlE AT DATE OF MA"lUFACTl,IRE
CLARIONCO.LTD
50 KAMITODA. TODA·SHI. SAITAMA·KEN. JAPA'I
o
Installation selector levers
f,J Eject button
Press the eject button for ejecting the magazine.
BJ
Flip down door
9
C·BUS terminal (13 pin)
Flip Down Door (shown open)
