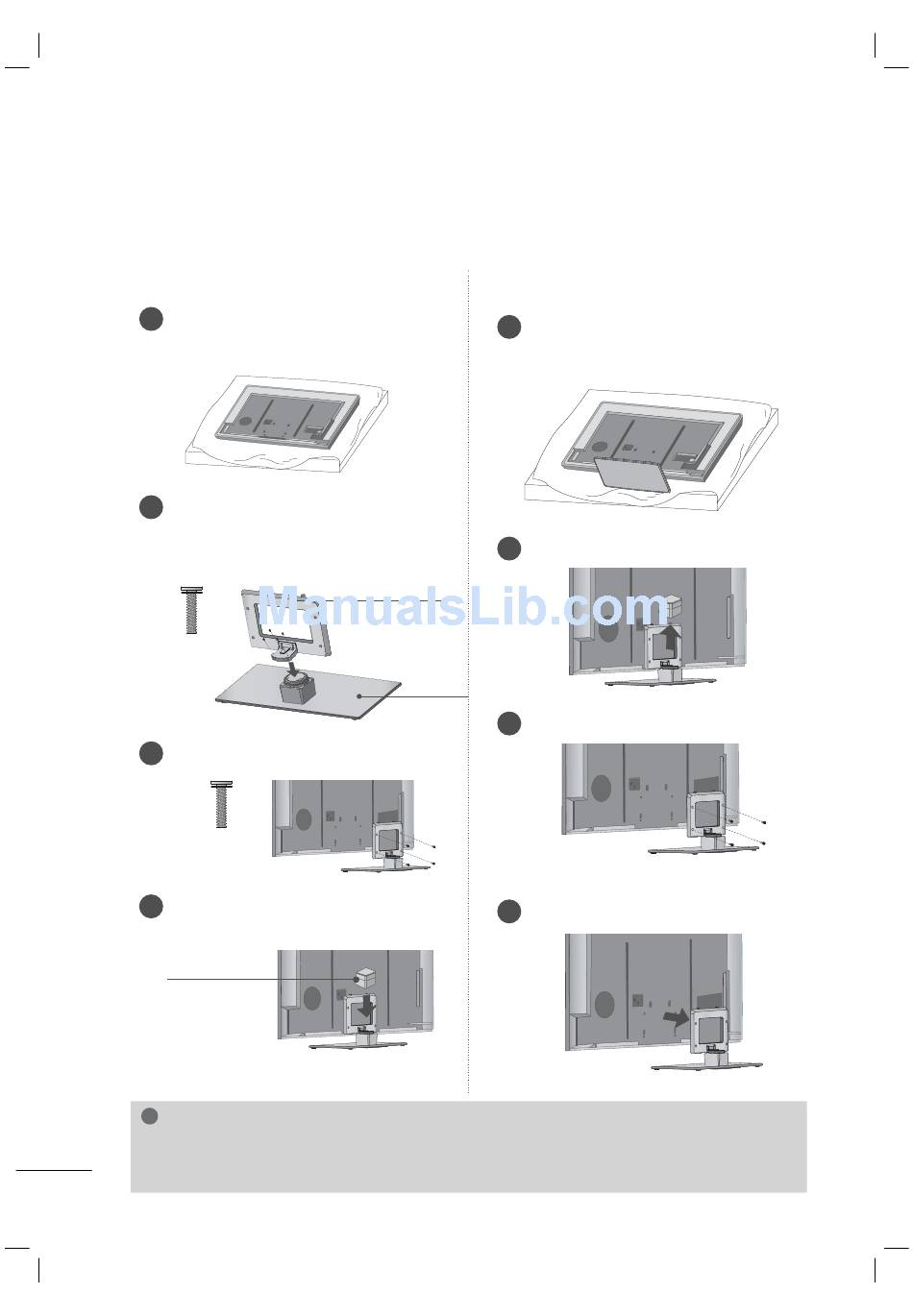

PREPARATION
STAND INSTRUCTIONS
Image shown may differ from your TV.
INSTALLATION
Carefully place the TV screen side down on
1
a cushioned surface to protect the screen
from damage.
Assemble the parts of the STAND
2
BODY with the STAND BASE of the TV.
At this time, tighten the screws that
hold the STAND BODY on.
M4 x 22
3
Install the 4 screws into the holes shown.
M4 x 12
4
Assemble the part of the STAND
REAR COVER with the TV.
STAND REAR
COVER
!
NOTE
When assembling the desk type stand, make sure the screws are fully tightened (If not tightened
fully, the TV can tilt forward after the product installation). Do not over tighten.
10
(For 47/55LX9500, 47/55LEX8)
DETACHMENT
1
2
STAND BODY
STAND BASE
3
4
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
Detach the STAND REAR COVER from TV.
Remove the screws that hold the stand on.
Detach the stand from TV.
