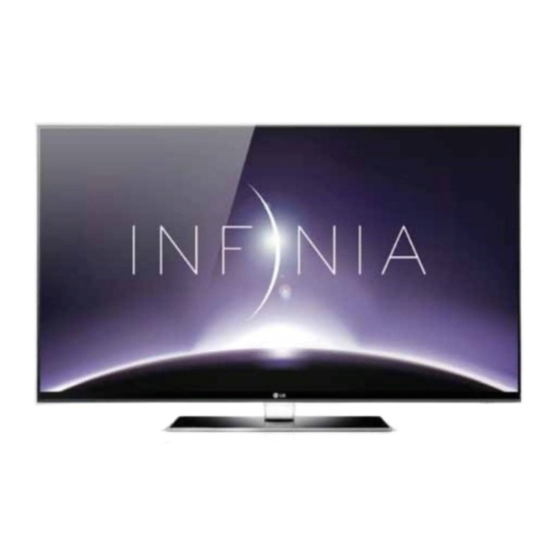

Page 1 LED LCD TV PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. LED LCD TV MODELS PLASMA TV MODELS 47LX9500 50PK950 55LX9500 60PK950 47LEX8 55LEX8 60LEX9 72LEX9 www.lg.com P/NO : SAC34134205 (1004-REV02)
Page 2: Warning / Caution
Do not attempt to modify this product in any point of the cable entry as practical. way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Protect the power cord from being walked Keep these instructions. on or pinched particularly at plugs, conve- nience receptacles, and the point where Heed all warnings. they exit from the apparatus. Follow all instructions. Do not use this apparatus near water.
Page 4 SAFETY INSTRUCTIONS Never touch this apparatus or antenna during WARNING - To reduce the risk of fire or elec- a thunder or lighting storm. trical shock, do not expose this product to rain, moisture or other liquids. Do not touch When mounting a TV on the wall, make sure the TV with wet hands.
Page 5 ANTENNAS Ventilation Outdoor antenna grounding Install your TV where there is proper ventila- tion. Do not install in a confined space such If an outdoor antenna is installed, follow the as a bookcase. Do not cover the product precautions below. An outdoor antenna sys- with cloth or other materials (e.g.) plastic tem should not be located in the vicinity of while plugged in.
Page 6: Table Of Contents
CONTENTS WARNING / CAUTION On-Screen Menus Selection ......64 ......2 Quick Menu ............66 SAFETY INSTRUCTIONS ......3 Home Menu ............67 CONTENTS ............6 Customer Support - Software Update ..........68 FEATURE OF THIS TV ......8 - Picture Test/Sound Test ........ 69 - Product/Service Info........70 PREPARATION - Network Test ............
Page 7 NETCAST TIME SETTING Netcast Menu ............ 123 Clock Setting YOUTUBE ............124 - Auto Clock Setup ..........157 PICASA ............... 126 - Manual Clock Setup ........158 Auto On/Off Time Setting ......159 PICTURE CONTROL Sleep Timer Setting ........160 Picture Size (Aspect Ratio) Control .... 128 PARENTAL CONTROL / RATINGS Picture Wizard ...........
Page 8: Feature Of This Tv
“night” modes will then be pixels, 16:9 aspect-ratio screens, accessible by the user to experi- and AC3 digital audio. A subset of ence the best their LG HDTV has to digital television, HDTV formats offer. include 1080p, 1080i, and 720p Sophisticated and detailed calibra- resolutions.
Page 9 View videos and photos and listen AV Mode is three preset picture to music on your TV through USB and audio settings. It allows the 2.0 (‘videos’ dependent on model). viewer to quickly switch between common settings. includes Cinema, Sports, and Game Modes. Automatically enhances and ampli- fies the sound of human voice fre- quency range to help keep dia-...
Page 10: Accessories
PREPARATION PREPARATION ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please con- tact the dealer where you purchased the TV. The accessories included may differ from the images below. 1.5V 1.5V 1,5Vcc 1,5Vcc 1.5V 1.5V 1.5V 1.5V 1,5Vcc 1,5Vcc...
Page 11: Optional Extras
OPTIONAL EXTRAS Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer for buying these items. These devices only work with compatible LG LED LCD TV and Plasma TV. (For 47/55LX9500) Wireless Media Box...
Page 12: Front Panel Information
PREPARATION FRONT PANEL INFORMATION Image shown may differ from your TV. ꔛ 50/60PK950 Intelligent Sensor Adjusts picture according to the surrounding conditions Remote Control Sensor SPEAKER Power/Standby Indicator Illuminates red in standby mode. The lighting is off while the TV remains on. ENTER INPUT MENU...
Page 13 47/55LX9500 ꕍ ꕌ CHANNEL ( Buttons VOLUME (-, +) Buttons ENTER ENTER Button MENU MENU Button SPEAKER INPUT INPUT Button POWER Button Emitter It is the part equipped with the emitter exchanging sig- nal with 3D glasses. Please be careful not to block the screen with objects or people while watching a 3D Video.
Page 14 PREPARATION Image shown may differ from your TV. ꔛ 47/55LEX8, 60/72LEX9 Remote Control Sensor Intelligent Sensor Adjusts picture according to the surrounding conditions Power/Standby Indicator (Can be adjusted using the Power Indicator in SPEAKER the OPTION menu. p.142 ► Emitter ENTER MENU INPUT...
Page 15: Back Panel Information
BACK PANEL INFORMATION Image shown may differ from your TV. ꔛ 50/60PK950 RS-232C IN (CONTROL & SERVICE) AV IN 2 AV IN 2 SERVICE ONLY OPTICAL AUDIO IN DIGITAL (RGB/DVI) AUDIO OUT RS-232C IN RGB IN (PC) (CONTROL & SERVICE) WIRELESS CONTROL OPTICAL...
Page 16 PREPARATION 47/55LX9500, 47/55LEX8, 60/72LEX9 WIRELESS CONTROL RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN (RGB/DVI) OPTICAL DIGITAL VIDEO L(MONO) AUDIO AUDIO IN AUDIO OUT WIRELESS CONTROL ANTENNA/ CABLE IN VIDEO AUDIO RS-232C IN RGB IN (PC) (SERVICE ONLY) WIRELESS CONTROL /DVI IN CAUTION (RGB/DVI) OPTICAL DIGITAL...
Page 17 Connect over-the-air or cable signals to this jack. Network connection for Netflix, Yahoo! TV Widgets, etc (for USA). COMPONENT IN Also used for video, photo and music files on Analog Connection. a local network. Supports HD. HDMI/DVI IN, HDMI IN Uses a red, green, and blue cable for video &...
Page 18: Stand Instructions
PREPARATION STAND INSTRUCTIONS (For 50/60PK950) Image shown may differ from your TV. ꔛ INSTALLATION (For 50PK950) Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Assemble the parts of the STAND BODY with the STAND BASE of the TV.
Page 19: Protection Cover
DETACHMENT Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. 50PK950 60PK950 Remove the screws that hold the stand on. M4 x 30 M4 x 28 Detach the stand from TV. PROTECTION COVER After removing the stand, install the included PROTECTION COVER over the hole for the stand.
Page 20 PREPARATION STAND INSTRUCTIONS (For 47/55LX9500, 47/55LEX8) Image shown may differ from your TV. ꔛ INSTALLATION Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Assemble the parts of the STAND BODY with the STAND BASE of the STAND BODY M4 x 22 At this time, tighten the screws that...
Page 21 DETACHMENT Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Detach the STAND REAR COVER from TV. Remove the screws that hold the stand on. Detach the stand from TV.
Page 22: Vesa Wall Mounting
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. We recommend that you use an LG brand wall mount when mounting the TV to a wall. LG recommends that wall mounting be performed by a qualified professional installer.
Page 23 Standard dimensions for wall mount kits are may damage the TV or cause the TV to a fall, shown in the table. leading to personal injury. LG is not liable for these kinds of accidents. ► When purchasing our wall mount kit, a detailed ►...
Page 24: Cable Management
PREPARATION CABLE MANAGEMENT Image shown may differ from your TV. ꔛ Plasma TV How to use the CABLE HOLDER After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables. In case of the LAN cable, install as shown to reduce the electromagnetic wave. CABLE HOLDER How to use the CABLE MANAGEMENT CLIP Connect the cables as necessary.
Page 25 Image shown may differ from your TV. ꔛ 47/55LX9500, 47/55LEX8, 60/72LEX9 Secure the power cord with the CABLE HOLDER on the TV back cover. It will help prevent the power cable from being removed by accident. CABLE HOLDER After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables.
Page 26: Desktop Pedestal Installation
PREPARATION DESKTOP PEDESTAL INSTALLATION Image shown may differ from your TV. ꔛ For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall. 10.1 cm (4 inch) 10.1 cm (4 inch) 10.1 cm (4 inch) 10.1 cm (4 inch) CAUTION ►...
Page 27: Securing The Tv To The Wall To Prevent Falling When The Tv Is Used On A Stand
SECURING THE TV TO THE WALL TO PREVENT FALLING WHEN THE TV IS USED ON A STAND You should purchase necessary components to prevent the TV from tipping over (when not using a ꔛ wall mount). Image shown may differ from your TV. ꔛ...
Page 28: Antenna Or Cable Connection
PREPARATION To prevent damage do not connect to the power outlet until all connections are made between the ꔛ AC IN devices. CABLE MANAGEMENT Image shown may differ from your TV. ꔛ ANTENNA OR CABLE CONNECTION AV IN 2 1. Antenna (Analog or Digital) RS-232C IN Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
Page 29: External Equipment Setup
EXTERNAL EQUIPMENT SETUP To prevent the equipment damage, never plug in any power cords until you have finished connecting all ꔛ equipment. Image shown may differ from your TV. ꔛ HD RECEIVER SETUP This TV can receive digital over-the-air/digital cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device.
Page 30 EXTERNAL EQUIPMENT SETUP For LED LCD TV ANT IN S-VIDEO VIDEO AUDIO ANT OUT OUTPUT SWITCH...
Page 31: Hdmi Connection
/DVI IN OPTICAL (RGB/DVI) DIGITAL VIDEO L(MONO) AUDIO AUDIO IN AUDIO OUT WIRELESS CONTROL AUDIO VIDEO HDMI Connection 1. How to connect RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN Connect the digital set-top box to HDMI/DVI IN (RGB/DVI) OPTICAL DIGITAL VIDEO L(MONO) AUDIO...
Page 32: Dvi To Hdmi Connection
EXTERNAL EQUIPMENT SETUP HDMI OUTPUT DVI to HDMI Connection RS-232C IN RGB IN (PC) (CONTROL&SERVICE) 1. How to connect /DVI IN (RGB/DVI) OPTICAL DIGITAL Connect the DVI output of the digital set-top VIDEO L(MONO) AUDIO box to the HDMI/DVI IN 1, 2, 3, or 4* jack on AUDIO IN AUDIO OUT the TV.
Page 33: Dvd Setup
DVD SETUP Component Connection 1. How to connect Connect the video outputs ( Y, P ) of the DVD to the COMPONENT IN VIDEO 1, 2, or 3* jacks on the TV. Match the jack colors ( Y = green, P = blue, and = red ) .
Page 34 VIDEO AUDIO EXTERNAL EQUIPMENT SETUP HDMI OUTPUT Composite (RCA) Connection 1. How to connect RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN Connect the AUDIO/VIDEO jacks between TV (RGB/DVI) OPTICAL DIGITAL VIDEO L(MONO) AUDIO and DVD. Match the jack colors (Video = yellow, AUDIO IN AUDIO OUT Audio Left = white, and Audio Right = red)
Page 35 RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN (RGB/DVI) OPTICAL DIGITAL VIDEO L(MONO) AUDIO AUDIO IN AUDIO OUT WIRELESS CONTROL AUDIO VIDEO HDMI Connection 1. How to connect RS-232C IN RGB IN (PC) (CONTROL&SERVICE) Connect the HDMI output of the DVD to the /DVI IN HDMI/DVI IN 1, 2, 3 or 4 jack on the TV.
Page 36: Vcr Setup
EXTERNAL EQUIPMENT SETUP VCR SETUP Antenna Connection 1. How to connect Connect the RF antenna out socket RS-232C IN ANTENNA/ RGB IN (PC) (CONTROL&SERVICE) CABLE IN of the VCR to the ANTENNA/CABLE /DVI IN IN socket on the TV. S-VIDEO VIDEO ANT OUT RGB/DVI...
Page 37 WIRELESS CONTROL AUDIO VIDEO Composite (RCA) Connection 1. How to connect Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, RS-232C IN RGB IN (PC) (CONTROL&SERVICE) Audio Left = white, and Audio Right = red) /DVI IN (RGB/DVI) OPTICAL DIGITAL...
Page 38: Other A/V Source Setup
EXTERNAL EQUIPMENT SETUP OTHER A/V SOURCE SETUP Camcorder 1. How to connect Video Game Set Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. ( Video = yellow, Audio Left = white, and Audio Right = red ) VIDEO 2.
Page 39: Headphone Setup
HEADPHONE SETUP (FOR LED LCD TV) You can listen to the sound through headphones. 1. How to connect Plug headphones into the head- phone socket. To adjust the headphone volume, press the VOL +/- button. If you press the MUTE button, the sound from the headphone is switched off.
Page 40: Audio Out Connection
EXTERNAL EQUIPMENT SETUP AUDIO OUT CONNECTION Send the TV’s audio to external audio equipment via the Audio Output port. If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO OUT terminal on the back of TV to a Home Theater (or amp). 1.
Page 41: External Equipment Wireless Connection (Optional Extras)
LG TVs with a Wireless Control port support the LG Wireless Media Box, which is sold separately. When you connect the wireless ready dongle (included with the media box) to the TV, external devices can be connected to the LG Wireless Media Box and video and audio will be sent to the TV wirelessly. WIRELESS...
Page 42: Pc Setup
EXTERNAL EQUIPMENT SETUP PC SETUP RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN This TV provides Plug and Play capability, meaning that PC adjusts automatically to the TV's set- tings. (RGB/DVI) OPTICAL DIGITAL VIDEO L(MONO) AUDIO AUDIO OUT AUDIO IN VGA (D-Sub 15 Pin) Connection RS-232C IN WIRELESS...
Page 43 NOTE ►To get the the best picture quality, adjust the PC graphics card to 1920x1080. ►Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use. ►In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright- ness.
Page 44: Screen Setup For Pc Mode
EXTERNAL EQUIPMENT SETUP Screen Setup for PC mode Selecting Resolution You can choose the resolution in RGB-PC mode. The Position, Phase, and Size can also be adjusted. You can choose this option only when the PC resolution is set to 1024X768, 1280X768 or 1360X768. SCREEN PICTURE ꔂ...
Page 45: Auto Configure
Auto Configure Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, try using the manual settings or a different resolution or refresh rate on the PC. Screen Reset (Reset to original initial values) Returns Position, Size, and Phase to the default initial settings.
Page 46: Adjustment For Screen Position, Size, And Phase
EXTERNAL EQUIPMENT SETUP Adjustment for screen Position, Size, and Phase If the picture is not clear after auto adjustment or if text is shaking, adjust the picture phase manually. This feature operates only in RGB-PC mode. PICTURE SCREEN ꔂ Move ꔉ Enter ꔂ...
Page 47: Network Setup
NETWORK SETUP Wired Network Connection This TV can be connected to a local area network (LAN) via the LAN port. After making the physical connection, the TV needs to be set up for network communication. RS-232C IN RGB IN (PC) (CONTROL&SERVICE) /DVI IN (RGB/DVI)
Page 48: Wired Network Setup
EXTERNAL EQUIPMENT SETUP Wired Network Setup If wired and wireless networks are both available, wired is the preferred method. After making a physical connection, a small number of home networks may require the TV network settings to be adjusted. For detail information, contact your internet provider or router manual. If you already set the Network Setting NETWORK...
Page 49 Turn off all unused network equipment in your your ISP. local home network. Some devices may gen- ► LG is not responsible for any malfunction of erate network traffic. the TV and/or the internet connection feature ► In some instances, placing the access point or...
Page 50: Wireless Network Connection
EXTERNAL EQUIPMENT SETUP Wireless Network Connection The LG Wireless LAN for Broadband/DLNA Adaptor, which is sold separately, allows the TV to connect to a wireless lan network. The network configuration and connection method may vary depending on the equipment in use and the network environment.
Page 51: Wireless Network Setup
Wireless Network Setup Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the network. If you already set the Network Setting NETWORK Selecting the wireless network setting type ꔂ Move ꔉ Enter Previous setting value exists.
Page 52 EXTERNAL EQUIPMENT SETUP When a security code is already set PIN (Personal Identification Number) If you want to connect the AP (Access Point) or router with PIN, use this feature. Selecting AP Connecting with PIN mode Select AP you want to connect. Page 1/1 Insert PIN number at the AP webpage and press ‘Connect’...
Page 53 AD-hoc Mode The below settings are only for connecting directly to a PC. This is the same as connecting two PCs with a cross-over cable. Selecting the wireless network setting type Setting Ad-hoc network Setting Ad-hoc network Select the wireless network setting type. Insert the setting information into the device.
Page 54: Network Status
EXTERNAL EQUIPMENT SETUP Network Status Network Status NETWORK ꔂ Move ꔉ Enter • Network Setting : Wired • Network Status : Internet is connected Network connecting • Legal Notice • ESN Setting Test Close Select the wireless network setting type. Network Setting Select the wireless network setting type.
Page 55: Watching Tv / Channel Control
WATCHING TV / CHANNEL CONTROL REMOTE CONTROL FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. The remote control may differ from the images below. POWER Turns the TV on from standby or off to standby.
Page 56 LIGHT LIGHT WATCHING TV / CHANNEL CONTROL ENERGY AV MODE INPUT AV MODE INPUT ENERGY SAVING SAVING PQRS WXYZ PQRS WXYZ FLASHBK FLASHBK LIST LIST MARK MARK MENU Displays the main menu or clears all CHAR/NUM CHAR/NUM on-screen displays and return to TV RATIO DELETE DELETE...
Page 57: Installing Batteries
PQRS WXYZ PQRS WXYZ FLASHBK FLASHBK LIGHT LIST LIST MARK MARK CHAR/NUM CHAR/NUM ENERGY AV MODE INPUT RATIO ENERGY AV MODE INPUT DELETE DELETE MUTE MUTE SAVING SAVING MENU Q.MENU MENU Q.MENU ENTER ENTER PQRS WXYZ PQRS WXYZ USB, • Controls MY MEDIA menu (Movie List, FLASHBK FLASHBK...
Page 58: Magic Motion Remote Control Functions
WATCHING TV / CHANNEL CONTROL MAGIC MOTION REMOTE CONTROL FUNCTIONS Pointer Receiver Blinks the light when operating. POWER Turns the TV on from standby or off to standby. ENTER/HOME Activates the pointer. Menu Button ENTER VOLUME UP/ Adjusts the volume. DOWN CHANNEL Changes the channel.
Page 59 Magic Motion Remote Control Registration The Magic Motion Remote Control operates by pairing with your TV. Register the Magic Motion Remote Control after purchasing the TV. How to register the Magic Motion Remote Control To register the Remote Control, press the ENTER button on the ENTER Remote Control while aiming it at your TV.
Page 60 WATCHING TV / CHANNEL CONTROL Pointer Menu Options Simple Manual Pointer Exit Home Menu Today Today Today Today Today Today Quick Menu Channel List SIMPLINK INPUT NETCAST MY MEDIA GAME/SCHEDULE QUICK MENU Netcast Screen Remote ◀ ▶ ▶ • Speed Normal ◀...
Page 61: Turning On The Tv
TURNING ON THE TV First, connect power cord correctly. At this moment, the TV switches to standby mode. ꕌ ꕍ I, INPUT, CH ( In standby mode to turn TV on, press the button on the TV or press ꔛ ꕌ...
Page 62: Initial Setting
“Store Demo” Mode is an optimal setting for displaying at stores. “Store Demo” mode initializes ꔛ the TV to set the image quality. Step 1. Selecting Language WELCOME! Thank you for choosing LG Step 1. Language Select Menu Language. ENTER English Español...
Page 63 Step 3. Power Indicator (For LED LCD TV) Step 3. Power Indicator ◀ ▶ ▶ Select On or Off. Standby Light ENTER � Previous ꔉ Next This function is disable in “Step2. Mode ꔛ Setting - Store Demo”. Step 4. Time Zone Select Time Zone option.
Page 64: On-Screen Menus Selection
WATCHING TV / CHANNEL CONTROL ON-SCREEN MENUS SELECTION Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. Display each menu. Accept the current selection. MENU ENTER Select a menu item. Return to TV viewing. ENTER EXIT CHANNEL...
Page 65 NETWORK ꔂ Move ꔉ Enter • Network Setting : None • Network Status : Not connected NETWORK • Legal Notice • ESN Input List ꔂ Move ꔉ Enter USB1 USB2 AV 1 AV 2 Component1 INPUT Component2 RGB-PC HDMI1 HDMI2 HDMI3 HDMI4 �...
Page 66: Quick Menu
WATCHING TV / CHANNEL CONTROL QUICK MENU Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently. ꕁ Aspect Ratio: Selects your desired picture format. ꕇ...
Page 67: Home Menu
HOME MENU Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. Select Home Menu. ENTER ENTER Select a menu item. ENTER Home Menu Simple Manual Pointer Exit Quick Menu Channel List Today Today Today Today Today Today...
Page 68: Customer Support - Software Update
You can update the software by connecting the TV directly to the software update server. The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your TV.
Page 69: Picture Test/Sound Test
Picture Test/Sound Test This function is a customer support function that can execute picture and sound tests. □ Software Update ꔑ Picture Test Do you have a problem in this test screen? □ Sound Test □ Product/Service Info. □ Network Test Close □...
Page 70: Product/Service Info
WATCHING TV / CHANNEL CONTROL Product/Service Info. This function shows support and product information. Customer Service Center can differ by country. Select Customer Support. MENU Select Product/Service Info.. You can check the various ENTER product/Service infomation based on your model. Return to the previous menu.
Page 71: Network Test
Network Test Check the newtwork status. Network Status □ Software Update □ Picture Test □ Sound Test Network connecting □ Product/Service Info. ꔑ Network Test Close Setting Test Close Select Customer Support. MENU Select Network Test. ENTER Check the newtwork status. ENTER...
Page 72: Simple Manual
WATCHING TV / CHANNEL CONTROL SIMPLE MANUAL You can easily and effectively access the TV information by viewing a simple manual on the TV. During the Simple Manual operation, audio will be muted. Select Home Menu. ENTER ENTER RED: Go to the Index page. ꔛ...
Page 73: Channel Setup
CHANNEL SETUP Auto Scan (Auto Tuning) Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list. Run this function if you change your residence or move the TV. Auto Tuning memorizes only the channels available at the time. CHANNEL CHANNEL ꔂ...
Page 74: Add/Delete Channel (Manual Tuning)
WATCHING TV / CHANNEL CONTROL Add/Delete Channel (Manual Tuning) When selecting DTV or Cable DTV input signal in Manual Tuning, you can view the on-screen signal strength monitor to see the quality of the signal being received. CHANNEL CHANNEL ꔂ Move ꔉ Enter ꔂ...
Page 75: Channel Editing
Channel Editing The channels in the Channel Edit List are displayed in black and the channels deleted from the Channel Edit List are displayed in blue. ∧∨ When a channel number is deleted, it means that you will be unable to select it using CH button during TV viewing.
Page 76: Channel List
WATCHING TV / CHANNEL CONTROL CHANNEL LIST You can check which channels are stored in the memory by displaying the channel list. Channel List Home Menu ꔒ ꔉ Quick Menu This padlock is displayed when the channel is locked Channel List with parental control.
Page 77: Favorite Channel Setup
FAVORITE CHANNEL SETUP Favorite Channels are a convenient feature that lets you quickly select channels of your choice without waiting for the TV to select all the in-between channels. Favorite List Channel List ꔊꔋFavorite Ch. Group Home Menu ◀ Group ▶...
Page 78: Channel Information
WATCHING TV / CHANNEL CONTROL CHANNEL INFORMATION ꔀ Ch. Change ▶ Next ꔉ Watch ꕯ Exit ꔖ DTV -1 CNN Brief Info Title Test... ꔥ Multilingual ꔨ ꔯ Caption ꔷ 1080i ꔒ TV-PG D L S V 10:10 AM 11:40 AM No information Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, with regular and special guests.
Page 79: Channel Brief Information
CHANNEL BRIEF INFORMATION Brief Info shows the present screen information. Shows the current channel’s brief info screen. ENTER Return to TV viewing. ENTER ꔖ DTV Brief Info Title Test... Sun, Feb 21, 2010 10: 40 AM 10:10 AM 11:40 AM ꔥ...
Page 80: Input List
WATCHING TV / CHANNEL CONTROL INPUT LIST Only these input signals which are connected to a TV can be activated and selected. Simple Manual Pointer Exit Home Menu Quick Menu Today Today Today Today Today Today Channel List SIMPLINK NETCAST MY MEDIA GAME/SCHEDULE QUICK MENU...
Page 81: Input Label
INPUT LABEL This indicates which device is connected to which input port. Simple Manual Pointer Exit Home Menu Quick Menu Today Today Today Today Today Today Channel List SIMPLINK NETCAST MY MEDIA GAME/SCHEDULE QUICK MENU INPUT Netcast Screen Remote i.e) Input List Input Label ꔂ...
Page 82: Reset To Factory Default (Initial Setting)
WATCHING TV / CHANNEL CONTROL RESET TO FACTORY DEFAULT (INITIAL SETTING) This function resets the TV to factory default and erases all stored channels. OPTION OPTION ꔂ Move ꔉ Enter ꔂ Move ꔉ Enter • Language • Language • Caption : Off •...
Page 83: Mode Setting
MODE SETTING Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the best picture in your home environment. OPTION OPTION ꔂ Move ꔉ Enter ꔂ Move ꔉ Enter • Language • Language Selecting the environment. •...
Page 84: Demo Mode
WATCHING TV / CHANNEL CONTROL DEMO MODE Displays a slide show to explain the various feature of this TV. OPTION OPTION ꔂ Move ꔉ Enter ꔂ Move ꔉ Enter • Language • Language Selecting the environment. • Caption : Off •...
Page 85: Av Mode
AV MODE AV Mode toggles through preset Video and Audio settings. Press button to run the selected function. Screen Remote ENERGY AV MODE AV Mode INPUT Home Menu SAVING Q.MENU SIMPLINK Quick Menu Close Enter Channel List Netcast Screen Remote FLASHBK LIST Select Screen Remote.
Page 86: Game/Schedule
WATCHING TV / CHANNEL CONTROL GAME/SCHEDULE World Time This function operates only if the current time has been set. Simple Manual Pointer Exit Home Menu Quick Menu Today Today Today Today Today Today Channel List SIMPLINK INPUT NETCAST MY MEDIA QUICK MENU GAME/SCHEDULE Netcast...
Page 87 Schedule This function operates only if the current time has been set. Simple Manual Pointer Exit Home Menu Today Today Today Quick Menu Today Today Today Channel List SIMPLINK INPUT NETCAST MY MEDIA QUICK MENU GAME/SCHEDULE Netcast Screen Remote GAME/SCHEDULE Schedule ꔂ...
Page 88 WATCHING TV / CHANNEL CONTROL Schedule Registration i.e) SCHEDULE Add Schedule ꔂ Navigation ꔉ Add/Edit Person Sun. Mon. Tue. Wed. Thu. Fri. Sat. Sun, Jul. 4 Lunar 5.23 Grandfather Grandmother Father Custom Mother Daughter Event Father Birthday Jul. 4 Birthday Memorial Anniversary Repeat...
Page 89 Game Allows you to enjoy the games installed on the TV. Simple Manual Pointer Exit Home Menu Quick Menu Today Today Today Today Today Today Channel List SIMPLINK INPUT NETCAST MY MEDIA QUICK MENU GAME/SCHEDULE Netcast Screen Remote GAME/SCHEDULE WORLD TIME SCHEDULE JUMP HOLE IN ONE...
Page 90: Simplink
WATCHING TV / CHANNEL CONTROL SIMPLINK SIMPLINK allows you to control and play other AV devices connected with HDMI cable without addi- tional cables and settings. This TV may work with devices with HDMI-CEC support, but only devices with the logo are fully supported.
Page 91: Simplink Functions
TV viewing: Switch to the previous TV channel regardless of the current ꔉ Enter � Exit mode. ◀ ▶ ◀ ▶ DISC playback: Select and play discs. When multiple discs are available, the Watch TV disc devices are conveniently displayed ►When no device is con- DISC 1 at the bottom of the screen.
Page 92: Video
3D VIDEO 3D VIDEO (FOR LED LCD TV) 3D VIDEO This TV can display 3D video when received from a compatible device. 3D video contains two pictures for each video frame formatted for each eye. Therefore, special 3D glasses are required to view 3D video.
Page 93 Caution when using 3D Glasses ►3D glasses are sold separately. Refer to the 3D glasses manual for operating instructions. ►Do not use the 3D glasses to replace the corrective glasses, sunglasses or protective goggles. ►Do not store the 3D glasses in hot or cold location. ►Do not drop objects onto the 3D glasses.
Page 94: Watching 3D Video
3D VIDEO WATCHING 3D VIDEO Play the title produced in 3D video. Refer to the following for 3D video input format supported. Horizontal Vertical Signal Resolution Playable 3D video format Frequency (kHz) Frequency (Hz) Top & Bottom, Side by Side 720p 1280x720 45.00...
Page 95 L/R SELECT Select Setting Left/Right. ENTER Put on 3D glasses. Sit 2 meters from TV to enjoy the best 3D view. (To select more comfortable view for you, change to left/right image of glasses with ꔅ button.) ꔉ Enter ꔅ Setting Left/Right End 3D Video Select Left/Right or Right/Left.
Page 96: My Media
MY MEDIA MY MEDIA ENTRY MODE The My Media menu will open automatically when you insert a USB drive. My Media can also be accessed by choosing My Media in the user menu. After choosing the desired type of media, choose a device to open files from. The options are: USB device, or DLNA.
Page 97: Connection Method
CONNECTION METHOD USB Connection Connect the USB device to the USB IN jack on the side of TV. Memory Key Precautions when using the USB device ►Only a USB storage device is recognizable. ►Connecting a USB storage device through a USB hub is not supported. ►A USB storage device which uses its own driver may not be recognized.
Page 98 MY MEDIA DLNA About DLNA This TV is a DLNA Certified digital media product. It can display and play movie, photo and music content from your DLNA server. Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies.
Page 99 Installing Nero MediaHome 4 Essentials Nero MediaHome 4 Essentials is easy to use DLNA server software for Windows. Requirement PC system before you install Nero MediaHome 4 Essentials Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows® XP ꔛ...
Page 100 MY MEDIA Sharing files and folders After installing Nero MediaHome, you must add folders you wish to share. Double-click the Nero MediaHome 4 Essentials icon on the desktop. Click Network icon on the left and define your network name in the Network name field. The Network name you enter will be recognized by your TV.
Page 101 Playing back shared contents You can display and play movie, photo and music content stored on your computer or other DLNA media servers. Start the server on your computer or other device that connected on your home network. Select MY MEDIA. MENU Select Movie List, Photo List or Music List.
Page 102: Movie List
MY MEDIA MOVIE LIST It displays all of the video files it recognizes. The On-Screen Display on your model may be slightly different. Supported movie file Resolution: under 1920 pixel (width) x 1080 pixel (height) ꔛ Frame Rate: under 30 frame/sec (1920x1080), under 60 frame/sec (1280x720) ꔛ...
Page 103 Supported Video Formats Audio/ File Codec Profile/Level Support Explanation Extensions Video Advanced Profile@Level 3 VC-1 Advanced Profile Only streams compliant (e.g. 720p60, 1080i60, 1080p30) Video to SMPTE 421M VC-1 Simple Profile@Medium Level (e.g. CIF, QVGA) .asf standard are supported. VC-1 Simple and Main Profiles Main Profile@High Level (e.g.
Page 104: Screen Components
MY MEDIA Screen Components Select Home Menu. ENTER ENTER Select MY MEDIA. ENTER Select Movie List. ENTER Moves to upper level folder Page 1/1 Movie List Current page/Total pages Drive1 Current page/ total pages of USB 1 XTICK Page 1/1 contents Contents under the folder Butterfly_...
Page 105 Movie Selection Page 1/1 Movie List Select the target folder ENTER or drive. USB 1 XTICK Drive1 Page 1/1 Select the desired ENTER movie title. Butterfly_... 01:34:33 Play the movie file. ENTER ꔉ Play � Page Change ꔅ Change Device ꔅ...
Page 106 MY MEDIA Playing the Movie � Stop playback. � Return to normal playback. � Paused playback. If no buttons are pressed on the remote control for 10 minutes after pausing, the TV returns to the playback state. � ꕙ Select the required speed: x2, x4, x8, x16, x32 (backward/for- ��...
Page 107 Set Video Play Menu Options Set Video Play. ▶ ◀ ▶ Picture Size Full ◀ ▶ Audio Language ◀ ▶ Subtitle Language ◀ ▶ • Language English ◀ ▶ • Code Page Default Picture Size: Selects your desired ◀ ▶ ꔛ...
Page 108 MY MEDIA * Image shown may differ from your TV. Set Video Menu Options For LED LCD TV For Plasma TV Set Video. Set Video. ▶ ▶ ◀ ▶ ◀ ▶ Picture Mode Standard Picture Mode Standard ◀ ▶ ◀ ▶...
Page 109: Photo List
PHOTO LIST The On-Screen Display on your model may be slightly different. Supported photo file: *.JPG Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height) ꔛ Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height) ꔛ...
Page 110 MY MEDIA Photo Selection Page 1/1 Photo List Select the target folder ENTER or drive. USB 1 XTICK Drive1 Page 1/1 Select the desired pho- ENTER tos. Photo file is displayed. ENTER ꔉ View � Page Change ꔅ Change Device ꔅ...
Page 111 Full Screen Menu More operations are available in full screen mode. Page 1/1 Photo List USB 1 XTICK Drive1 Page 1/1 ꔉ View � Page Change ꔅ Change Device ꔅ To Music List ꔅ Change Numbers ꔅ Mark Mode ꕯ Exit 01_a.jpg 2008/12/10 1920 x 1080...
Page 112 MY MEDIA 01_a.jpg 2008/12/10 1920 x 1080 ENTER 479 KB Select the Slideshow, � ꕲ ꕳ � BGM, (Rotate), ◀ ▶ (Energy Saving), Option, or Hide. ◀ ▶ 2/13 Slideshow � BGM � � ꕲ � � Option � Hide ꕯ...
Page 113 Using the Photo List Function 01_a.jpg 2008/12/10 1920 x 1080 479 KB Choose options. Set Photo View. ◀ ▶ Set Video. Set Audio. � Previous Close ◀ ▶ 2/13 Slideshow � BGM � � ꕲ � � Option � Hide ꕯ...
Page 114 MY MEDIA * Image shown may differ from your TV. Set Video Menu Options For LED LCD TV For Plasma TV Set Video. Set Video. ◀ ▶ ▶ ◀ ▶ ▶ Picture Mode Standard Picture Mode Standard ◀ ▶ ◀ ▶...
Page 115: Music List
MUSIC LIST This TV cannot play back copy-protected files. The On-Screen Display on your model may be slightly different. Supported Music File: *.MP3 Bit rate range: 32 Kbps - 320 Kbps • Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz •...
Page 116 MY MEDIA Music Selection Page 1/1 Music List Select the target folder ENTER or drive. Drive1 Page 1/1 USB 1 XTICK 001. - B01.mp3 002. - B02.mp3 003. - B03.mp3 004. - B04.mp3 Select the desired 00:00 00:00 00:00 00:00 ENTER music file.
Page 117 Using the Music List Function Page 1/1 � Stop playback. Music List 3 file(s) Marked � Return to normal playback. Drive1 Page 1/1 � Paused playback. � � ꕙ Select the previous or next ꔑ ꔑ ꔑ song. 001. - B01.mp3 002.
Page 118 MY MEDIA Set Audio Play Menu Options Set Audio Play. ◀ ▶ ▶ Repeat ◀ ▶ Random � Previous Close Make appropriate adjustments. ENTER Then, select Close. Set Audio Menu Options Set Audio. ◀ ▶ ▶ Sound Mode Standard ◀ ▶...
Page 119 If you don't press any buttons for a while, the play information box ꔛ will float across the screen. This prevents screen pixel damage due to a fixed image remaining on the screen for a extended period of time. 002. B02.mp3 00:31 / 04:04 �...
Page 120: Divx Registration Code
MY MEDIA DIVX REGISTRATION CODE Using the registration number, movies can be rented or purchased at www.divx.com/vod. Only DivX files matched with the registration code of the purchased TV are playable. DivX Reg.Code You must register your device to MY MEDIA play DivX protected videos.
Page 121: Deactivation
DEACTIVATION The purpose of deactivation is to allow deactivation of devices for users who have activated all the available devices through the web server and are blocked from activating more devices. DivX VOD allows the consumer to activate up to 6 devices under one account. Delete the existing authentication information to receive a new DivX user authentication for TV.
Page 122: Network
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH which LG has no control. LG may impose limits on the use of or RESPECT TO ANY CONTENT AND SERVICES, EITHER access to certain services or content, in any case and without EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, notice or liability.
Page 123: Netcast
To view the owner’s manual that provided by ꔛ Select NetCast. the Content Provider, visit our website at ENTER ENTER http://www.lg.com. To see the activation method of Yahoo!, ꔛ Select NETCAST menu option. Netflix, or Vudu, click the Yahoo!, Netflix, ENTER Vudu in the CD manual (For USA).
Page 124: Youtube
NETCAST YOUTUBE YouTube is a video sharing website where users can upload, view, and share video clips. Screen Components YouTube menu Videos list Set the option menu. Return to Netcast menu. Return to TV viewing. EXIT NOTE ► When you press the Q.menu button while the Youtube video is playing in full mode, you can set the video options.
Page 125: Using The Remote Control
YouTube menu Home: You can watch the popular video in real time. Featured: The featured videos list will be displayed. Popular: The best rated videos list from YouTube server will be displayed. Most Viewed: The most viewed videos list will be displayed. Search: The keypad/keyboard menu will be displayed.
Page 126: Picasa
NETCAST PICASA Picasa is a photo organizing or sharing website where users can upload, view, and share photos. Screen Components Picasa menu Photo list Navigate the desired photos. ENTER The selected photo file is displayed. Return to Netcast menu. Return to TV viewing. EXIT...
Page 127 Picasa menu Home: The featured photos list will be displayed. Friends: You can register users with the pictures you want as friends. You can add up to 10 friends. Search: The keypad/keyboard menu will be displayed. My Photos: You can view the pictures uploaded to the Web. This function can only be used when you sign Sign in (Sign Out): Displays the keypad/keyboard menu to sign in or returns to the sign-out status.
Page 128: Picture Control
PICTURE CONTROL PICTURE CONTROL PICTURE SIZE (ASPECT RATIO) CONTROL This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. You can select a different aspect ratio depending on input source (analog broadcasting, digital broad- casting, aux).
Page 129 16:9 Adjust the picture horizontally, in a linear Choose 4:3 when you want to view a picture proportion to fill the entire screen. with an original 4:3 aspect ratio. Just Scan Zoom Normally the edges of video signals are Choose Zoom when you want to view the cropped 1-2%.
Page 130: Picture Wizard
PICTURE CONTROL PICTURE WIZARD This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily follow- ing each step.
Page 131: Adjust Color
For LED LCD TV Backlight Color Set the screen above identical to the Recommended sample Set the Backlight to your Brightness preference. below. Dark Recommended Bright Recommended High • Backlight ◀ ▶ • Color ◀ ▶ ꕉ Previous � Next ꕉ...
Page 132: ꕊ Energy Saving
PICTURE CONTROL ꕊ ENERGY SAVING It reduces the TV’s power consumption. The default factory setting is adjusted to the comfortable level to be viewed at home. You can increase the brightness of your screen by adjusting the Energy Saving level or by adjusting the Picture Mode.
Page 133: Preset Picture Settings (Picture Mode)
PRESET PICTURE SETTINGS (PICTURE MODE) There are factory presets for picture settings available in the user menus. You can use a preset, change each setting manually, or use the Intelligent Sensor. PICTURE � Move � Enter • Aspect Ratio : 16:9 □...
Page 134: Manual Picture Adjustment - User Mode
PICTURE CONTROL MANUAL PICTURE ADJUSTMENT - USER MODE Adjust the picture appearance to suit your preference and viewing situations. PICTURE � Move � Enter • Aspect Ratio : 16:9 ꔠ • Picture Wizard ◀ ▶ • Backlight • ꕊ Energy Saving : Off ꔡ...
Page 135: Picture Improvement Technology (Advanced Control)
PICTURE IMPROVEMENT TECHNOLOGY (ADVANCED CONTROL) Advanced Control allows you to adjust some of the advanced features of your LG display. To reset to the factory default after making adjustments to each input source, execute the Picture Reset function for each Picture Mode.
Page 136: Expert Picture Control
PICTURE CONTROL EXPERT PICTURE CONTROL ꕋ Expert1 and ꕋ Expert2 provide even more advanced picture settings for users. Typical used by professionals for calibrating the TV. PICTURE PICTURE � Move � Enter � Move � Enter • Aspect Ratio : 16:9 •...
Page 137 DVD and Blu-ray movies are filmed at 24 frames per second (fps). With ꔛ LG Real Cinema, every frame is consistently processed 5 times in 1/24 of a second producing 120 fps with TruMotion or 2 times in 1/24 of a second...
Page 138 PICTURE CONTROL Edge Enhancer Show clearer and distinctive yet natural edges in the video. ꔛ This produces richer colors. ꔛ This feature represents rich color as much as conventional video signal. ꔛ xvYCC This function is enabled in "Picture mode - Cinema / ꔧ Cinema / ꔧ ꔛ...
Page 139: Picture Reset
PICTURE RESET Settings of the selected picture modes return to the default factory settings. PICTURE PICTURE � Move � Enter � Move � Enter • Color • Color • Tint • Tint All picture settings will be reset. • Color Temp. •...
Page 140: Trumotion
PICTURE CONTROL TRUMOTION - For LED LCD TV Advance video technology that provides clearer, smoother images, even during fast action scenes cre- ating a more stable structure for a crisper picture. PICTURE � Move � Enter • Color TruMotion ◀ ▶...
Page 141: Led Local Dimming
LED LOCAL DIMMING - For LED LCD TV After analyzing the signal of the input video by areas of the screen, it adjusts the backlight to improve the contrast ratio. This feature is disabled in “Picture Mode-Game”. PICTURE PICTURE � Move � Enter �...
Page 142: Power Indicator
PICTURE CONTROL POWER INDICATOR - For LED LCD TV Adjust the power/standby indicator light on the front of the TV. OPTION OPTION � Move � Enter � Move � Enter • Language • Language Standby Light ◀ ▶ • Caption : Off •...
Page 143: Image Sticking Minimization (Ism) Method
IMAGE STICKING MINIMIZATION (ISM) METHOD - For Plasma TV A frozen still picture displayed on the screen for prolonged periods can result in a ghost image. You can use Orbiter to help prevent image sticking. The other two functions are for removing a ghost image.
Page 144: Sound & Language Control
SOUND & LANGUAGE CONTROL SOUND & LANGUAGE CONTROL AUTO VOLUME Auto Volume makes sure that the volume level remains consistent whether you are watching a com- mercial or a regular TV program. Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed.
Page 145: Clear Voice Ii
CLEAR VOICE II By differentiating the human sound range from others, it improves the sound quality of voices. AUDIO AUDIO � Move � Enter � Move � Enter • Auto Volume : Off • Auto Volume : Off ꔀ • Clear Voice II ◀...
Page 146: Balance
SOUND & LANGUAGE CONTROL BALANCE Adjust the left/right sound of speaker to suit your taste and room situations. AUDIO AUDIO � Move � Enter � Move � Enter • Auto Volume : Off • Auto Volume : Off • Clear Voice II : Off �...
Page 147: Preset Sound Settings (Sound Mode)
PRESET SOUND SETTINGS (SOUND MODE) Sound Mode lets you enjoy the best sound without any special adjustment using factory presets. AUDIO AUDIO � Move � Enter � Move � Enter • Auto Volume : Off • Auto Volume : Off •...
Page 148: Sound Setting Adjustment - User Mode
Infinite Sound feature will not oper- Sport, or Game. ate. Infinite Sound: Infinite Sound is a ꔛ Select Infinite Sound, Treble, or Bass. ENTER patented LG proprietary sound pro- cessing technology that strives immersive 5.1 surround sound with Make appropriate adjustments.
Page 149: Audio Reset
AUDIO RESET Settings of the selected Sound Mode return to the default factory settings. AUDIO AUDIO � Move � Enter � Move � Enter • Clear Voice II : Off � 3 • Clear Voice II : Off � 3 •...
Page 150: Tv Speakers On/Off Setup
SOUND & LANGUAGE CONTROL TV SPEAKERS ON/OFF SETUP If you wish to use an external Hi-Fi system, turn off the TV’s internal speakers. AUDIO AUDIO � Move � Enter � Move � Enter • Clear Voice II : Off � 3 •...
Page 151: Stereo/Sap Broadcast Setup
STEREO/SAP BROADCAST SETUP On analog signals, this TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used if the broadcast is only in Mono. Multi Audio English �...
Page 152: Audio Language
SOUND & LANGUAGE CONTROL AUDIO LANGUAGE This feature operates only in DTV/Cable DTV mode. OPTION OPTION � Move � Enter � Move � Enter • Language • Language � Menu Language English ꔡ • Caption : Off • Caption : Off Audio Language ◀...
Page 153: On-Screen Menus Language Selection
ON-SCREEN MENUS LANGUAGE SELECTION The menus can be shown on the screen in the selected language. OPTION OPTION � Move � Enter � Move � Enter • Language • Language � ꔡ Menu Language ◀ English ▶ • Caption : Off •...
Page 154: Caption Mode
SOUND & LANGUAGE CONTROL CAPTION MODE Analog Broadcasting System Captions Captions are provided to help the hearing impaired watch TV. Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.
Page 155: Digital Broadcasting System Captions
Digital Broadcasting System Captions Choose the language you want the DTV/Cable DTV Captions to appear in. Other Languages can be chosen for digital sources only if they are included on the program. This function in only available when Caption Mode is set On. OPTION OPTION �...
Page 156: Caption Option
SOUND & LANGUAGE CONTROL Caption Option Customize the DTV/Cable DTV captions that appear on your screen. This function in only available when Caption Mode is set On. ◀ Custom ▶ Size A Standard OPTION � Move � Enter Font Font 1 •...
Page 157: Time Setting
TIME SETTING CLOCK SETTING Auto Clock Setup The time is set automatically from a digital channel signal. The digital channel signal includes information for the current time provided by the broadcasting sta- tion. Set the clock manually if the current time is set incorrectly by the auto clock function. TIME TIME �...
Page 158: Manual Clock Setup
TIME SETTING Manual Clock Setup If the current time setting is wrong, reset the clock manually. TIME TIME � Move � Enter � Move � Enter • Clock • Clock � � ◀ Manual ▶ ꔡ • Off Time : Off •...
Page 159: Auto On/Off Time Setting
AUTO ON/OFF TIME SETTING This function operates only if the current time has been set. The Off Time function overrides the On Time function if they are both set to the same time. The TV must be in standby mode for the On Time to work. If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV will automatically revert to standby mode.
Page 160: Sleep Timer Setting
TIME SETTING SLEEP TIMER SETTING The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off. TIME TIME � Move � Enter � Move � Enter • Clock •...
Page 161: Parental Control / Ratings
PARENTAL CONTROL / RATINGS Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories.
Page 162: Set Password
PARENTAL CONTROL / RATINGS Set Password Change the password by inputting a new password twice. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password � ꔡ • Lock System : On • Lock System : On Confirm •...
Page 163: Lock System
Lock System Enables or disables the blocking scheme you set up previously. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password □ ꔀ • Lock System : On • Lock System : On �...
Page 164: Channel Blocking
PARENTAL CONTROL / RATINGS CHANNEL BLOCKING Blocks any channels that you do not want to watch or that you do not want your children to watch. Block Channel Favorite Group: page 1/1 LOCK � Move � Enter Cable DTV Cable TV •...
Page 165: Movie & Tv Rating
MOVIE & TV RATING Movie Rating (MPAA) - For USA Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.
Page 166 PARENTAL CONTROL / RATINGS TV Rating Children - For USA Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.
Page 167 TV Rating General - For USA Based on the ratings, blocks certain TV programs that you and your family do not want to view. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password •...
Page 168: For Canada
PARENTAL CONTROL / RATINGS TV Rating English - For CANADA Selecting Canadian English rating system. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password Blocking off : Permits all • Lock System : On •...
Page 169 TV Rating French - For CANADA Selecting Canadian French rating system. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password Blocking off : Permits all • Lock System : On • Lock System : On programs •...
Page 170: Downloadable Rating
PARENTAL CONTROL / RATINGS DOWNLOADABLE RATING This function is available only for digital channels. This function operates only when TV has received Region5 Rating data. LOCK LOCK � Move � Enter � Move � Enter • Set Password • Set Password •...
Page 171: External Input Blocking
EXTERNAL INPUT BLOCKING Enables you to block an input. LOCK LOCK � Move � Enter � Move � Enter • Lock System : On • Lock System : On • AV1 ◀ ▶ • Block Channel • Block Channel • •...
Page 172: Key Lock
PARENTAL CONTROL / RATINGS KEY LOCK This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it can only be used with the remote control. This TV is programmed to remember which option it was last set to even if you turn the TV off. LOCK LOCK �...
Page 173: Appendix
APPENDIX TROUBLESHOOTING Abnormal Operation Check to see if there is any object between the product and the remote ꔛ control causing obstruction. Ensure you are pointing the remote control directly at the TV. The remote control Ensure that the batteries are installed with correct polarity (+ to +, - to -). doesn’t work ꔛ...
Page 174 APPENDIX Audio Problems No output from one Adjust Balance in menu option. ꔛ of the speakers A change in ambient humidity or temperature may result in an unusual ꔛ Unusual sound from noise when the product is turned on or off and does not indicate a fault inside the product with the product.
Page 175 Movie List Problems The file does not appear on the Movie Check whether the file extension is supported. ꔛ List. Message is displayed Check whether the file is playing normally on a PC. (Check whether the ꔛ saying “This file is file is damaged.) invalid”...
Page 176: Maintenance
APPENDIX MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV. Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here’s a great way to keep the dust off your screen for a while.
Page 177: Product Specifications
PRODUCT SPECIFICATIONS 47LX9500 55LX9500 MODELS (47LX9500-UA) (55LX9500-UA) Dimensions With stand 1085.9 mm x 710.6 mm x 255.0 mm 1255.8 mm x 805.0 mm x 255.0 mm (Width x (42.7 inch x 27.9 inch x 10.0 inch) (49.4 inch x 31.6 inch x 10.0 inch) Height Without stand 1085.9 mm x 654.2 mm x 31.6 mm...
Page 178 APPENDIX 47LEX8 55LEX8 MODELS (47LEX8-UA) (55LEX8-UA) Dimensions With stand 1126.6 mm x 757.9 mm x 284.4 mm 1306.0 mm x 867.0 mm x 345.0 mm (Width x (44.3 inch x 29.8 inch x 11.1 inch) (51.4 inch x 34.1 inch x 13.5 inch) Height Without stand 1126.6 mm x 692.0 mm x 29.3 mm...
Page 179 50PK950 60PK950 MODELS (50PK950-UA, 50PK950-UF) (60PK950-UA, 60PK950-UF) Dimensions With stand 1190.0 mm x 804.5 mm x 294.5 mm 1408.8 mm x 937.9 mm x 384.0 mm (Width x (46.8 inch x 31.6 inch x 11.5 inch) (55.4 inch x 36.9 inch x 15.1 inch) Height Without stand 1190.0 mm x 737.0 mm x 52.4 mm...
Page 180: Ir Codes
APPENDIX IR CODES *This feature is not available for all models. 1. How to Connect Lead code High custom code Data code Data code Connect your wired remote control to the Remote Control port on the TV. ꔛ Lead code Lead code High custom code Data code...
Page 181 Code Function Note Code Function Note (Hexa) (Hexa) ꕖ Remote Control Button Remote Control Button CH ꕌ ꕗ Remote Control Button Remote Control Button CH ꕍ ꕘ VOL + Remote Control Button Remote Control Button VOL - Remote Control Button Discrete IR Code Remote Control Button (TV Input Selection)
Page 182: External Control Through Rs-232C
APPENDIX EXTERNAL CONTROL THROUGH RS-232C The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the TV’s functions externally. Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and ꔛ...
Page 183: Set Id
RS-232C Configurations 7-Wire Configuration 3-Wire Configurations ( Serial female-female NULL modem cable ) ( Not standard ) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID Use this function to specify a TV ID number. Refer to ‘Real Data Mapping’ . OPTION OPTION �...
Page 184: Command Reference List
APPENDIX Command Reference List Transmission / Receiving Protocol Transmission COMMAND1 COMMAND2 DATA (Hexadecimal) [Command1][Command2][ ][Set ID][ ][Data][Cr] 01. Power 00 - 01 [Command 1] : First command to control the set. ► 02. Input Select P.185 k, m or x) ►...
Page 185 01. Power (Command: k a) 05. Volume Mute (Command: k e) To control Power On/Off of the TV. To control volume mute on/off. You can also adjust mute using the MUTE button on Transmission [k][a][ ][Set ID][ ][Data][Cr] remote control. Data 00: Power Off Data 01: Power On Transmission [k][e][ ][Set ID][ ][Data][Cr]...
Page 186 APPENDIX 11. Sharpness (Command: k k) 17. Color Temperature (Command: x u) To adjust screen sharpness. To adjust color temperature. You can also adjust sharpness in the Picture menu. You can also adjust color temperature in the Picture menu. Transmission [k][k][ ][Set ID][ ][Data][Cr] Transmission [x][u][ ][Set ID][ ][Data][Cr] Data Min: 00 - Max: 64 (*transmit by Hexadecimal code) Data Warm: 00 - Cool: 64 (*transmit by Hexadecimal code)
Page 187 Data5: Step Main/Sub Two/One Part Using Physical Reserved Channel Channel Picture 0 Main 0 Two 0 Use NTSC Air 1 Sub 1 One 1 No Use NTSC Cable ATSC Air ATSC Cable_std ATSC Cable_hrc ATSC Cable_irc ATSC cable_auto Reserved Reserved 22.
Page 188: Open Source License
APPENDIX OPEN SOURCE LICENSE GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 licensed for everyone's free use or not licensed at all. Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA The precise terms and conditions for copying, distribution Everyone is permitted to copy and distribute verbatim cop- and modification follow.
Page 189 b) You must cause any work that you distribute or pub- c) Accompany it with the information you received as to lish, that in whole or in part contains or is derived the offer to distribute corresponding source code. from the Program or any part there of, to be licensed (This alternative is allowed only for noncommercial as a whole at no charge to all third parties under the distribution and only if you received the program in...
Page 190 APPENDIX 7. If, as a consequence of a court judgment or allegation the program specifies a version number of this license of patent infringement or for any other reason (not lim- which applies to it and "any later version", you have the ited to patent issues), conditions are imposed on you option of following the terms and conditions either of (whether by court order, agreement or otherwise) that...
Page 191 END OF TERMS AND CONDITIONS Also add information on how to contact you by electronic and paper mail. How to apply these terms to your new programs If the program is interactive, make it output a short notice If you develop a new program, and you want it to be of the like this when it starts in an interactive mode: greatest possible use to the public, the best way to achieve Gnomovision version 69, Copyright (C) year name of author...
Page 192 APPENDIX GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 that there is no warranty for the free library. Also, if the Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA library is modified by someone else and passed on, the Everyone is permitted to copy and distribute verbatim cop- recipients should know that what they have is not the of this license document, but changing it is not...
Page 193 Although the Lesser General Public License is Less protec- notices that refer to this license and to the absence of tive of the users' freedom, it does ensure that the user of a any warranty; and distribute a copy of this license along program that is linked with the Library has the freedom and with the Library.
Page 194 APPENDIX 3. You may opt to apply the terms of the ordinary GNU the library will still fall under Section 6.) General Public License instead of this License to a given copy of the Library. To do this, you must alter all the Otherwise, if the work is a derivative of the library, you notices that refer to this License, so that they refer to the may distribute the object code for the work under the...
Page 195 For an executable, the required form of the "work that You are not responsible for enforcing compliance by uses the library" must include any data and utility pro- third parties with this license. grams needed for reproducing the executable from it. However, as a special exception, the materials to be 11.
Page 196 APPENDIX If the library does not specify a license version number, it free software that everyone can redistribute and change. you may choose any version ever published by the Free You can do so by permitting redistribution under these Software Foundation. terms (or, alternatively, under the terms of the ordinary General Public License).
Page 197 MOZILLA PUBLIC LICENSE Version 1.1 --------------- 1.Definitions. which, at the time of its release under this license is not already covered code governed by this license. 1.0.1. “Commercial use” means distribution or otherwise making the covered code available to a third party. 1.10.1.
Page 198 APPENDIX (c) the licenses granted in this section 2.1(a) and (b) offer or impose any terms on any source code ver- are effective on the date Initial developer first sion that alters or restricts the applicable version of distributes original code under the terms of this this license or the recipients' rights hereunder.
Page 199 (c) Representations. code with other code not governed by the terms of contributor represents that, except as disclosed pur- this license and distribute the larger work as a single suant to section 3.4(a) above, contributor believes that product. In such a case, you must make sure the contributor's modifications are contributor's original requirements of this license are fulfilled for the cov- creation(s) and/or contributor has sufficient rights to...
Page 200 APPENDIX 7. DISCLAIMER OF WARRANTY. ed to You by such participant under sections COVERED CODE IS PROVIDED UNDER THIS 2.1(b) and 2.2(b) are revoked effective as of the LICENSE ON AN “AS IS” BASIS, WITHOUT date you first made, used, sold, distributed, or WARRANTY OF ANY KIND, EITHER EXPRESSED had made, modifications made by that partici- OR IMPLIED, INCLUDING, WITHOUT LIMITATION,...
Page 201 11. MISCELLANEOUS. This license represents the complete agreement con- EXHIBIT A -Mozilla Public License. cerning subject matter hereof. If any provision of this license is held to be unenforceable, such provision The contents of this file are subject to the Mozilla Public shall be reformed only to the extent necessary to License Version 1.1 (the “license”);...
Page 202 The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service. MODEL SERIAL...
Page 203 NETCAST MENU YAHOO!, NETFLIX, VUDU (For USA) YAHOO! TV WIDGETS ........ 2 NETFLIX Activation ........12 VUDU Activation ..........16 To view the owner’s manual that provided by ꔛ the Content Provider, visit our website at http://www.lg.com.
Page 204 NETCAST NETCAST YAHOO! TV WIDGETS You can enjoy the best of the Internet in perfect harmony with the simplicity and reliability of your TV. Yahoo! TV Widgets provide an integrated Internet TV experience powered by the Yahoo!® Connected TV platform. You can monitor financial stocks, share photos with friends and family, track news and weather and much more, all through the Yahoo! TV Widgets service on your TV.
Page 205: Guided Setup
Guided Setup Activate Yahoo! TV Widgets. The first time you use Yahoo! TV Widgets the step-by-step WIDGETS wizard begins with the Welcome Screen. Select Let’s get started!. If you select Accepting Yahoo! Terms of Service is also ENTER Exit Setup now, this step will be required to use Yahoo! TV Widgets.
Page 206 NETCAST Using Yahoo! TV Widgets Activate Yahoo! TV Widgets. The horizontal list at the bottom of your TV WIDGETS ꔛ screen is called “the dock”. The items in this list are called “snippets”. ꔛ A snippet is a shortcut which opens a TV ꔛ...
Page 207 Using the Profile Widget The Profile Widget configures your user profile. ꔛ You can set up multiple profiles for multiple users. ꔛ Each profile maintains its own list of TV Widgets. ꔛ The Switch Profile menu allows you to switch to a different user profile. ꔛ...
Page 208 NETCAST Using the Yahoo! News Widget The Yahoo! News Widget provides the latest headline news for ꔛ business, entertainment, politics, sports, top stories, and many other categories. Select a category, press ENTER. ꔛ Select a headline within the category, press ENTER. ꔛ...
Page 209 Using the Yahoo! Finance Widget View stock information and the latest stock news with the Yahoo! ꔛ Finance Widget. Press the GREEN button to set up your stocks. ꔛ - Use the Add New Symbol menu to enter the name of a new stock.
Page 210 NETCAST Using the flickr Widget The flickr Widget provides a television-viewing experience ꔛ while watching slideshows of family and friends’ photos. Personalize the flickr Widget by logging in with your ꔛ Yahoo! ID. Refer to Using the Profile Widget for instruc- tions.
Page 211 Restore Yahoo! Factory Settings Restoring Yahoo! Factory Settings will delete all of your profiles and installed widgets. Setup Setup Do you want to restore Yahoo! factory setting? Restore Yahoo! Factory Settings Weather Effect This will deleted all the profiles and widgets you have installed.
Page 212 NETCAST Yahoo! TV Widgets Problems Was the customer To use Yahoo! TV Widgets while using the HDMI input, turn off ꔛ watching HDMI “Simplink-on” in the OPTION menu. Or change to another Input input? and press then press the WIDGETS button. The WIDGETS button is blocked when using MY MEDIA.
Page 213 Yahoo! TV Widgets Problems Press BACK button The error may only be temporary. Exit out and try again. ꔛ and try again later. Check IP Address If not, connect Network Cable properly and set IP address from ꔛ setting is OK? Network menu and try again or contact Internet service provider.
Page 214 TV. To become a Netflix member visit: www.netflix.com/LG Activating your TV establishes a connection between your TV and your Netflix account. You must acti- vate your TV before you can use it to watch movies streamed over the INTERNET from Netflix.
Page 215 See the activation code on your TV screen, Activation Code Enter this activation code to the Netflix Website and click Activate. Wait for the poster screen to appear on your You’re ready to add movies to your instant Queue.
Page 216 NETCAST Netflix ESN (Electronic Serial Number) We provide you the Netflix ESN (Electronic Serial Number) that allows you to watch videos using the Netflix website. For more information, please visit: www.netflix.com NETWORK NETWORK ꔂ Move ꔉ Enter ꔂ Move ꔉ Enter •...
Page 217: Netflix Deactivation
Netflix Deactivation Once deactivated, TV will no longer instantly stream from your Netflix Instant Queue. If you deactivate, the TV cannot instantly stream from your Netflix Instant Queue. If you want, you can activate Netflix later. Setup Setup Do you want to deactivate this device? Restore Yahoo! Factory Settings Weather Effect Once deactivated, this device will no longer instantly...
Page 218 NETCAST Activating the TV In order to make rental/purchase transactions on the Vudu service, a user must create an account on vudu.com. That account is linked to a specific device, via a process called “activation”. It is possible to have multiple devices associated with a single Vudu account. If newer software is needed, a software update screen will automatically appear.
Page 219: Vudu Deactivation
VUDU Deactivation Once deactivated, this TV will no longer instantly stream from Vudu. If you want, you can activate VUDU later. Setup Setup Do you want to deactivate this device? Restore Yahoo! Factory Settings Weather Effect Deactivated VUDU will remove this device from Netflix Deactivation your VUDU account.

This manual is also suitable for:

72lex9 55lx9500 50pk950 60pk950 47lex8 50px950 ... Show all

LG INFINIA 47LX9500 Owner's Manual

Warning / Caution

Safety Instructions

Contents

Feature of this Tv

External Equipment Setup

Watching Tv / Channel Control

Video

My Media

Network

Netcast

Picture Control

Sound & Language Control

Time Setting

Parental Control / Ratings

Appendix

Quick Links

Related Manuals for LG INFINIA 47LX9500

Summary of Contents for LG INFINIA 47LX9500

This manual is also suitable for:

Table of Contents
