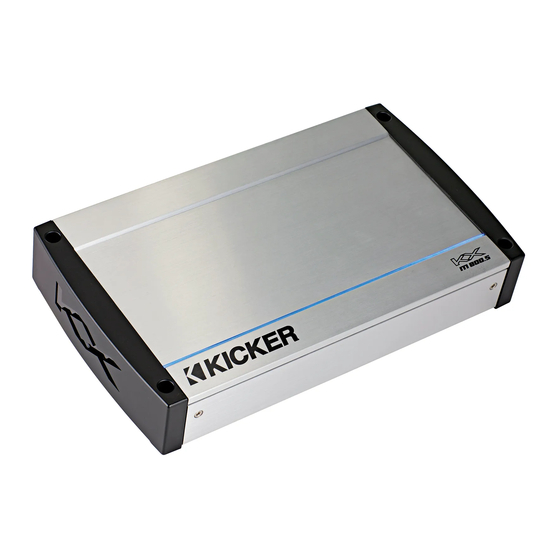

- Page 1 Amplifiers KXM 5-CHANNEL AMPLIFIER KXM800.5 Owner’s Manual | English Manual del Propietario | Español AMPLIFICADOR DEL LA SERIE KXM.5 Benutzerhandbuch | Deutsch VERSTÄRKER DER KXM.5-SERIE Manuel d’utilisation | Française AMPLIFICATEUR DE SÉRIE KXM.5...
- Page 2 Bass Boost Variable 0–18dB @ 40Hz Subsonic Filter Variable 10–80Hz; 24dB/Octave Remote Bass: Yes [included] Pro Tip: To get the best performance from your new KICKER Amplifi er and extend the warranty by 1 year, use genuine KICKER accessories and wiring.
-
Page 3: Installation
A high-level signal can be run from the source unit’s speaker outputs to the stereo RCA input on the end panel of the amplifi er using the KICKER KISL as shown (make sure you set the KXM amplifi... -
Page 4: Power Wiring
POWER WIRING Amplifi er uses 304-stainless steel screws and conformal coated PCB for increased ABYC-compliant power terminals weather resistance aluminum bottom plate 7” (18cm) external fuse battery remote turn-on (see page 7) - Page 5 For multiple amplifi er installations where distribution blocks are used, each amplifi er should have its proper-rated fuse, or breaker, installed between the amplifi er and the distribution block within seven inches of the block, or on the distribution block if it provides for fusing. The primary power wire should also be fused between the battery and distribution block, within seven inches of the battery’s B+ terminal, with a fuse or breaker rated at least to the sum of the individual amplifi...
- Page 6 FOUR CHANNEL OPERATION with SUBWOOFER minimum impedance of 2 ohms per channel (AMP1, AMP2, and SUB channels) KXRC REMOTE BASS INSTALLATION See page 8 Surface-mount the KXRC remote using the supplied screws. back view...
-
Page 7: Operation
This turn-on method will not work properly if the input gain control is not set appropriately. Input Level: The RCA inputs on KICKER KX amplifi ers are capable of receiving either Hi or Low-level signals from your source unit. If the only output available from your source unit is a Hi-Level signal, simply press in the Input Level switch on the amplifi... -
Page 8: Troubleshooting
There is a Protection (PRT) LED on the side panel of your KICKER KXM series amplifi er. Depending on the state of the amplifi er and the vehicle’s charging system, the LED will either glow red or be off. - Page 9 The new extended warranty applies only to KICKER amplifi ers and accessories sold to consumers by Authorized KICKER Dealers in the United States of America or its possessions. It also only applies to the original purchaser of KICKER amplifi ers and accessories. One warranty extension per amplifi er is allowed. This program does not apply to “B”- stock product or factory-refurbished product.
-
Page 10: What Is Not Covered
ELECTRONICS LIMITED WARRANTY When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase with receipt. If this product is identifi... -
Page 11: International Warranty
Sea precavido cuando controle el volumen. La frase “combustible para vivir la vida Livin’ Loud™ a todo volumen” se refi ere al entusiasmo por la vida que la marca KICKER de estéreos de automóvil representa y a la recomendación a nuestros clientes de que vivan lo mejor posible (“a todo volumen”) en todo sentido. - Page 12 ©2012 Stillwater Designs...
