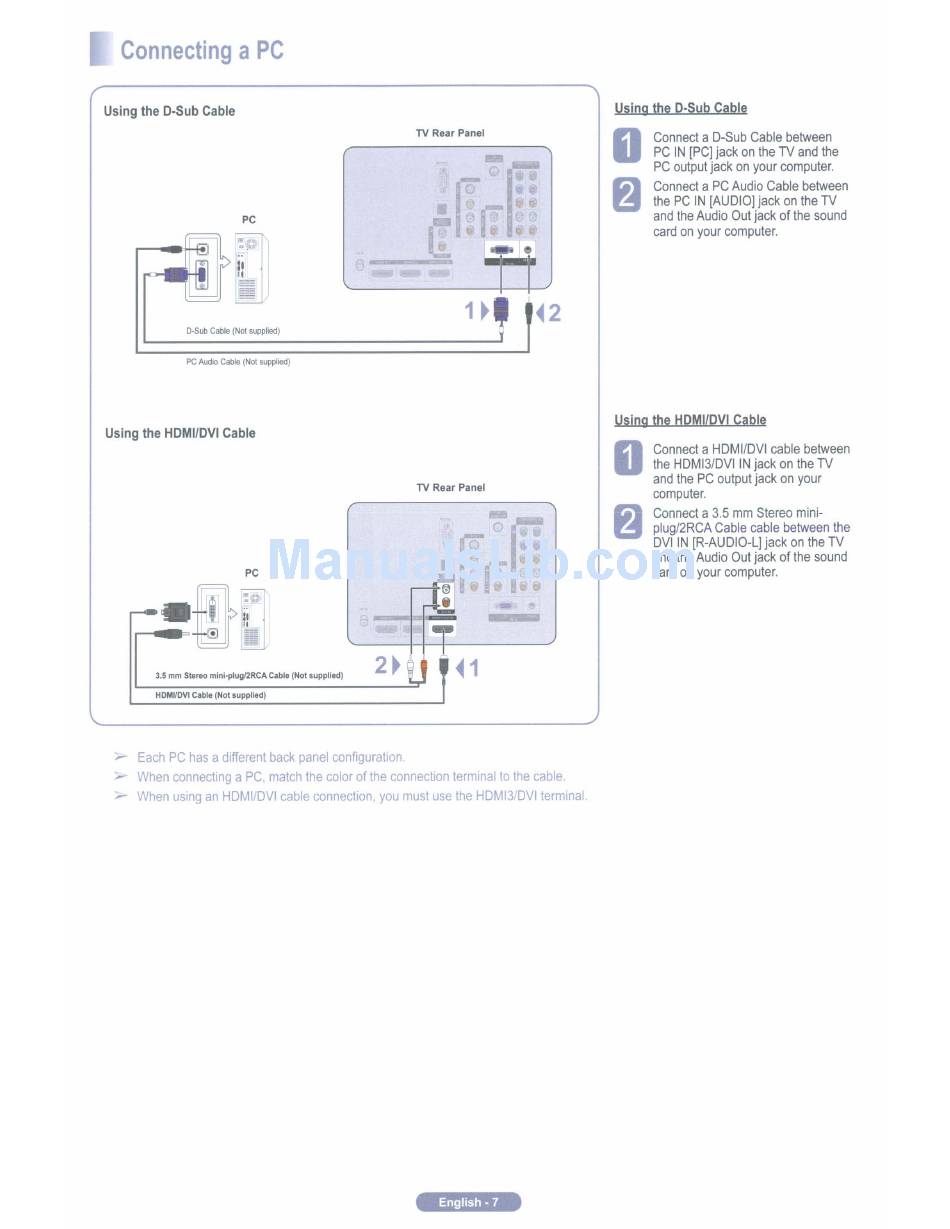

Connecting a PC
Using the O·Sub Cable
Connect a D-Sub Cable between
PC IN [PC] jack on the TV and the
PC output jack on your computer.
Connect a PC Audio Cable between
the PC IN [AUDIO] jack on the TV
and the Audio Out jack of the sound
card on your computer.
o.
II
II
TV Rear Panel
PC
D-Sub Cable (Not supplied)
PC AUdio Cable (Not supplied)
Using the D-Sub Cable
Using the HDMI/DVI Cable
TV Rear Panel
PC
3.5 mm Stereo mini-plugJ2RCA Cable (Not supplied)
HDMUDVI Cable (Not supplied)
Using the HOMIIOVI Cable
Connect a HOMI/OVI cable between
the HDMI3/DVIIN jack on the TV
and the PC output jack on your
computer.
Connect a 3.5 mm Stereo mini-
plug/2RCA Cable cable between the
DVI IN [R-AUDIO-L] jack on the TV
and the Audio Out jack of the sound
card on your computer.
Each PC has a different back panel configuration.
When connecting a PC. match the color of the connection termmal to the cable.
- When using an HDMIIDVI cable connection, you must use the HDMI3/DVI terminal
English·7
