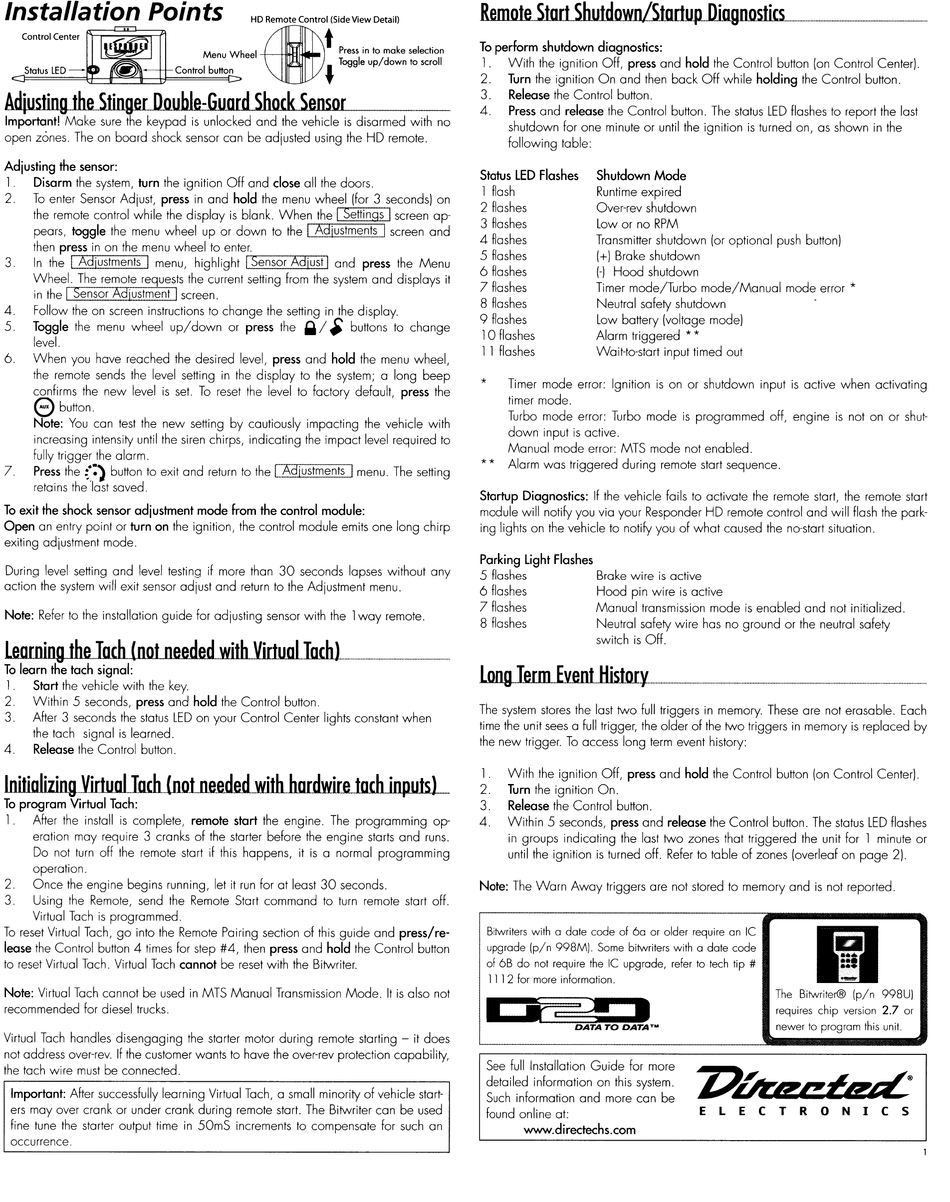

Python 592 Owner's Manual page 72

To perform shutdown diagnostics:
1. With the ignition Off, press and hold the Control button (on Control Center)
2. Turn the ignition On and then back Off while holding the Control button.
3. Release the Control button.
4. Press and release the Control button. The status LED flashes to report the last
shutdown for one minute or until the ignition is turned on, as shown in the
folloWing table:
Remote Start Shutdown/Startup
D. L \IIia. y Jgnlllo:. n stiuuCSL. . . - . - _
Control Center
~;::::~;;;;;;:;:::71
Installation Points
HD Remote Control (Side View Detail)
Menu Wheel
~t
Press in to moke selection
~
Toggle up/down to scroll
c:::jS;;:IO;;:tu::;;:s,;lE;::D~=8~£~~l::::±J~Co;;n;;;tr;;ol;;;b;;u";;;;otn::>
•
Adjusting the Stinger
DoubJe-Guard..S.hod<..... S~en.Ll:solU.r
_
Important! Make sure the keypad is unlocked and the vehicle is disarmed with no
open zones. The on board shock sensor can be adjusted using the HD remote.
long Term Event
ULLlis.LWtoLjryl.....- _
The system stores the last two full triggers in memory. These are not erasable. Each
time the unit sees a full trigger, the older of the two triggers in memory is replaced by
the new trigger. To access long term event history:
Startup Diagnostics: If the vehicle fails to activate the remote start, the remote start
module will notify you via your Responder HD remote control and will flash the park-
ing lights on the vehicle to notify you
of
what caused the no-start situation.
Shutdown Mode
Runtime expired
Over-rev shutdown
Low or no RPM
Transmitter shutdown (or optional push button)
(+1
Brake shutdown
H
Hood shutdown
Timer mode/Turbo mode/Manual mode error
*
Neutral safety shutdown
Low battery (voltage model
Alarm triggered
* *
Wait-to-start input timed out
Status LED Flashes
1 flash
2 flashes
3 flashes
4 flashes
5 flashes
6 flashes
7 flashes
8 flashes
9 flashes
10 flashes
1 1 flashes
Timer mode error: Ignition is on or shutdown input is active when activating
timer mode.
Turbo mode error: Turbo mode is programmed off, engine is not on or shut-
down input is active.
Manual mode error: MTS mode not enabled.
* *
Alarm was triggered during remote start sequence.
Parking Light Flashes
5 flashes Brake wire is active
6 flashes Hood pin wire is active
7 flashes Manual transmission mode is enabled and not initialized.
8 flashes Neutral safety wire has no ground or the neutral safety
switch is Off.
Note: Refer to the installation guide for adjusting sensor with the 1way remote.
Adjusting the sensor:
1. Disarm the system, turn the ignition Off and close all the doors.
2. To enter Sensor Adjust, press in and hold the menu wheel (for 3 secondsl on
the remote control while the display is blank. When the
1
Settings
I
screen ap-
pears, toggle the menu wheel up or down to the
1
Adjustments
I
screen and
then press in on the menu wheel to enter.
3. In the
I
Adjustments
I
menu, highlight ...7
1 S-e-n-so-r'A'd"ju-s
71
t
I
and press the Menu
Wheel. The remote re uests the current setting from the system and displays it
in the ensor 'ustment screen.
4. Follow the on screen instructions to change the setting in the display.
5. Toggle the menu wheel up/down or press the
Q/ ~
buttons to change
level.
6. When you have reached the desired level, press and hold the menu wheel,
the remote sends the level setting in the display to the system; a long beep
confirms the new level is set. To reset the level to factory default, press the
e
button.
Note: You can test the new setting by cautiously impacting the vehicle with
increasing intensity until the siren chirps, indicating the impact level required to
fully trigger the alarm.
7. Press the (:) button to exit and return to the
I
Adjustments
1
menu. The setting
retains the last saved.
To exit the shock sensor adjustment mode from the control module:
Open an entry point or turn on the ignition, the control module emits one long chirp
exiting adjustment mode.
During level setting and level testing if more than 30 seconds lapses without any
action the system will exit sensor adjust and return to the Adjustment menu.
To learn the tach signal:
1. Start the vehicle with the key.
2. Within 5 seconds, press and hold the Control button.
3. After 3 seconds the status LED on your Control Center lights constant when
the tach signal is learned.
4. Release the Control button.
Note: The Warn Away triggers are not stored to memory and is not reported.
The Bilwriter® (pin 998UI
requires chip version 2.7 or
newer to program this unit.
E LEe T RON I C S
Bilwriters with a date code
of
60 or older require an IC
upgrade
(pin
998MI. Some bilwriters with a dale code
of
6B do not require the IC upgrade, refer to tech tip #
1112 for more information.
~
DATA TO DATA
T
"
See full Installation Guide for more
detailed information on this system.
Such information and more can be
found online at:
www.directechs.com
1. With the ignition Off, press and hold the Control button Ion Control Center).
2. Turn the ignition On.
3. Release the Control button.
4. Within 5 seconds, press and release the Control button. The status LED flashes
in groups indicating the last two zones that triggered the unit for 1 minute or
until the ignition is turned off. Refer to table of zones (overleaf on page 2).
Important: After successfully learning Virtual Tach, a small minority
of
vehicle start-
ers may over crank or under crank during remote start. The Bitwriter can be used
fine tune the starter output time in 50mS increments to compensate for such an
occurrence.
Virtual Tach handles disengaging the starter motor during remote starting - it does
not address over-rev. If the customer wants to have the over-rev protection capability,
the tach wire must be connected.
Note: Virtual Tach cannot be used in MTS Manual Transmission Mode. It is also not
recommended for diesel trucks.
To program Virtual Tach:
1. After the install is complete, remote start the engine. The programming op-
eration may require 3 cranks of the starter before the engine starts and runs.
Do not turn off the remote start if this happens, it is a normal programming
operation.
2. Once the engine begins running, let it run for at least 30 seconds.
3. Using the Remote, send the Remote Start command to turn remote start off.
Virtual Tach is programmed.
To reset Virtual Tach, go into the Remote Pairing section of this guide and press/re-
lease the Control button 4 times for step #4, then press and hold the Control button
to reset Virtual Tach. Virtual Tach cannot be reset with the Bitwriter.
