INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity and the feature sticker from the oven door panel
(if available). Check the unit for any damage, such as a misaligned door, damaged door seals around
the door or dents inside the oven cavity or on the door. If there is any damage, please do not operate
the oven until it has been checked by the SHARP SERVICE CENTRE and repaired, if necessary.
2. Accessories provided
1) Turntable 2) Roller Stay
3. Fit the roller stay and turntable referring to OVEN DIAGRAM below. Place the roller stay on the bottom
of oven and seat the turntable on the roller stay, while aligning well with the coupling in the centre.
NEVER use the oven without the turntable and roller stay.
4. The oven should not be installed in any area where heat and steam are generated, for example, next
to a conventional oven unit.
The oven should be installed so as not to block ventilation openings.
Allow space of at least 15cm from top of the oven for air ventilation.
This oven is not designed to be built-in to a wall or cabinet.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or
personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage and frequency must correspond to the one indicated on the rating plate on the back
of the oven.
6. This appliance must be earthed:
The wires in power supply cord are coloured in accordance with the following code:
As the colours of the wires in the power supply cord of this appliance may not correspond with the
coloured marking identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter
N or coloured blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
L or coloured brown.

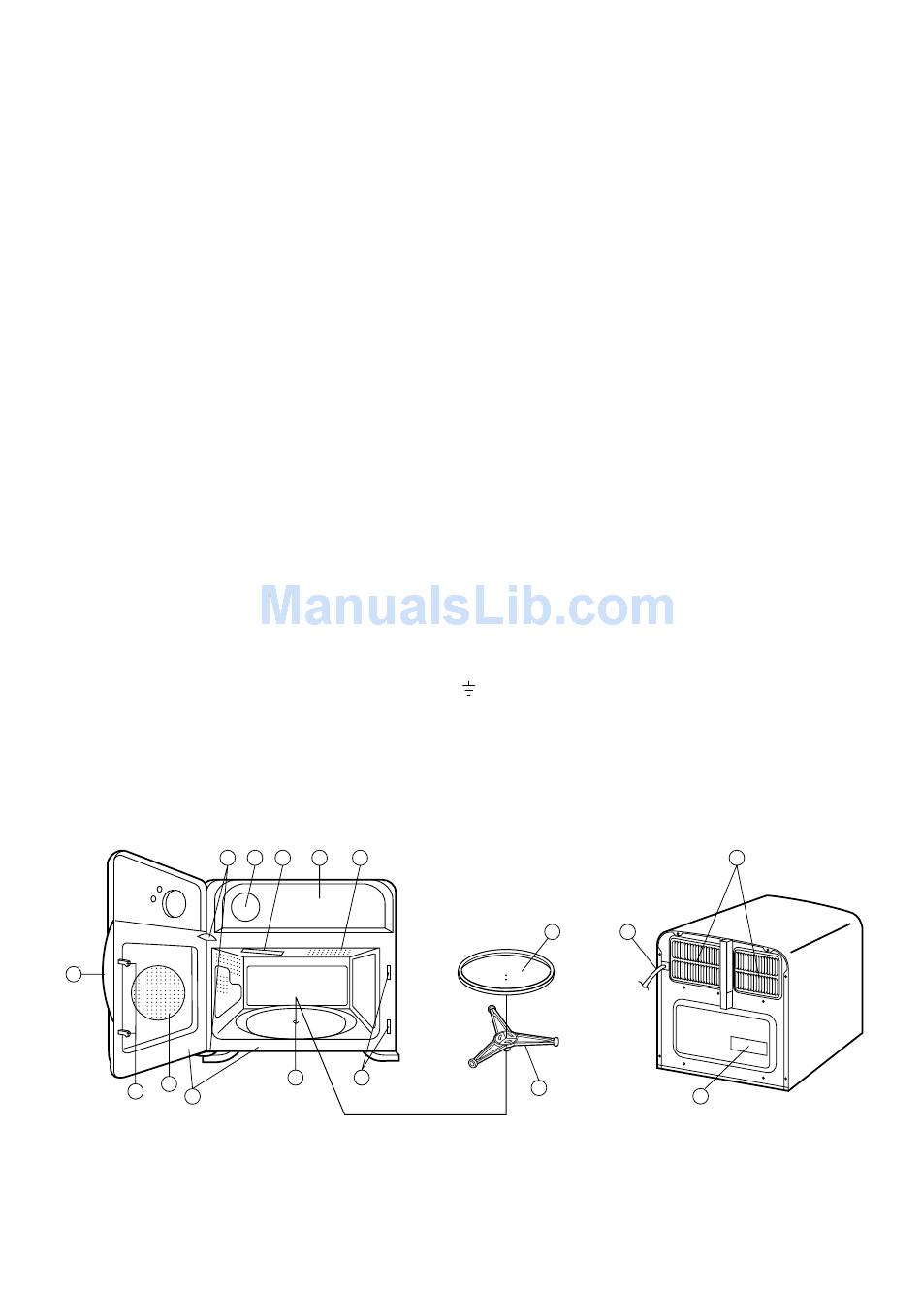

OVEN DIAGRAM

10
1
3
2
4
1. Door handle
2. Door safety latches
3. Door
4. Door seals and sealing surfaces
5. Coupling
6. Oven lamp
7. Touch control panel (see page E-4)
8. Waveguide cover (Do not remove)
3) Operation Manual and Cookbook Recipes
IMPORTANT
Green-and-yellow :
Blue
Brown
9 8 7 6
5 2
Earth
: Neutral
: Live
or coloured green or green-and-yellow.
14
15
9. Digital readout
10. Door hinges
11. Ventilation openings
12. Power supply cord
13. Rating plate
14. Turntable
15. Roller stay
