Network Cable Connectors
The
DP-100+
features
two
alternative
network
cable
connectors for either twisted-pair 10Base-T cabling (using an
RJ-45 connector) or thin coaxial 10Base2 cabling (using a BNC
connector).
Both of these network cable connectors are
located on the DP-100+'s right side panel.
DC Power Connector
The DC power input connector is located on the DP-100+'s
right side panel and is labeled DC 5V.

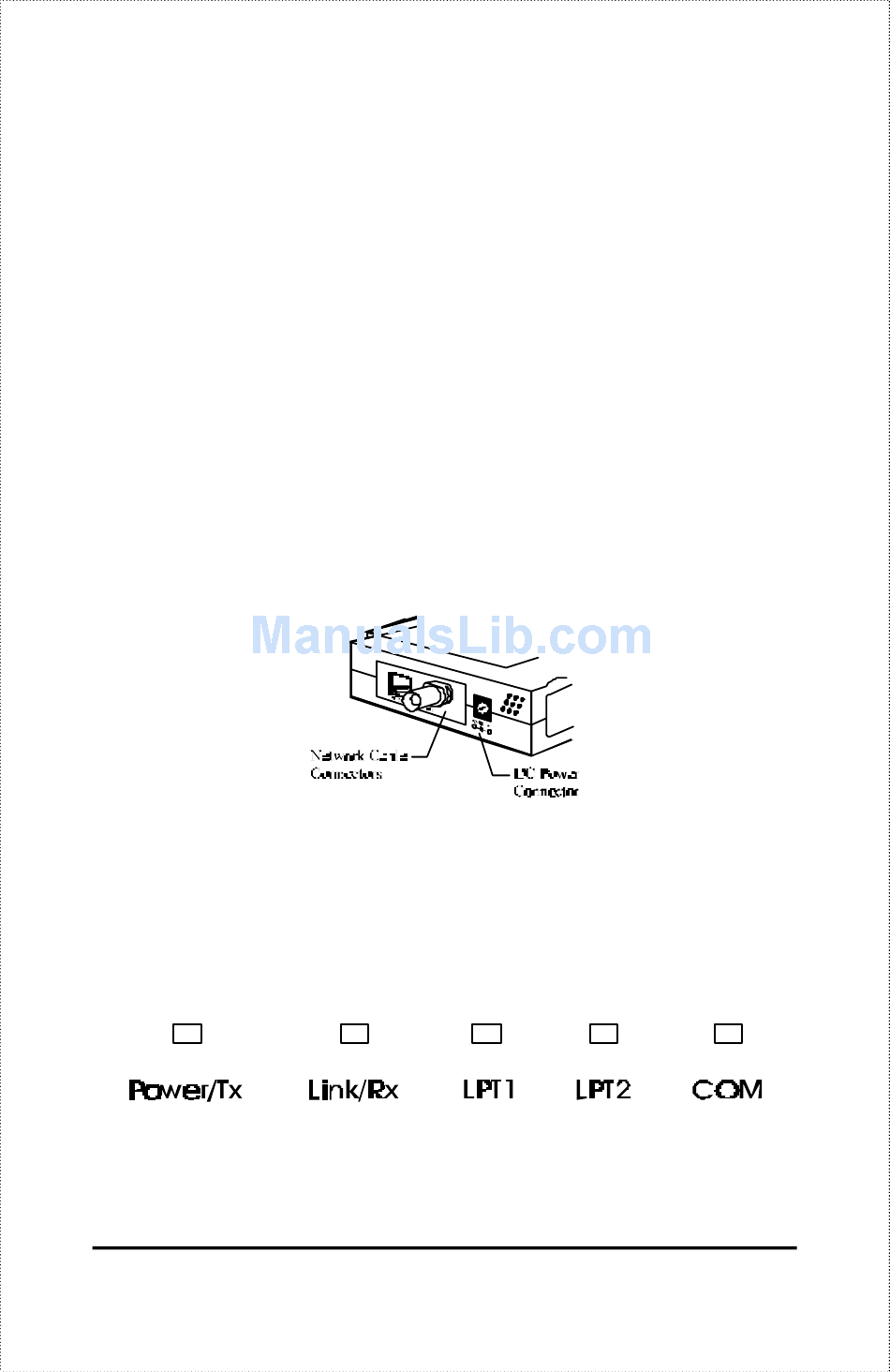

Figure 2 -3 Print Server Right Side Panel
LED Indicators
The front panel of the DP-100+ features five LED indicators:
Figure 2 -4 Front Panel LED Indicators
♦ Power/Tx
