2.
Control Functions

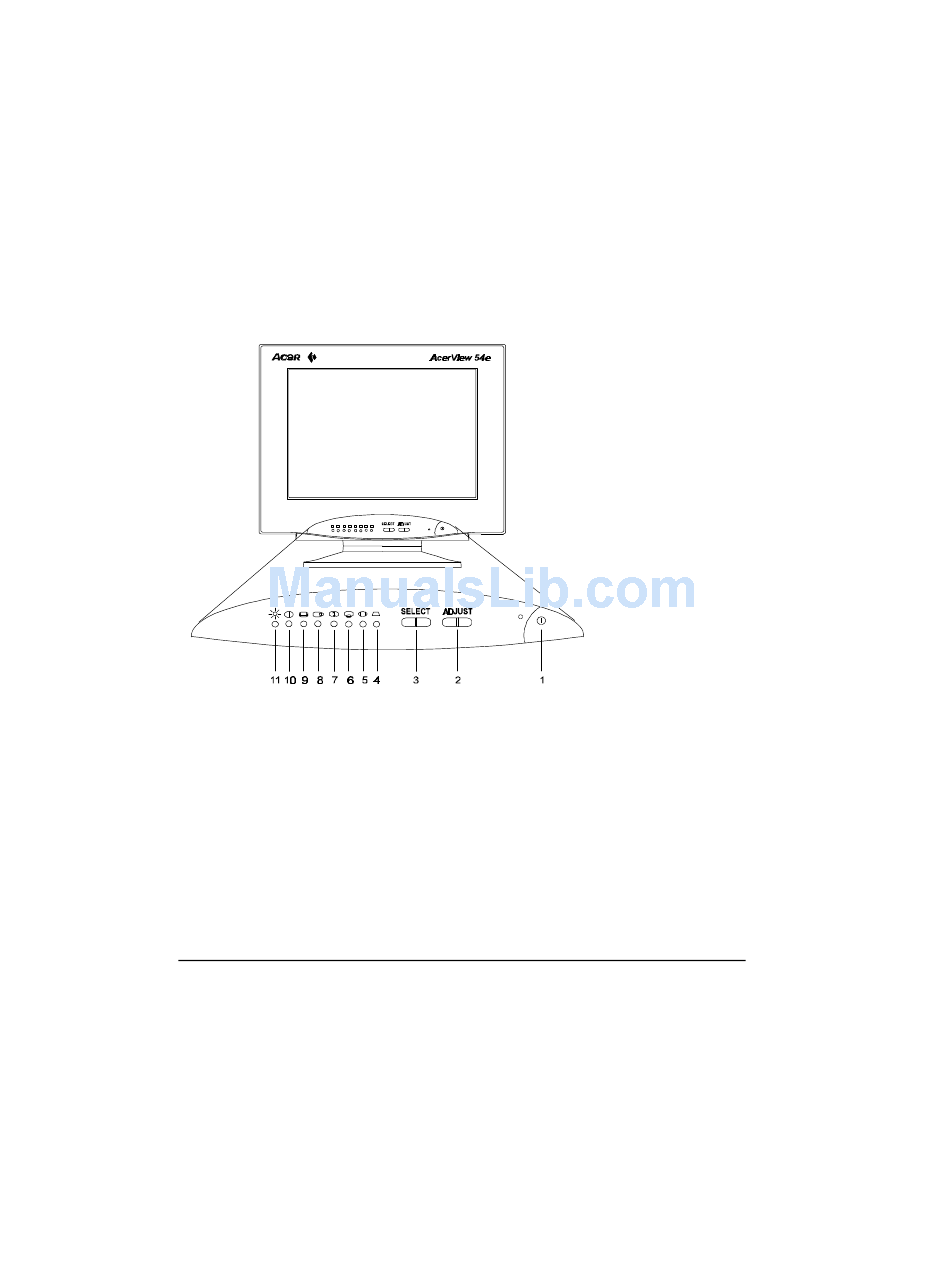

The monitor digital control functions are located on the front panel. They
are shown in the figure below and described in the following paragraphs.
1. Power Switch
2. Adjust
3. Select
4. Trapezoid
5. Pincushion
6. Vertical Center
4
7. Vertical Size
8. Horizontal Phase
9. Horizontal Size
10. Contrast
11. Brightness
User's Guide
