User's Manual
VC-50
SVC-50 / MVC-50 / LVC-50
Ref.: 49-MCEVC50EN03 Rev.: 03
VC-50
INDICATOR
SVC-50 / MVC-50 / LVC-50
WEIGHING SCALES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVC-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cely SVC-50

Summary of Contents for Cely SVC-50

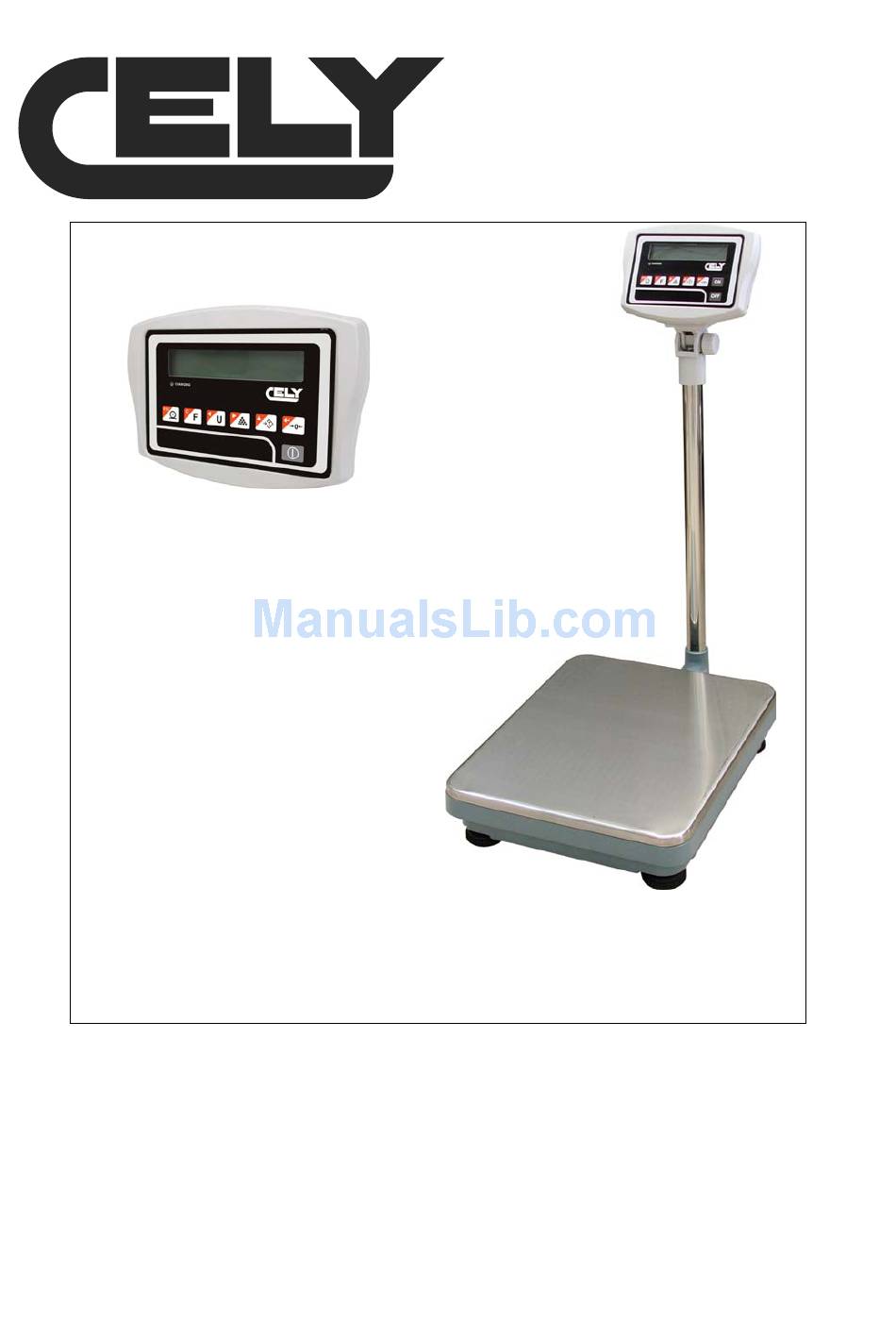

  • Page 1 User’s Manual VC-50 SVC-50 / MVC-50 / LVC-50 Ref.: 49-MCEVC50EN03 Rev.: 03 VC-50 INDICATOR SVC-50 / MVC-50 / LVC-50 WEIGHING SCALES...

  • Page 3: Table Of Contents

    INTRODUCTION ..............................1 SPECIFICATIONS ..............................1 INSTALATION ................................ 2 3.1. GENERAL INSTALATION ..........................2 3.2. INSTALLATION OF SERIES SVC-50 / MVC-50 / LVC-50 ................2 DESCRIPTION OF KEYPAD ..........................3 DISPLAY................................... 4 OPERATION ................................4 6.1. MANUAL ZERO SETTING..........................4 6.2.

  • Page 5: Series Vc-50 / Svc-50 / Mvc-50 / Lvc

    Directive 90/384/CE, therefore they are not valid for commercial transactions. Weighing scales series VC-50 / SVC-50 / MVC-50 / LVC-50 offers precise, rapid and versatile weighing for all uses, and includes item counting and weight check. There are 3 scales in the series in this range with a platform size that starts at 350mm x 450mm and goes up to 600mm x 800mm, with a capacity that ranges from 30 to 600 kg.

  • Page 6: Instalation

    Any surplus cable can be stored inside the tube. Series SVC-50 / MVC-50 / LVC-50 comes with a stainless steel platform that is packed separately. Place the platform on the base.

  • Page 7: Description Of Keypad

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 Connect the load cell as indicated in the diagram below (7 pin air connector) Pin 1 Pin 2 SENSE+ Pin 3 OUT+ Pin 4 OUT- Pin 5 SENSE- Pin 6 Pin 7 NOT USED 4.

  • Page 8: Display

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 5. DISPLAY The LED display will show a value and a unit to the right of the digits. There are also three labels for TARE; GROSS weight and ZERO and for low battery,...

  • Page 9: Item Counting

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 6.4. ITEM COUNTING When the scales show the weight, press to initiate the item counting function. The scales will show "P 10" , to request a sample size of 10 items. Change the sample size by pressing .

  • Page 10: Setting The Limits

    After the animal has been taken off the scales, the data reading display will return to zero and the VC-50 / SVC-50 / MVC-50 / LVC-50 will automatically perform the accumulation operation.

  • Page 11: Configuration

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 7. CONFIGURATION The scales have 6 Configuration parameters that can be set-up by the user, and there is also a method for entering calibration mode. To set parameters, press The display will show the first function "F0 H-L". Press , to move through the other functions.
  • Page 12 Determines whether the clock is on or off Clock Clock off switched off Clock on: The VC-50 / SVC-50 / MVC-50 / LVC-50 will display the clock after 5 minutes on stand-by. This is for setting up the backlight. It can be set to on, automatic or off.

  • Page 13: Battery Operation

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 8. BATTERY OPERATION The weight indicator can operate with batteries if required. The battery will last approximately 100 hours. When the battery needs recharging, a symbol will appear on the weight display. The battery must be recharged when this symbol appears.

  • Page 14: Interface Rs-232

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 9. INTERFACE RS-232 These indicators can include an optional RS-232 interface. Specifications: • RS-232 interface for weighing data • ASCII code • 8 data bits • Non-parity Connector: 9 pin SUB-D type •...

  • Page 15: Calibration

    Series VC-50 / SVC-50 / MVC-50 / LVC-50 CALIBRATION Switch off the indicator. Switch them on again and during the countdown from 9 to 0, press The display will show “CAL”. While the “CAL” is being shown, press in the foregoing order in order to enter calibration.

  • Page 16: Technical Configuration

    Then set-up the delay time: 50/60/70/80. Then set-up the block conditions. 3 may be selected (the VC- 50 / SVC-50 / MVC-50 / LVC-50 will block reading data if it detects reading data in a vibration range of 3 times) or 8 (it will block if reading data is detected in a vibration range of 8 times).
  • Page 17 Series VC-50 / SVC-50 / MVC-50 / LVC-50 DECLARATION OF CONFORMITY CELY Manufactures Type: VC-50 / SVC-50 / MVC-50 / LVC-50 Series The aforementioned manufacturer declares that the apparatus described herein complies with the requirements contained in Directive 89/336/CEE and 73/23/CEE and, where applicable, to the following...
