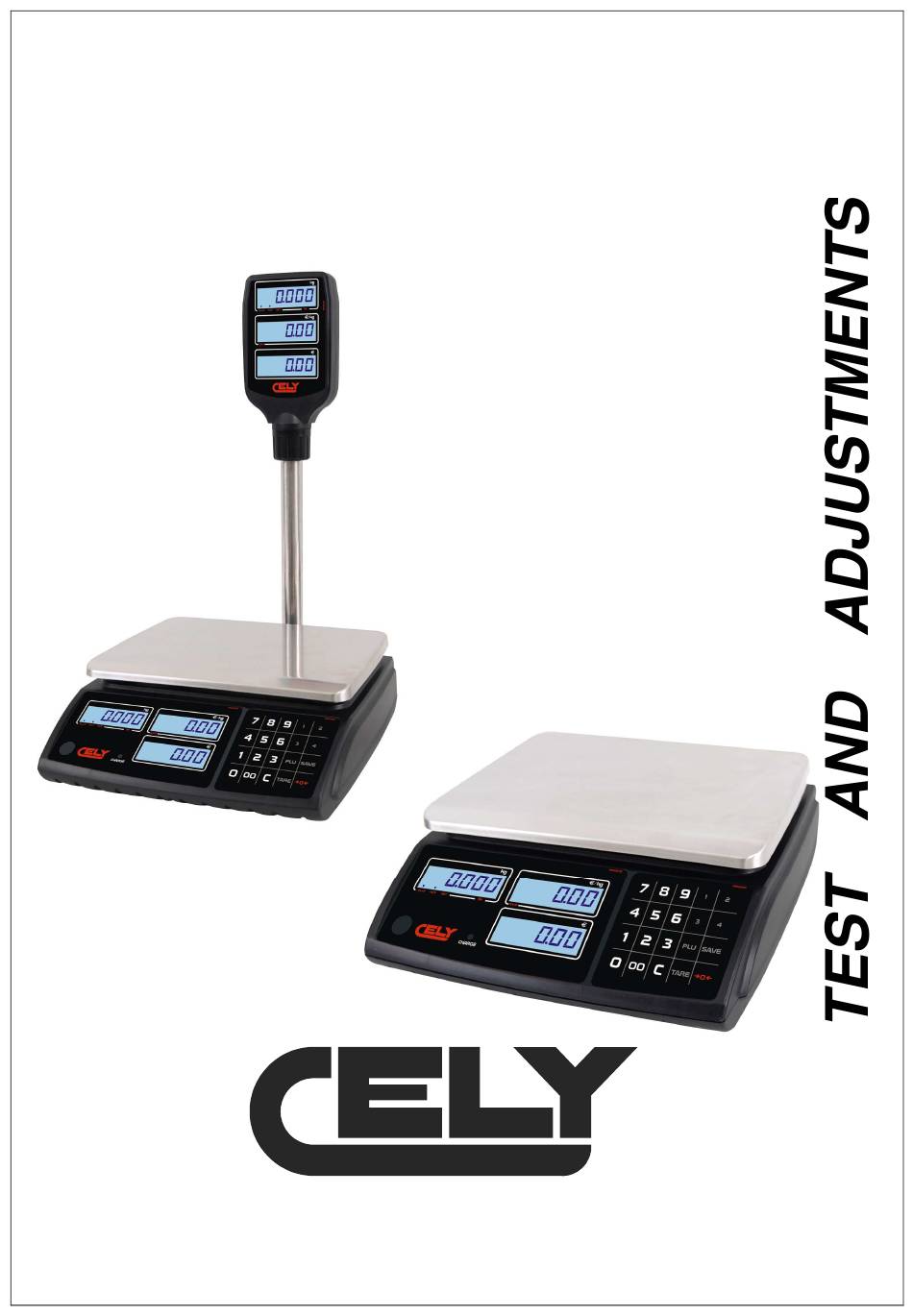

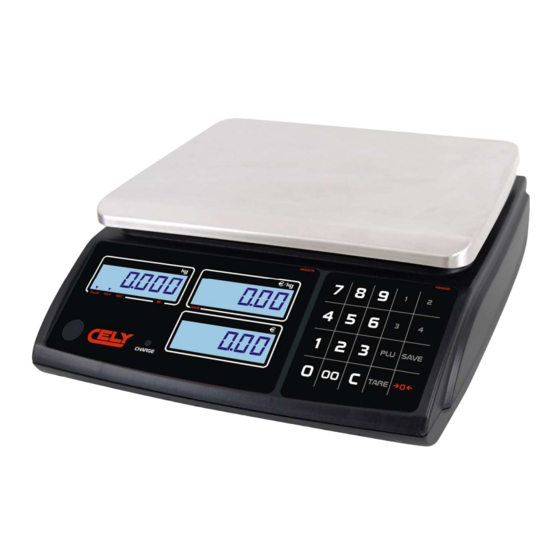

  • Page 1 PI100 SERIES REF.49TPI10EN04...

  • Page 3: Table Of Contents

    TEST AND ADJUSTMENTS INDEX PRECAUTIONS ........................... 1 SPECIFICATIONS ........................2 2.1. DIMENSIONS ....................3 INTRODUCTION .......................... 3 INSTALLATION ........................... 4 4.1. UNPACKING ....................4 4.2. LEVEL ADJUSTING ..................4 4.3. CONNECT ADAPTOR ................... 5 KEY BOARD & DISPLAY ......................6 5.1.

  • Page 5: Precautions

    TEST AND ADJUSTMENTS 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION • Permit only qualified personnel to service the instrument •...

  • Page 6: Specifications

    PI100 SERIES 2. SPECIFICATIONS MODEL PI100S PI100T DISPLAY 15MM LCD DISPLAY WITH FRONT AND POLE: 15MM LCD WHITE LED BACK LIGHT DISPLAY WITH WHITE LED BACK LIGHT GROSS WEIGHT 4.1KG 4.7KG CAPACITY 3/6 KG 6/15 KG 15/30 KG READABILITY 1/2 G...

  • Page 7: Dimensions

    TEST AND ADJUSTMENTS 2.1. DIMENSIONS 3. INTRODUCTION PI100 series of economic price computing scales are very compact, reliable, have high  accuracy and are very stable. It use LCD display with white led back-light, with the different back-light operation. ...

  • Page 8: Installation

    PI100 SERIES 4. INSTALLATION 4.1. UNPACKING Carefully take the scale out of its package, make it sure it’s not damaged and all accessories are included. Accessories, 1. Scale 2. Adaptor 3. Stainless steel pan 4. Product manual Keep the packaging material for your future use.

  • Page 9: Connect Adaptor

    TEST AND ADJUSTMENTS 4.3. CONNECT ADAPTOR Adaptor Jack Power Key • To charge the battery insert the adaptor pin to jack adaptor, simply plug it into the mains power. The scale does not need to be turned on. • The battery should be charged for 12 hours for full capacity. •...

  • Page 10: Key Board & Display

    PI100 SERIES 5. KEY BOARD & DISPLAY 5.1. KEY BOARD KEYS PRESS THIS KEY TO Numeric keys, enter unit price / PLU；in setting mode, press numeric keys to enter parameters setting Clear incorrect entries and error conditions Press the key to input double zero Returns the display to zero.

  • Page 11: Display Overlay

    TEST AND ADJUSTMENTS 5.2. DISPLAY OVERLAY 5.3. DISPLAY SYMBOLS Battery indicator. When it’s illuminated, battery should be charged Net Weight Stable indicator. When it’s illuminated, the scale is stable Zero indicator. When it’s illuminated, the scale is in Zero point Kilogram Mode SAVE Save Indicator...

  • Page 12: Parameter

    PI100 SERIES 6. PARAMETER 6.1. PARAMETER SETTINGS 6.1.1. Enter Into the Menu • Turn on the scale. Press and hold key during the self-test. • Display will show “pn” briefly if the pin is activated. Press the pin number to get into the parameter menu.

  • Page 13: Parameter Menu Settings

    TEST AND ADJUSTMENTS 6.2. PARAMETER MENU SETTINGS Menu Sub-Menu DESCRIPTION F0 CAL CALIBRATION 3000 6000 SET EXTERNAL RESOLUTION F1 RES DUAL-I DUAL-R SET SCALE CAPACITY F2 CAP 15KG 30KG SET PRICE DECIMAL POINT F3 PDECI 0.00 0.000 0.0000 F4 PDESC SET UNIT PRICE TO FIX OR FLOATING FLOAT SLOW...

  • Page 14: Protocols

    PI100 SERIES 7. PROTOCOLS In this section the protocols are going to be described. 7.1. TISA CASH REGISTER PROTOCOL Protocol Cash Register Scale 98PPPPPCC 99SWWWWWEIIIIIICC Where: 0x39h y 0x38h PPPPP: 5 characters for price. Checksum, logic add (XOR) of all previous characters.

  • Page 15: Apollo / Samsung Polonia Cash Register Protocol

    TEST AND ADJUSTMENTS 7.2. APOLLO / SAMSUNG POLONIA CASH REGISTER PROTOCOL Protocol Cash Register Scale SXWW.WWWkgB / NAK PPPPPPPPB SXWW.WWWkgB IIIIIIIIB Where: 0x05h 0x06h 0x11h 0x12h 0x01h 0x02h Weight status. 0x53h stable. U: 0x55h Unstable. 0x20h, 0x46h, 0x2Dh PPPPPPPP: 8 characters for price (the first 2 to 0). WWWWW: 5 characters for weight.

  • Page 16: Dolar / Samsung-Spain Cash Register Protocol

    PI100 SERIES 7.3. DOLAR / SAMSUNG-SPAIN CASH REGISTER PROTOCOL Protocol Cash Register Scale WWW.WWWC Where: 0x24h WWWWWW : 6 weight characters 0x2Eh :0x0Dh NOTE: The scale responds to positive, stable within range weight. If they are unstable or out $ with of range, the scale wait until it has stable positive within range weight.

  • Page 17: Ecr-Pn / Ecr-Posnet Protocol (Samsung Poland Variant)

    TEST AND ADJUSTMENTS 7.4. ECR-PN / ECR-POSNET PROTOCOL (SAMSUNG POLAND VARIANT) Protocol Cash Register Scale SXWW.WWWkgB / NAK PPPPPPPPB SXWW.WWWkgB IIIIIIIIB / NAK Where: 0x05h 0x11h 0x12h 0x01h 0x02h Weight status. S: 0x53h stable. U: 0x55h Unstable. SPACE: 0x20h U: 0X46h –...

  • Page 18: Dial06 / Dialog 06 Protocol

    PI100 SERIES 7.5. DIAL06 / DIALOG 06 PROTOCOL Protocol There are four different frames. Frame 1 Cash Register Scale PPPPPPE Frame 2 Cash Register Scale PPPPPPE TTTTE Frame 3 Cash Register Scale PPPPPPE MMMMMMMMMMMMME Frame 4 Cash Register Scale PPPPPPE...
  • Page 19 TEST AND ADJUSTMENTS TTTT: 4 digits for the PLU tare MMMMMMMMMMMMM: 13 digits for the PLU description ( ignored by the scale) Status 0 0 : Correct. 0 1 : General error. Start-up error, adjustment error… 0 2 : Parity error or more than available characters. IS NOT PROCESSED 1 0 : Frame number incorrect (numeric field on header).
  • Page 20 PI100 SERIES Synchronization example: - 1 kilo on the scale Cash Register Scale PPPPPPE 2;2E V = group of 8 characters, the Scale only 4711F336E Take into account the length WWWWWE PPPPPPE IIIIIIE When the scale detects an error for one of the following reasons, it responds with NAK to...

  • Page 21: Calibration

    TEST AND ADJUSTMENTS 8. CALIBRATION Turn on the scale. Press and hold key during the self-test. Display will show “pn” briefly if pin is activated. Press the pin number to get into the parameter menu. The default pin number is “0000” •...

  • Page 22: Rs 232 Output

    PI100 SERIES 9. RS 232 OUTPUT The PI100 series of scales can be ordered with an option RS-232 output. 9.1. SPECIFICATIONS RS-232 output of weighing data ASCII code 4800~115200 baud 8 data bits No parity 9.2. RS-232 (9 PIN D TYPE CONNECTOR) １...

  • Page 23: Error Codes

    TEST AND ADJUSTMENTS ERROR CODES ERROR MESSAGE DESCRIPTION SOLUTION Maximum load exceeded Unload or reduce weight ----- Enter the date by using format Incorrect date ERR 1 “yy;mm:dd” Enter the time by using format Incorrect time ERR 2 “hh:mm:ss” Zero setting range exceeded due to switching on.(4%max) Zero setting error ERR 4...
  • Page 24 PI100 SERIES 49TPI10EN04...
  • Page 25 TEST AND ADJUSTMENTS The information in this manual may be modified by the manufacturer without prior notice. Ref.: 49TPI10EN04 REV 04 21/07/2017 49TPI10EN04...
  • Page 26 TEST AND ADJUSTMENTS...
