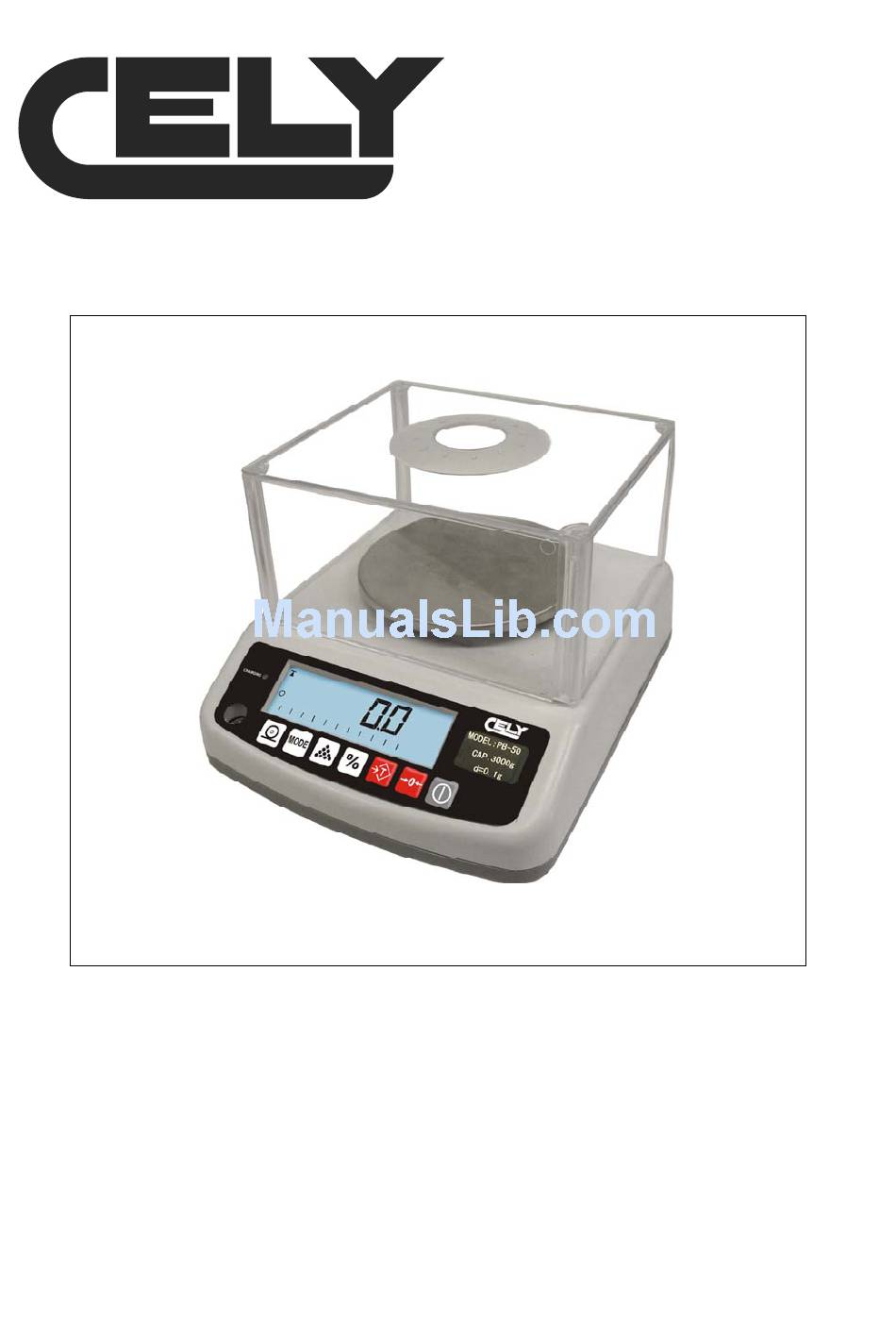

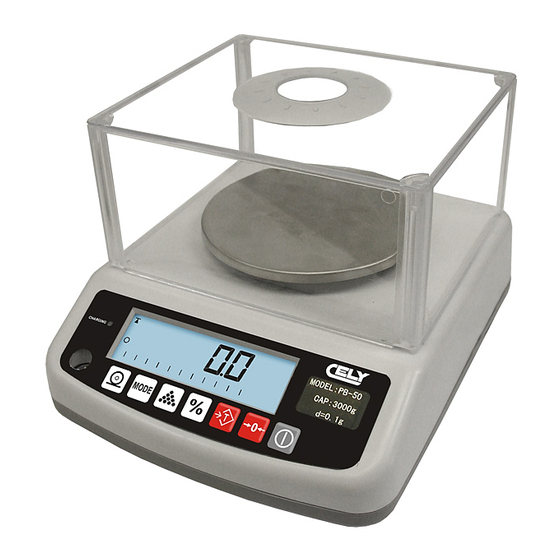

  • Page 1 User’s Manual Ref.: 49-MCEPB60EN02 Rev.: 02 PB-60 PRECISION WEIGHING SCALES...

  • Page 3: Table Of Contents

    Series PB-60 CONTENTS INTRODUCTION ..............................1 SPECIFICATIONS ..............................2 2.1. PB-60 ..............................2 ERIES 2.2......................2 PECIFICATIONS COMMON TO ALL MODELS INSTALLATION..............................3 3.1. GENERAL INSTALLATION..........................3 3.2. INSTALLING THE PB-60 SERIES ........................3 DESCRIPTION OF KEYBOARD .......................... 4 OPERATION ................................

  • Page 5: Introduction

    Series PB-60 1. INTRODUCTION NOTE: These scales are not allowed for the uses mentioned in paragraph 2a of the article 1 of the Directive 90/384/CE, therefore they are not valid for commercial transactions. The electronic weighing scales model PB-60 are precise, rapid and versatile, for all types of use including item counting and percentage weight functions.

  • Page 6: Specifications

    Series PB-60 2. SPECIFICATIONS 2.1. Series PB-60 SERIES PB-60 Model no. PB-60 -300 PB-60 -600 PB-60 -1500 PB-60 -3000 Range 300g 600g 1,500g 3,000g Step 0.005g 0.01g 0.02g 0.05g Resolution 1/60.000 1/60.000 1/60.000 1/60.000 Maximum tare 100g 300g 600g 1,000g Minimum weight 0.1g 0.2g...

  • Page 7: Specifications Common To All Models Installation

    Series PB-60 3. INSTALLATION 3.1. GENERAL INSTALLATION The scales should be placed on a firm, even surface. Avoid extreme temperatures. Do not place the scales in direct sunlight or near air conditioning vents. Avoid unstable tables. The tables and the ground should be firm and not vibrate. Do not place the scales near vibrating machinery.

  • Page 8: Description Of Keyboard

    Series PB-60 4. DESCRIPTION OF KEYBOARD DESCRIPTION PRIMARY FUNCTION SECONDARY FUNCTION Manual zero setting Sets parameters and other functions. Displays shows zero. Sets the tare of the scale, saving the current weight in the memory as the tare value, subtracting the value of the tare weight and displays the result.

  • Page 9: Operation

    Series PB-60 5. OPERATION 5.1. MANUAL ZERO SETTING Press at any time in order to make a manual zero setting.. When zero is obtained, the display will show the zero indicator. The scales are provided with a manual zero setting function in order solve minor problems in weight deviation or accumulation of materials on the platform.

  • Page 10: Item Counting Mode

    Series PB-60 5.5. ITEM COUNTING MODE Before starting operation, set the tare of the weight of any packaging to be used, by placing the empty packaging on the scales. Place a certain number of samples on the platform. The number must coincide with the item counting options: 10, 20, 50, 100 or 200 items.

  • Page 11: Battery Operation

    Series PB-60 6. BATTERY OPERATION When the battery needs recharging, the indicator will light up. Please charge the battery or use alternating current when this indicator lights up. The scales can operate with batteries if so required. The battery will last approximately 72 hours. To charge the battery, simply plug it into an electricity socket.

  • Page 12: Rs-232 Interface

    Series PB-60 7. RS-232 INTERFACE The scales PB-60 have as an option the possibility of include a RS-232 serial interface. Specifications: • RS-232 interface for weighing data. • ASCII code • 9600 bauds • 8 data bits • Non-parity Connector: 9 pin SUB-D Type •...

  • Page 13: Configuration

    Series PB-60 8. CONFIGURATION The scales have 8 configuration parameters that can be set-up by the user, and there is also a method for performing weight calibration. To enter parameter set-up, press during auto-verification. The display will show the first function “F1 UNT".

  • Page 14: Appendix

    Series PB-60 9. APPENDIX 9.1. ERROR CODES The scales may show an error message during initial operating tests or during normal operation. The meaning of these error messages is described below. If an error message appears, repeat the procedure that caused the message: switching-on of scales, calibration, or other function.
  • Page 15 Series PB-60 DECLARATION OF CONFORMITY CELY Manufacturer Type: PB-60 Series The aforementioned manufacturer declares that the apparatus described herein complies with the requirements contained in Directive 89/336/CEE and 73/23/CEE and, where applicable, to the following harmonised regulations: EN55022 Class B...
