Summary of Contents for Cely SPC-S

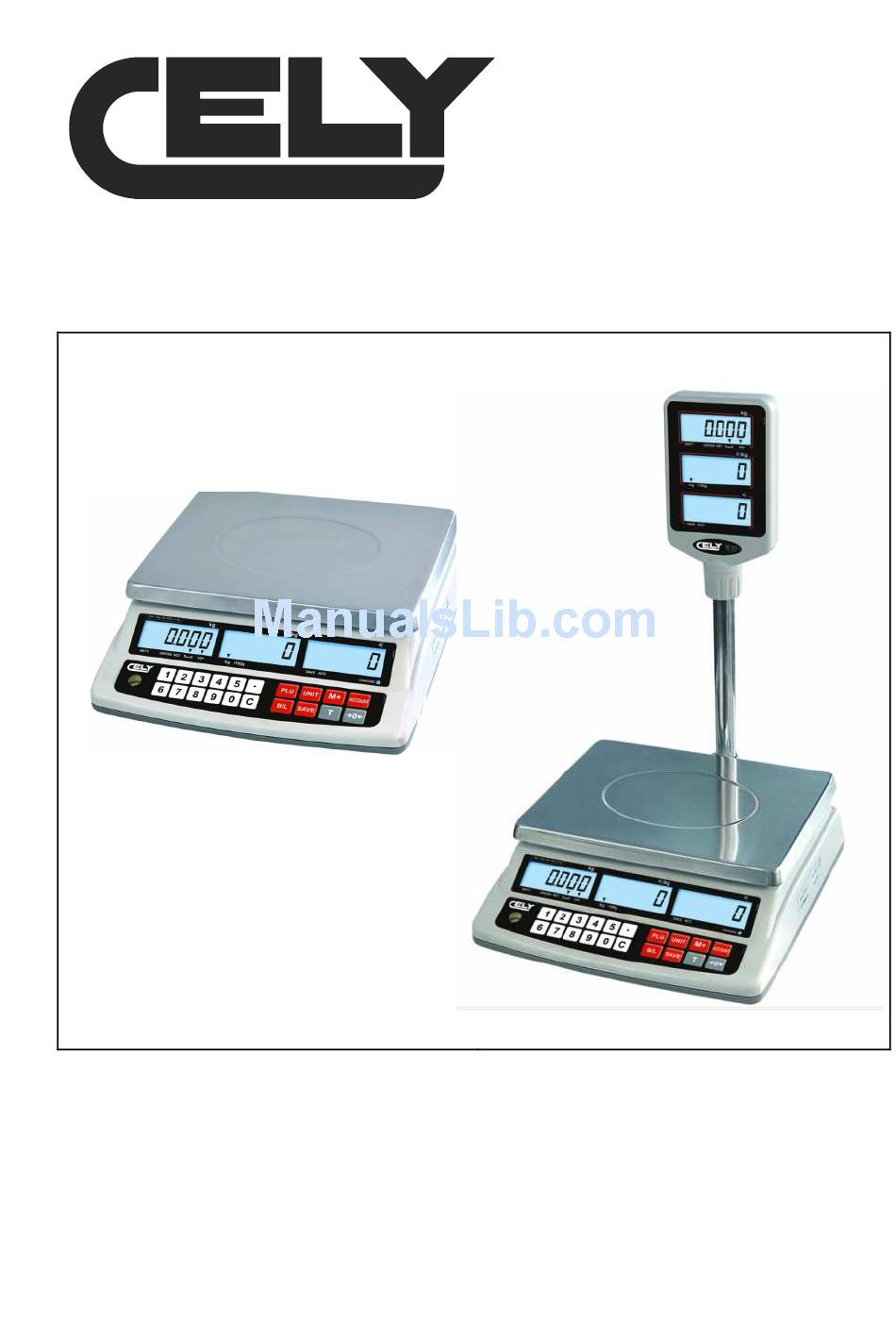

- Page 1 User´s Manual Ref.: 49-MCESPCEN03 Rev.: 03 SPC SERIES...
-
Page 3: Table Of Contents
TABLE OF CONTENT INTRODUCTION............................1 1.1. 1. 1 CHARACTERISTICS........................1 1.2. SPECIFICATIONS ..........................1 1.3. DIMENSIONS............................1 1.4. INSTALLATION ............................ 1 KEY DESCRIPTION ........................... 2 OPERATION..............................3 3.1. GENERAL INSTRUCTION ........................3 3.2. BASIC OPERATION..........................3 3.2.1 Zero the scale ..........................3 3.2.2 Tare.............................. -
Page 5: Introduction

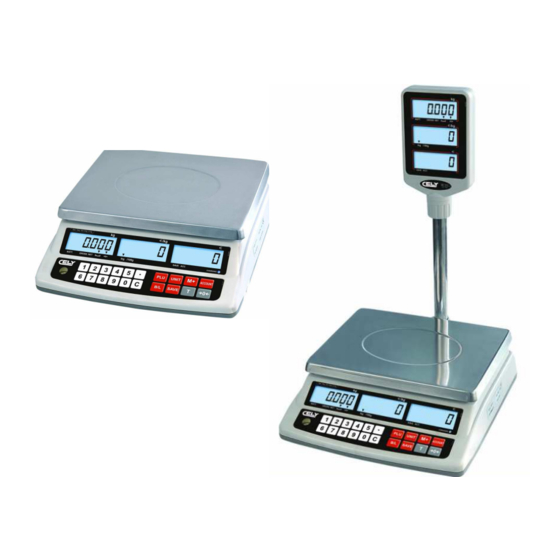

AC / Rechargeable battery ◆ Stored 10 unit price (indirect PLU) ◆ Auto backlight 1.2. SPECIFICATIONS Model Capacity Division SPC-S Flat Format 6kg 2g, 15kg 5g, 30kg,10g SPC-T Pole Display 6kg 2g, 15kg 5g, 30kg,10g 1.3. DIMENSIONS 1.4. INSTALLATION Keep the scale dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits. -
Page 6: Key Description
SPC series KEY DESCRIPTION Each of the keys are shown and described for you. ZERO The ZERO key zeroes the scale. TARE The TARE key subtracts tare values and changes the SPC from gross mode (no tare) to net mode. SAVE The SAVE key used to disable or enable the unit price and tare auto-clear Function... -
Page 7: Operation
SPC series OPERATION 3.1. GENERAL INSTRUCTION 1．When battery goes low, the indication will be turned on automatically. It is the time to charge the battery with the AC power. If SPC goes on being used without proper charging, the display window will show “BAT LO”... -
Page 8: Other Function
SPC series 3.4. Other function 3.4.1 Backlight The scale have three backlight mode: on, off and auto. ON: backlight will turn on however current weight is zero or not Zero OFF: backlight will turn off however current weight is zero or not zero AUTO: backlight will turn on when current weight is not zero and it will turn off if current weight is zero You can press B/L key to set backlight mode, display will show current backlight mode, press SAVE... -
Page 9: Parameter Setting Table
SPC series 4.2. PARAMETER SETTING TABLE Weight Display Description Please short K6 before setting. When the parameter menu show "F0" press the TARE key. The display will then show "UNLOAD" to request all weight be removed from the platform. After STABLE indicator on, press the TARE key to set the zero point. The display will then show the calibration weight requested, press the TARE key to accept it. -
Page 10: Battery Operation
SPC series BATTERY OPERATION The scales can be operated from the battery if desired. The battery life is approximately 70 hours. When the battery needs charging the arrow above the low battery symbol under the weight display will turn on. The battery should be charged as soon as the arrow above the symbol is on. The scale will still operate for about 10 hours after which it will automatically switch off to protect the battery.
