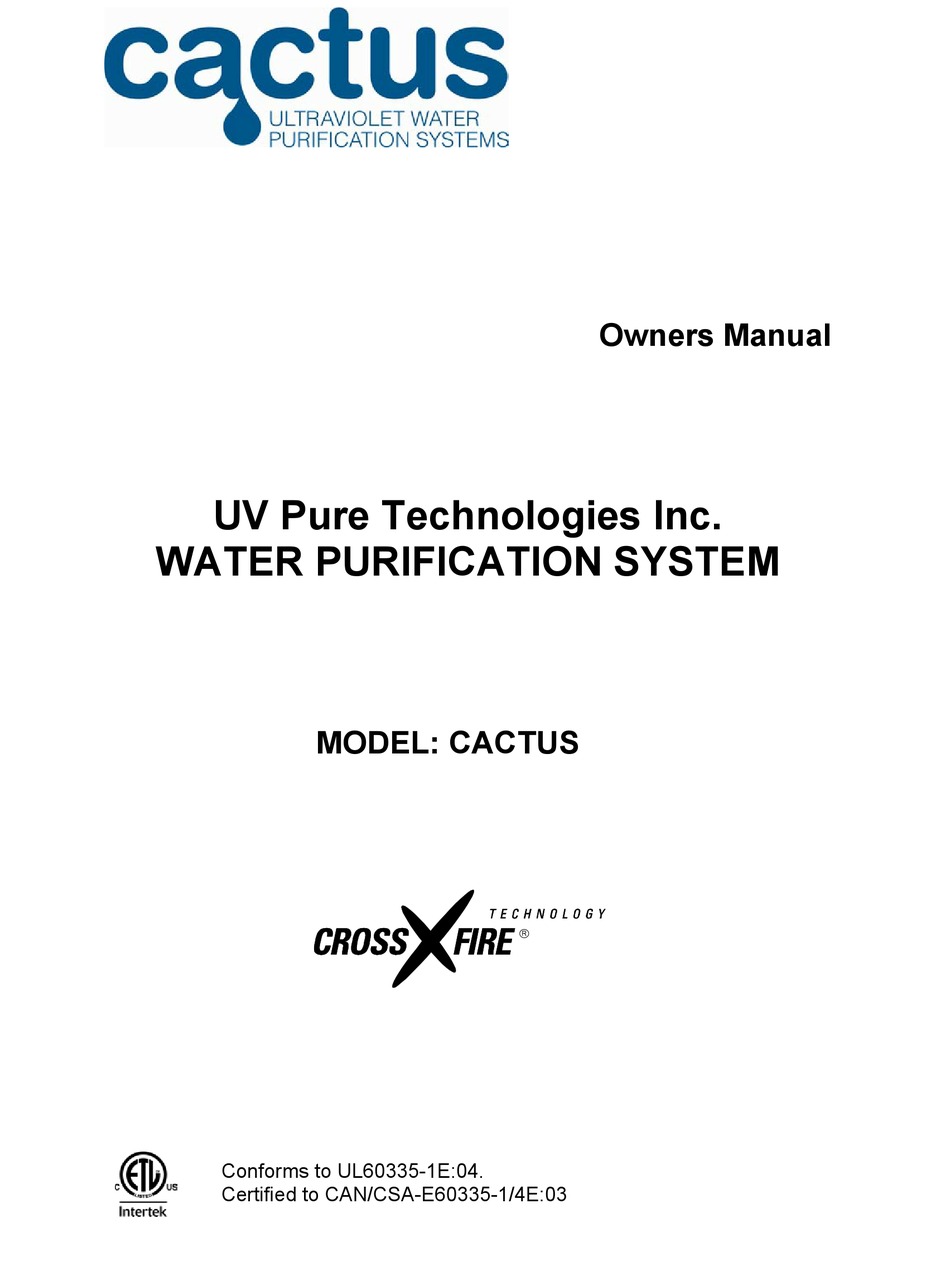

- Page 1 Owners Manual UV Pure Technologies Inc. WATER PURIFICATION SYSTEM MODEL: CACTUS Conforms to UL60335-1E:04. Certified to CAN/CSA-E60335-1/4E:03...
-
Page 2: About The Uv System
360º, to reduce UV shadowing and provide microbiologically safe drinking water. Changing lamps in the Cactus is as simple as opening the front of the system. There is no draining, no disassembly and no risk of quartz breakage. The UV lamps require replacement after 12 months of operation. -
Page 3: Table Of Contents
Plugging in the Cactus ................11 Flushing Instructions ................12 3. Operating Instructions.................12 Starting the Unit ..................13 Transient Voltage Surge Suppressor ............13 Shutting Down the Cactus and Seasonal Use..........14 Disinfecting the Plumbing.................14 4. Troubleshooting...................15 5. Maintenance Replacing and Cleaning UV Lamps ............17 Draining the Unit ..................19... -
Page 4: Installation Instructions
2. Installation Instructions Before Beginning Installation Water Conditions - Pre-treatment Parameters Note: it is very important that the Cactus is installed in conditions that meet the minimum specifications for pre-treatment. Please review the following pre- treatment parameters prior to installation. -
Page 5: Safety Information
The water treatment flow range for the Cactus X-8 is 0-8.7 U.S. gallons per minute (or 0 – 33 liters per minute) maximum. For the Cactus X-12, the flow range is 0-13.3 U.S. gallons per minute (or 0 – 50.4 liters per minute) maximum The working pressure of the units is 0 to 100 psig (or 0 to 690 kPa). -
Page 6: Parts Included
• Slotted screwdriver Do not operate a Cactus UV System that has been damaged or that is missing any components. If a part is missing, contact your dealer. The installation (see Figures 1A through 1E) should be done in compliance with all applicable federal, state/provincial and local regulations. -
Page 7: Time Required
Please note that full installation of the UV requires shutting off the main water supply for up to several hours. If disinfection is necessary, all pipes must be treated and flushed. Once the Cactus is plugged in and turned on, the new UV lamps usually take 2-3 hours to reach full power. -
Page 8: Assembling The Cactus
Inspect the system for damage, particularly the quartz sleeve (See Figure 4A on page 20.) Step 2: The Cactus has two keyhole slots (top) and two round holes (bottom) for convenient mounting – all four should be used. To mount the system, use the template, included, to position the two top holes. -
Page 9: Connecting The Pipes
UV system. Water must flow into the inlet at the bottom of the Cactus. The outlet is located at the top of the unit. The stainless steel manifolds (both top and bottom) must be held with a wrench when tightening mating connector. - Page 10 CORRECT MOUNTING MOUNTING Figure 1C TYPICAL INSTALLATION OF PARALLEL UNITS MANUAL SHUTOFF VALVE - ESSENTIAL OPTIONAL DRAIN 20" FILTER HOUSING MANUAL SHUTOFF VALVE - ESSENTIAL Figure 1D Released on 3/5/10 - Z800011A Page 10 UV Pure Technologies Inc. © 2010...
-
Page 11: Locating The Receptacle And Optional Tvss
(Note: You should not open the front panel unless the unit has been unplugged to prevent risk of electrical shock and exposure to UV light.) Caution: It is not recommended to operate the Cactus dry. Water should be in the treatment chamber when the unit is in operation. -
Page 12: Flushing Instructions
15 minutes. 3. Operating Instructions The Cactus incorporates advanced Crossfire Technology, yet is simple to operate. Inspection of the quartz chamber is a simple visual inspection. The only required maintenance is the replacement of the two UV lamps every 12 months. -
Page 13: Starting The Unit
Caution: It is not recommended to operate the Cactus dry. Water should be in the treatment chamber when the unit is in operation. In the event of a lack of water or if the water supply is turned off, shut down the system until the water supply is restored. -
Page 14: Shutting Down The Cactus And Seasonal Use
Shutting Down the Cactus and Seasonal Use Simply unplug the Cactus to shut the system down. The Cactus may be left on for extended periods of time without use of water as long as the system has water in it and has not been drained. Extended periods of no water usage however, may increase chances of quartz fouling. -
Page 15: Troubleshooting
For your local water testing labs, contact your dealer. The testing should be performed on a regular basis as required by local regulations. Caution: Do not allow chlorine to remain in the Cactus for more than 12 hours. Do not operate the system during this time because heating the water in the system will increase the corrosive nature of chlorine. - Page 16 Replace ballast. Confirm TVSS is installed and operating. Inspect lamps - if lamps discolored, they must be replaced as well. Water leaking onto unit Inspect unit and replace damaged components. Released on 3/5/10 - Z800011A Page 16 UV Pure Technologies Inc. © 2010...
-
Page 17: Maintenance
Step 3: Install the new lamps into the Cactus, being careful not to touch the bulb. Ensure that the lamps are aligned with the tab facing the outside of the system (left or right side of the system), or, if the lamps have a “stop sign”... - Page 18 The lamp will come to rest when the pins are fully seated into the socket. When pressing down, be sure to position the lamp ceramic end in the center of the hole Released on 3/5/10 - Z800011A Page 18 UV Pure Technologies Inc. © 2010...
-
Page 19: Draining The Unit
Step 4: Return the front panel to the upright position and secure it by tightening the wing nuts. Replace the plastic covers. Step 5: Plug in the Cactus. The Lamp On viewport will be illuminated indicating that the lamps are energized and functioning. Note the date of lamp replacement. -
Page 20: Inspection Procedure For Quartz Sleeve
Step 3: Tilt the front carriage open until it comes to rest at a 45° position. Released on 3/5/10 - Z800011A Page 20 UV Pure Technologies Inc. © 2010... -
Page 21: In-Place Cleaning
If fouling remains, repeat the cleaning procedure. Step 9: Once the unit is clean, reassemble the system. Step 10: Slowly open the water supply and check for leaks. Step 11: Replace all covers and plug in the Cactus. Released on 3/5/10 - Z800011A Page 21... -
Page 22: Disassembling The Unit
NOTE: This procedure is not recommended for individual household users. Please contact your certified water specialist for assistance if disassembly is required. Figure 4B – UV unit (Exploded view of parts - for reference only) Released on 3/5/10 - Z800011A Page 22 UV Pure Technologies Inc. © 2010... - Page 23 Step 4: Disconnect the pipe from the top of the system and remove the top quartz seal assembly. Caution: Do not damage the sealing surfaces of the end caps (4). Handle these parts with care to prevent water leaks. Released on 3/5/10 - Z800011A Page 23 UV Pure Technologies Inc. © 2010...
-
Page 24: Removing And Cleaning The Quartz Sleeve
Scrub and flush it with water repeatedly to clean the quartz. Use a squeeze bottle to apply water or cleaning solution to the quartz sleeve to keep Released on 3/5/10 - Z800011A Page 24 UV Pure Technologies Inc. © 2010... -
Page 25: Reassembling The Unit
Caution: Do not operate the system if there are any leaks at the piping connections or within the UV system. Step 5: Replace the lamps. Released on 3/5/10 - Z800011A Page 25 UV Pure Technologies Inc. © 2010... -
Page 26: Replacement Parts
Cactus Owners Manual Step 6: Reinstall the top and bottom covers. Step 7: Plug in the Cactus. Replacement Parts See items in Figure 4B. Use only genuine replacement parts when servicing your UV unit. Replacement parts and service are available from your dealer. -
Page 27: Service Record Sheet
Serial Number (located on the right side of the front panel below power cord entry): 6. Service Record Sheet Record lamp replacement dates and events in the space provided below. Date Action (MMM/DD/YYYY) System Installed Released on 3/5/10 - Z800011A Page 27 UV Pure Technologies Inc. © 2010... -
Page 28: Limited Warranty
What This Warranty Covers: Defects in materials and workmanship in Products and Parts manufactured, sold or certified by UV Pure Technologies Inc. (UV Pure) including Cactus systems and parts such as replacement UV lamps, solenoid valves and other components sold or certified by UV Pure Technologies Inc. - Page 29 Product or Part. In the event that a Product is returned to UV Pure for repair or replacement under the terms of this Limited Warranty, the Product Released on 3/5/10 - Z800011A Page 29 UV Pure Technologies Inc. © 2010...
- Page 30 The information contained in this document is subject to change without notice. UV Pure Technologies Inc. shall not be liable for errors contained herein or for consequential damages from improper installation or operation of this unit.
- Page 31 Cactus Owners Manual Released on 3/5/10 - Z800011A Page 31 UV Pure Technologies Inc. © 2010...
- Page 32 UV Pure Technologies Inc. 60 Venture Drive, Unit 5 Toronto, Ontario M1B 3S4 www.uvpure.com...
