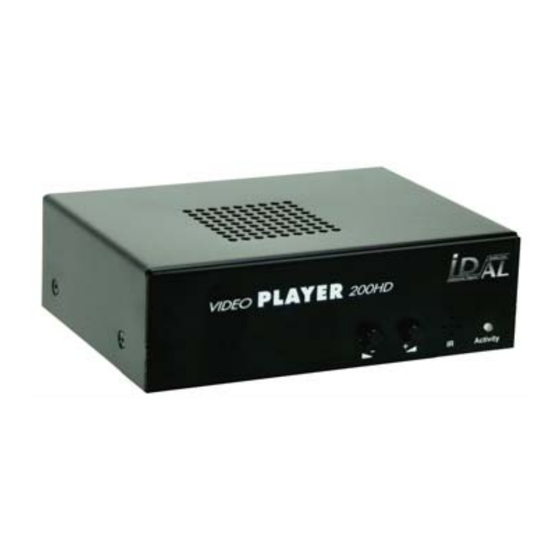

I.D. AL VideoPlayer VP200HD User Manual

Video/audio player
Hide thumbs

Advertisement

Table of Contents

I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual
VP200HD
Vidéo/audio
player
USER MANUAL
® Waves System
V 1.0 - 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VideoPlayer VP200HD and is the answer not in the manual?

Questions and answers

Related Manuals for I.D. AL VideoPlayer VP200HD

Summary of Contents for I.D. AL VideoPlayer VP200HD

  • Page 1 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual VP200HD Vidéo/audio player USER MANUAL ® Waves System V 1.0 - 2013...

  • Page 2: Table Of Contents

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual SOMMAIRE A - Safety instructions ................P1 B - Product information ................P3 1 - Product presentation ................. P4 2 - Functionnalities ................. P4 3 - Installation ..................P5 4 - Operating mode ................

  • Page 3: A - Safety Instructions

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual ACAUTION! DO NOT EXPOSE TO HUMIDITY & DUST! Unplug the power supply cable before any servicing FOR YOUR SAFETY, PLEASE READ THE USER’S GUIDE CAREFULLY BEFORE OPERATING YOUR PLAYER.
  • Page 4 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual to draw your attention to the following instructions: • When using the device, comply with all local rules and regulations in force. Any modification or conversion of the device automatically entails loss of the homologation. The operation of a modified device is liable to a penalty.

  • Page 5: B - Product Information

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual A.6 - Terms of use: • This product has been designed for indoors use only. • If this device has been exposed to very high temperature fluctuations (e.g.: after transportation), do not connect it immediately.

  • Page 6: Product Presentation

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 1 - Product presentation The VP200HD is an interactive full HD video player. The files are stored on a USB device. This standalone player can read files automatically when switch on: Autplay function.

  • Page 7: Installation

    11 - Amplifier volume 12 - Amplified outputs for speakers First use: VP200HD is factory setting configured with parameters by default and the player must operate on inserting a prepared media dedicated to ( chapter 4 ). 1 - Insert a prepared USB flash memory.
  • Page 8 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 2 - Connect a display, speakers or a sound system to the audio output and switch on the player thanks to the PSU Speakers 12v power supply HDMI or composite...
  • Page 9 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 3.1 - Connections Connection is directly from the sensor/push button to the player trigger input. Internal input schematic Optocoupler G - Ground ● In - Trigger input ● +12v - power supply output for an ●...

  • Page 10: Operating Mode

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 4 - Operating mode See in annex at the end of this manual, the compatible files. The name of the files and folders define the playback mode. The files and folders must be stored and copied according to a specific organisation described below.
  • Page 11 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual [Jxxx] – Assign the folder No. to be read after the reading the current folder. ● ● ● ● ● By adding this parameter within the name of the folder, you define the conduct of the player after reading the current folder so that it starts reading another folder for example.
  • Page 12 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual [Vxx] - Volume setting ● ● ● ● ● The name of the folder have an effect on the output volume. This function is used to broadcast messages loud more or less than others files.
  • Page 13 #128: 4C 8E D9 5A // #999: a4 Fc 48 3e 8B // comments at the end of the file An example to allow the triggering of the reading of the folder 001 for another VP200HD. #001: 80 01 01 Example of tag: 001[RSS001][RSE002] : Sending of the bytes of the line #001 of the file serial.txt on reading the folder...
  • Page 14 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 4.2 Organisation of files inside folders. Files name defines the playback conduct in Sequential mode. In random, name is not important. Note : In RDN (Random) mode, the name of the files is free.

  • Page 15: Rs232 Serial Link Protocol

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 5 - RS232 serial link protocol The VP200HD can communicate with other devices by receiving instructions onto the Rx input or transferring data through its Tx output. The player complies with the RS232 norm (see annex for features).
  • Page 16 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual List of commands: 00h: not used 01h: command of a jump into a folder 02h: transport bar command 03h: volume control command 04h : Request informations 05h/06h : Reserved 07h à...
  • Page 17 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual Example of the full frame : 81 03 0E Byte1 : 81h - 10000001b : status byte, plater number 001 Byte2 : 03h - 00000011b : volume command Byte3 : 0Eh - 00001110b : volume setting at 14 04h - 00000100b : Request informations ●...

  • Page 18: Setup Menu

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual 6 - Setup Menu You can configure the player to change some parameters. Press «Setup» key from the remote control to enter into the setup menu. Navigate and change the menus you want by using the remote control.

  • Page 19: Annexe A : Characteristics

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual Annexe A - Characteristics • Power supply : Nominal voltage : 12V DC • 12V supply consumption: - Playing mode (line output - amplifier is not used): 400 mA - Playing mode with amplifier at mximum level: 3A •...

  • Page 20: Annexe B : Functionalities

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual Annexe B - Functionnalities Video decoder : - MPEG-2 TS/TP, MPEG-4, MOV et H.264 Video format : - SD 720x576 25i/25p (576p/576i) (4:3/16:9) - SD 720x480 30i/30p (480p/480i) (4:3/16:9)

  • Page 21: Annexe C : Infrared Remote Control

    I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual Annexe C - Infra red remote control You can send command to player using an infra red remote control. Function Power ON/OFF Title Not used INFO Show file informations...
  • Page 22 I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual http://www http://www http://www .id-al.com .id-al.com .id-al.com .id-al.com http://www http://www .id-al.com ® Waves System V 1.0 - 2013...
