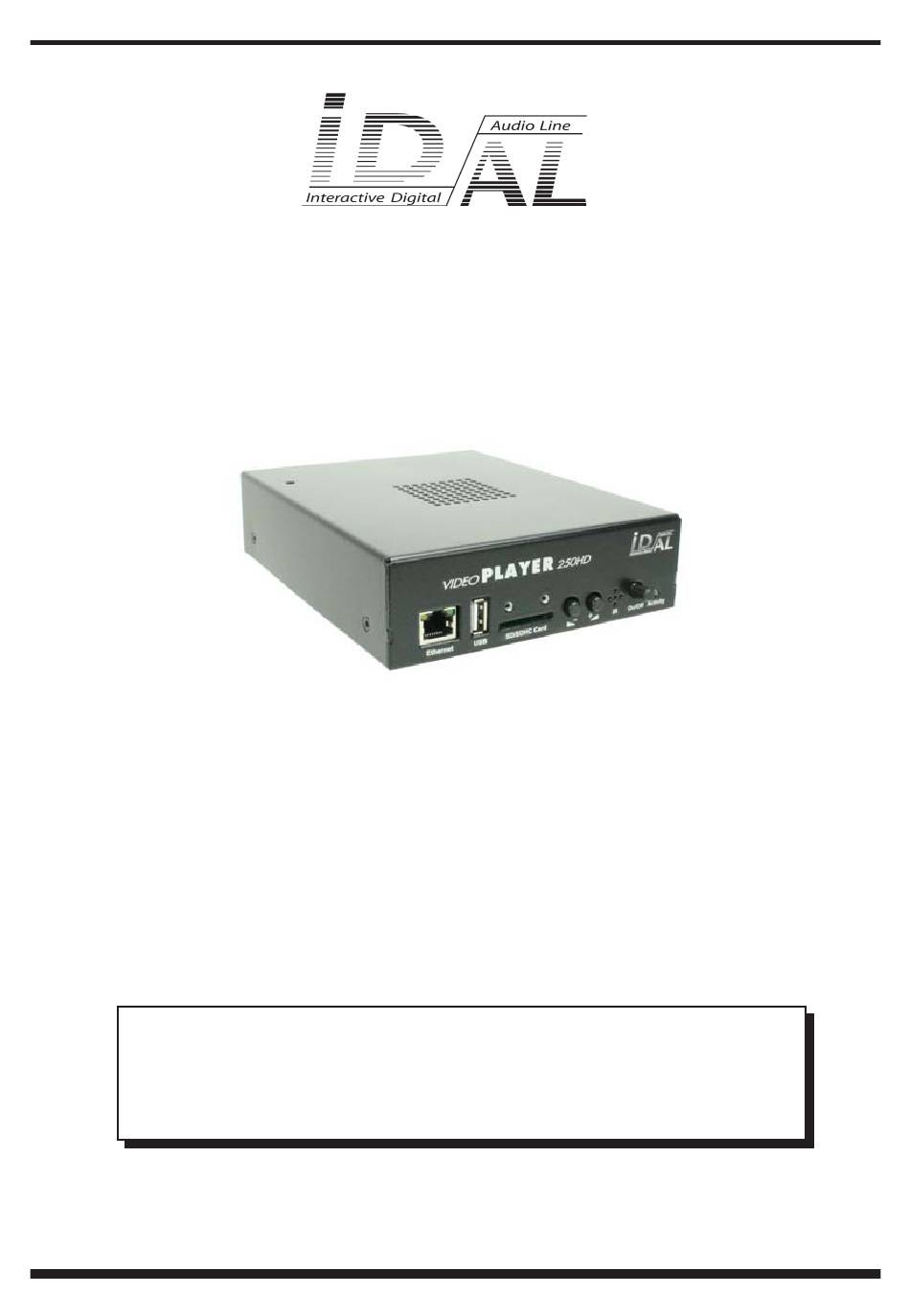

- Page 1 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual VP250HDi Vidéo/audio player USER MANUAL ® Waves System V 1.0 - 2014...
-
Page 2: Table Of Contents
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual SOMMAIRE A - Safety instructions ................P1 B - Product information ................P3 1 - Product presentation ................. P4 2 - Functionnalities ................. P4 3 - Installation ..................P5 4 - Operating mode................. -
Page 3: A - Safety Instructions
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual ACAUTION! DO NOT EXPOSE TO HUMIDITY & DUST! Unplug the power supply cable before any servicing FOR YOUR SAFETY, PLEASE READ THE USER’S GUIDE CAREFULLY BEFORE OPERATING YOUR PLAYER. - Page 4 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual • When using the device, comply with all local rules and regulations in force. Any modification or conversion of the device automatically entails loss of the homologation. The operation of a modified device is liable to a penalty.
-
Page 5: B - Product Information
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual • If this device has been exposed to very high temperature fluctuations (e.g.: after transportation), do not connect it immediately. The condensation formed inside the device could damage it. Allow the device to attain ambient temperature before connecting it. -
Page 6: Product Presentation
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 1 - Product presentation The VP250HDi is an interactive full HD video player. The files are stored on a USB device. This standalone player can read files automatically when switch on: Autplay function. -
Page 7: Installation
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 3 - INSTALLATION 1 - Ethernet connector 2 - USB To Host (flash memory) 3 - SD card slot 4 - Volume - and Volume + 5 - Infrared sensor... - Page 8 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 2 - Connect a display, speakers or a sound system to the audio output and switch on the player thanks to the PSU Speakers 12v power supply HDMI, composite...
- Page 9 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 3.1 - Connections Connection is directly from the sensor/push button to the player trigger input. Leds: 1 to 8 - Output 1 to 8 V - Activity Led, show command E - Activity LED.
- Page 10 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 3.3 - Contact output The VP250HD player can control an output contact to switch on/off some peripherals like LEDs, small motors, relays... The output is setup (on/off) by the name of the folder.
-
Page 11: Operating Mode
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 4 - Operating mode See in annex at the end of this manual, the compatible files. The name of the files and folders define the playback mode. The files and folders must be stored and copied according to a specific organisation described below. - Page 12 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual By adding this parameter within the name of the folder, you define the conduct of the player after reading the current folder so that it starts reading another folder for example. This option is also used to read a folder in a loop mode.
- Page 13 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual The name of the folder have an effect on the output volume. This function is used to broadcast messages loud more or less than others files. Exemple : 001 [V05] : Volume is set at 5 from 32 step (00 to 31)
- Page 14 #128: 4C 8E D9 5A // #999: a4 Fc 48 3e 8B // comments at the end of the file An example to allow the triggering of the reading of the folder 001 for another VP250HD. #001: 80 01 01 ® Waves System V 1.0 - 2014...
- Page 15 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Example of tag: 001[RSS001][RSE002] : Sending of the bytes of the line #001 of the file serial.txt on reading the folder 001 and sending the bytes for the line #002 of the file serial.txt at the end of the folder.
-
Page 16: Rs232 Serial Link Protocol
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 5 - RS232 serial link protocol The VP200HD can communicate with other devices by receiving instructions onto the Rx input or transferring data through its Tx output. The player complies with the RS232 norm (see annex for features). - Page 17 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual List of commands: 00h: not used 01h: command of a jump into a folder 02h: transport bar command 03h: volume control command 04h : Request informations 05h/06h : Reserved 07h à...
- Page 18 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Byte1 : 81h - 10000001b : status byte, plater number 001 Byte2 : 03h - 00000011b : volume command Byte3 : 0Eh - 00001110b : volume setting at 14 04h - 00000100b : Request informations ●...
-
Page 19: Ethernet
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 6 - Ethernet Via the Ethernet link, the VP250HD communicates either to update content via FTP (SD card or USB stick). You can use the player in a local network. An adequately configured Modem/Router will allow update the player via the Internet. - Page 20 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Name of the file: ftpset.txt You need to copy this file in the SYSTEM folder or at root of the media. Please, use only lowercase letter without any change in the name.
-
Page 21: Setup Menu
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual 7 - Setup Menu You can configure the player to change some parameters. Press «Setup» key from the remote control to enter into the setup menu. Navigate and change the menus you want by using the remote control. - Page 22 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual - Device Name : Setup the name of the player on the network. - USB Storage / Memory Card Sharing : Setup sharing method using SAMBA protocol Misc : Versions infos, USB upgrade, Key tone volume, Factory default...
-
Page 23: Annexe A : Characteristics
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Annexe A - Characteristics • Power supply : Nominal voltage : 12V DC • 12V supply consumption: - Playing mode (line output - amplifier is not used): 400 mA - Playing mode with amplifier at mximum level: 3A •... -
Page 24: Annexe B : Functionalities
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Annexe B - Functionnalities Video decoder : - MPEG-2 TS/TP, MPEG-4, MOV et H.264 Video format : - SD 720x576 25i/25p (576p/576i) (4:3/16:9) - SD 720x480 30i/30p (480p/480i) (4:3/16:9) -
Page 25: Annexe C : Infrared Remote Control
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Annexe C - Infra red remote control You can send command to player using an infra red remote control. Function Power ON/OFF Title Not used INFO Show file informations... -
Page 26: Annexe D : Mapping Input / Folder
I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual Annexe D - Mapping input / folder Binary table: The 8 inputs could be combinated in binary to offer up to 255 different trigger input. The X show the contacts to create on the inputs. - Page 27 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual ® Waves System V 1.0 - 2014 - 25 -...
- Page 28 I.D. AL - VideoPlayer VP250HD - Video/Audio player - User manual http://www.id-al.com ® Waves System V 1.0 - 2014...
