In-ceiling speaker rk series
Hide thumbs
Table of Contents

Advertisement

Quick Links

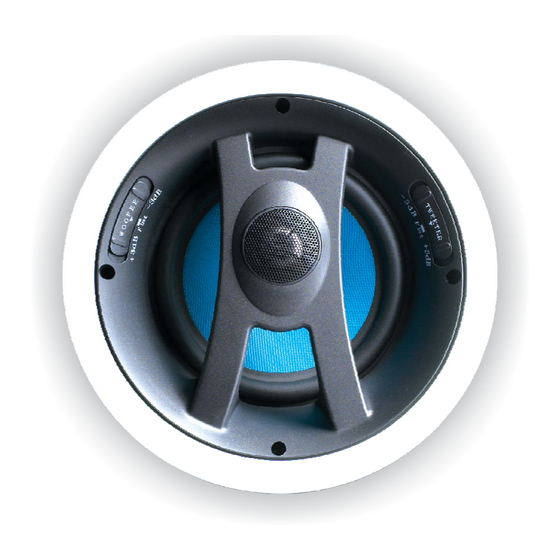

RK Series
In-Ceiling Speaker
Owner's Manual
RK-650-ICA-B/RK-830-ICA-B/RK-650-IC-B/
RK-650-SIS-IC-B/RK-800-IC-B
Rave Technology
G6434 South Dort Highway, Suite 2
Grand Blanc, Michigan 48439
Tel: 1-810-953-3918
www.ravetechnology.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK-650-ICA-B and is the answer not in the manual?

Questions and answers

Related Manuals for Rave RK-650-ICA-B

Summary of Contents for Rave RK-650-ICA-B

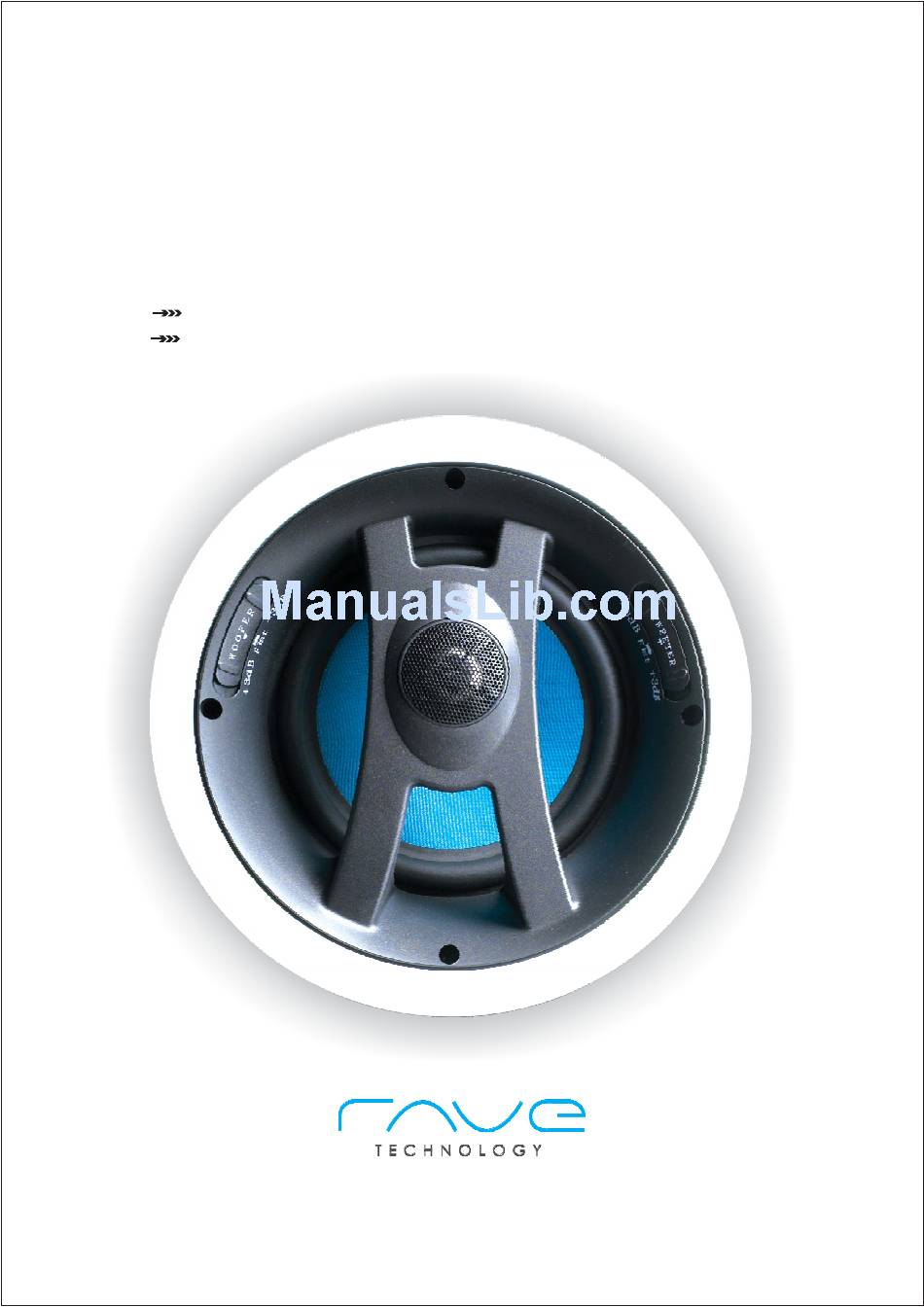

  • Page 1 RK Series In-Ceiling Speaker Owner’s Manual RK-650-ICA-B/RK-830-ICA-B/RK-650-IC-B/ RK-650-SIS-IC-B/RK-800-IC-B Rave Technology G6434 South Dort Highway, Suite 2 Grand Blanc, Michigan 48439 Tel: 1-810-953-3918 www.ravetechnology.com...
