Response LA-9011 User Manual

Gsm/ gps tracker
Hide thumbs

Advertisement

Quick Links

/
GSM
GPS Tracker
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LA-9011 and is the answer not in the manual?

Questions and answers

Related Manuals for Response LA-9011

Summary of Contents for Response LA-9011

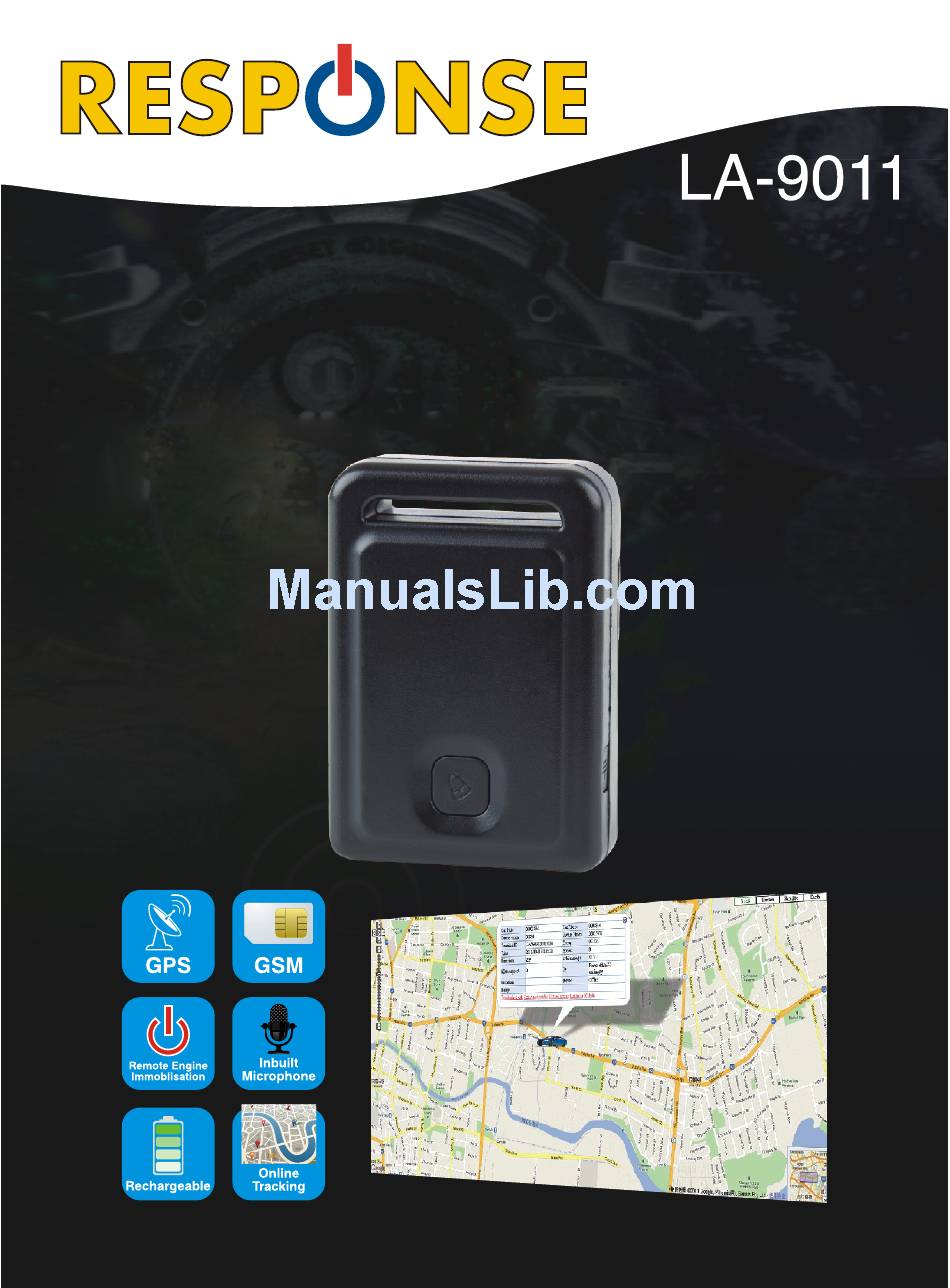

  • Page 1 GPS Tracker User Manual...
  • Page 2 GSM/GPS Tracker A GSM and GPS tracking solution to locate and track the where abouts of your vehicle in real time via the Internet on a computer or smart phone.the device is easy to install with only2-4wires to connect.Insert a GSM SIM card (not included)and hide the device away on a metal surface or carpet using the included velcro adhesive.It works by sending the vehicle'sGPS coordinates via the...

  • Page 3: Before Use

    Contents Before Use 1. Installing The SIM Card Remove the battery cover according to the following diagram below. remove the battery exposing the SIM card socket.Push the SIM card metal cover up to release the socket and place the SIM card into the socket(ensure that the SIM card contact is facing down).
  • Page 4 3.LED Flash Indicator GREEN LED Flashes once :GSM &GPS work correctly GREEN LED Flashes twice :GSM working correctly,no GPS signal GREEN LED Flashes three times :GSM & GPS working correctly,battery is low GREEN LED Flashes four times :GSM working correctly, battery is low and no GPS signal GREEN LED ON continuously :GSMsearching networks...

  • Page 5: How To Use

    6. Antenna The Antenna of GSM and GPS are built in to the tracker. Please position the tracker away from metals,as this may reduce the GSM and GPS signal. 7. Shock Sensor Control GPS ON/OFF & Power Saving This tracker has a built in shock sensor,default is SHOCKCONTROL mode. When the tracker begins to move the tracker will turn on GPS and upload the location automatically, when the tracker stops moving 2 minutes, the tracker will turn off GPS &...

  • Page 6: Select Language

    Platform Operation Guide Every tracker has a unique user name and password, the user name is the last 6 digit number of the tracker.For example the tracker ID is:CW0810C1234 5678901 then the user name on the platform of the tracker is : 678901. The platform password for this user name also is :678901.
  • Page 7 The "user name" and "upper department" can not be changed. The Expire date, Telephone, Number per page, real name and address is not necessary to change.The "customized Skis" you can change to Green, Blue or Orange. If you need to use local maps, you need to select E-map which is TAB MAP , otherwise it is not necessary to change.
  • Page 8 The"Terminal ID"and"Department"can not be changed;the"Vehicle name" is the name displayed on the table of the"Car number plate" in the upper left window. It is also the name of the www.999gps.mobi login name.The "On-car phone" is the phone display on the table of the "Car phone" in the upper left window;...
  • Page 9 Display Tracking History: Move the mouse over the car number plate, click the right mouse button to display a pop up a menu. Click the "Track playback" button,there will be a menu to let you select the date and time(Please note the time period can not be longer than 24hours).
  • Page 11 Real Time Tracking: Click the right mouse button to display a pop up a menu, then click the "Real time tracking" button.This will track the selected car in real time.And the information will be updated every 30 seconds. Over Area Alarm (Geo-Fence Alarm): This function is set on the platform,after logging in to the website.click the "Regional fence"...
  • Page 12 Over Speed Alarm: This function is set on the platform,after logging in to the website.click the "Command profile"menu in the bottom left window. A menu will pop up,search and select your car first then enable the"Set over speed alarm"menu.you can define the speed of the over speed alarm,stop alarm etc,after defining the speed alarm,the alarm information will display on the alarm list.you can check and output the alarm list.
  • Page 13 Cut oil power(remote turn off car engine) Login in to the platform, click the Cut oil power menu in the bottom left window. A menu will pop up,search and select your car first,enable the "close circuit" or "Close Oil Supply", and input the "Verify Password" defined in the "Terminal Management"...
  • Page 14 Displaying Location By Mobile Phone: Use mobile phone visit website:www.999gps.mobi with the vehicle name and check password (defined in the Terminal management).The last location information & location map will be displayed on your mobile phone,using your mobile phone can not display tracking history. InstructionDescription The tracker ID is printed on the label of the tracker,the S/N number on the label is also the ID number.
  • Page 15 Note: please confirm your local time zone, and if the time zone is not set, the tracker will upload tracking with GMT time. Set Website Server IP: Send SMS "IP*123456*113.106.89.149,9066" to the tracker, in which, "IP" is the fixed command, "123456" is the password and "113.106.89.149,9066" is the IP address of the server computer of our website.
  • Page 16 you can preset 3phone numbers.If the add operation is successful,the tracker will send back the information"Add Preset Phone OK",if the password is not right,the tracker will send back information"Wrong Password". 2. Delete preset phone number by SMS Send SMS "DELETEPHONE*123456*A" to the tracker, "DELETEPHONE" is a command;"23456"is password;"A"is preset phone number location,there are 3 locations "A"...
  • Page 17 Send a SMS trigger locate by map link (Platform is not necessary) Send SMS"LINKLOCATE*123456"to the tracker,"LINKLOCATE" is a command,"123456"is password;the tracker will locate immediately and send back the location information (map website internet link) of current location to the caller.use smart phone to click the website link to visit internet, and the location will display on the map on your phone (the smart phone SIM card need enable the GPRS function), if the password is not right, the operation will not proceed and the tracker will send back information "Wrong Password"...
  • Page 18 Low Battery Alarm: When the tracker battery voltage is low, the GREEN LED of the tracker will flash 3 or 4 times,and then the tracker will automatically send battery low information to the first preset phone number. the battery life can last about 1- 2 days according the different using condition.
  • Page 19 Emergency Press the button for 6 seconds, the LED will flash quickly and then the LED will turn OFF. Release the button and the tracker will send SOS help information to all 3 preset phones. HELP ! ! ! http://www.followmegps.mobi/map.aspx?lat=40.756441&lng=- 73.986378&l=en Battery:91% If the tracker receive the HELP information, please note that the SOS button must be pressed, please call the driver to confirm with the user is safe...
  • Page 20 Trouble Shooting The tracker auto power off: please confirm the tracker battery have enough power. Confirm the adapter is working well (When charging the LED on the adapter is RED, if the LED is GREEN means the charging is finished, the charging process will cost over3hours).
  • Page 21 InstructionList Reply Note Note Instruction Reply to TIMEZONE Any mobile Time Zone Set Time operation *12345 6*X phone can Zone is XXX phone Reply to IP*123456* Any mobile IP:113.106. Set IP operation 113.10 6.89. phone can 89.149,906 address phone 149,9066 Reply to Any mobile APN*12345...
  • Page 22 Check Reply to the Any mobile CHECKPH A:13316868198; preset operation B:13322990998; ONE*1 234 phone can phone C:13322990033; phone check number Reply to CHANGEP Only preset Change operation ASSWORD phone can Password: password preset *123456*88 change F888888 phone 8888 Reply to Only preset Check operation...

  • Page 23: Specification

    Specification: SIMCOM 900 GPS Module Sirf-Star or MTK 900/1800MHz GPS channel 32channels Frequency or 4 Band Locate GSM/GPS Built in 5-20Meters precision Antenna GPS Cold GPS Hot 36seconds 1 second Start Time Start Time Recharging Standby < 5V/300mA < 10 mA Current Current Uploading...
