Summary of Contents for Response LA-9028

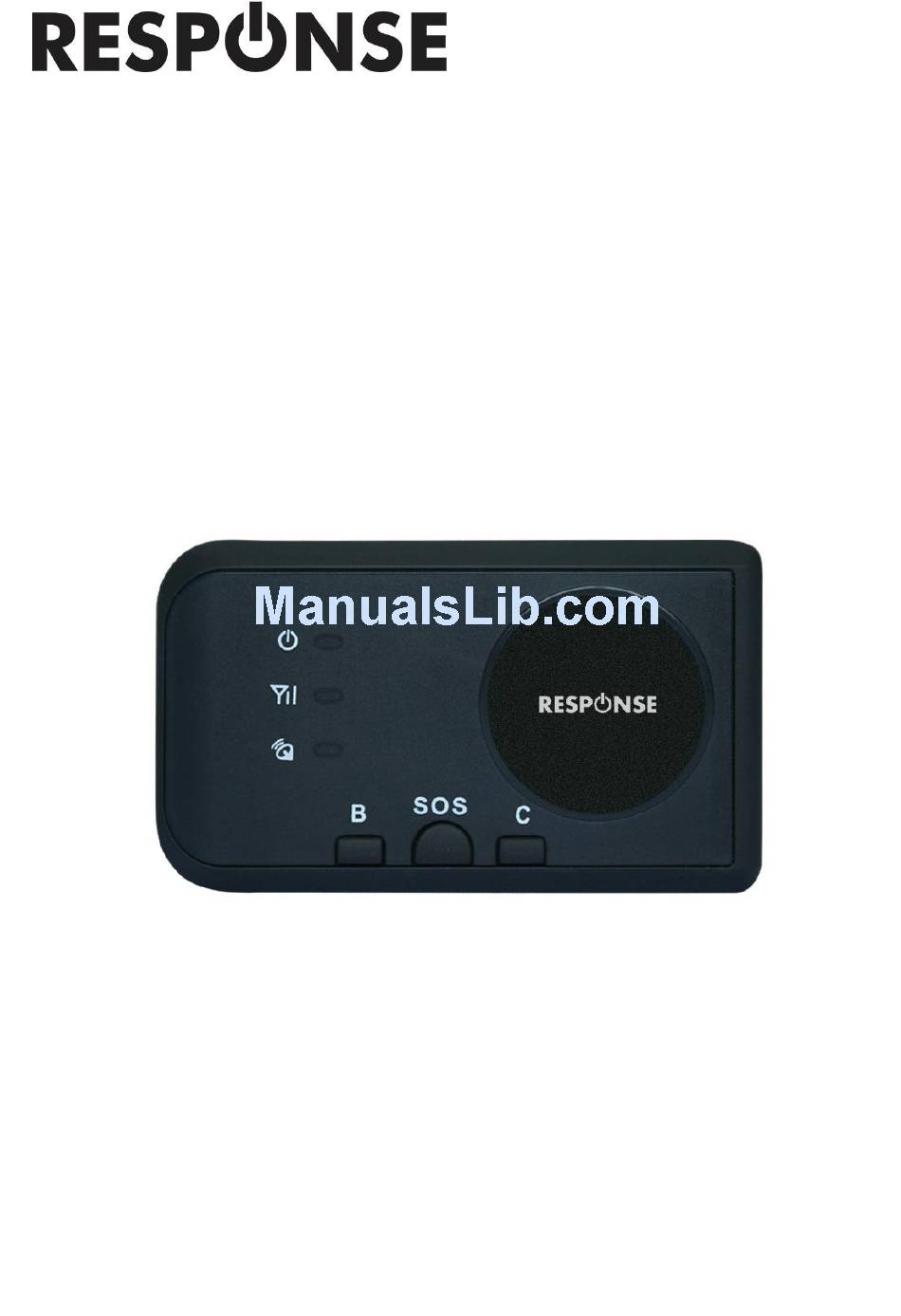

- Page 1 3G GPS Vehicle Tracker User Manual LA-9028...
- Page 2 Read before using the product: Power ON / OFF Press the “ON/OFF” button till the Green/Red LED is ON, then release the button, the tracker is powered ON, when the LED flash means the tracker is working well. Press the “ON/OFF” button till the all the LED turn off, then release the button, the tracker is powered OFF. Install SIM card (Micro SIM Card) At first to buy a 3G WCDMA or 2G GSM SIM card which have SMS service and incoming caller ID service &...
- Page 3 the tracker or even cause accidents. Use the car adapter or home charger or PC USB to recharge the tracker: insert the USB wire into the tracker and car adapter or home charger or PC USB, If the LED on the adapter is RED, it means it is recharging, if the LED on the adapter is GREEN, it means, it means the recharging is finished.
- Page 4 stop locating & uploading location to server. 5 different geo-fence in or out alarm can be set, the alarm information will send to user by SMS, the battery working time can reach to 2-5 days at this working mode. 5. In the default working mode 1, if user need the tracker stop locate & upload location to server, user can send SMS (SLEEPON*123456*0*24) to make the tracker go to sleep mode, and then only SMS and calling can trigger the tracker locate &...
- Page 5 reply SMS, if the other phone number call to the tracker, the tracker will hang up the calling immediately without ring & will not reply SMS. If the tracker can not get the location text description, the tracker will reply the location with Google map link SMS to user.
- Page 6 report by GPRS to the sever per 5 minutes. Mode 3 ------ Cycle ON/OFF & Upload Location to Server by GPRS Under this mode, the system ON / OFF is controlled by timer (interval time is Y hours). The tracker will power on automatically and locate with GPS and then upload the location information to server by GPRS, and then a few minutes later, the tracker will power off automatically, and the timer will begin to count, after the time is up, the tracker will power on again and then locate &...
- Page 7 information “ New Password：888888” to every preset phone number”. Note: Only the authorized phone can change the password. 5. Set Alarm by SMS: ON/OFF Send SMS “SMSON*123456” (Sending SMS to authorized number) or “SMSOFF*123456” (No SMS) to the tracker, “SMSON” or “SMSOFF” is a command, “123456” is the tracker password, the tracker will send back the information “Alarm by SMS : ON”...
- Page 8 Note: In the default, the over speed alarm setting is OFF. 8. In & Out Geo-fence Alarm (5 Geo-Fences Can be Set) set or delete Total 5 Geo-fences can be set, the geo-fence is a circle and the radius is set by SMS, and the center of the circle is set by tracker current location or another position ( including longitude and latitude )set by SMS.
- Page 9 authorized number all no answered, then stop calling. The SOS SMS information sample is as follow: HELP! https://maps.google.com/maps?q=22.67680N,114.15188E Battery:91% If no authorized number is added, the SOS information can not be sent. If the SOS information is received, please confirm the user is safety. 12.
- Page 10 “SLEEPON*123456*22*8*9” (Tokyo, time zone is east 9) “SLEEPON*123456*22*8*-05” (NewYork, time zone is west 5) But if the command is like this: “SLEEPON*123456*7*8*9”. It means the unit will sleep from today 7AM to today 8AM, only 1 hour. “SLEEPON*123456*8*7*9”. It means the unit will sleep from today 8AM to tomorrow 7AM, 23 hours in all. Set the sleep time can save the power.
-
Page 11: Trouble Shooting
The tracking data on our server will keep 6-12 months, the old data will be deleted. After power on the tracker, call the tracker, no response, and no ring, please confirm the SIM card has been installed properly, and the SIM card has enough charge, and the mobile phone can work well in that place. -
Page 12: Packing List
Locate Precision 5-10 Meters Recharging Current 5V/300-500mA Standby Current < 3 mA 5V DC Locating Current < 150 mA 5V DC Battery 1000mAh GPS Hot Start Time 1-2 seconds GPS Cold Start Time <36 Seconds Working Temperature C to +55 Absolute Temperature C to +70 Storage Temperature...
