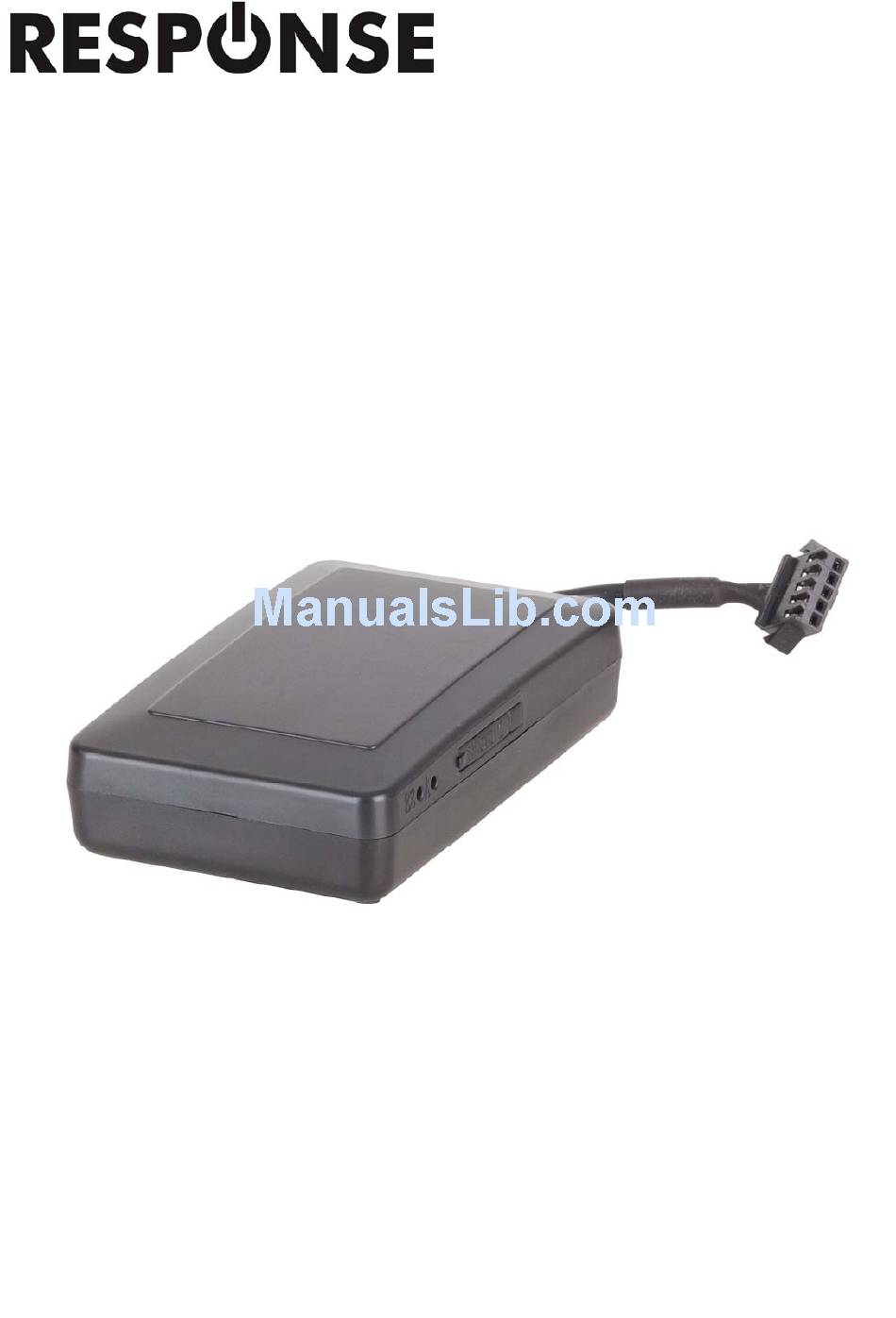

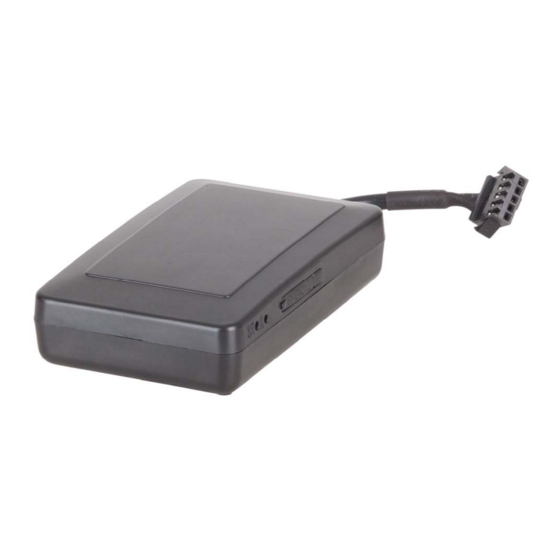

- Page 1 3G GPS Vehicle Tracker User Manual LA-9026...
- Page 2 Read before using the product: Power ON / OFF Turn the switch to the on position beside the tracker, the tracker will power on, if the tracker battery is low, the power & GND wire connect to car battery is OK, after the tracker is powered on, the LED will flash, if the Green LED flash once every 4 seconds, it means the tracker work well, please refer the following 3 for detail LED flash indicator.
- Page 3 RED LED Flash twice : can not upload tracking Power supply For CCTR-805, the tracker uses the 9-40V DC power supply, too high voltage or AC voltage may damage the tracker or even cause accidents, it is necessary connecting to car battery all the time, after the backup battery is full, the built in recharging circuit will stop recharging, and if the tracker is not move, the tracker will go to sleep, then the tracker will cost few power to protect the car battery, this will not make the car battery can not start car engine.
- Page 4 Back to Factory Setting Send the SMS command to the tracker can reset the tracker setting to the factory mode (just like new tracker). The SMS command is FACTROY*123456. FACTORY is command, 123456 is tracker password. ANTENNA The Antenna of GPS is built in the tracker, and the Antenna of 2G/3G is external, please leave the tracker away from big metal, that will reduce the 2G/3G and GPS signal.
- Page 5 8. This tracker can auto configure APN & GPRS user name & password, if the auto configuration is not right, the tracker can not visit internet, so the tracker location can not update on the server, and the red LED will flash twice, then you need send SMS to tracker to change the APN &...
- Page 6 Send SMS “CHANGEPASSWORD*123456*888888” to tracker, “CHANGEPASSWORD” is a command; “123456” is old password; “888888” is new password; if the operation is success, the tracker will send the information “ New Password: 888888” to every preset phone number, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 7 data charge and car battery power, and if the car will park long time or the car battery is old, this maybe cause the car battery power low and can not start car engine, this working mode is not recommended . 6.
- Page 8 please confirm the auto configuration of APN & GPRS user name password is right, call your tracker SIM card mobile phone company to get the APN & GPRS setting, sending SMS “CHECK*123456” to the tracker can check the current APN & GPRS auto setting. if the APN & GPRS are not right, please set by the following description. Send SMS “APN*123456*apnname”...
- Page 9 V Mar 08 2015, ;Software version date CC830, ;TCP/IP Protocol name 805201512345678, ;ID number d3.igps.info ;Server Domain Name 58.64.155.133,8011, ;Server IP & Port ;Uploading time interval is 30 seconds 13987654321, ;Authorized number (A/B/C) GPS OK , ;GPS status ShockControlGPS, ;GPS module shock control Sms On ;Alarm notice by sending sms is ON Call On...
- Page 10 interval time, and so on. 1> If forgot the password, you can not reset by the SMS command. 2> After back to default set, if the IP/APN/GPRS name & password are changed manually, you need set these again by sending SMS. Locate Operation 1.
- Page 11 If the authorized number have been set, use the authorized phone number to send SMS “URL#” to the tracker also can trigger the tracker locate and reply the location with Google map link. 4. LBS Locate with Google map link without GPS signal After sending SMS or calling the tracker to trigger locate, if the tracker can not receive GPS signal or GPS signal weak (underground park or indoor etc), the tracker will change to LBS locate (located by GSM network base station), and reply a location with Google map link to the caller or sender.
- Page 12 also can trigger the tracker to enter arm state. The shock alarm SMS is as follow: Shock Alarm https://maps.google.com/maps?q=+40.756441,-73.986378 Send SMS “SHOCKALARMOFF*123456” to tracker, “SHOCKALARMOFF” is a command, “123456” is password, the tracker will send back the information “Set Shock Alarm OFF” to indicate the operation is success and disable the shock alarm, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 13 Send SMS “GEOFENCEALARMON*123456*XXX” (Enable Geo-fence alarm) or “GEOFENCEALARMOFF*123456” (Disable Geo-fence alarm) to the tracker SIM number, “GEOFENCEALARMON” or “GEOFENCEALARMOFF” is a command, “123456” is password, “XXX” is the setting geo-fence radius, unit is km, the origin of the geo-fence is current location, the tracker will send back the information “Set Geo-fence Alarm ON”...
- Page 14 password is not right, the operation is fault, the tracker will send back information “Wrong Password”. The engine cut command need add a rely to execute, the tracker have a output engine cut wire, when the tracker turn off the engine, the engine cut wire will output a negative signal continuously, use the the relay to control engine power supply or petrol pump power supply can turn off the car engine.
- Page 15 Platform Operation Guide The platform operation please refer the platform operation guide, scan the following QR code or click the website link to download the platform manual, visit website www.999gps.net and click the Manual icon also can download the platform manual. Notes &...
- Page 16 “CHECK*123456” to check auto configure, and call the mobile phone hot line to confirm the right APN & GPRS). if the tracker do not move, the tracker will not upload tracking, try to move the tracker in the open air (Indoor room can not receive GPS signal) . 10.
- Page 17 Warranty: This system has been tested before sold. We strongly recommend you to get this system installed by professional. There is a one-year warranty except the following condition: 1. Installed, fixed, or changed by personally or unprofessional. 2. Warranty will eliminate if the ownership of the tracker has been changed. 3.
