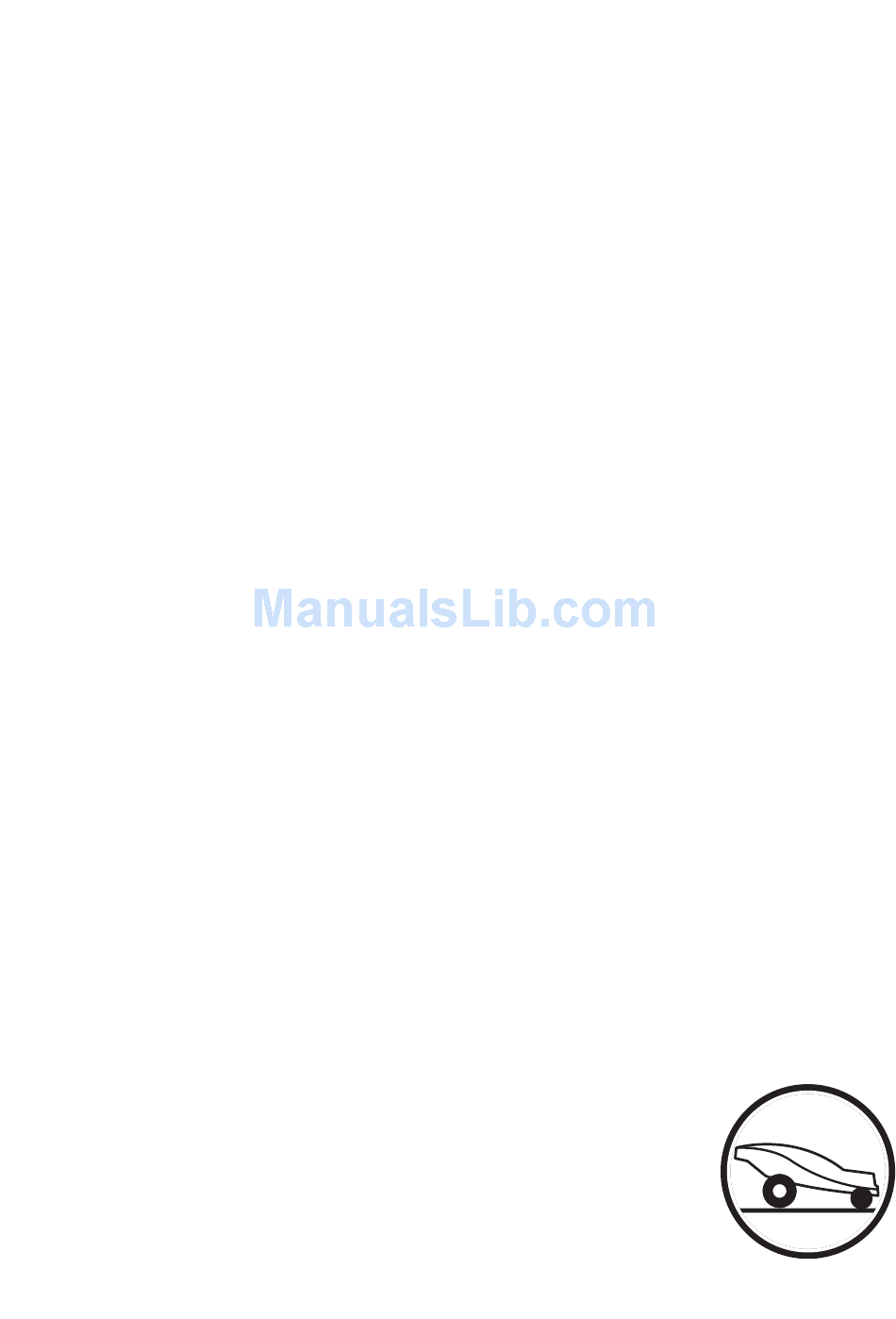

Enlarged version
Operator's Manual

Auto Mower

Please read the Operator's Manual carefully and make sure you
E E E E n n n n g g g g l l l l i i i i s s s s h h h h
understand the instructions before using the machine

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna Auto Mower

Summary of Contents for Husqvarna Auto Mower

  • Page 1: Auto Mower

    Operator’s Manual Auto Mower Please read the Operator’s Manual carefully and make sure you E E E E n n n n g g g g l l l l i i i i s s s s h h h h...

  • Page 2: Table Of Contents

    C. Placement of the charging station ...20 D. Charging the battery ...22 E. Laying out the boundary wire ...22 F. Connecting the boundary wire ...23 G. Checking the installation ...25 H. Linking the Auto Mower to the charging station...25 Control panel ...26 Shortcuts ...27 Program ...27 Section ...28...

  • Page 3: Introduction

    Manual carefully before you start to install and use your Auto Mower. Save the Operator’s Manual and, if you sell your Auto Mower, make sure you hand it over to the new owner. Husqvarna Auto Mower is designed to mow the grass on ordinary lawns free from stones, large branches and the like.

  • Page 4: Symbols

    • Keep your hands and feet away from the rotating blades. Never put your hands or feet close to or under the body of the Auto Mower while it is run- ning. • Never use the Auto Mower if people, especially chil- dren, or pets are nearby.

  • Page 5: Symbols In The Operator's Manual

    Always wear protective gloves when working with the mower’s underframe. • Never use a high-pressure washer or even running water to clean the Auto Mower. • The warning box warns of the risk of personal injury , especially if the instructions are not followed.

  • Page 6: Safety Instructions

    Do not let persons who do not know how the Auto Mower works and behaves use the mower. • Do not put anything on top of the Auto Mower or its charging station. • Do not allow the Auto Mower to be used with a defective blade disc or body.

  • Page 7: Transport

    Auto Mower is set to sound off. • Inspect the Auto Mower each week and replace any damaged or worn parts. Check especially that the blades and blade disc are not damaged. Replace all blade units at the same time if necessary so that the rotating parts are bal- anced, see ”Maintenance”...

  • Page 8: Presentation

    The length of the low voltage cable must not be changed. Boundary wire , laid in a loop around the Auto Mower’s working area. The wire is laid around the edges of the lawn and around objects and plants that the mower must not run into.

  • Page 9: Function Auto Mower

    Working method The Auto Mower automatically mows the lawn. It con- tinuously combines mowing and charging. When the Auto Mower works on a lawn, it simulta- neously stores information about how the garden is shaped. The charging station sends out a signal that the Auto Mower can sense at a distance of 6 - 8 metres.
  • Page 10 The STOP button on the top of Auto Mower is mainly used to stop the mower when it’s running. When the STOP button is pressed a cover opens, behind which there is a control panel. The STOP button remains depressed until the cover is closed again. This acts as start inhibitor.

  • Page 11: Capacity

    3012-276 If the Auto Mower enters an area where it senses the grass is longer than earlier, it can change the move- ment pattern. It can then mow in a square pattern to cover the area of longer grass more systematically.

  • Page 12: Installation

    Installation This chapter describes how you install the Auto Mower. Before starting the installation read the previous chap- ter ”Presentation” on page 9 to page 12. The installation should be carried out according to the following steps: A. Preparations. Planning the installation C.

  • Page 13: Auto Mower, What Is What

    Auto Mower, what is what? The numbers in the picture corresponds to: Charging strip Cutting height adjustment cover Front wheel Drive wheel Body Stop button Keypad Display Main switch 10. Handle 11. Chassis box with electronics, battery and motors English- INSTALLATION 12.

  • Page 14: Planning The Installation

    B. Planning the installation Charging station First and foremost the charging station should be posi- tioned: • Centrally in the main area, along the outer edge and with a large free area in front of the station. • In the shadow. The battery is spared if it charged in the low possible ambient temperature.
  • Page 15 Plan the position of the charging station according to the shape of your garden. The Auto Mower can be set for one of three basic gar- den shapes (see page 34). The Auto Mower works differently depending on the garden shape the mower has been set to.
  • Page 16 If the garden consists of two large lawns joined by a passage, it may be difficult for the Auto Mower to find the entrance to the passage. Making it difficult to work efficiently in both areas. One way to make the mower effectively reach both areas is to position the charging station in the middle of the passage.
  • Page 17 Maintains a maximum distance of 35 metres from Auto Mower in the entire working area. • Does not lie on a sharp incline. The Auto Mower may find it difficult to reverse back, especially in damp weather conditions, when there is a large risk of skidding.
  • Page 18 If the working area borders against a flat path or the like that lies level with the lawn, is it possible to allow the Auto Mower to run a little over the path. The boundary wire should then be laid 10 cm from the edge of the path.

  • Page 19: Placement Of The Charging Station

    If any part of the working area’s outer edge has a gradient of 1: 5 (20 cm/m) or more, the wire should be laid inside where the slope starts. The Auto Mower may find it difficult to turn at the loop where the ground slopes heavily. •...
  • Page 20 A passage should be at least 2 metres wide so the Auto Mower can find it and make its way through it. The minimum spacing between the wires in a pas- sage is 130 cm.

  • Page 21: Charging The Battery

    If you intend to install more than one Auto Mower in the same garden the different installations’ boundary wires can be laid edge to edge with each other.

  • Page 22: Connecting The Boundary Wire

    F. Connecting the boundary wire Connect the boundary wire to the charging station: Lift up the cover on the charging station: • Grip under the edge of the cover with both hands and pull straight out towards the sides. • Now lift the cover straight up. Slide in the ends of the boundary wire in the low- ermost holes on the charging station and catch them in the uppermost holes.
  • Page 23 Place the cable ends in the connector: • Open the connector. • Place the wire in the connector grip. Press the connector together using a pair of pliers. Press until you hear a click. Cut off any surplus boundary wire. Cut 1-2 cm above respective connectors.

  • Page 24: Checking The Installation

    Place the Auto Mower in the charging station. State the four digit PIN code. All combinations except 0000 are permitted. If you own more than one Auto Mower and charg- ing station in the same garden, each mower must have its own PIN code.

  • Page 25: Control Panel

    Control panel On the top of the Auto Mower there is a control panel under a cover. Open the cover by pressing the STOP button. Close the cover by sliding it forward until a click is heard. The click is heard when the STOP button returns to the operating mode.

  • Page 26: Shortcuts

    Auto Mower mows and charges continu- ously. • MAN. If you select MAN and close the control panel cover when the Auto Mower is on the lawn, it will mow until the battery is discharged. It will then stop and show the message ”Battery empty”.

  • Page 27: Numbers

    ”Number series” on page 29. Main switch 10. Set the main switch in the ”ON” position to start the Auto Mower. Set the main switch in the ”OFF” position when you are not using the mower or if you want to work on the blade disc.

  • Page 28: Menu Functions

    The numbers refer to the headings on the coming pages. There are a number of submenus under each option. You can access all the functions to set the Auto Mower settings via these. Browse between menus Browse through the main menu and submenus with the help of the arrow buttons.

  • Page 29: Commands

    Week Timer (2-4) to select which days of the week the Auto Mower should mow. Timer override (2-1) If you set the timer on your Auto Mower you can use this function to temporarily get maximal operation from the mower. •...
  • Page 30 Copy from day timer (2-3-6) Press YES when asked ”Copy?” to transfer all times set in the day timer. Week Timer (2-4) Use the YES button to select the days you would like the Auto Mower to mow. • Mon (2-4-1) • Tue (2-4-2) •...

  • Page 31: Installation

    Via this option in the main menu you access the driving settings. Select among the submenus: • Charge exit settings (3-1) to set how far the Auto Mower should reverse out of the charging station before it turns and in what direction the mower should leave the charging sta- tion.
  • Page 32 • Customized (3-1-2) • Reversing dist. State the number of centimetres you want the Auto Mower to reverse before it turns to drive out of the charging station. The default reversing distance is 60 cm. • Begin angle 1 State in degrees where you want the sector/sec- tor 1 to start.
  • Page 33 Drive past wire (3-2) The front of the Auto Mower always passes the bound- ary wire by a specific distance before the mower turns. The default distance is 27 cm, but this can be changed if required. • To adjust the distance: Move the cursor to ”Drive past wire”...

  • Page 34: Settings

    • User info level (4-3) to determine the level of detailed for information shown on the display when Auto Mower is opera- tional. • Language (4-4) to select the menu language. •...
  • Page 35 YES. Now Move the cursor to ”Number of days” and press YES. State how many days you would like the Auto Mower to mow before it requests the PIN-code. Finish by pressing YES. When the chosen number of days have passed,...
  • Page 36 YES. Now select the respective func- tion, press YES, move the cursor to the required sound level and finish by pressing YES. When the Auto Mower is set to sounds on, an audio message is heard according to what the mower is cur- rently doing.
  • Page 37 User info level (4-3) Selecting the user info level involves determining how much information should be shown on the display when the main switch is set in the ON position. The basic user info level means less information on the dis- play than in the advanced user info level.
  • Page 38 Using this function you can change the time and date on the Auto Mower. You can also change the format selections you made when the Auto Mower was first started via this function. • Set time, 4-5-1 Move the cursor to ”Set time” and press YES. Now state the correct time and finish with YES.

  • Page 39: Use

    Charging a discharged battery When the Auto Mower is new or has been stored for a long period the battery will not be charged and needs to be charged before starting. Charging takes between 1 1/2 and 2 1/2 hours.

  • Page 40: Using The Timer

    Restart after more than 10 seconds: If more than 10 seconds has elapsed since the last time the STOP button or the keypad was pressed it is not possible to start the Auto Mower by just closing the cover. To start: Press the YES button.

  • Page 41: Adjusting The Cutting Height

    10 different positions from MIN (2 cm) to MAX (6 cm). If the grass is long it is appropriate to let Auto Mower start mowing at the MAX cutting height. Once the grass is shorter, you can gradually lower the cutting height.

  • Page 42: Maintenance

    During the initial period of Auto Mower use the blade disc, skid plate and blades should be checked once a week. If the amount of wear during this period has been low, the inspection interval can be increased.

  • Page 43: Cleaning

    We recommended a spray bottle with water. Underframe and blade disc Set the main switch to the OFF position. Wear protective gloves. Lift the Auto Mower onto its side. Clean the blade disc and underframe using, e.g. a dish-brush. Body Use a damp, soft sponge or cloth to clean the body.

  • Page 44: Replacing The Blade Units

    Set the main switch to the OFF position. Wear protective gloves. Turn the Auto Mower upside down. Rotate the skid plate so that its holes align over the blade unit screws. Unscrew the blade unit.

  • Page 45: Trouble Shooting

    Repair the broken cable using Husqvarna’s waterproof connector, part number 535 13 37-01. Try to move the boundary wire. Check that the boundary wire has been routed correctly. Free the Auto Mower and rectify the reason for it becoming trapped.
  • Page 46 Upside down The Auto Mower leans too much or has turned over. Empty battery The Auto Mower is set in MAN oper- ating mode. Action Try to move the boundary wire. Check that the boundary wire has been routed correctly.

  • Page 47: Trouble Shooting Chart

    TROUBLE SHOOTING Trouble Shooting Guide If your Auto Mower does not work correctly, follow the trouble shooting guide below. If the fault persists; con- tact your dealer. Symptom Cause Uneven cutting Auto Mower works too few hours per result day.

  • Page 48: Technical Data

    Mowing system Cutting Height Cutting width Working capacity TECHNICAL DATA NiMH special battery 18V / 2,2 Ah (40 Wh) Three, pivoted cutting knife blades Auto Mower 71 cm 56 cm 30 cm 8.6 kg 230 V / 24 V 63 dB(A)

  • Page 49: Eu Declaration Of Conformity

    We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares under sole respon- sibility that the automatic lawn mower Husqvarna Auto Mower from 2003’s serial numbers and onward (the year is clearly stated in plain text on the rating plate with subsequent serial number), conforms with the requirements of the COUNCIL’S DIRECTIVE:...
