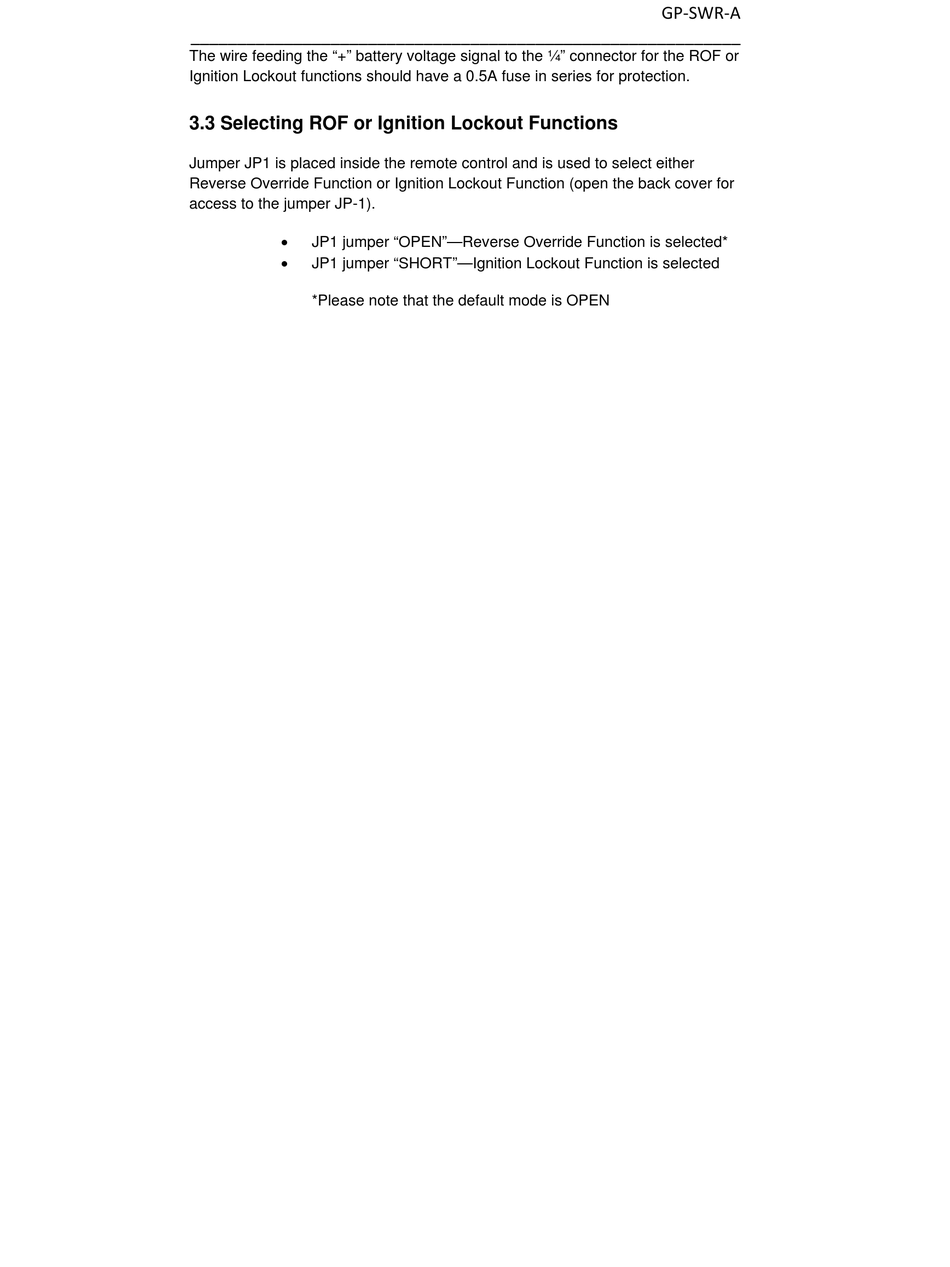

3.3 Selecting Rof Or Ignition Lockout Functions - Go Power GP-SWR-A Owner's Manual

___________________________________________________________
The wire feeding the "+" battery voltage signal to the ¼" connector for the ROF or
Ignition Lockout functions should have a 0.5A fuse in series for protection.

3.3 Selecting ROF or Ignition Lockout Functions

Jumper JP1 is placed inside the remote control and is used to select either
Reverse Override Function or Ignition Lockout Function (open the back cover for
access to the jumper JP-1).

JP1 jumper "OPEN"—Reverse Override Function is selected*

JP1 jumper "SHORT"—Ignition Lockout Function is selected
*Please note that the default mode is OPEN
GP‐SWR‐A
