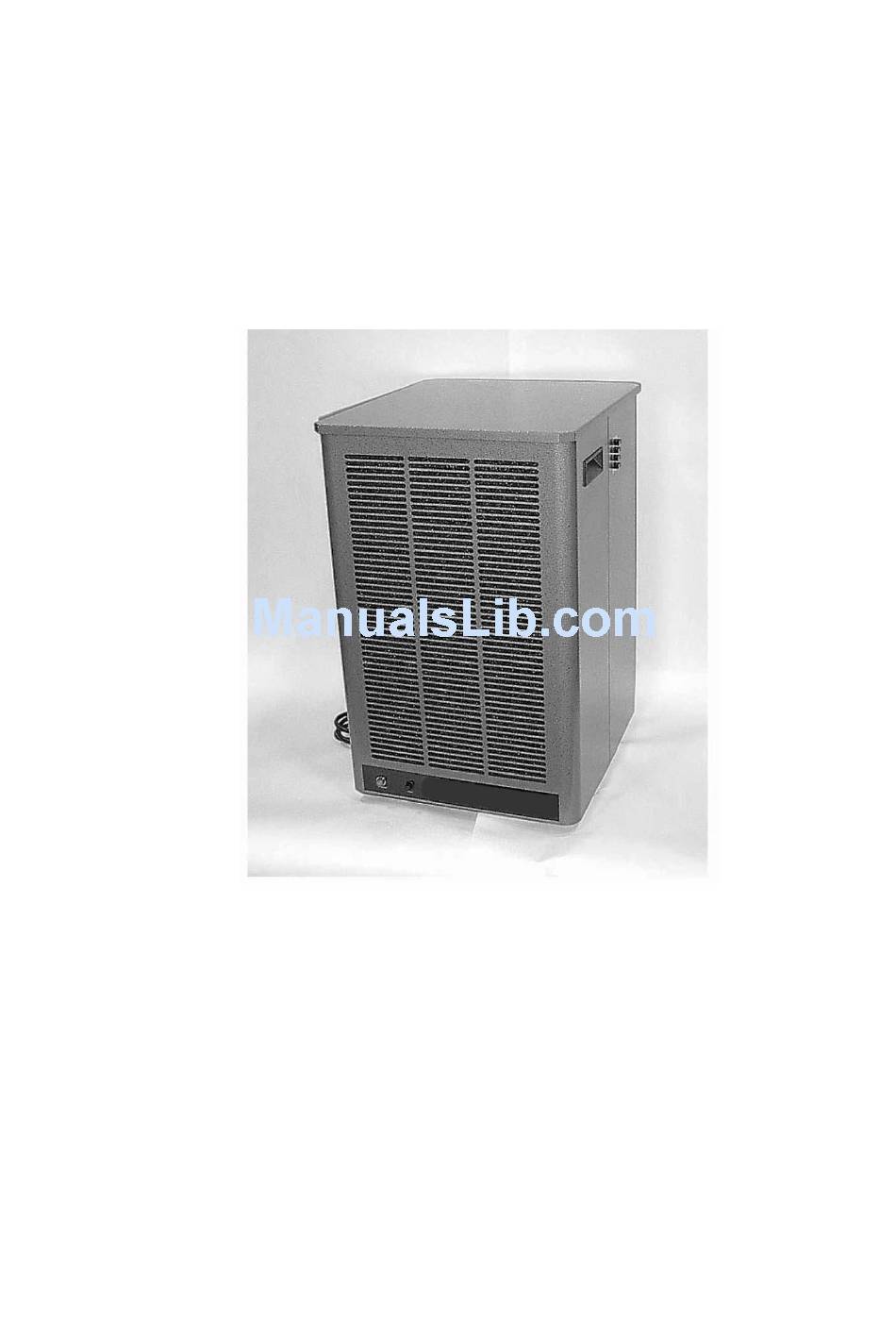

- Page 1 OWNER’S MANUAL Smokemaster CONSOLE ELECTRONIC AIR CLEANER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION PRINCIPLES OF OPERATION SPECIFICATIONS SETUP AND OPERATION Unpack the Electronic Air Cleaner Set up the Electronic Air Cleaner Operation of the Electronic Air Cleaner SERVICE Cleaning the Cell, Prefilter and Postfilter Reinstalling the Cell, Prefilter and Postfilter Ionizer Wire Replacement Reducing Ozone Odor SCHEMATICS... -
Page 3: Introduction
INTRODUCTION DIRT, DUST AND OTHER POLLUTION Your Smokemaster Electronic Air Cleaner is an advanced design electronic instrument which is an Your electronic air cleaner also effectively effective indoor air pollution fighter. You can removes irritating airborne dirt, dust, etc., from the expect noticeable improvements in your air. -
Page 4: Specifications
THEREFORE, THIS UNIT MAY NOT MATCH THE LISTED SPECIFICATIONS EXACTLY. ALSO, THIS PRODUCT IS TESTED AND CALIBRATED UNDER CLOSELY CONTROLLED CONDITIONS AND SOME MINOR DIFFERENCES IN PERFORMANCE CAN BE EXPECTED IF THOSE CONDITIONS ARE CHANGED. MODEL: The Smokemaster unit includes a cabinet, electronic CAPACITY: cell, 3-speed fan, prefilter, activated carbon filter and high- voltage power supply. -
Page 5: Setup And Operation
OPERATING Smokemaster AIR CLEANER The speed control, Off-Low-Med.-High, is on the WARNING right side of the Smokemaster Air Cleaner. There Air cleaners are not a substitute for fresh is an indicator light and test button on the front makeup air. Air cleaners should not be used side of the unit. -
Page 6: Service
SERVICE Automatic Dishwasher CLEANING CAUTION The Smokemaster Air Cleaner works by electrically charging and collecting airborne Burn hazard--can cause personal injury. contaminants. As these contaminants collect, the collector plates and prefilter become extremely Allow the cell to cool in the dishwasher at the end of dirty. -
Page 7: Reinstalling The Cell, Prefilter And Postfilter
Allow the cell to dry. thoroughly dry. Cell cleaner is reusable. Save for repeated use. FIGURE 3 – Smokemaster DIP TANK AND CELL. -
Page 8: Ionizer Wire Replacement
FIGURE 4 – THE COVER MUST FIT CORRECTLY FOR OPERATION. IONIZER WIRE REPLACEMENT Broken ionizer wires can cause a short to ground often resulting in visible arcing or sparking. The cell should not be used until the pieces of broken wire are removed. -
Page 9: Schematics
Smokemaster AIR CLEANER SCHEMATIC INPUT: 120V 1.9 A 60 HZ OUTPUT: 1.05 mA at 8450 VDC FIGURE 6 – 120V SCHEMATIC... -
Page 10: Electrical Troubleshooting
If your air cleaner still has any of the following problems, proceed step-by-step as shown underneath. If you cannot resolve the problem, contact your Smokemaster representative. PROBLEM 1 PROBLEM 2 PROBLEM 3... -
Page 11: Parts List
PARTS LIST FIGURE 8 – Smokemaster PARTS LIST DESCRIPTION 60 Hz 50 Hz Activated Carbon Filter 41006 41006 Electronic Cell 38001 38001 Contact Panel 46113 46113 Solid State Power Supply 07103 07104 Indicator Light 10097 10097 Fan Motor 07101 07102... -
Page 12: Warranty
CERTIFICATE OF WARRANTY LIMITED ONE-YEAR WARRANTY Smokemaster Distribution Center (RDC), warrants the Smokemaster Electronic Air Cleaner to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If, at any time during the warranty period, the product is defective or malfunctions, RDC shall repair or replace it (at RDC’s, option) within a reasonable period of time.
