New!
M O D E L M 6 6 O
Vertical Oil Mist Collector

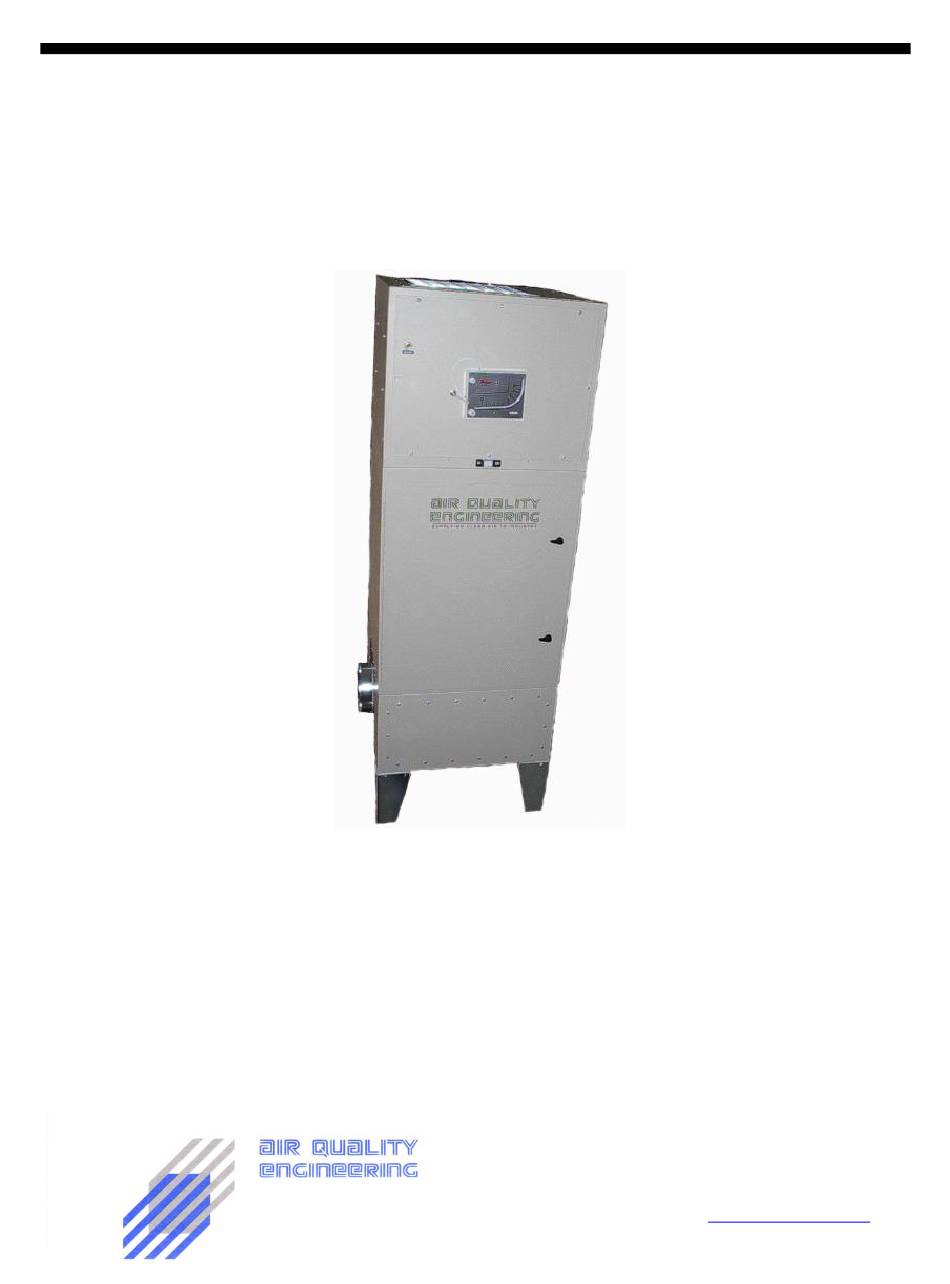

The new M66O from Air Quality Engineering, Inc.,
is a self-contained media air cleaning system designed for
source capturing coolant mist applications in industry. The M66O can be
ordered in three stage filtration which will effectively remove a broad range of
contaminants including mist, smoke, soot, vapors, VOC's and more
at a rate of up to 3625 cfm.
7140 Northland Drive North, Brooklyn Park, MN 55428-1520 USA
FAX: (763) 531-9900 EMAIL: info@air-quality-eng.com WEB SITE:
www.air-quality-eng.com
TOLL FREE: 1-800-328-0787
Air Quality Engineering Inc., has a policy of continuing product improvement and reserves the right to make changes
in design and specification without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Air Quality Engineering M660
Summary of Contents for Air Quality Engineering M660
- Page 1 7140 Northland Drive North, Brooklyn Park, MN 55428-1520 USA FAX: (763) 531-9900 EMAIL: info@air-quality-eng.com WEB SITE: www.air-quality-eng.com TOLL FREE: 1-800-328-0787 Air Quality Engineering Inc., has a policy of continuing product improvement and reserves the right to make changes in design and specification without notice.
- Page 2 Copyright Air Quality Engineering, Inc. copyrights this manual with all rights reserved. Under the copyright laws, this manual may not be reproduced in any form, in whole or in part, without the prior written consent of Air Quality Engineering, Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE HOW AIRBORNE CONTAMINATION IS REMOVED DIMENSIONS SPECIFICATIONS PLANNING THE INSTALLATION ASSEMBLY CHECKOUT AND OPERATION ADJUSTMENTS MAINTENANCE ELECTRICAL SCHEMATICS PARTS IMAGES PARTS LIST TROUBLESHOOTING WARRANTY HOW AIRBORNE CONTAMINATION IS REMOVED Dirty air passes through the prefilter. The prefilter removes large particulate, such as lint. The primary filter then captures the remaining smaller particulate. -
Page 4: Dimensions
DIMENSIONS METRIC CONVERSION FORMULA Ins. to mm Ins. x 25.4 Lbs. to kgs. Lbs. x .455 Ins. w.g. to kPa Ins. w.g. x .2488 CFM to m³/h CFM x 1.6992 Ft² to m² Ft² x .0929... -
Page 5: Specifications
1000 CFM. Note: With Carbon Filter option a Rigid or Extended Service Filter must be used. Air Quality Engineering, Inc., has a policy of continuing product improvement and reserves the right to make changes in design and specifications without notice. -
Page 6: Planning The Installation
Minimum airflow and power consumption are also presence of explosive dusts, gases or vapors. important factors in designing an effective local Contact the nearest Air Quality Engineering, Inc., exhaust system to control contamination. representative for assistance in determining the Capturing air contaminants at their source requires correct application of a media air cleaner. -
Page 7: Assembly
Do NOT connect the power source until after the air cleaner is completely assembled. ASSEMBLING THE M660 Unit should be securely anchored to the floor to If the air cleaner must be turned on for an prevent the unit from tipping. -
Page 8: Checkout And Operation
WIRING the inside of the filter access door. Route the The M66O has no special wiring requirements. It power cord so that it is out of the way of the building’s occupants. Do not use an extension comes equipped with a 10-foot power cord and plug. -
Page 9: Adjustments
CALIBRATION OF THE MINIHELIC Step 1 Remove the plastic cover by turning it counter- clockwise. One may have to press on the cover as one is turning it. Step 2 With the supplied hex wrench, one can adjust the needle by turning the hex screw at the bottom of the gauge. -
Page 10: Maintenance
MAINTENANCE Replace the primary filter with the access door - CAUTION - open, remove the hoops from the retainers. The retainers should remain attached to the blower grill. The filter then can be removed by sliding it Always disconnect the power to the M66O before out along the tracks. -
Page 11: Electrical Schematics
(OPTIONAL) 3. Refill the carbon module by removing the cover held on by four screws and pouring out The M660 can be ordered with an optional carbon the used carbon in an appropriate container. module. This module is refillable. This used carbon must be reactivated or 1. -
Page 12: Parts Images
PARTS IMAGES... -
Page 13: Parts List
PARTS LIST DESCRIPTION PART NO. On/Off Switch 10140 Indicator Light 10097 Dirty Filter Gauge, 3” wg., (red fluid) 10205 Dirty Filter Gauge, 7” wg., (blue fluid) 10213 MiniHelic 5” 4 (shown on 10219 MiniHelic 10” page 9) 10259 Terminal Block (single phase only) 30278 Not shown Red Gauge Oil, ¾... -
Page 14: Troubleshooting
TROUBLE SHOOTING WARNING! The following instructions are intended for qualified service personnel only. Dangerous line voltage circuits are exposed during this procedure. Disconnect the power before servicing the unit. Check the Fan Motor and Power Source If the fan does not run when the switch is on check the voltage supplied to the motor. If the correct line voltage is not measured, check back through the wiring to the power source. -
Page 15: Warranty
CERTIFICATE OF WARRANTY THREE-YEAR LIMITED WARRANTY Air Quality Engineering, Inc. (AQE), warrants to the original purchaser, subject to the conditions below, that if the “Product” covered by this warranty should fail to perform by reason of improper workmanship or material, AQE will during the period of three (3) years from the date of original purchase either (i) replace the product or (ii) provide all necessary parts to repair the product without charge.
