OWNER AND SERVICE MANUAL

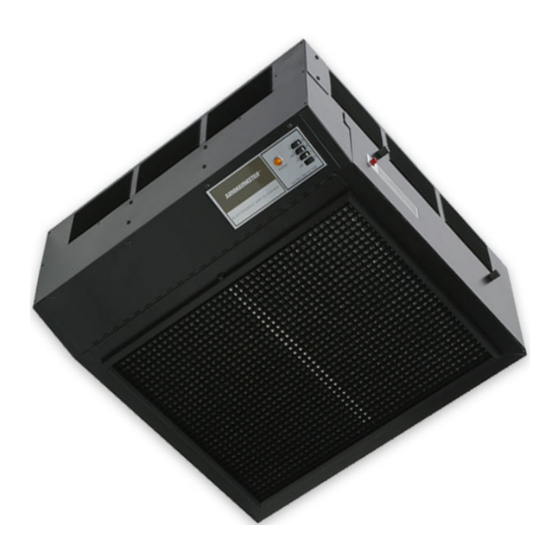

SMOKEMASTER ® MODEL C-12
SELF-CONTAINED ELECTRONIC AIR CLEANER
Distributed By:
Pure n Natural Systems, Inc.
P.O. Box 1137
Streamwood, IL 60107
2016
Air Quality Engineering, Inc. copyrights this manual with all rights reserved. Under the
copyright laws, this manual may not be reproduced in any form, in whole or in part,
without the prior written consent of Air Quality Engineering, Inc.
All statements, technical information and recommendations in this manual or related
documents are believed reliable, but the accuracy and completeness thereof are not
guaranteed or warranted, and they are not intended to be, nor should they be
understood to be representation or warranties concerning the products described.
Specifications are subject to change without notice.
These air cleaners have not been tested for compliance to California Air Resource Board requirements and are not
available for sale, resale or installation in California.
Phone:
1.800.237.9199
Fax:
1-630-540-9717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMOKEMASTER C-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Air Quality Engineering SMOKEMASTER C-12

Summary of Contents for Air Quality Engineering SMOKEMASTER C-12

  • Page 1 1-630-540-9717 2016 Air Quality Engineering, Inc. copyrights this manual with all rights reserved. Under the copyright laws, this manual may not be reproduced in any form, in whole or in part, without the prior written consent of Air Quality Engineering, Inc.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRINCIPLES OF OPERATION INTRODUCTION C-12 SPECIFICATIONS SAFETY PRECAUTIONS COMPONENTS PARTS LIST INSTALLATION CHECKOUT OPERATING INSTRUCTIONS MAINTENANCE SERVICE 11-12 ELECTRICAL SCHEMATICS ELECTRICAL TROUBLESHOOTING WARRANTY PRINCIPLES OF OPERATION HOW YOUR ELECTRONIC AIR CLEANER WORKS A process called “Electrostatic Precipitation” traps airborne contaminants.

  • Page 3: Introduction

    INTRODUCTION Your SMOKEMASTER Electronic Air Cleaner is Recommended quantities of clean outdoor ® an advanced self-contained electronic air ventilation air for various applications are cleaner. The model C-12 unit offers a low cost, described in Table 2 of the ASHRAE Standard 62-89, “Ventilation for Acceptable Indoor Air energy efficient air cleaning solution with Quality.”...

  • Page 4: Safety Precautions

    Do not disassemble or modify. - Fire and/or electrical shock may occur as a result. For repair, contact your dealer or Air Quality Engineering, Inc. Do not damage power cord or use unit with a damaged power cord. Fire, electrical shock, and/or damage may occur as a result.

  • Page 5: Parts List

    C-12 Parts List Figure 2: C-12 Parts Breakdown Part Number Description 120V 220V 60 Hz 50 Hz Models Models 1 Prefilter 41009 (2) 41009 (2) 07316 (2) 2 Electronic Cell 38001 (2) 3 Contact Board Assembly 46113 (2) 46113 (2) 4 Power Supply 07071 07089...

  • Page 6: Installation

    C-12 INSTALLATION Over 14 inches [355 mm] from the ceiling, the IMPORTANT! effect is not a problem. But in the space between, Read these instructions carefully. A slow moving, dirty air is drawn into the area of the hazardous condition or damage to the discharge outlets and can stain a light colored product could result if instructions are not ceiling.
  • Page 7 both directions. This makes it easy to fasten the Be sure that you select a strong structural part air cleaner directly to the ceiling framework with 8 of the ceiling. Do not fasten it to a false ceiling or inch lag screws. Leave space for the power cord to plaster or plaster-board.
  • Page 8 C-12 ELECTRICAL INSTALLATION CAUTION! Only persons qualified to install electrical wiring should attempt this procedure. All wiring must comply with applicable codes and ordinances. WIRING 4. Connect lead wires with solderless connectors including ground (green) wires. The 120V, 60 Hz C-12 has a standard 3-prong Proper grounding of this device is plug on a 10 foot [3 m] power cord.

  • Page 9: Checkout

    CHECKOUT 1. Make sure the air cleaner is securely 5. Turn the electrical power back on. fastened to the true ceiling. 6. Make sure the fan runs on all three-speed 2. Replace the power module (X-11Q only) and settings. The system light should be on reconnect the electronic plugs.

  • Page 10: Maintenance

    The intake grille may be removed from the machine for periodic washing. A wash kit is 7. Check the electronic cells for broken wires and available from Air Quality Engineering. bent collector plates. The cells may be installed in the air cleaner and energized. The 1.

  • Page 11: Service

    SERVICE 5. Remove the screws holding the motor to the unit to remove the motor. WARNING! 6. Install the new motor, connect the electrical lines and replace the fan, cells, prefilter and The following instructions are intended for grille. qualified service personnel only. Dangerous line voltage circuits are exposed during this 7.

  • Page 12: Electrical Schematics

    3. Hold the opposite eyelet with a needle-nose IONIZING WIRE REPLACEMENT pliers and stretch the wire the length of the cell. Depress the opposite spring connector The ionizing wires in the charging section of the and hook the eyelet over it (see Figure 18 for electronic cell may break or become damaged.

  • Page 13: Electrical Troubleshooting

    If arcing still occurs when the cell is clean and Be sure the electronic cells are in place, the dry, consult your Air Quality Engineering, Inc., intake grille is closed and the unit is turned on. representative or dealer for repair.

  • Page 14: Warranty

    (“product”) fail to perform by reason of improper workmanship or material, Air Quality Engineering, Inc., (AQE) will, during the period of one (1) year from the date of original purchase either (i) replace the Product or (ii) provide all necessary parts to repair the Product, without charge.
